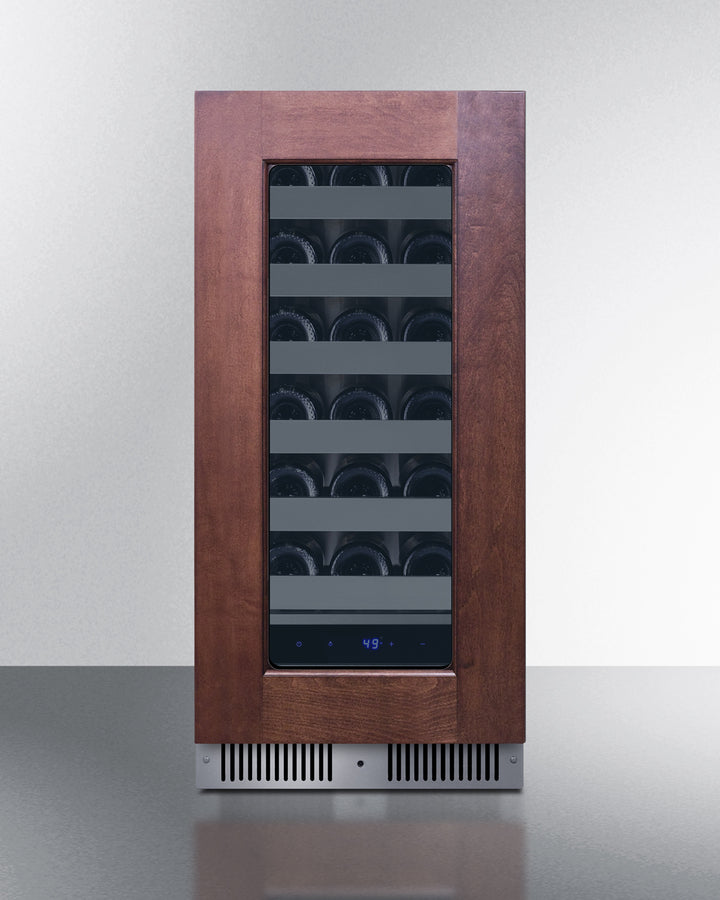

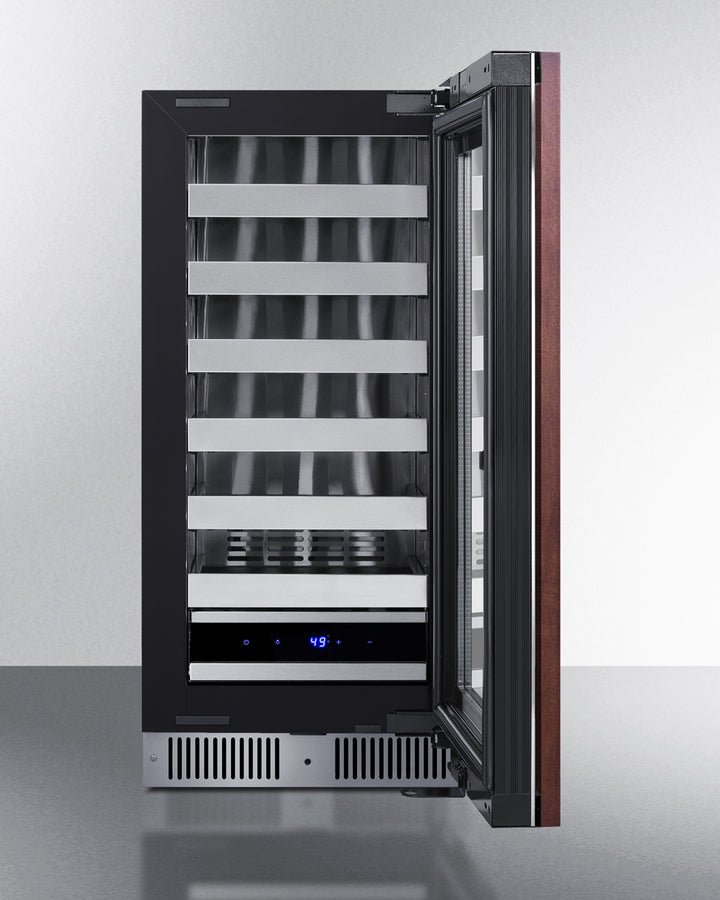

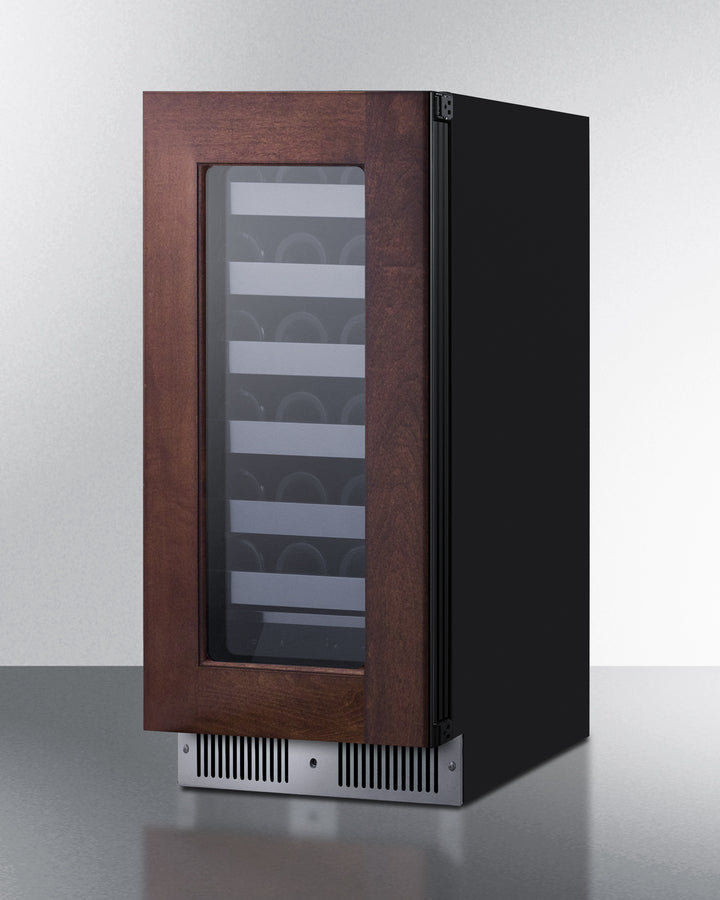

Summit SDHW1532PNR 15″ Wide Shallow-Depth Wine Cellar – Built-In Panel-Ready, Left-Hinge

SKU: SA-SDHW1532PNR
Regular price $1,813.20
Precise Wine Temperature Control — 41-68 °F set range via digital thermostat with high/low alerts, memory recall, and fan-assisted cooling for uniform temps.
Secure, Commercial-Grade Construction — Stainless steel interior, factory-installed lock, Sabbath mode, double-pane tempered glass, and ETL-S listing to NSF-7 for commercial use.
Frost-Free & Low-Maintenance Design — No manual defrosting required thanks to internal frost-free cooling system.

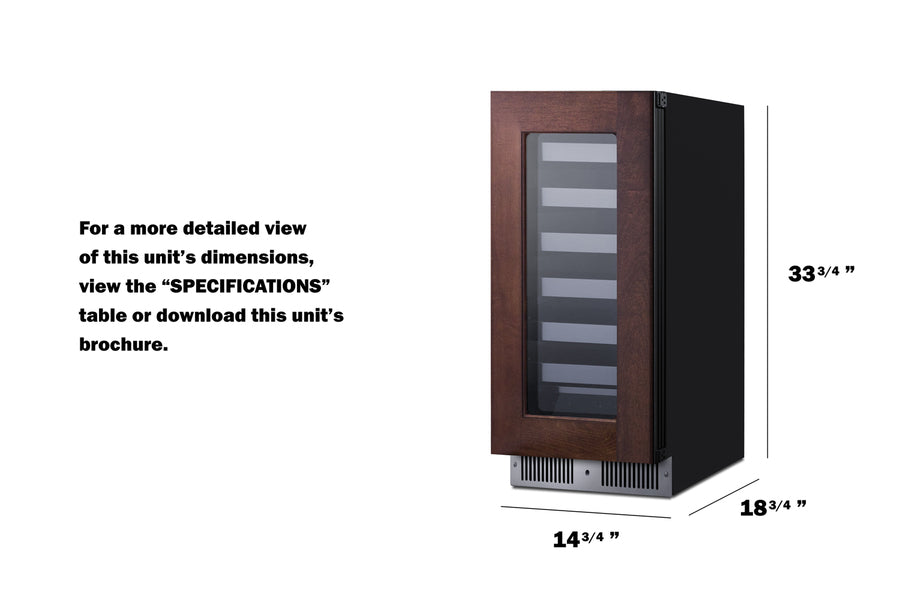

33.75" H x 14.75" W x 18.0" D
(86cm H x 37cm W x 46cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SDHW1532PNR

15" Wide Wine Cellar:
Single zone wine cooler for residential or commercial storage

18" Depth:
Unique 18" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Built-in capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

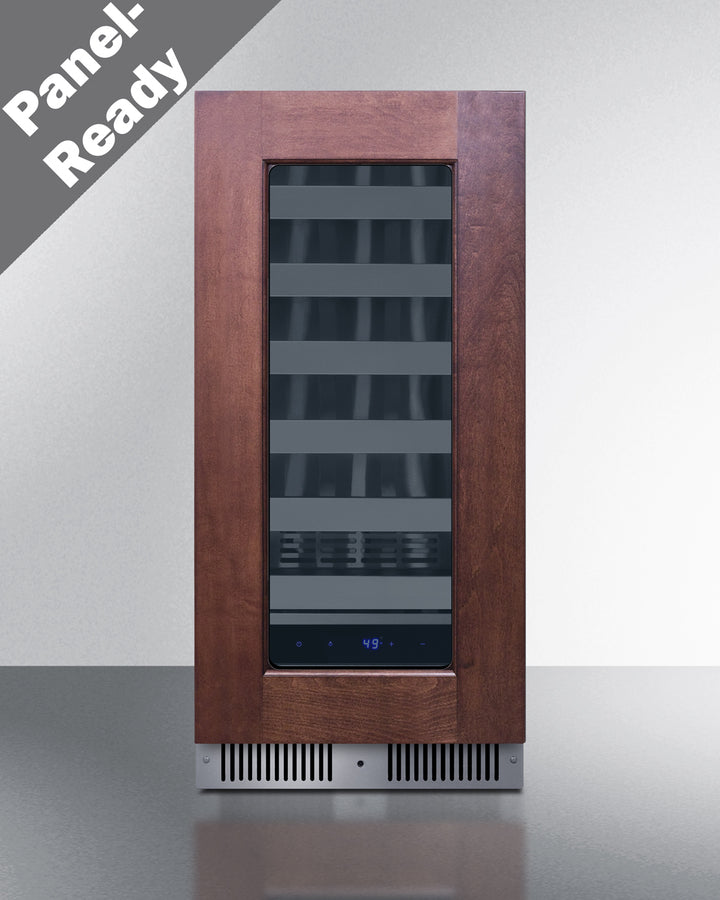

Panel-ready door:
European style articulating door hinge and bracket kit allow easy installation of custom door trim panels to match adjacent cabinetry; recommended panel dimensions: 3/4" thickness at 30" H x 14 5/8" W with a 3 1/4" H x 3 1/4" W inner frame

Versatile design:
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of stainless steel door trim

Double pane tempered glass door:
Elegant design offers a clear but protected view of your interior

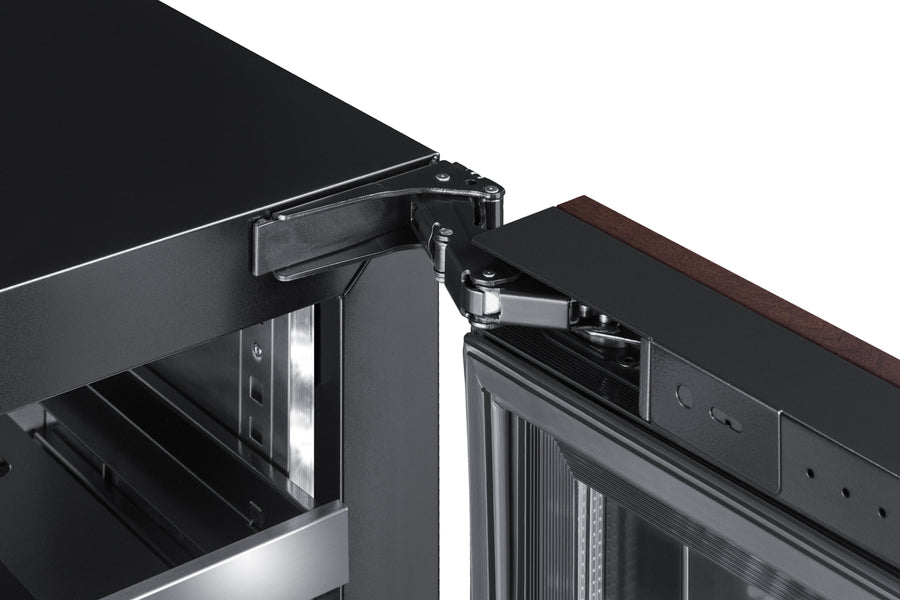

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Commercially approved:
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

Frost-free operation:
No-frost operation for minimum user maintenance

Digital controls:
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Ideal temperature range:
The unit's temperature range of 41º to 68ºF is ideal for red, white, or sparkling wine bottles

Angled thermostat:
Thermostat’s unique and ergonomic position allows for more accessible temperature readings with zero bending required

Dimmable LED light:
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Open door alarm:
Alarm sounds if the door is left open for more than 60 seconds

High/low temperature alarm:
Audible alarm sounds if the interior temperature rises out of set range

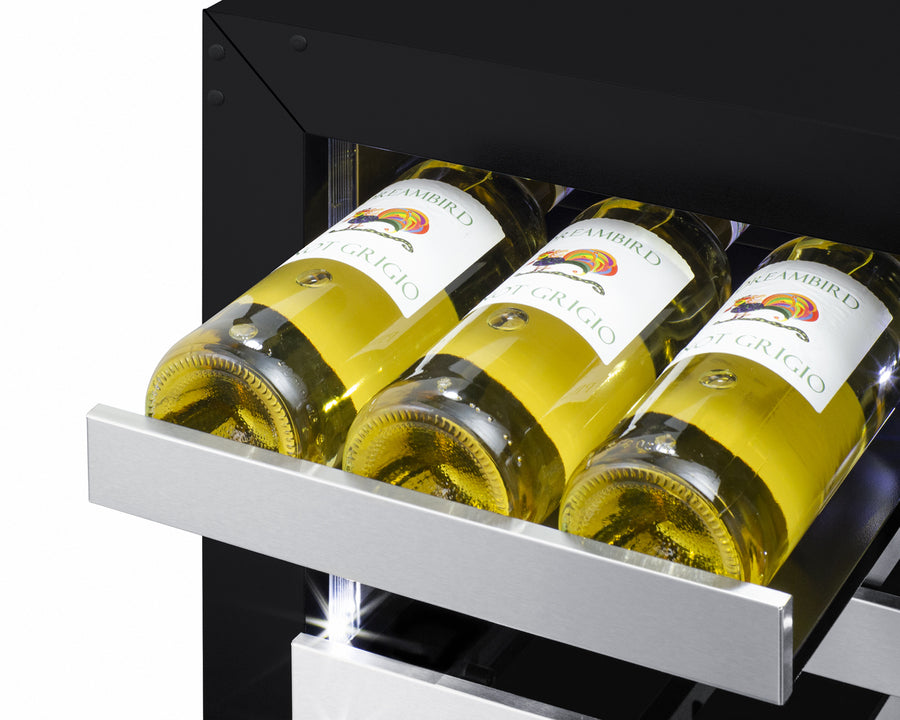

Commercial wine shelving:
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Sabbath mode:
Optional setting lets you disable the lighting and alarm for up to 96 hours

Temperature memory function:
Unit will retain its last settings when power is restored in the event of power loss

Full capacity:
18-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

Fully finished black cabinet:
Allows the unit to be used freestanding

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Left-hand door swing:
For this unit with a standard right-hand door swing, see model SDHW1532PNR

Quiet operation:
Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free:
Environmentally friendly design with no ozone-damaging chemicals

CARB compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

The SDHW1532PNRLHD is a 15" wide single-zone wine cellar sized at 18" deep.  It comes in a 34" height to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit. A lock is located in the kickplate for added security. The panel-ready SDHW1532PNRLHD features our fully articulating European hinge, with a 2-piece bracket kit included to allow easy installation of your own custom door trim. This unit comes with a left-hand door swing. For a right-hand version, see the SDHW1532PNR.

The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.

Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.

The SDHW1532PNRLHD is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG1533PNRLHD beverage center.

Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

 Overview


Refrigerator-Freezer



Nominal Height 34.0" (86 cm) Number of Zones 1
Height of Cabinet 33.75" (86 cm) Door Swing LHD/RHD
Nominal Width 15.0" (38 cm) Adjustable Shelves Yes
Width 14.75" (37 cm) Shelf Type Steel
Nominal Depth 18.0" (46 cm) Shelf Qty 6
Depth 18.0" (46 cm) Thermostat Type Digital
Depth with door at 90° 32.63" (83 cm) Interior Light Yes
Capacity 1.8 cu.ft. (51 L) Fan Type Interior and Exterior
Bottles 18 bottles Refrigerant Type R600a
Defrost Type Frost-Free Refrigerant Amount 0.64 oz.
Door Glass/Panel-Ready Frame High Side PSI 270.0
Cabinet Black Low Side PSI 105.0
US Electrical Safety ETL Interior Height 1 26.0" (66 cm)
Canadian Electrical Safety ETL-C Interior Width 1 10.63" (27 cm)
Sanitation ETL-S Interior Depth 1 12.25" (31 cm)
Amps 1.0 Compressor Step Height 3.75" (10 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Width 10.63" (27 cm)
Weight 88.0 lbs. (40 kg) Compressor Step Depth 5.0" (13 cm)
Parts & Labor Warranty 1 Year Temperature Range 41°F to 68°F
Compressor Warranty 5 Years Sabbath Mode Yes
UPC 761101145778 Sound Level 33.3 dB

BROCHURE

ASSEMBLY DRAWING

SUPPORT
