Summit FF7BKCSSADA 24″ Wide ADA-Height Built-In All-Refrigerator – Full Stainless Steel Cabinet
Customer service
Features
- SKU SA-FF7BKCSSADA
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BIADA Series features 24" wide all-refrigerators designed for built-in installation under lower ADA compliant counters.

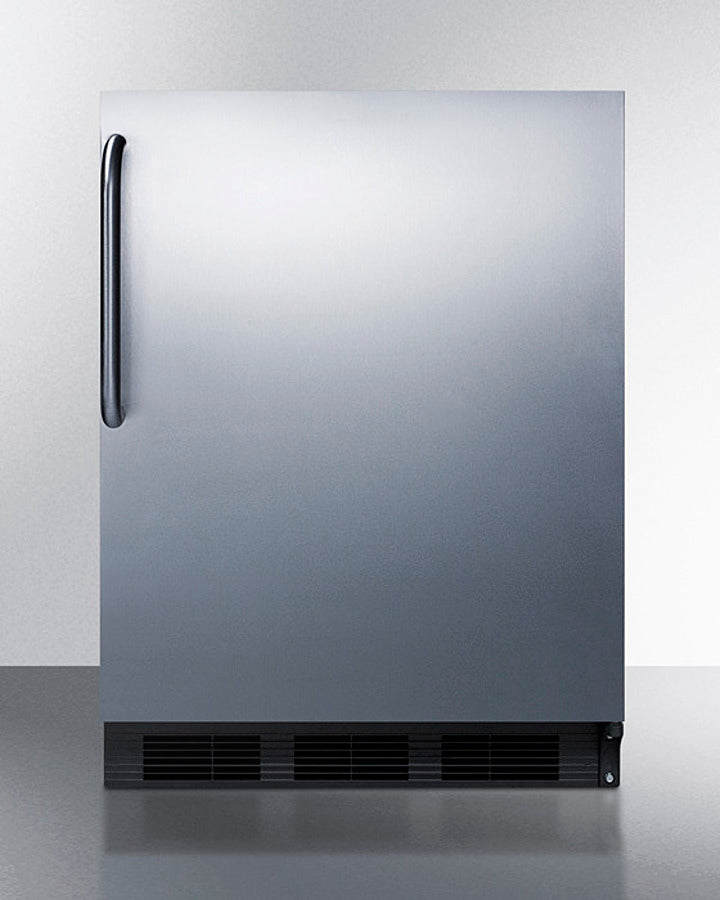

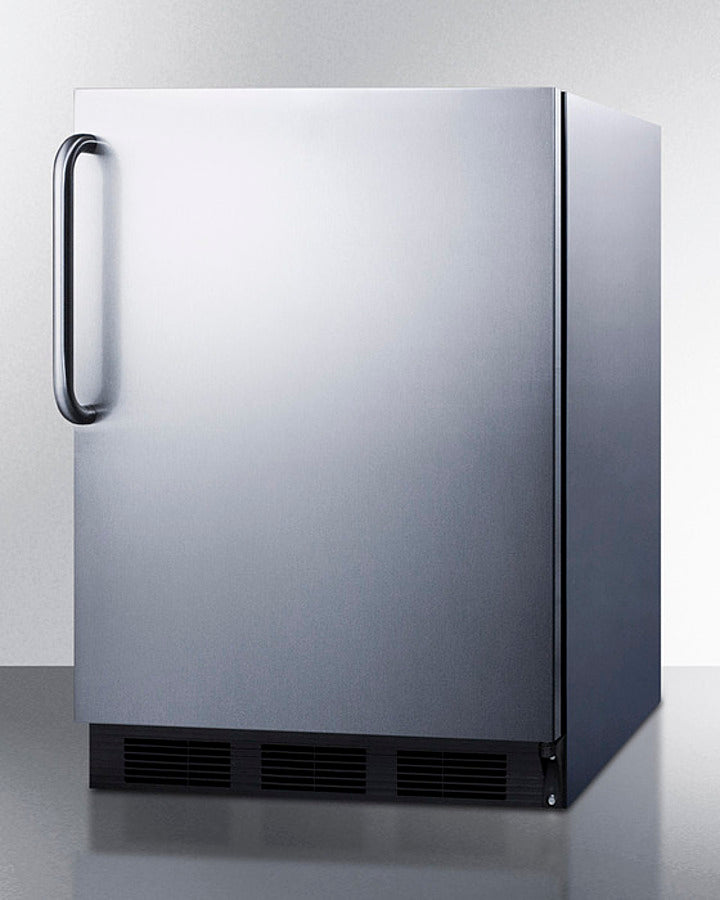

The FF7BKCSSADA is a 32" high all-refrigerator with a full 5.5 cu.ft. capacity inside a slim 24" footprint. The front-breathing design allows built-in use under counters, while the fully finished cabinet also lets this unit be used freestanding. This model has a fully wrapped stainless steel exterior cabinet and door. A curved towel bar handle in brushed stainless steel completes the professional look.

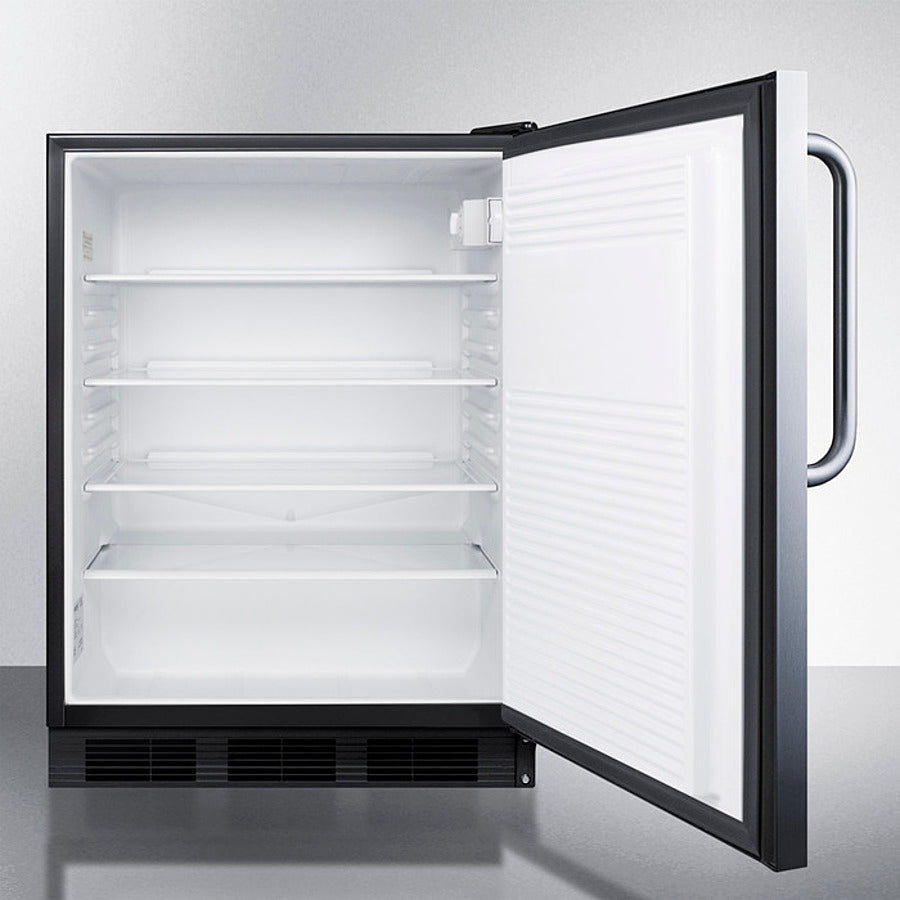

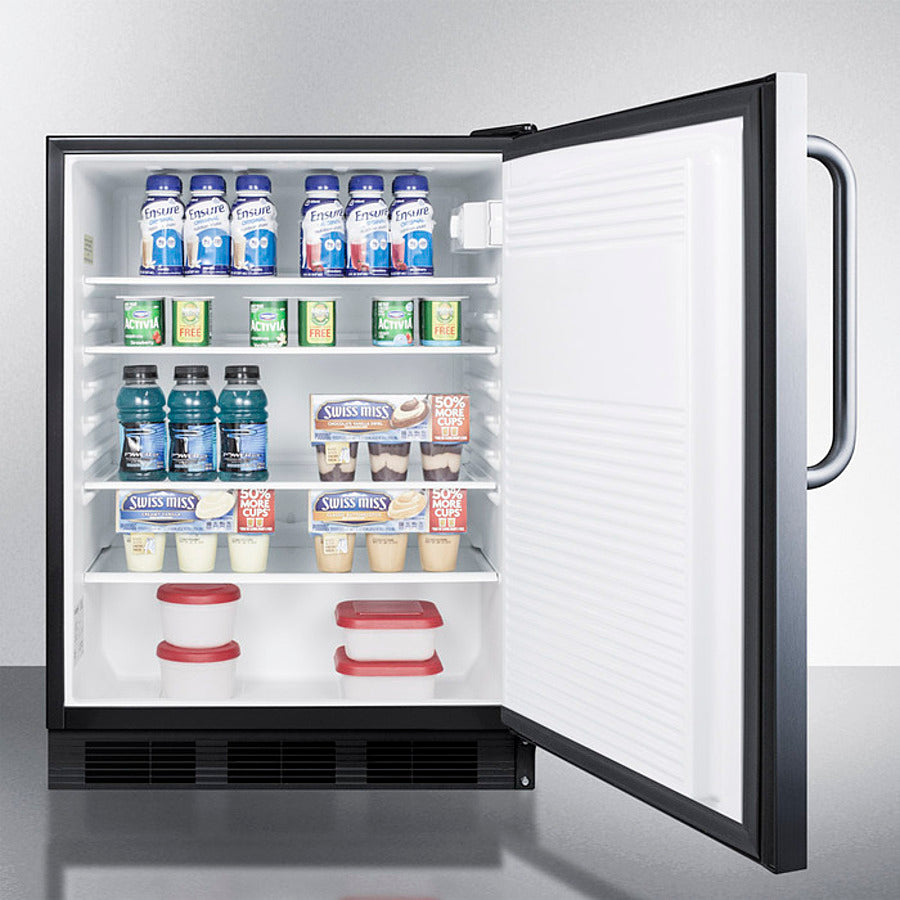

Inside, the FF7BKCSSADA utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable glass shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.
The FF7BKCSSADA is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BIADA Series.
NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Shelf Type | Glass |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 3 |
| Width | 23.75" (60 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Dial |
| Depth | 23.25" (59 cm) | Fan Type | Exterior |
| Depth with Handle | 25.25" (64 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 45.5" (116 cm) | Refrigerant Amount | 0.64oz. |
| Capacity | 5.5 cu.ft. (156 L) | High Side PSI | 180.0 |
| Defrost Type | Automatic | Low Side PSI | 80.0 |
| Door | Stainless Steel | Level Legs Qty | 4 |
| Cabinet | Stainless Steel | Interior Light | Yes |
| US Electrical Safety | ETL |
Dimensions
|
|
|---|---|---|---|
| Canadian Electrical Safety | ETL-C | Interior Height | 27.75" (70 cm) |
| Sanitation | ETL-S | Interior Width | 20.0" (51 cm) |
| Amps | 1.4 | Interior Depth | 17.5" (44 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 7.0" (18 cm) |
| Weight | 100.0 lbs. (45 kg) | Compressor Step Width | 20.0" (51 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 6.0" (15 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101072890 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
