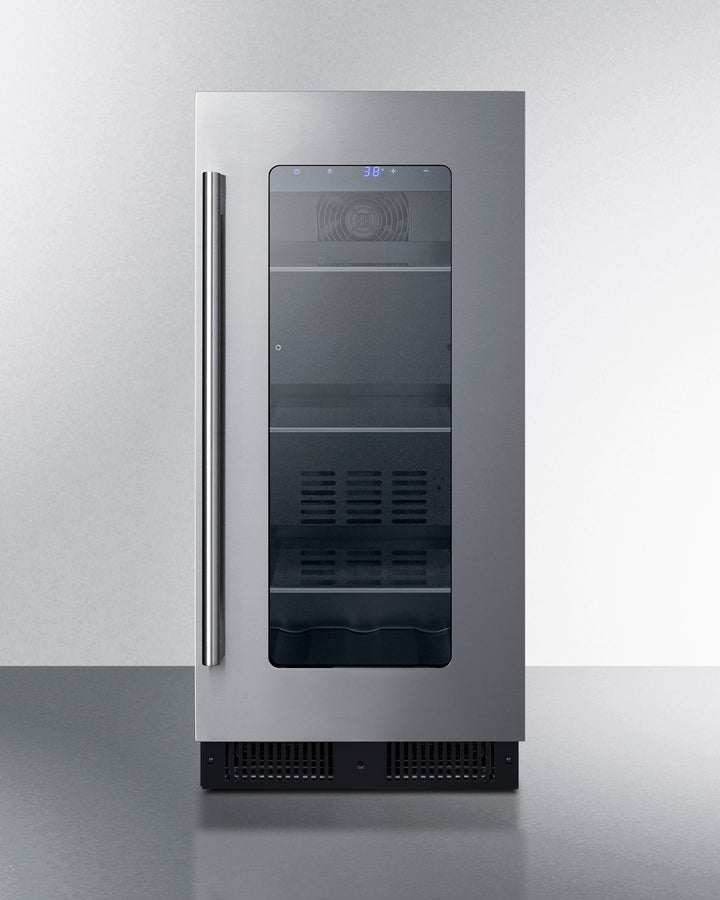

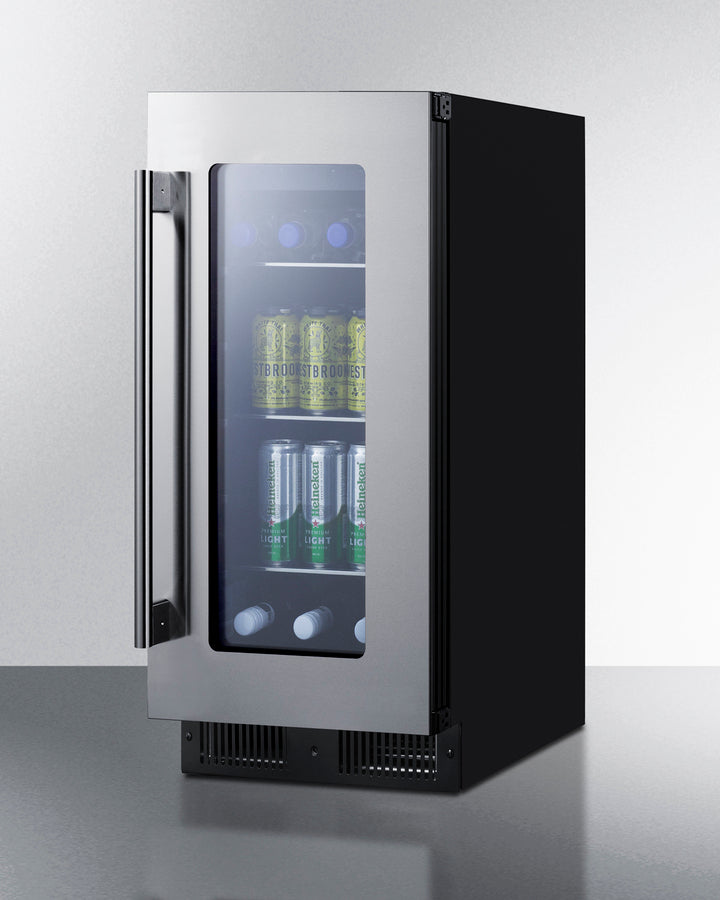

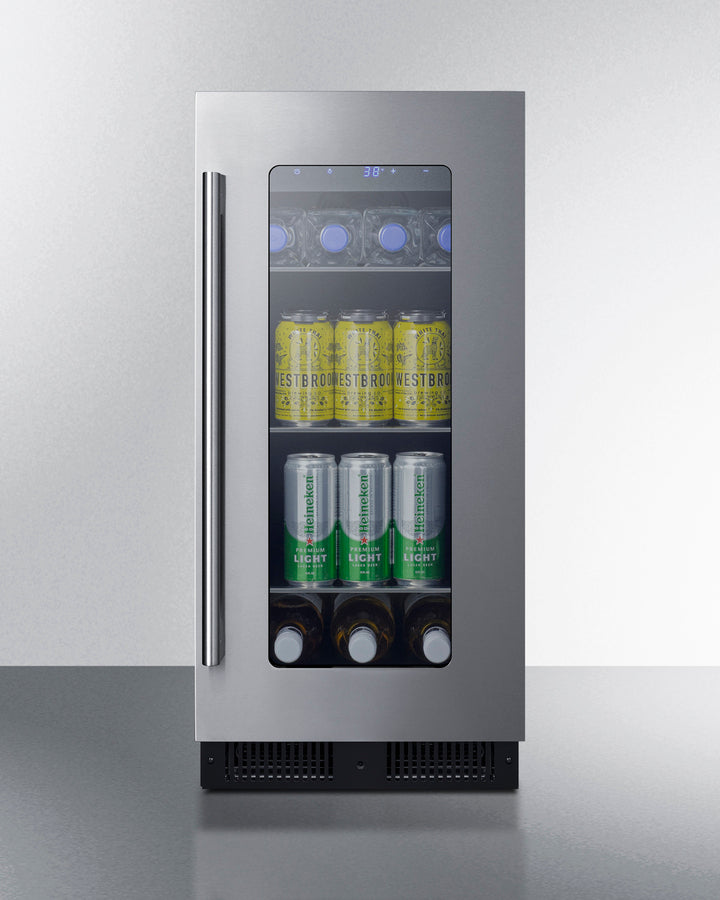

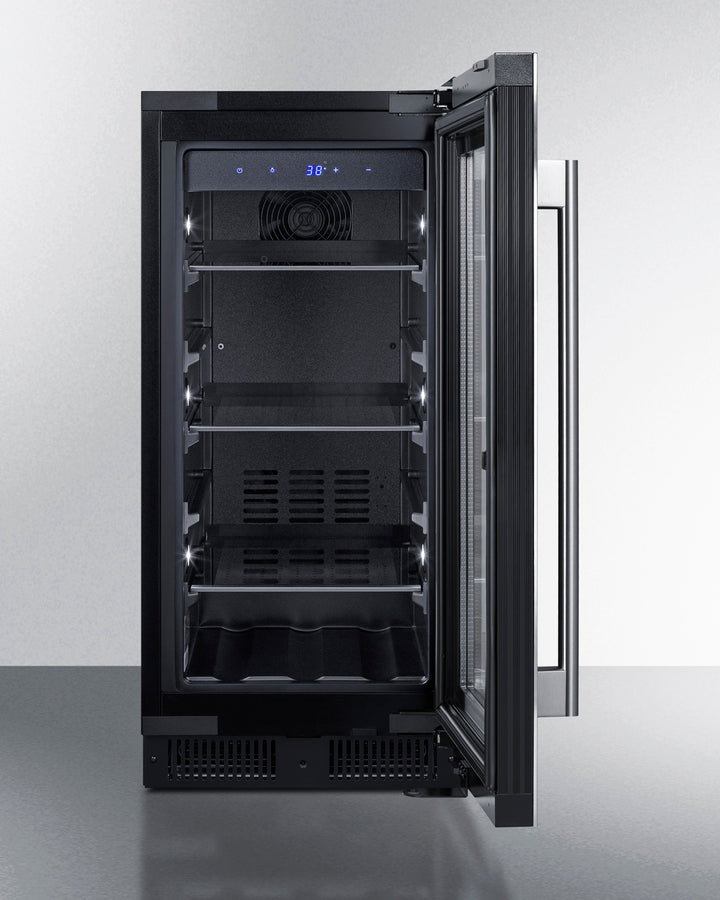

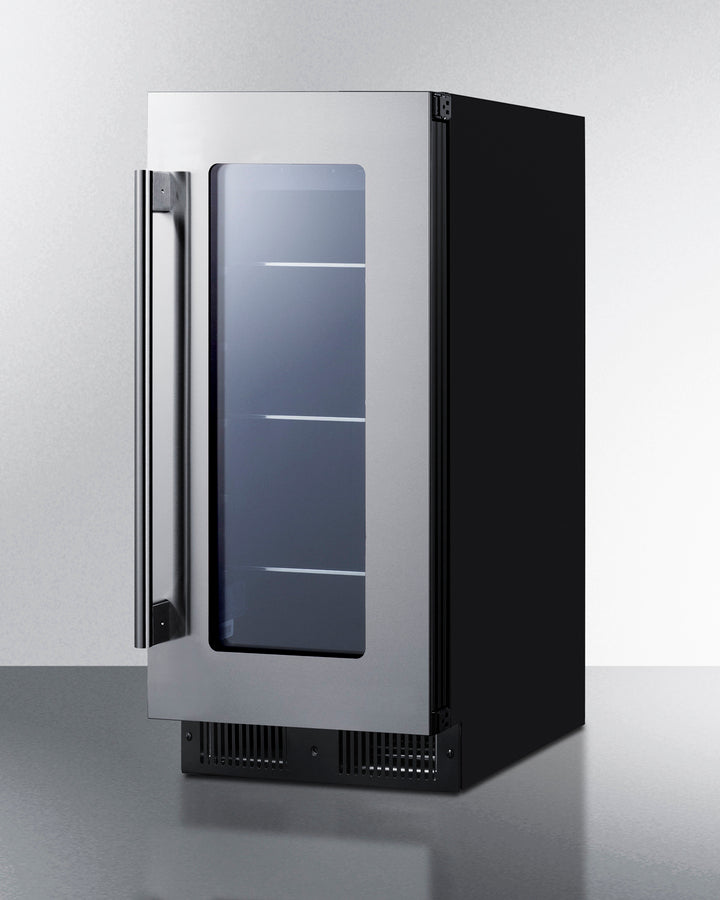

Summit ALBV15 15″ Wide ADA-Height Built-In Beverage Center – Glass Door, 2.3 cu ft

SKU: SA-ALBV15
Regular price $1,233.00
Adjustable & Practical Storage — Comes with three adjustable glass shelves, slotted floor for bottles, reversible door swing, Sabbath mode, and leveling legs (adjustable to raise height).
Automatic Defrost & Seamless Interior — Hidden evaporator behind the rear wall provides a cold-wall design, eliminating frost buildup and making cleaning easier. Low Maintenance Operation — Automatic defrosting, interior/exterior fan systems for even temperature, and digital thermostat (36-43 °F range) with alarms (open door, high temp).
Glass Door Display & Security — Double-pane tempered glass door with stainless steel trim offers visibility; factory installed keyed lock (2 keys) ensures security.
32.0" H x 14.75" W x 23.63" D
(81cm H x 37cm W x 60cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-ALBV15

15" Wide Beverage Center:
Slim-fitting glass door refrigerator sized for undercounter installation in ADA compliant spaces

ADA compliant:
Sized at 32" high for use under lower ADA compliant counters

Built-in capable:
Make the best use of space by installing your appliance under the counter

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

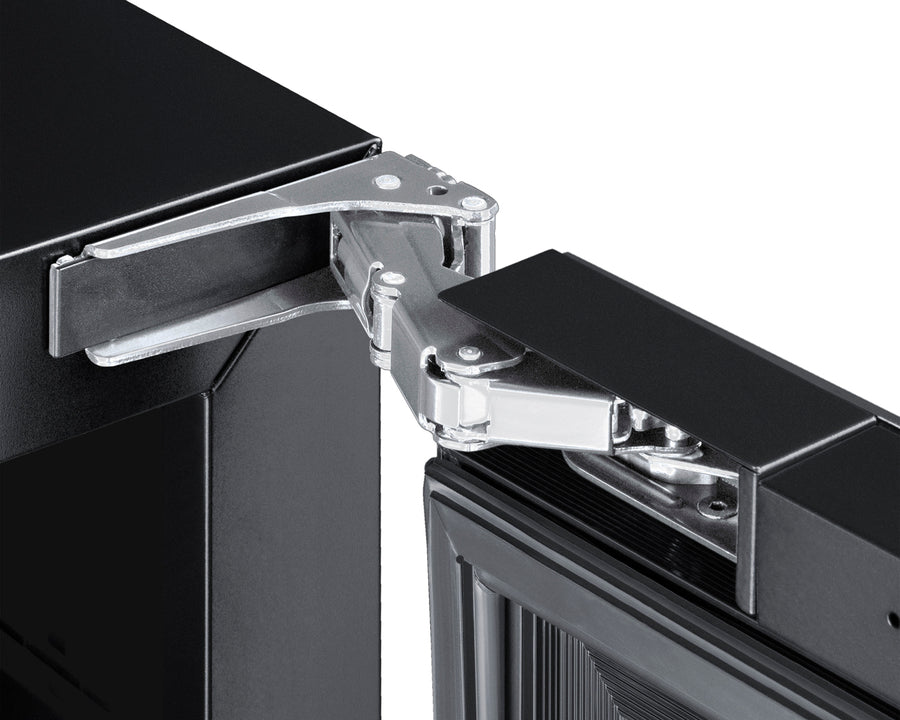

Fully articulating European style hinge:
Cleaner openings with a fully extended hinge system

Glass door with stainless steel trim:
Provides a full display of stored contents with a heat-safe double tempered design

Factory installed lock:
Keyed lock for a secure interior, with two keys included

Digital thermostat:
Electronic controls for precise temperature management.

Digital display:
Temperature readout can be shown in Celsius or Fahrenheit

LED lighting:
Gentle illumination with an on/off switch

Automatic defrost:
Reduced maintenance with the convenience of auto defrost

Adjustable glass shelves:
Flexible storage with spill-proof convenience

Slotted floor:
Floor includes slots to hold bottles in place

Reversible door:
User-reversible door swing on the refrigerator for added flexibility

Height adjustable:
Leveling legs can raise the unit to up to 34.5" for more standardized counters. An extra kickplate cover is included to cover the added space

Professional handle:
Stainless steel look for added elegance

Sabbath mode setting:
Optional setting lets you disable the lighting and alarm for up to 48 hours during periods of observance

High temperature alarm:
Audible alarm sounds if the interior temperature rises out of set range

Open door alarm:
Alarm sounds if the door is left open for more than 60 seconds

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Flush back:
Space saving design makes it easier to install flush against the wall

Matching wine cellar available:
Pair with the ALWC15 for a perfectly matched set

Fully finished black cabinet:
Allows the unit to be used freestanding

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

HTS CODE: 8418.50.0080:
Upright coolers incorporating refrigerating equipment, each measuring not more than 77 cm/30.315" in width, not more than 78 cm/30.7" in depth and not more than 200 cm/78.75" in height, weighing not more than 127 kg/280 lb, with one swing-type transparent glass door

Summit offers the industry's largest selection of 32" high ADA compliant appliances, with quality choices for built-in or freestanding use in 15" wide spaces.

The ALBV15 is a beverage center sized just under 15" wide and 32" high to fit under lower ADA compliant counters. The front-breathing system allows built-in installation, while the fully finished black cabinet also makes it safe for freestanding use. This unit features a user-reversible double pane tempered glass door complete with seamless stainless steel trim, a European-style fully articulating hinge, and pro style handle. The front lock offers added security. For added space savings, the ALBV15 is designed with a sealed back, integrated hinge, and right angle cord. This unit is also height adjustable with adjustable leveling legs and an extra kickplate that allows you to raise the unit up to an additional 3".

Three adjustable glass shelves offer flexible, spill-proof storage, with black trim for added color matched style. This model utilizes automatic defrost for easy maintenance and includes an internal fan to ensure more even temperature distribution. An audible alarm sounds if the door has been left open for over one minute, or if the temperature has risen out of the recommended storage range. This unit is also equipped with Sabbath mode to allow users the option of disabling certain electrical functions during periods of religious observance.

With its unique size and user-friendly features, the ALBV15 is the perfect choice for space-constrained ADA compliant settings. For a matching wine cellar, see the ALWC15.

 Overview


Refrigerator-Freezer



Nominal Height 32.0" (81 cm) Door Swing RHD
Height of Cabinet 32.0" (81 cm) Reversible Yes
Nominal Width 15.0" (38 cm) Shelf Type Glass
Width 14.75" (37 cm) Shelf Qty 3
Nominal Depth 24.0" (61 cm) Adjustable Shelves Yes
Depth 23.63" (60 cm) Thermostat Type Digital
Depth with Handle 25.38" (64 cm) Fan Type Interior and Exterior
Depth with door at 90° 38.25" (97 cm) Refrigerant Type R600a
Capacity 2.6 cu.ft. (74 L) Refrigerant Amount 0.78oz.
Defrost Type Automatic High Side PSI 270.0
Door Glass Low Side PSI 105.0
Cabinet Black Level Legs Qty 4
US Electrical Safety ETL Interior Light Yes
Canadian Electrical Safety ETL-C Temperature Range 36 - 43ºF
Sanitation ETL-S Sound Level 33 dB
Energy Usage/Year 280.0kWh/year
Dimensions
Amps 1.0 Interior Height 21.25" (54 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Width 10.5" (27 cm)
Weight 68.0 lbs. (31 kg) Interior Depth 17.25" (44 cm)
Parts & Labor Warranty 1 Year Compressor Step Height 3.5" (9 cm)
Compressor Warranty 5 Years Compressor Step Width 10.5" (27 cm)
UPC 761101056388 Compressor Step Depth 5.0" (13 cm)

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
