Summit FF7LWCSS 24″ Wide Built-In/Undercounter All-Refrigerator – 5.5 cu ft Stainless Steel Cabinet & Door
Customer service
Features
- SKU SA-FF7LWCSS
Accucold by Summit Appliance offers a wide range of all-refrigerators for general purpose storage. The commercially listed FF7BI Series features high performing, perfectly sized all-refrigerators designed for built-in use under counters.

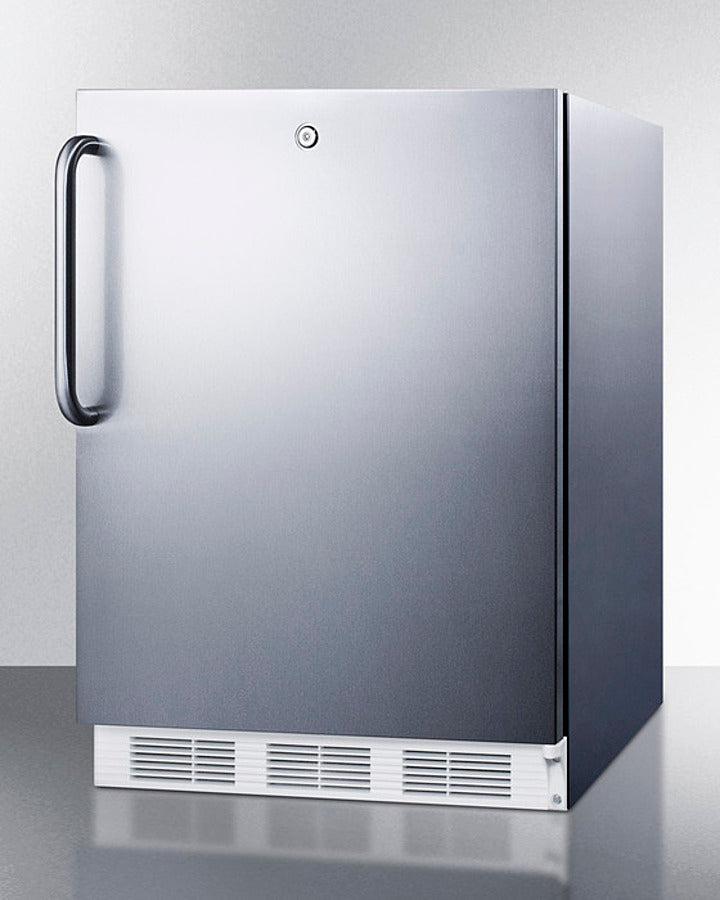

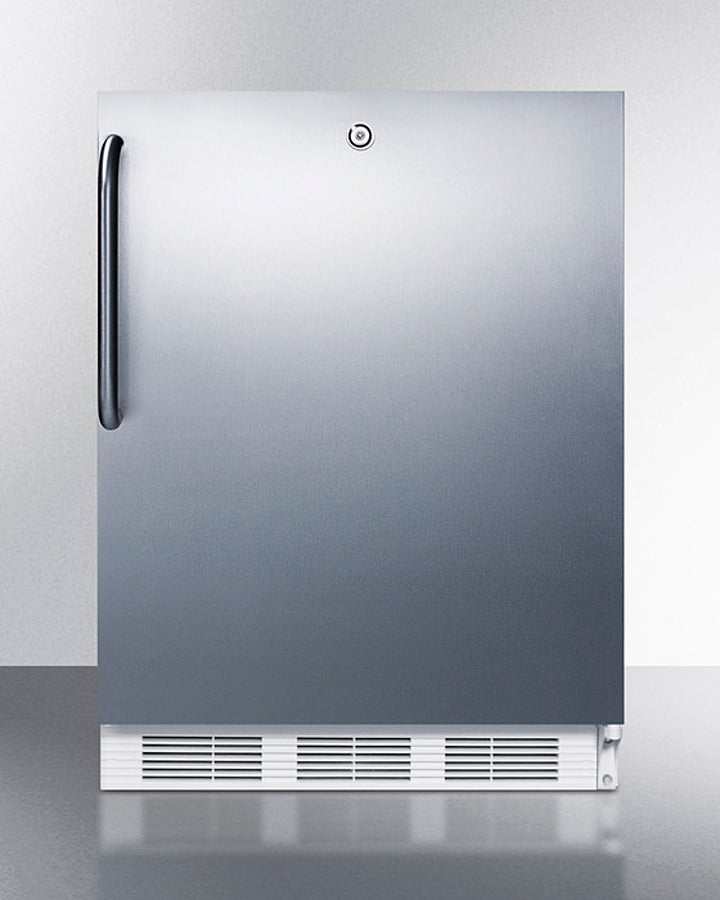

The FF7LWCSS features a front-breathing design that allows built-in installation under counters, while the fully finished cabinet also enables freestanding use. The 24" footprint is ideal for many common cutouts, while the full 5.5 cu.ft. interior provides more storage than most units in this size class. This unit comes in a fully wrapped stainless steel finish. A curved towel bar handle completes the professional look and a factory installed front lock offers convenient security.

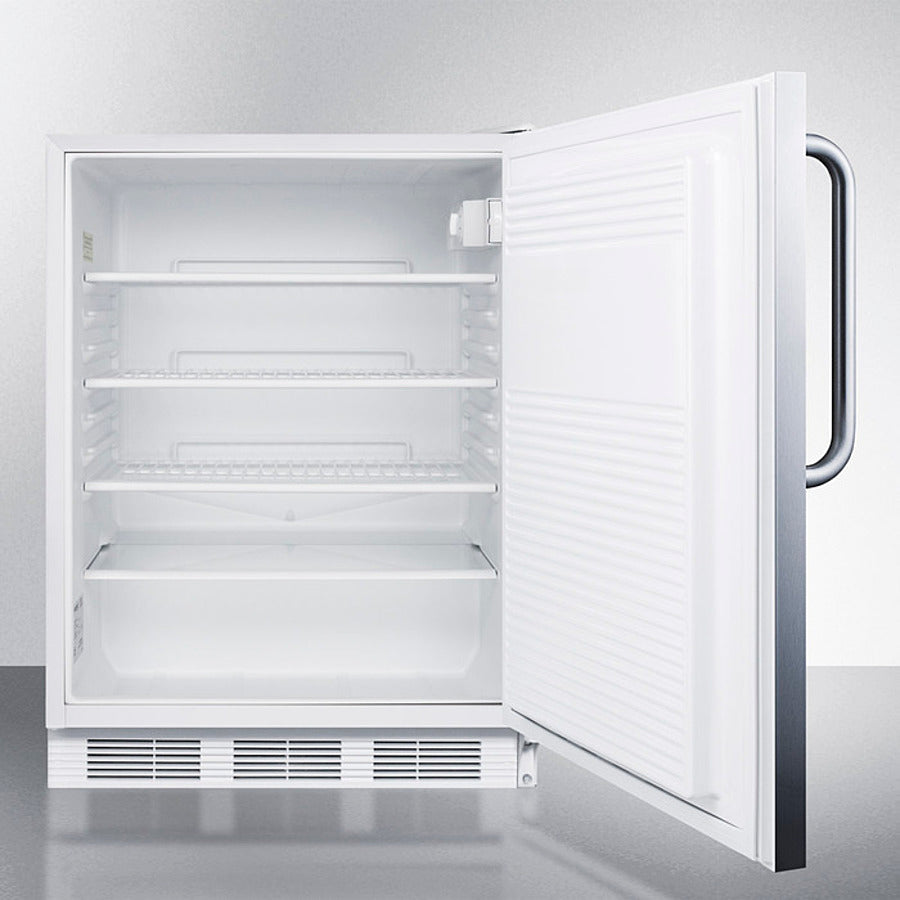

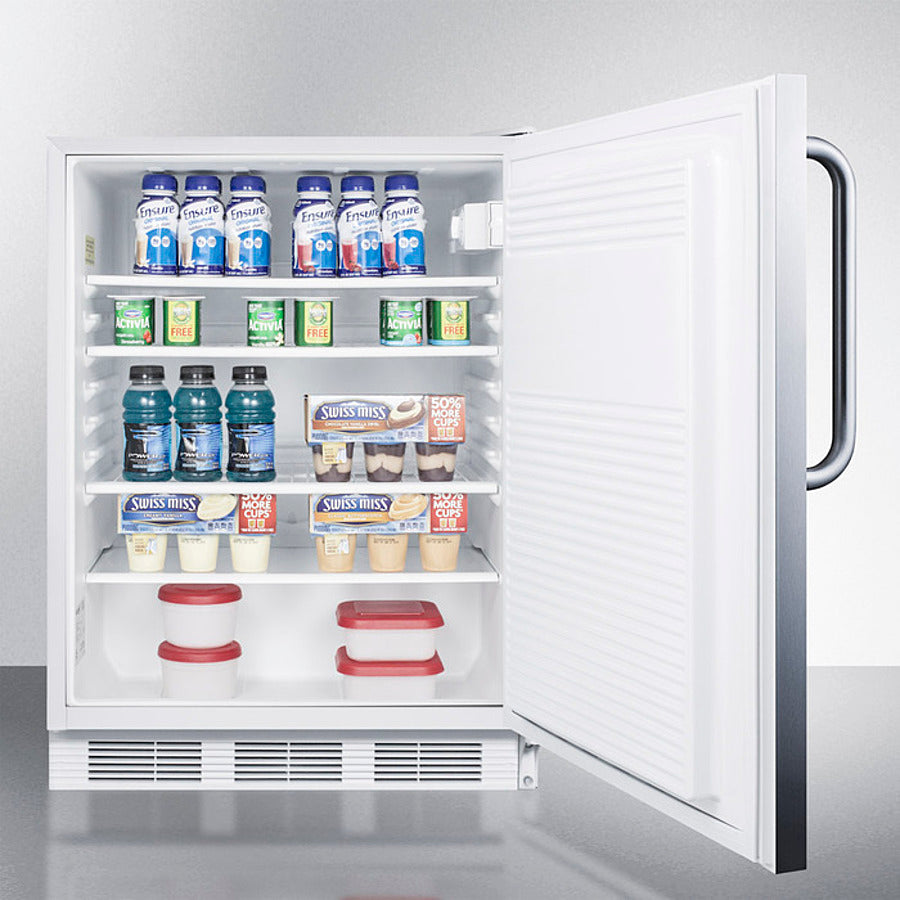

Inside, the FF7LWCSS utilizes low maintenance automatic defrost operation. Our unique "hidden" evaporator is set behind the rear wall to create a seamless, easy-to-clean interior that also maximizes shelf space. This unit has a flat door liner that allows it to accept larger trays (up to 19 1/2" x 16"). Adjustable wire shelves allow users to reconfigure the interior to accommodate a variety of sizes. The interior light is controlled by an on/off rocker switch located behind the thermostat dial.
The FF7LWCSS is ETL-S listed to NSF-7 standards for use in commercial establishments. For more finish options, browse the entire FF7BI Series.
NOTE: This unit is designed for general purpose or commercial applications and does not meet DOE energy standards for residential use.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 34.0" (86 cm) | Door Swing | RHD |
| Height of Cabinet | 33.25" (84 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 33.75" (86 cm) | Shelf Type | Wire |
| Nominal Width | 24.0" (61 cm) | Shelf Qty | 3 |
| Width | 23.75" (60 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 24.0" (61 cm) | Thermostat Type | Dial |
| Depth | 23.5" (60 cm) | Fan Type | Exterior |
| Depth with Handle | 25.25" (64 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 45.5" (116 cm) | Refrigerant Amount | 0.64oz. |
| Capacity | 5.5 cu.ft. (156 L) | High Side PSI | 180.0 |
| Defrost Type | Automatic | Low Side PSI | 80.0 |
| Door | Stainless Steel | Level Legs Qty | 4 |
| Cabinet | Stainless Steel | Interior Light | Yes |
| US Electrical Safety | ETL |
Dimensions
|
|
|---|---|---|---|
| Canadian Electrical Safety | ETL-C | Interior Height | 27.75" (70 cm) |
| Sanitation | ETL-S | Interior Width | 20.0" (51 cm) |
| Amps | 1.4 | Interior Depth | 17.5" (44 cm) |
| Weight | 100.0 lbs. (45 kg) | Compressor Step Height | 7.0" (18 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Width | 20.0" (51 cm) |
| Compressor Warranty | 5 Years | Compressor Step Depth | 6.0" (15 cm) |
| UPC | 761101072579 | ||
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
