Summit ALR46W 20″ Wide Built-In ADA All-Refrigerator — White Cabinet, 3.53 cu. ft.
Customer service
Features
- SKU SA-ALR46W
Summit Appliance offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA compliant counters, with advanced features for user convenience.

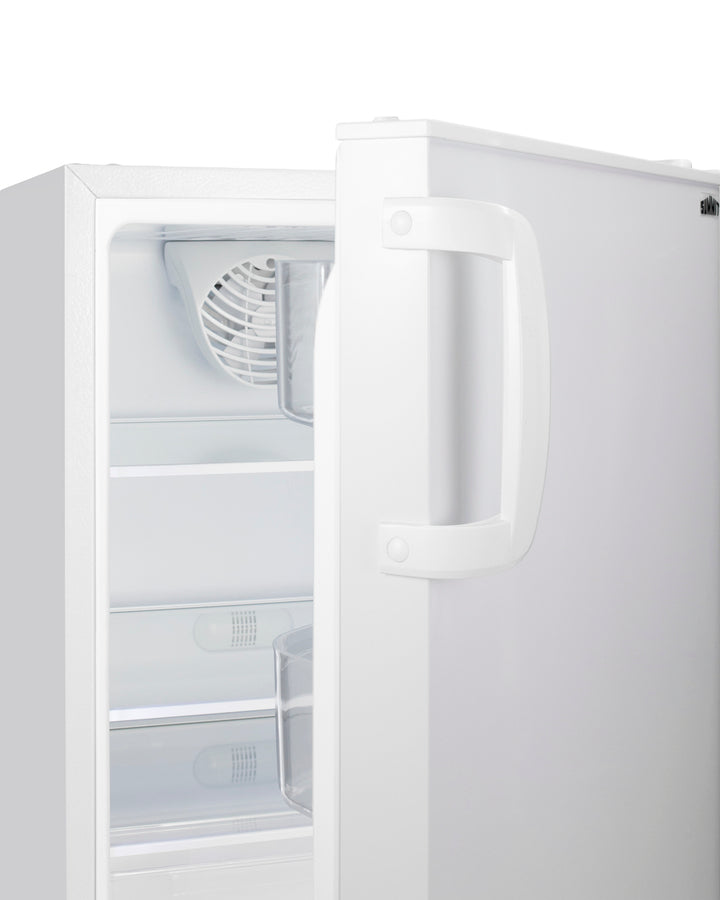

The ALR46W is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The user-reversible door is 3" thick for efficient insulation, with a handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A digital thermostat, located in the kickplate, makes for easy temperature management with a readout in Fahrenheit or Celsius.

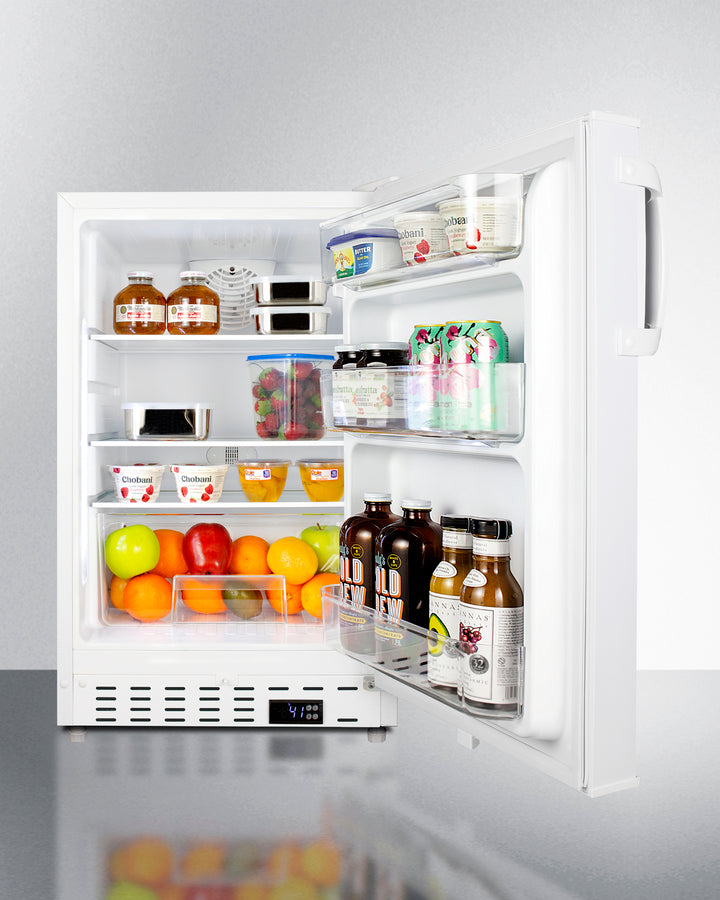

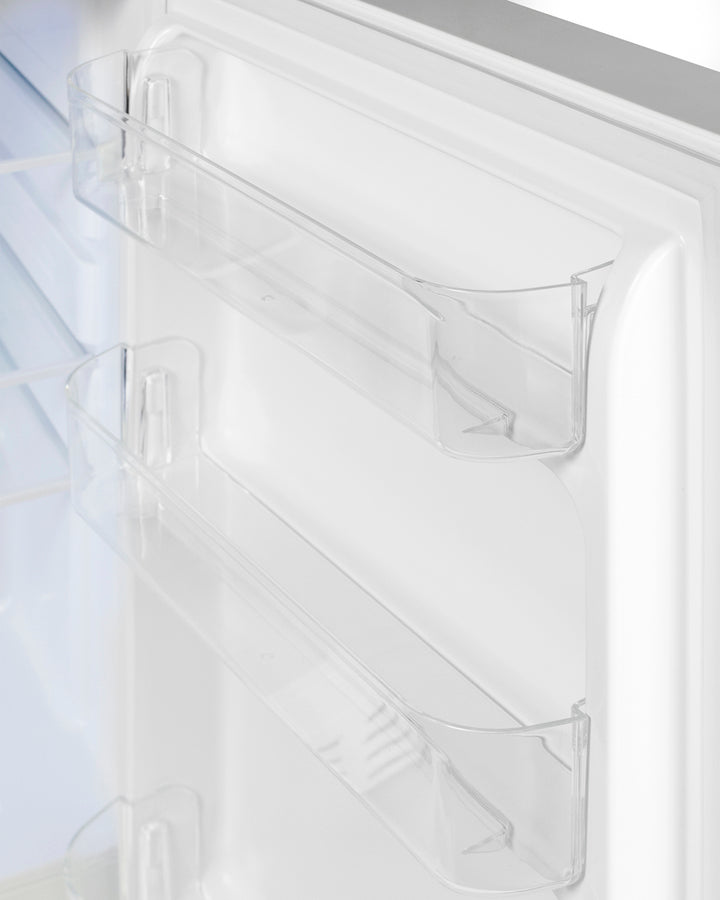

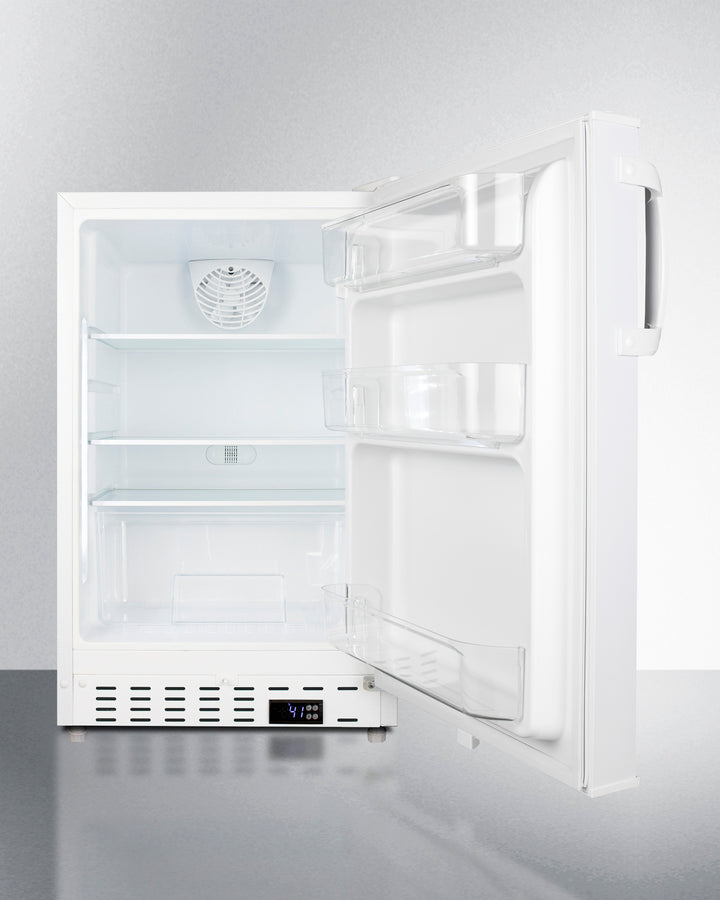

Inside, the ALR46W features an all-white interior for easy cleaning and viewing of contents. An LED light located toward the front of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help ensure even cooling throughout the 3.53 cu.ft. interior. Three adjustable glass shelves offer optimal storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. The user-set high and low-temperature alarms provide added security should the temperature go beyond the setpoint, while the open door alarm sounds if the door is ajar over one minute for added peace-of-mind. These alarms can be disabled depending on your needs.
Sized at just 20" wide, the ALR46W is the perfect addition for space-challenged environments seeking dependable freezer options in a durable design. For a complete set, pair this unit with the matching ALFZ36 all-freezer. Additional choices are available in stainless steel and panel-ready exterior finishes.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Crisper Qty | 1 |
| Nominal Width | 20.0" (51 cm) | Crisper Finish | Transparent |
| Width | 19.75" (50 cm) | Crisper Cover | Glass |
| Width with Door Open | 20.25" (51 cm) | Shelf Type | Glass |
| Nominal Depth | 23.0" (58 cm) | Shelf Qty | 3 |
| Depth | 22.5" (57 cm) | Full Door Shelf Qty | 3 |
| Depth with Handle | 24.38" (62 cm) | Adjustable Shelves | Yes |
| Depth with door at 90° | 40.25" (102 cm) | Thermostat Type | Digital |
| Capacity | 3.53 cu.ft. (100 L) | Fan Type | Interior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | White | Refrigerant Amount | 0.99oz. |
| Cabinet | White | High Side PSI | 180.0 |
| US Electrical Safety | ETL | Low Side PSI | 80.0 |
| Canadian Electrical Safety | ETL-C | Level Legs Qty | 2 |
| Energy Usage/Year | 251.0kWh/year | Wheel Qty | 2 |
| Amps | 1.1 | Interior Light | Yes |
| Voltage/Frequency | 115 V AC/60 Hz | Temperature Range | 35 to 46°F |
| Weight | 65.0 lbs. (29 kg) | Sound Level | 33.2 dB |
| Parts & Labor Warranty | 1 Year |
Dimensions
|
|
|---|---|---|---|
| Compressor Warranty | 5 Years | Interior Height | 23.5" (60 cm) |
| UPC | 761101063027 | Interior Width | 16.25" (41 cm) |
| Interior Depth | 17.0" (43 cm) | ||
| Compressor Step Height | 6.25" (16 cm) | ||
| Compressor Step Width | 16.25" (41 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) | ||
