Summit SBC54OSBIADANK 24″ Wide Outdoor/Undercounter Kegerator – ADA Compliant 32″ Height, Stainless Steel Cabinet (No Tap Kit Included)
Customer service
Features
- SKU SA-SBC54OSBIADANK
Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial kegerators made in Europe.
Sized at 32 inches high, the SBC54OSBIADANK is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle. We include a removable two-piece stainless steel drip tray for cleaner service. This unit does not include any tapping equipment, allowing "do-it-yourselfers" to customize their draft system.

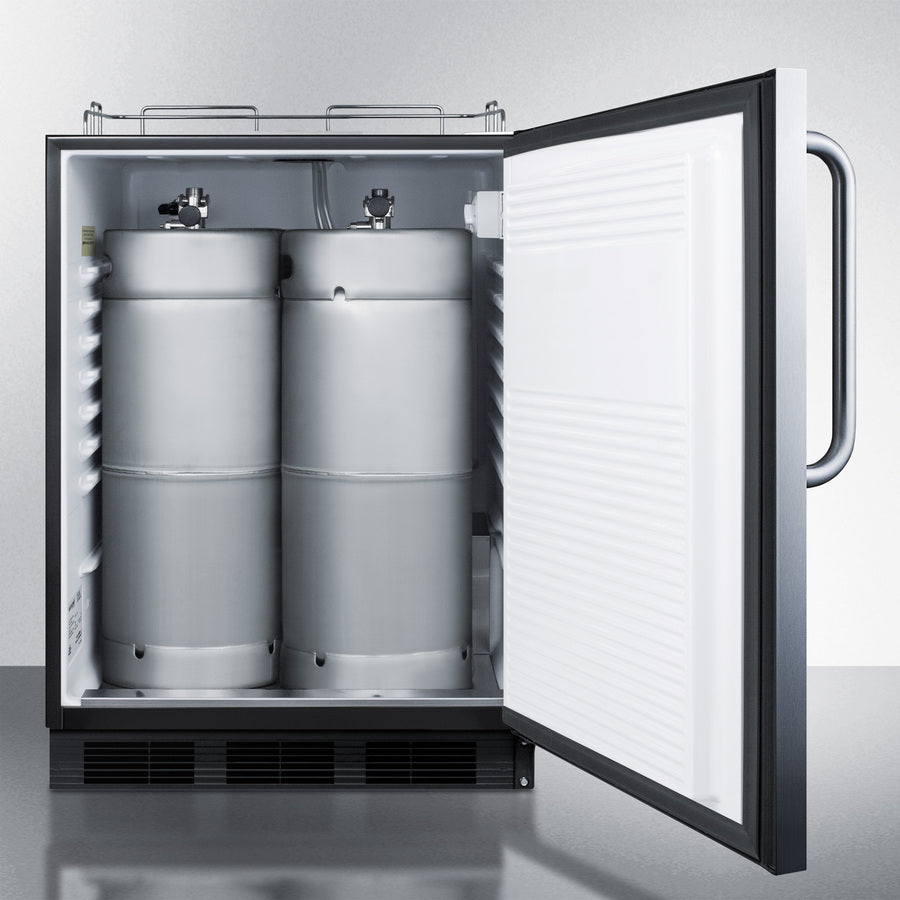

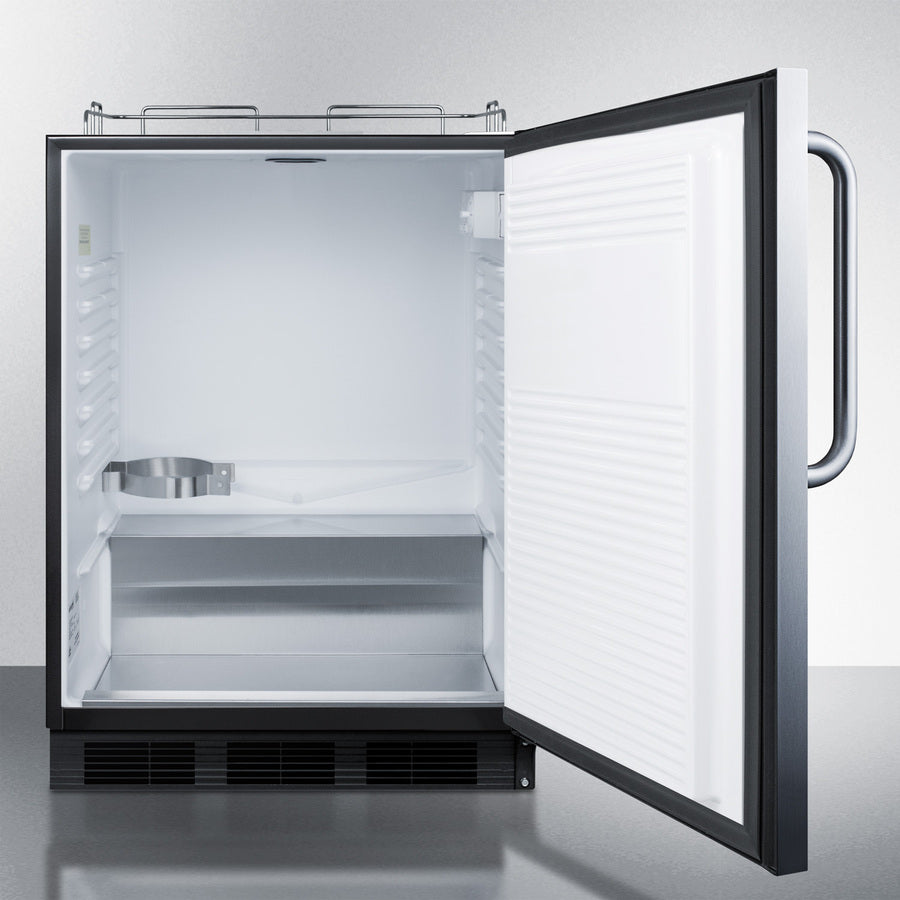

Inside, the SBC54OSBIADANK is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.
The SBC54OSBIADANK is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with tap equipment for beer, coffee, wine, or kombucha. Browse our website for more options or contact our sales team at 78-893-3900.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Thermostat Type | Dial |
| Nominal Width | 24.0" (61 cm) | Interior Light | Yes |
| Width | 23.75" (60 cm) | Fan Type | Exterior |
| Nominal Depth | 25.0" (64 cm) | Refrigerant | R600a |
| Depth | 24.75" (63 cm) | Refrigerant Amount | 0.64 oz. |
| Depth with Handle | 27.25" (69 cm) | High Side PSI | 180.0 |
| Depth with door at 90° | 47.0" (119 cm) | Low Side PSI | 80.0 |
| Capacity | 5.5 cu.ft. (156 L) | Inter Height | 26.25" (67 cm) |
| Defrost Type | Automatic | Interior Width | 21.0" (53 cm) |
| Door | Stainless Steel | Interior Depth | 17.75" (45 cm) |
| Cabinet | Stainless Steel | Compressor Step Height | 5.5" (14 cm) |
| US Electrical Safety | ETL | Compressor Step Width | 21.0" (53 cm) |
| Canadian Electrical Safety | ETL-C | Compressor Step Depth | 5.5" (14 cm) |
| Sanitation | ETL-S | Temperature Range | 34º to 43ºF |
| Amps | 1.2 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 110.0 lbs. (50 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101069593 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
