Summit SBC54OSBIADAWKDTWIN 24″ Wide Outdoor Wine Kegerator – ADA Compliant, Dual-Tap System
Customer service
Features
- SKU SA-SBC54OSBIADAWKDTWIN
Summit Commercial brings unique appliance choices to outdoor ADA compliant settings with a new line of commercial wine dispensers made in Europe.
Sized at 32 inches high, the SBC54OSBIADAWKDTWIN is designed to fit under lower ADA compliant counters. The front-breathing design allows built-in installation, while the fully finished cabinet also enables freestanding use. This unit comes with a weatherproof 304 grade stainless steel wrapped cabinet and door, complete with a pro style towel bar handle. We include a two-piece stainless steel drip tray for cleaner service. The SPR7BOSSTWKDTWINADA ships with a complete Sankey American dual tap kit complete with a draft tower, 5 lb. nitrogen/CO2 tank and regulator, and all the equipment you need to serve white wine on tap.

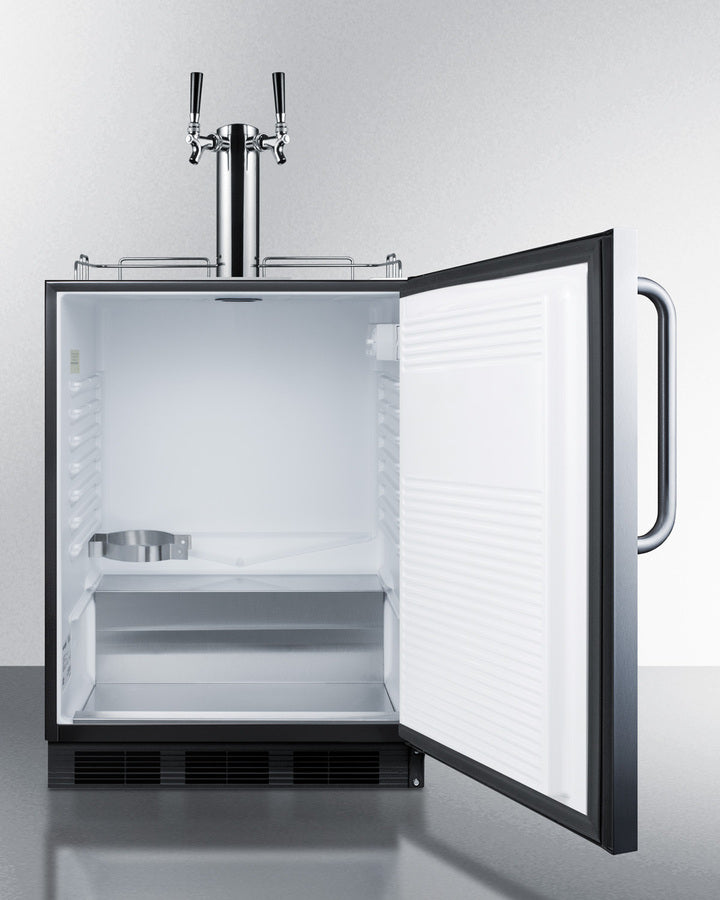

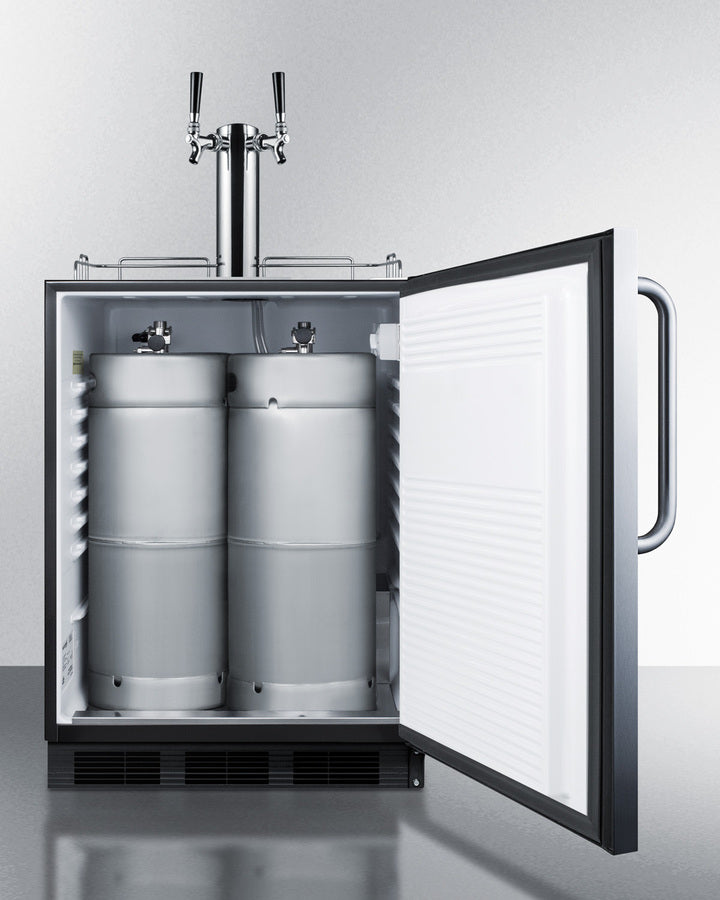

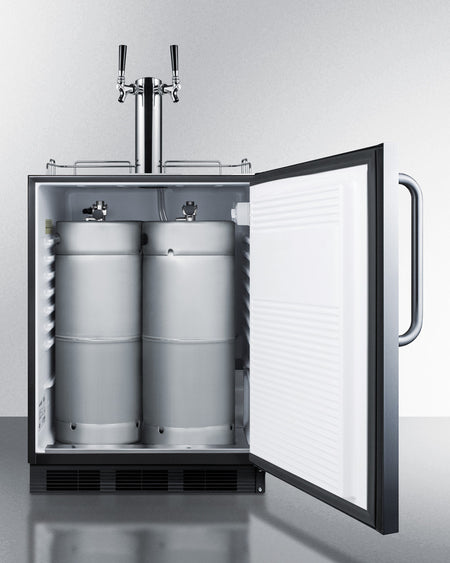

Inside, the SBC54OSBIADAWKDTWIN is designed to hold two 1/6 (sixtel) kegs (note: interior does not accommodate a standard half barrel). Automatic defrost ensures easy user maintenance, with a seamless interior for easier cleaning. The stainless steel floor offers added durability when loading kegs. This unit includes an interior light with an on/off rocker switch and a dial thermostat for easy and intuitive temperature management. A CO2 tank bracket is located inside, allowing you to keep the tank in the cabinet and save on exterior depth.
The SBC54OSBIADAWKDTWIN is ETL-S listed to NSF-7 commercial standards and uses environmentally friendly hydrocarbon based refrigerant (R600a) to comply with certain state's guidelines. This unit can also be ordered with alternate tap equipment for beer, coffee, or kombucha. Browse our website for more options or contact our sales team at 78-893-3900.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 32.0" (81 cm) | Reversible | Factory Reversible |
| Height to Hinge Cap | 32.25" (82 cm) | Tap Kit | Yes |
| Nominal Width | 24.0" (61 cm) | Height with Tap | 47.5" (121 cm) |
| Width | 23.75" (60 cm) | Number of Taps | 2 |
| Nominal Depth | 25.0" (64 cm) | Thermostat Type | Dial |
| Depth | 24.75" (63 cm) | Interior Light | Yes |
| Depth with Handle | 27.25" (69 cm) | Fan Type | Exterior |
| Depth with door at 90° | 47.0" (119 cm) | Refrigerant | R600a |
| Capacity | 5.5 cu.ft. (156 L) | Refrigerant Amount | 0.64 oz. |
| Defrost Type | Automatic | High Side PSI | 180.0 |
| Door | Stainless Steel | Low Side PSI | 80.0 |
| Cabinet | Stainless Steel | Inter Height | 26.25" (67 cm) |
| US Electrical Safety | ETL | Interior Width | 21.0" (53 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth | 17.75" (45 cm) |
| Sanitation | ETL-S | Compressor Step Height | 5.5" (14 cm) |
| Amps | 1.2 | Compressor Step Width | 21.0" (53 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Depth | 5.5" (14 cm) |
| Weight | 110.0 lbs. (50 kg) | Temperature Range | 34º to 43ºF |
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101069609 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
