Summit ALFZ51IF 24″ Wide Built-In All-Freezer – ADA Height, Panel-Ready
Customer service
Features
- SKU SA-ALFZ51IF
Summit manufactures the industry's largest selection of built-in appliances sized for use under lower ADA compliant counters, including frost-free freezers specially designed to match our popular ADA compliant refrigerators.

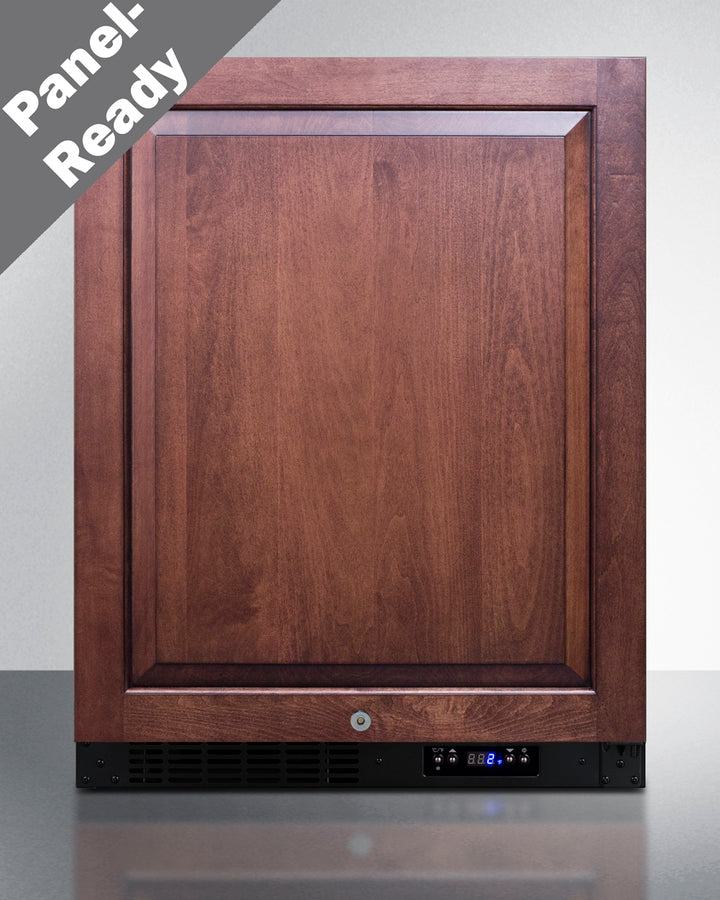

The ALFZ51IF is a 24 inch wide all-freezer designed and approved for residential or commercial use. The front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The door features an integrated stainless steel frame designed to accept full panel overlays, allowing users to seamlessly blend the unit into their own cabinetry design (panel size: 27 3/4" H x 23 3/16" W; 3/4" thick with a maximum weight of 10 lbs.). The door is factory reversible, and users must supply their own door handle. This unit has a flush back for easy cleaning and a right angle plug for a better fit. A temperature alarm offers added security should the temperature go beyond the setpoint, and the optional Sabbath Mode can be used to disable certain electrical features during periods of religious observance for up to 96 hours. The frost-free cooling system keeps the unit running efficiently with little user maintenance, and the internal fan ensures the unit is evenly cooled.

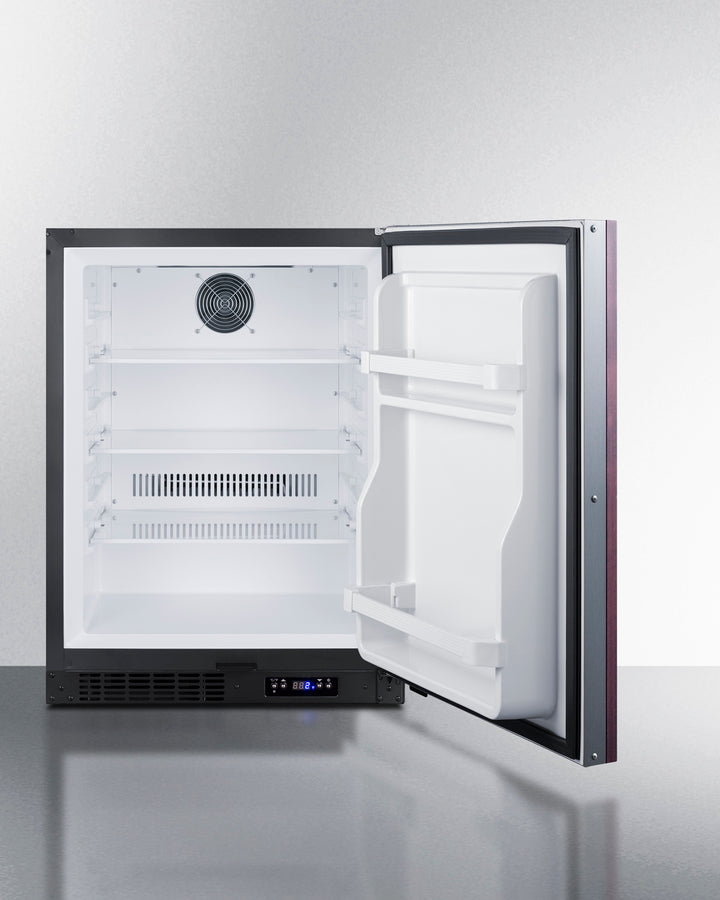

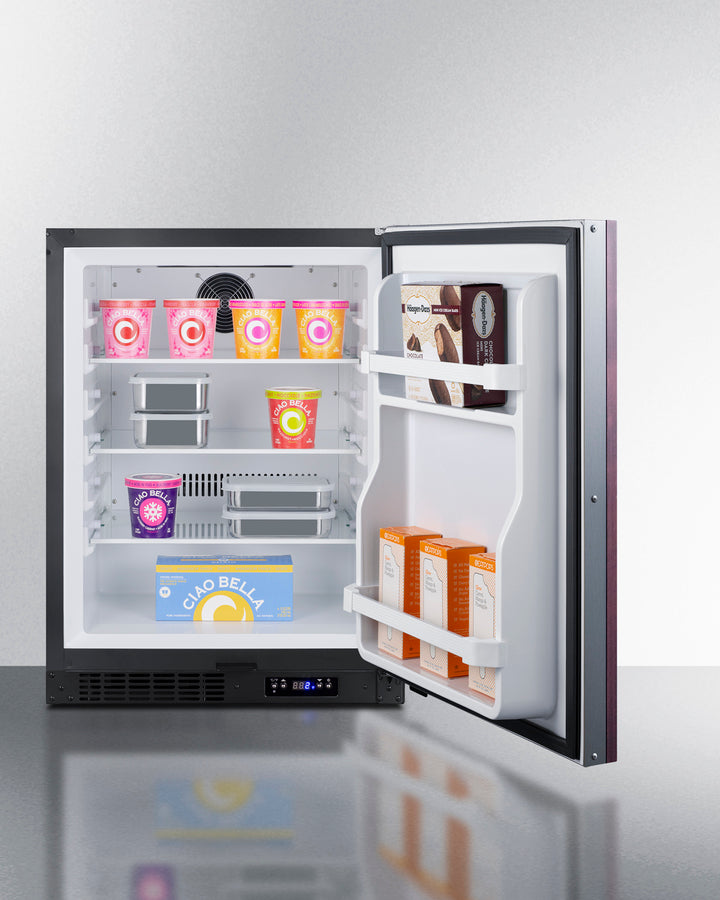

Digital controls ensure easy temperature management. Inside, three easy-glide glass shelves that extend 50% provide flexible storage, and the shelving brake system keeps unit contents safe when loading and unloading. Two door racks are ideal for keeping commonly accessed items in easy reach.
With its advanced user features and versatile design, the ALFZ51IF is an excellent addition to any ADA compliant setting looking for a frost-free freezer with a modern, elegant look. To create a matching set, pair with the AL55IF refrigerator.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.63" (80 cm) | Reversible | Factory Reversible |
| Nominal Width | 24.0" (61 cm) | Interior Height | 23.75" (60 cm) |
| Width | 23.38" (59 cm) | Interior Width | 18.5" (47 cm) |
| Nominal Depth | 24.0" (61 cm) | Interior Depth | 16.75" (43 cm) |
| Depth | 23.38" (59 cm) | Shelf Type | Glass |
| Depth with door at 90° | 45.75" (116 cm) | Shelf Qty | 3 |
| Capacity | 4.0 cu.ft. (113 L) | Adjustable Shelves | Yes |
| Defrost Type | Frost-Free | Thermostat Type | Digital |
| Door | Panel-Ready | Fan Type | Interior and Exterior |
| Cabinet | Black | Refrigerant Type | R600a |
| US Electrical Safety | ETL | Refrigerant Amount | 1.06 oz. |
| Canadian Electrical Safety | ETL-C | High Side PSI | 150.0 |
| Sanitation | ETL-S | Low Side PSI | 50.0 |
| Energy Usage/Year | 380.0kWh/year | Level Legs | 4 |
| Amps | 1.3 | Compressor Step Height | 5.0" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 18.5" (47 cm) |
| Weight | 95.0 lbs. (43 kg) | Compressor Step Depth | 5.0" (13 cm) |
| Parts & Labor Warranty | 1 Year | Temperature Range | -11°F to 11°F |
| Compressor Warranty | 5 Years | Sabbath Mode | Yes |
| UPC | 761101089010 | Sound Level | 40.1 dB |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
