Summit SCR23SSG 23 cu. ft. Reach-In Commercial Refrigerator – Stainless Steel Exterior & Glass Door
Customer service
Features
- SKU SA-SCR23SSG
Summit Commercial's line of reach-in refrigeration features durable construction built to NSF-7 commercial standards.

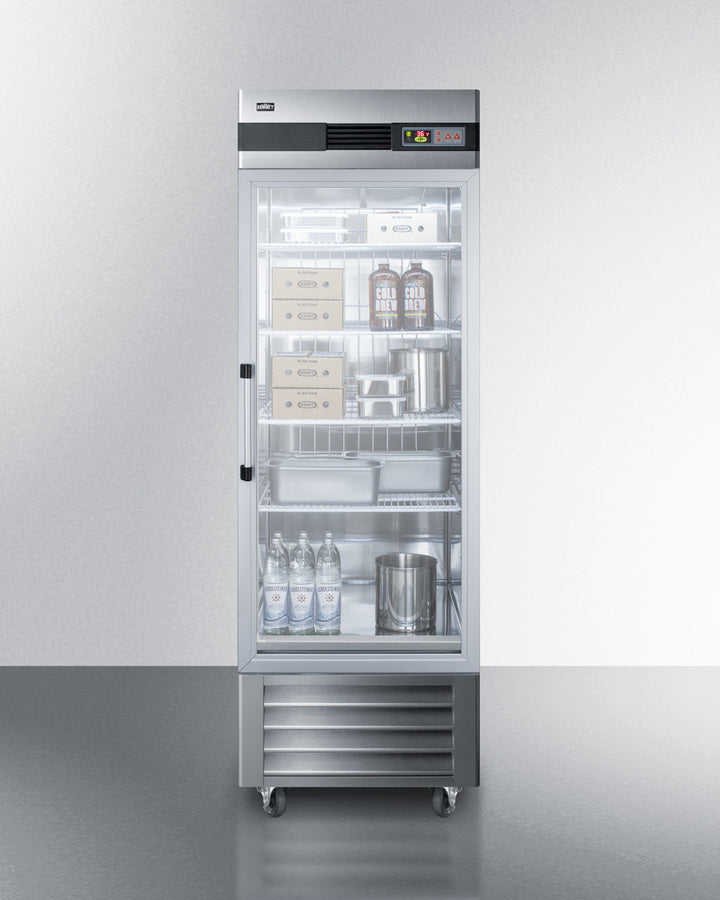

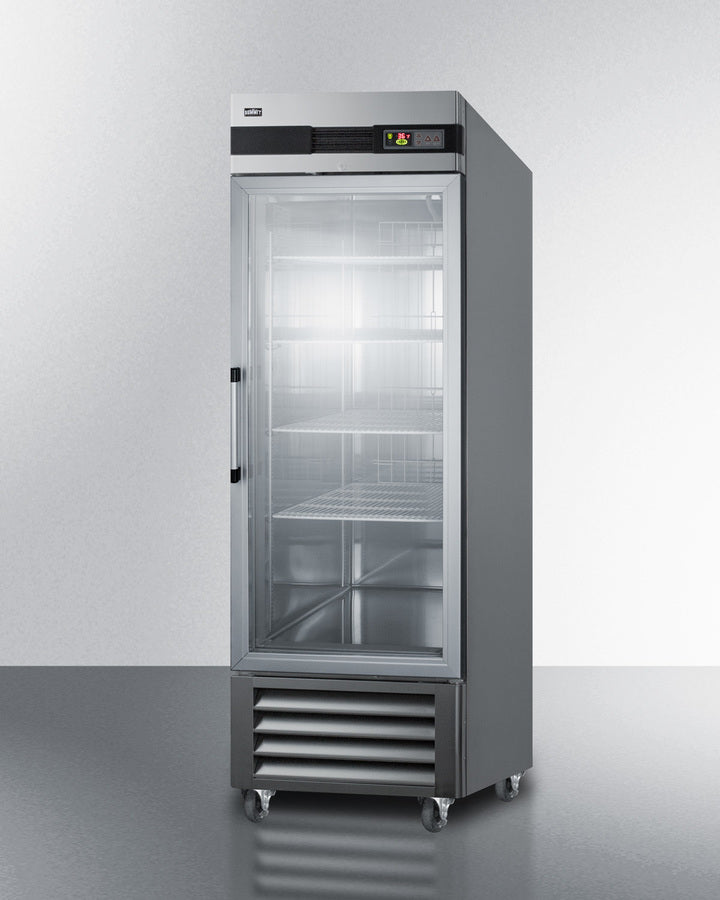

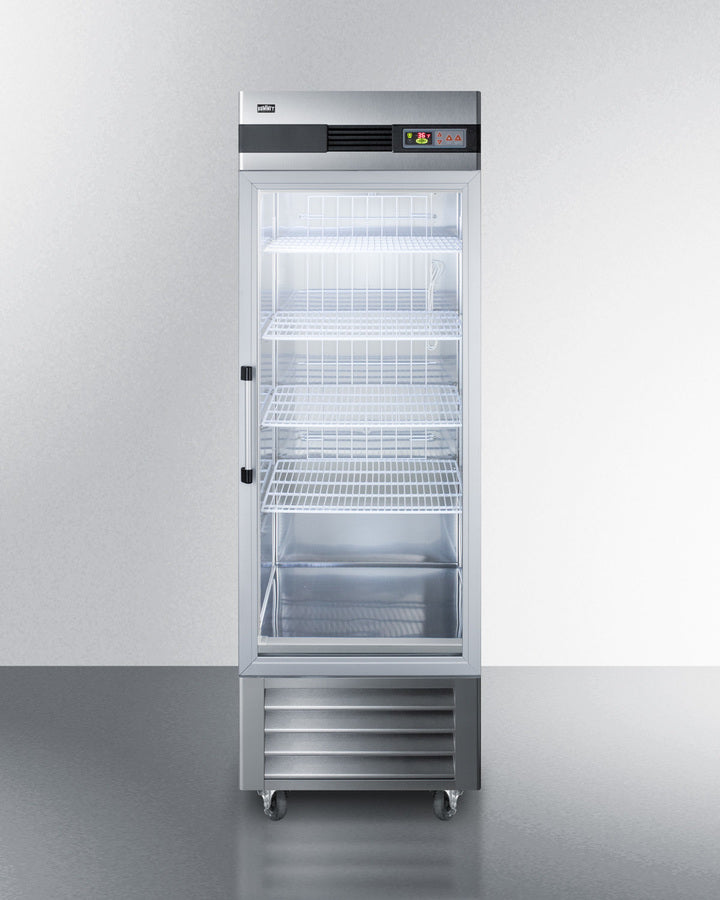

Made in South Korea, the SCR23SSG is a commercial all-refrigerator with a complete stainless steel cabinet and double pane tempered glass door for a full product display. The door is self-closing design to help protect stored contents in busy commercial settings where customers may not take the time to make sure the door is closed. It will remain open when pushed to 90º, making it easier to load and unload the unit. The sealed back design helps to simplify cleanup. This unit features a factory-installed lock located towards the top of the door for convenient security. We include a set of locking casters for optional installation.

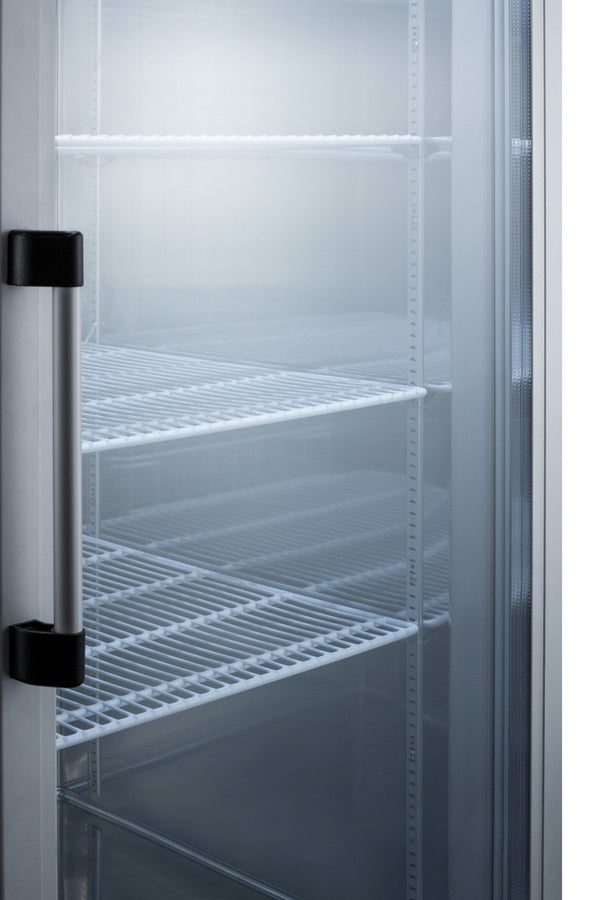

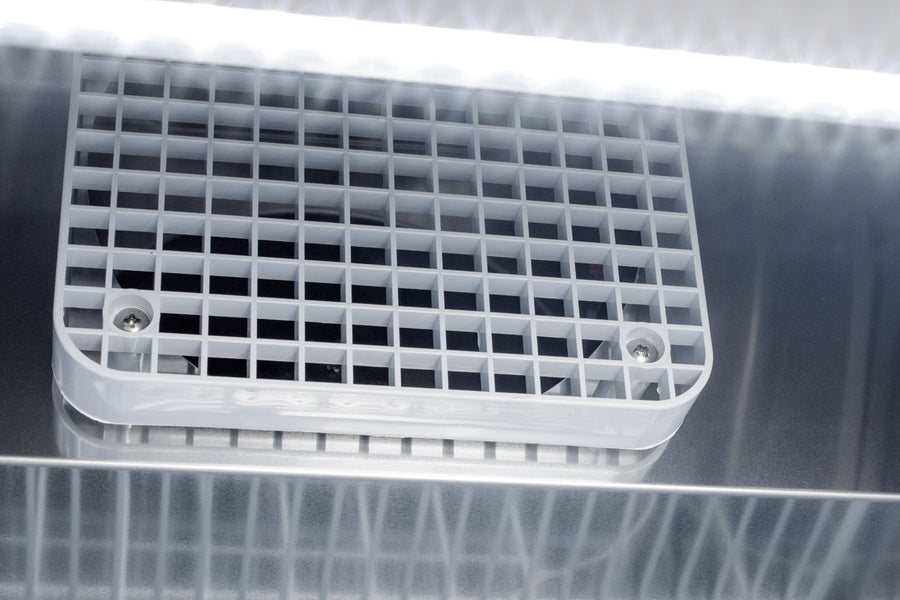

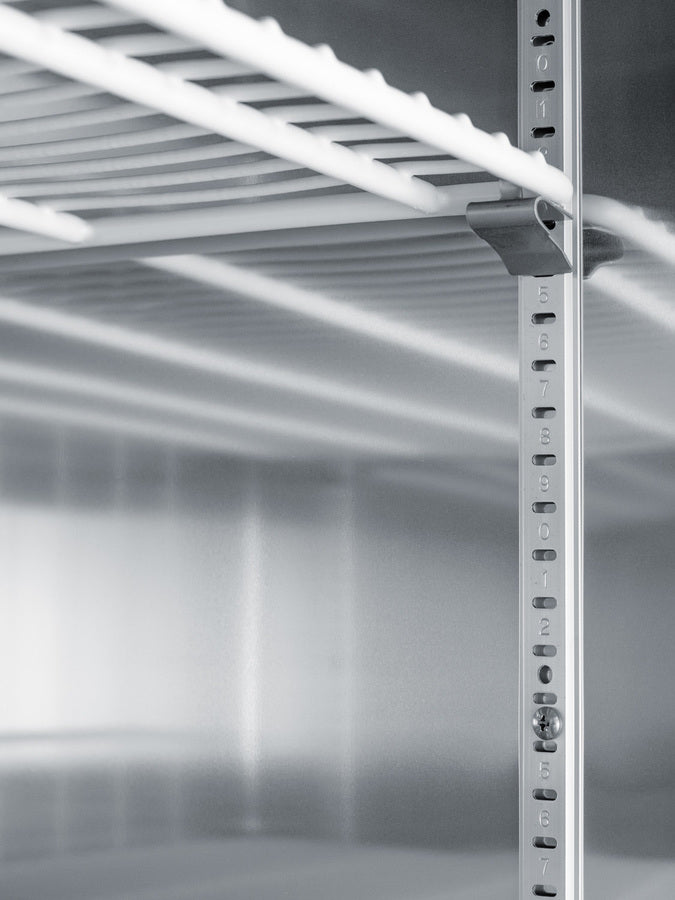

The SCR23SSG features a large 23 cu.ft. interior constructed from stainless steel for easy cleanup and lasting durability. The cantilevered shelving system allows you to adjust the four vinyl-coated shelves to virtually any position, making it easy to accommodate any sized item. This unit is designed to fit common commercial baking trays. The LED lighting offers an energy efficient display when the door is opened. It utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery.

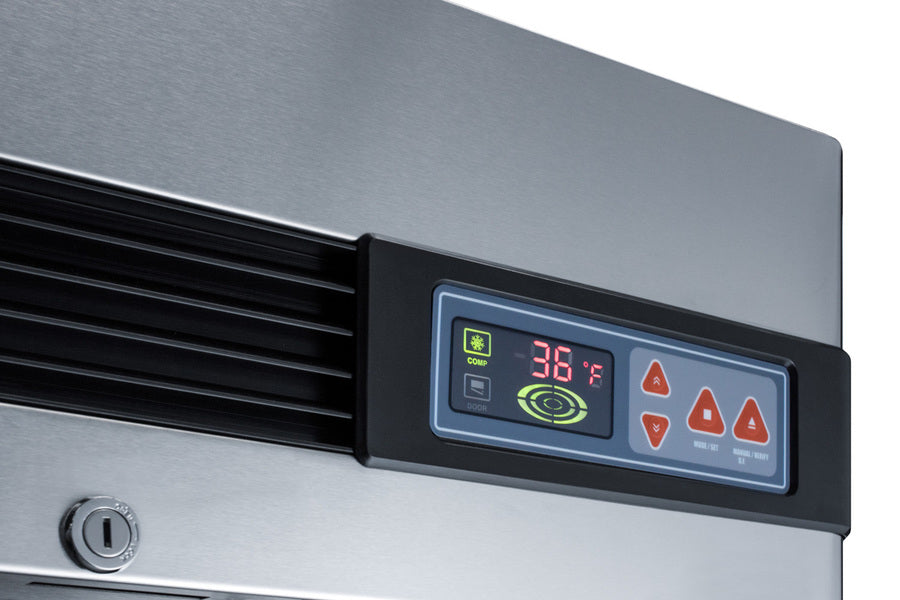

To ensure optimum storage conditions, the SCR23SSG is equipped with a microprocessor temperature controller that makes it easy for staff to adjust the temperature. The large digital LED readout displays the current and high/low temperatures in Celsius or Fahrenheit. An audible and visual temperature alarm sounds if the unit rises or falls above a user-set rage. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.
Designed with hydrocarbon refrigerant, the SCR23SSG provides an energy efficient solution to large capacity storage. It is ETL-S listed to NSF-7 commercial standards. For a matching solid door frost-free freezer, see the SCFF237.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 84.0" (213 cm) | Door Swing | RHD |
| Height of Cabinet | 83.75" (213 cm) | Reversible | No |
| Nominal Width | 28.0" (71 cm) | Shelf Type | Wire |
| Width | 27.5" (70 cm) | Shelf Qty | 4 |
| Nominal Depth | 31.0" (79 cm) | Adjustable Shelves | Yes |
| Depth | 31.0" (79 cm) | Thermostat Type | Digital |
| Depth with Handle | 32.75" (83 cm) | Fan Type | Interior |
| Depth with door at 90° | 56.5" (144 cm) | Refrigerant Type | R290 |
| Capacity | 23.0 cu.ft. (651 L) | Refrigerant Amount | 2.5oz. |
| Defrost Type | Automatic | High Side PSI | 290.0 |
| Door | Glass | Low Side PSI | 155.0 |
| Cabinet | Stainless Steel | Wheel Qty | 4 |
| US Electrical Safety | UL | Interior Light | Yes |
| Canadian Electrical Safety | ULC | Temperature Range | 33 to 41ºF |
| Sanitation | ETL-S | Sound Level | 34.6 dB |
| Amps | 7.5 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 51.5" (131 cm) |
| Weight | 282.0 lbs. (128 kg) | Interior Width | 23.5" (60 cm) |
| Parts & Labor Warranty | 2 Years | Interior Depth | 27.0" (69 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101062396 | ||
|
ASSEMBLY DRAWING |
