Summit SPR196OS24 24″ Wide Outdoor / Indoor Shallow-Depth All-Refrigerator – Stainless Steel Door, Slide-Out Storage Compartment
Customer service
Features
- SKU SA-SPR196OS24
Summit's shallow depth series of built-in undercounter refrigeration includes residential outdoor options with pull-out side compartments for added storage convenience in a modern style.

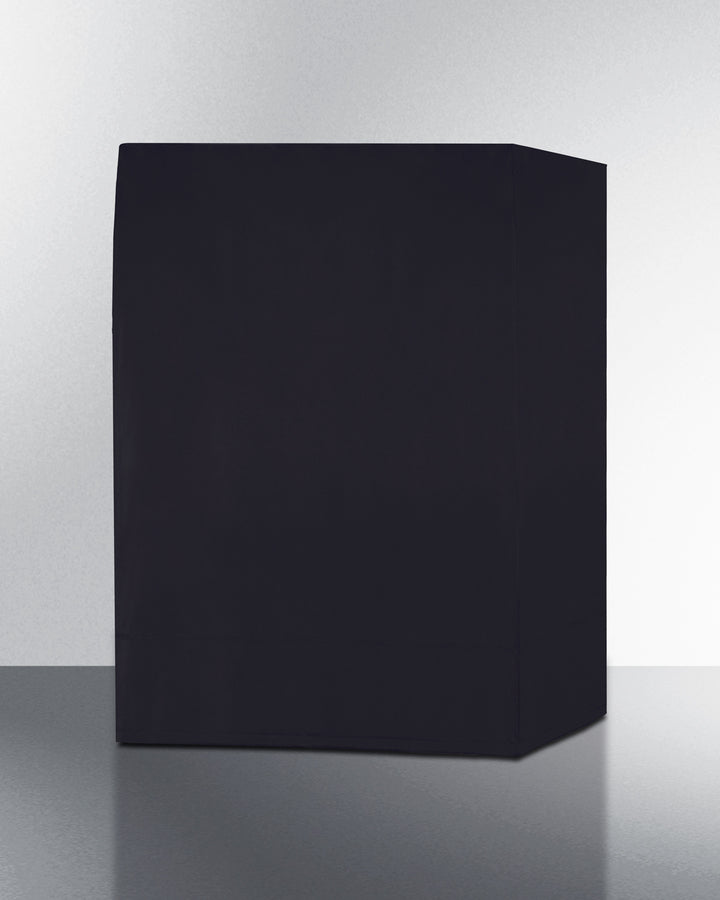

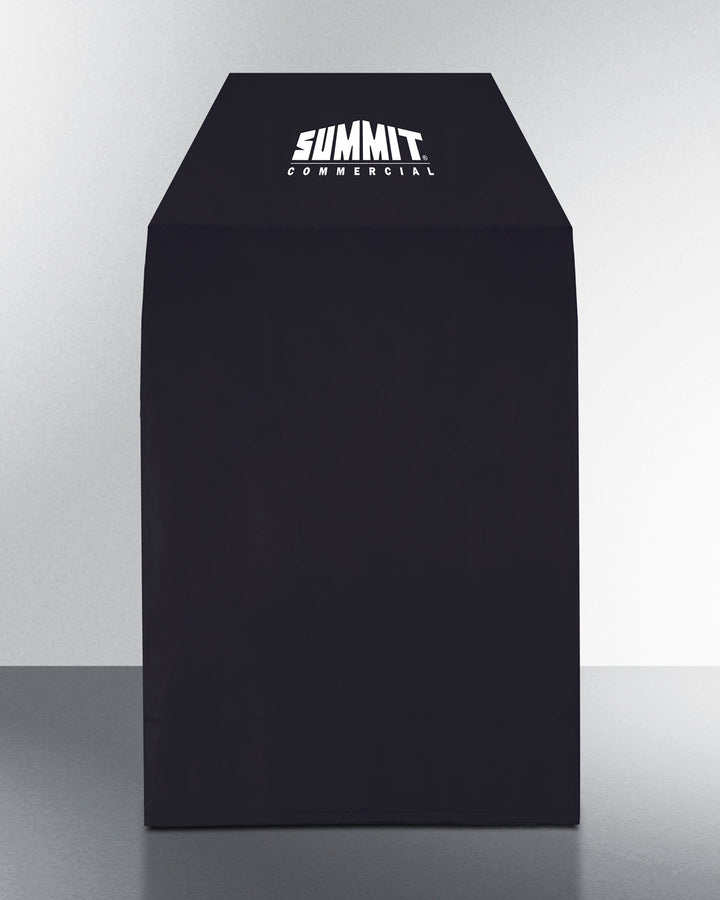

The SPR196OS24 is sized at just 24 inches wide and 17.25 inches deep, with a front-breathing design for built-in installation under counters and a fully finished stainless steel wrapped cabinet to also allow freestanding use. The sealed back ensures safe installation outdoors and protection from the elements. The stainless steel refrigerator door and storage drawer front bring elegance to any setting, with pro-style handles to complete the look. A factory-installed lock offers added security in the refrigeration compartment, while the space-saving right-angle plug and integrated hinge provide added flexibility in unit placement. For added protection against the elements, we include a vinyl outdoor cover to ensure proper protection while not in use. Two leveling legs keep the unit level on uneven surfaces.

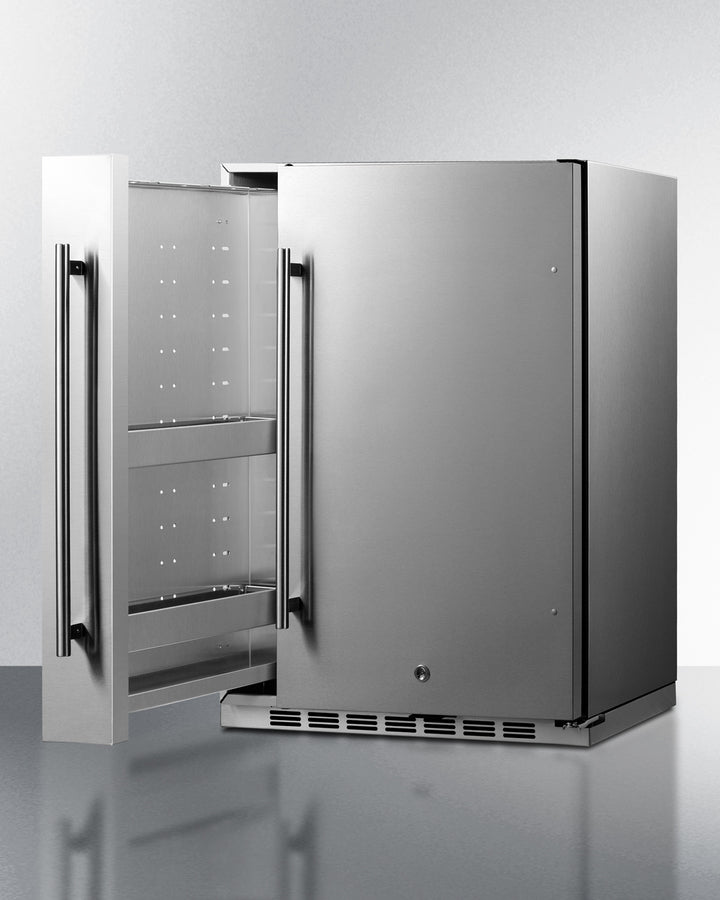

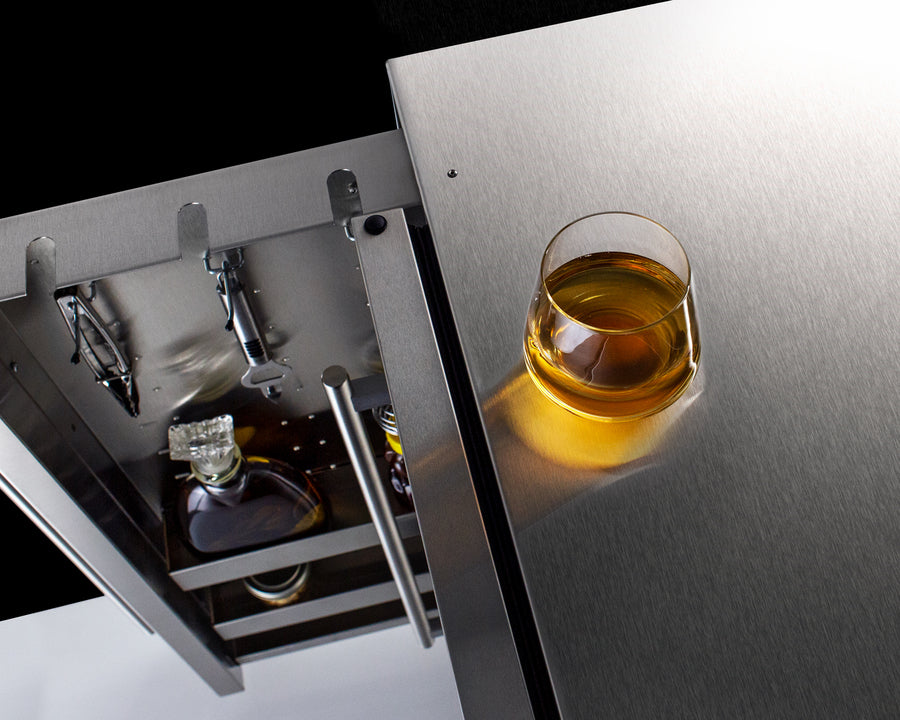

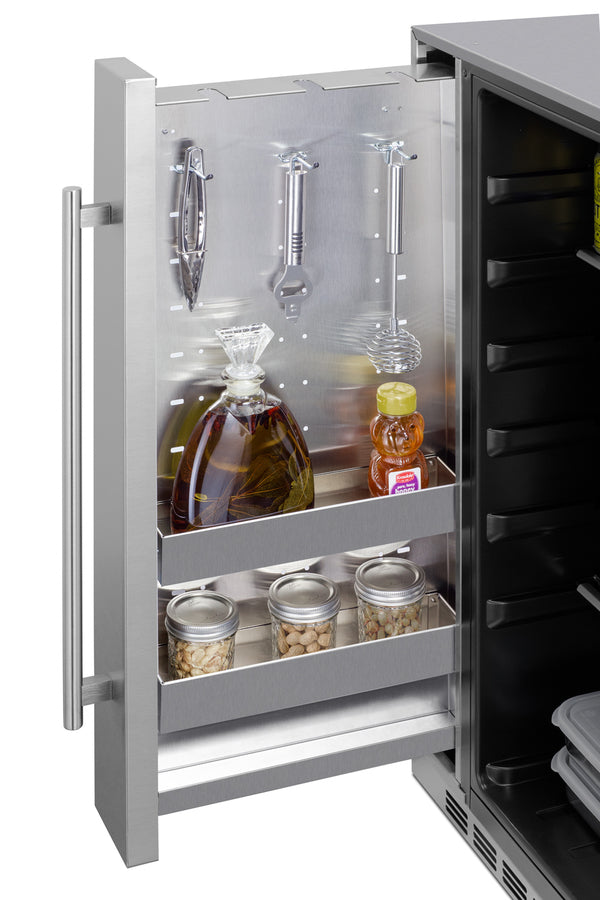

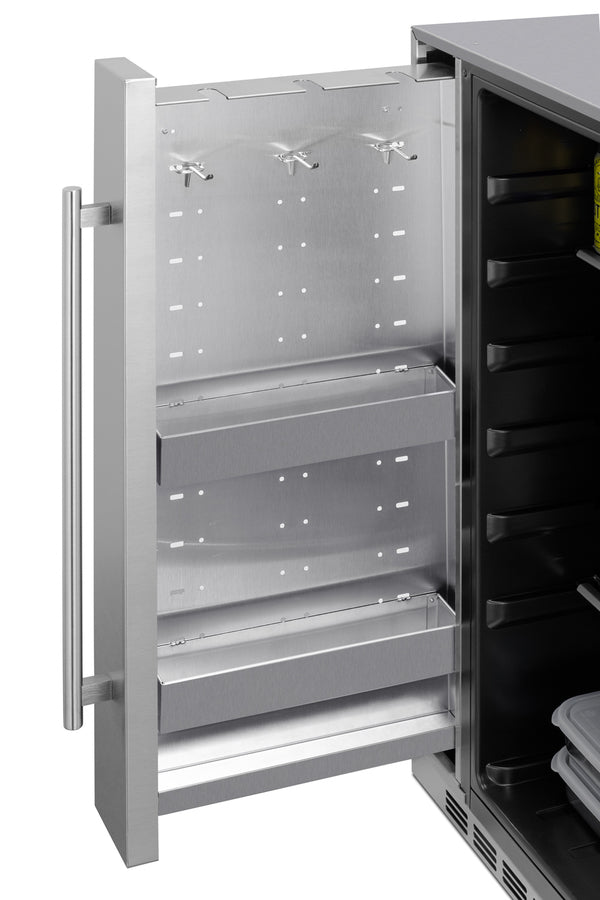

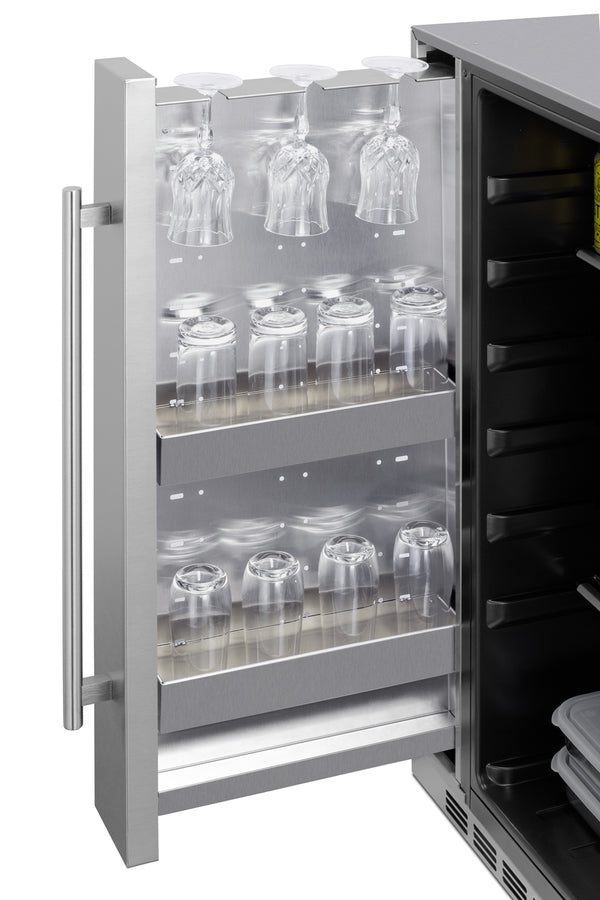

For added storage convenience, this unit includes a non-refrigerated pull-out storage compartment in complete stainless steel, with a matching handle to the refrigerator section. The interior features two height adjustable stainless steel full-width shelves providing storage space for non-heat sensitive items such as glassware and sealed, shelf-stable foods including canned goods, dried fruits, crackers, and certain boxed foods like mac and cheese. We include three adjustable two-prong peg hooks that let you hang lighter accessories such as tongs and other cooking utensils. The upper part of the cabinet is slotted, allowing you to suspend slimmer glasses from the ceiling.

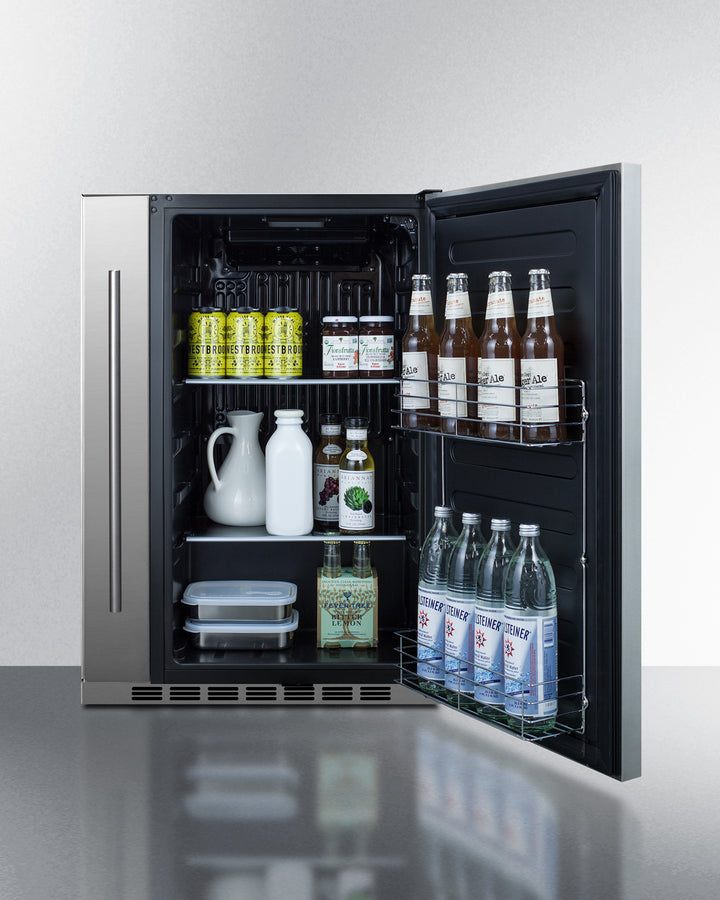

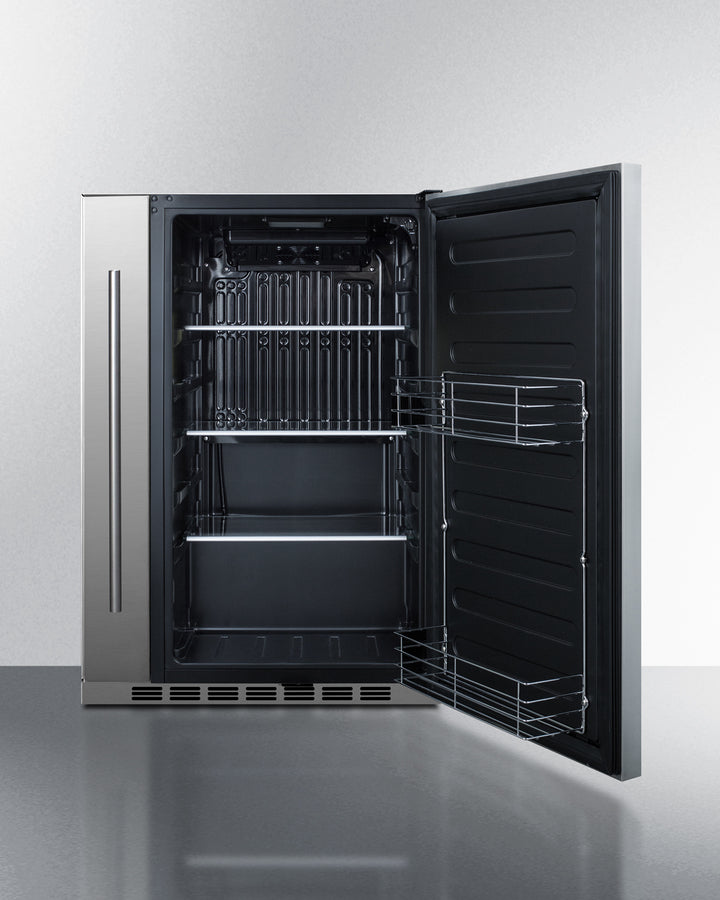

Inside, the SPR196OS24 utilizes an internal fan to ensure the unit is evenly cooled from top to bottom. An automatic defrost system ensures minimal user maintenance, while LED lighting allows full visibility of stored items in the jet black interior. Three adjustable slide-out glass shelves with six placement positions provide flexible storage capacity inside the 3.1 cu. ft. interior. A shelving brake system offers added safety when moving and storing contents, while two chrome door racks are ideal for storing condiments, canned beverages, and other larger items. The dial thermostat, with seven temperature settings, is located in the front upper-right corner for easy temperature management.

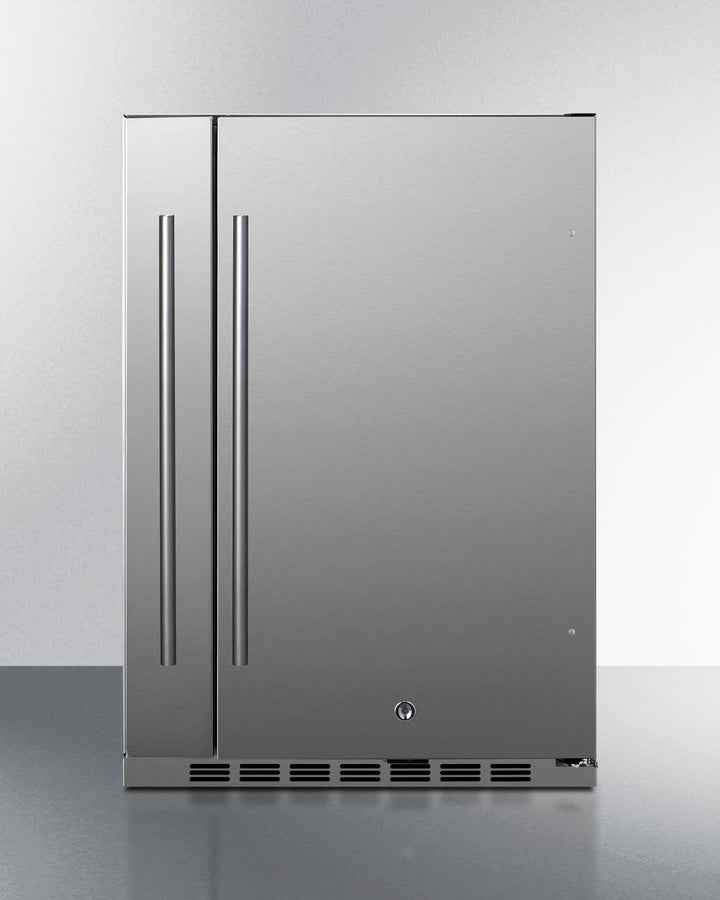

With its unique space-saving design and convenient shallow depth fit, the SPR196OS24 is the perfect addition to any outdoor home bar or residential space. For an indoor version, see the FF19524.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 35.0" (89 cm) | Door Swing | RHD |
| Height of Cabinet | 34.25" (87 cm) | Reversible | No |
| Nominal Width | 24.0" (61 cm) | Shelf Type | Glass |
| Width | 23.75" (60 cm) | Shelf Qty | 3 |
| Nominal Depth | 18.0" (46 cm) | Adjustable Shelves | Yes |
| Depth | 17.25" (44 cm) | Thermostat Type | Dial |
| Depth with Handle | 19.0" (48 cm) | Fan Type | Interior |
| Depth with door at 90° | 35.0" (89 cm) | Refrigerant Type | R600a |
| Capacity | 3.13 cu.ft. (89 L) | Refrigerant Amount | 0.88oz. |
| Defrost Type | Automatic | High Side PSI | 320.0 |
| Door | Stainless Steel | Low Side PSI | 120.0 |
| Cabinet | Stainless Steel | Level Legs Qty | 4 |
| US Electrical Safety | ETL | Interior Light | Yes |
| Canadian Electrical Safety | ETL-C | Temperature Range | 34 to 50ºF |
| Energy Usage/Year | 259.0kWh/year | Sound Level | 33.4 dB |
| Amps | 1.3 |
Drawer Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height 1 | 29.0" (74 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width 1 | 4.25" (11 cm) |
| Compressor Warranty | 5 Years | Interior Depth 1 | 12.75" (32 cm) |
| UPC | 761101079097 |
Dimensions
|
|
| Interior Height | 29.0" (74 cm) | ||
| Interior Width | 16.0" (41 cm) | ||
| Interior Depth | 12.75" (32 cm) | ||
| Compressor Step Height | 7.0" (18 cm) | ||
| Compressor Step Width | 16.0" (41 cm) | ||
| Compressor Step Depth | 6.25" (16 cm) | ||
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
