Summit ADA404REFSSHV 20″ Wide Built-In Healthcare Refrigerator – Stainless Steel Door / White Cabinet
Customer service
Features
- SKU SA-ADA404REFSSHV
Accucold offers a quality selection of 20" wide built-in undercounter all-refrigerators designed for installation under lower ADA-compliant counters. These refrigerators have advanced features for user convenience.

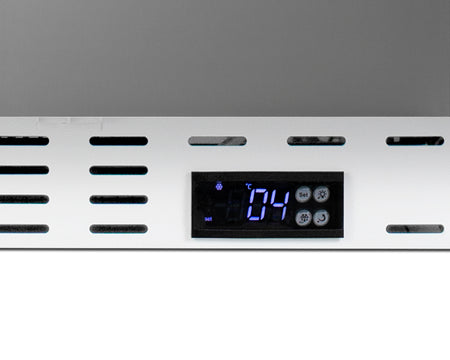

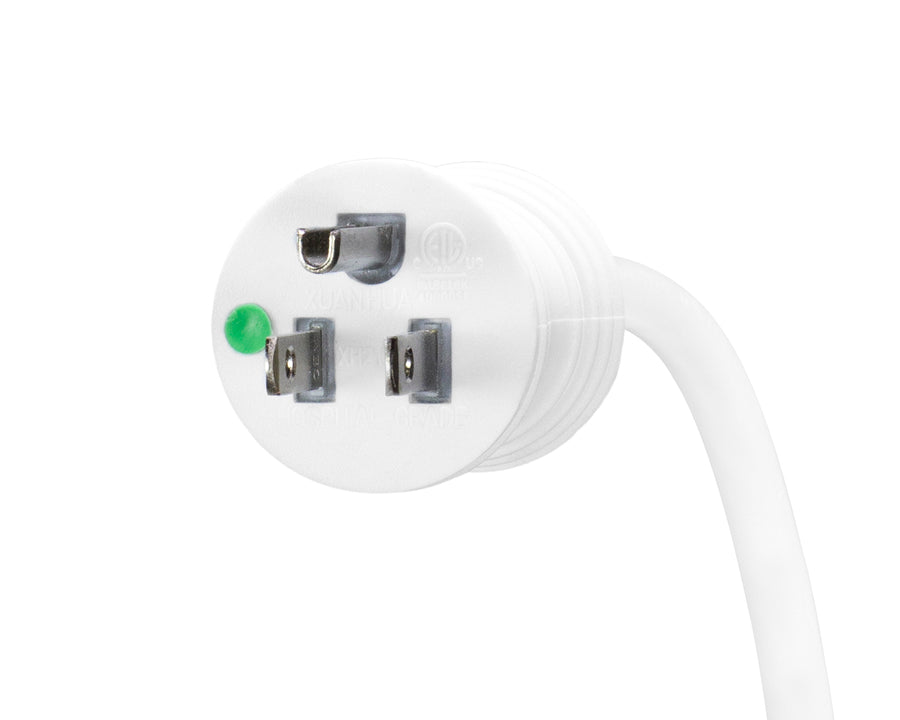

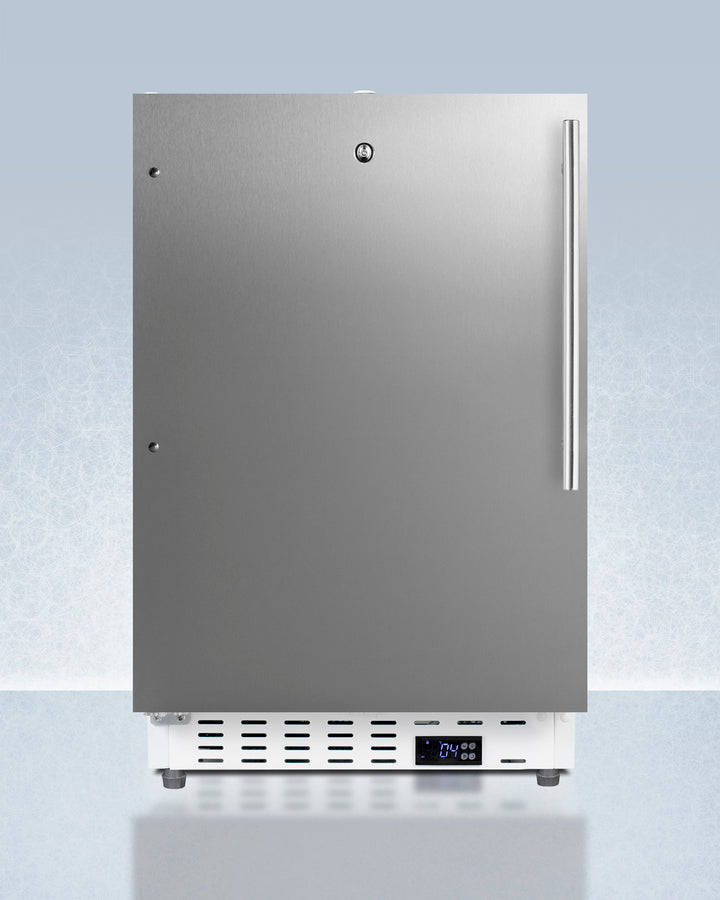

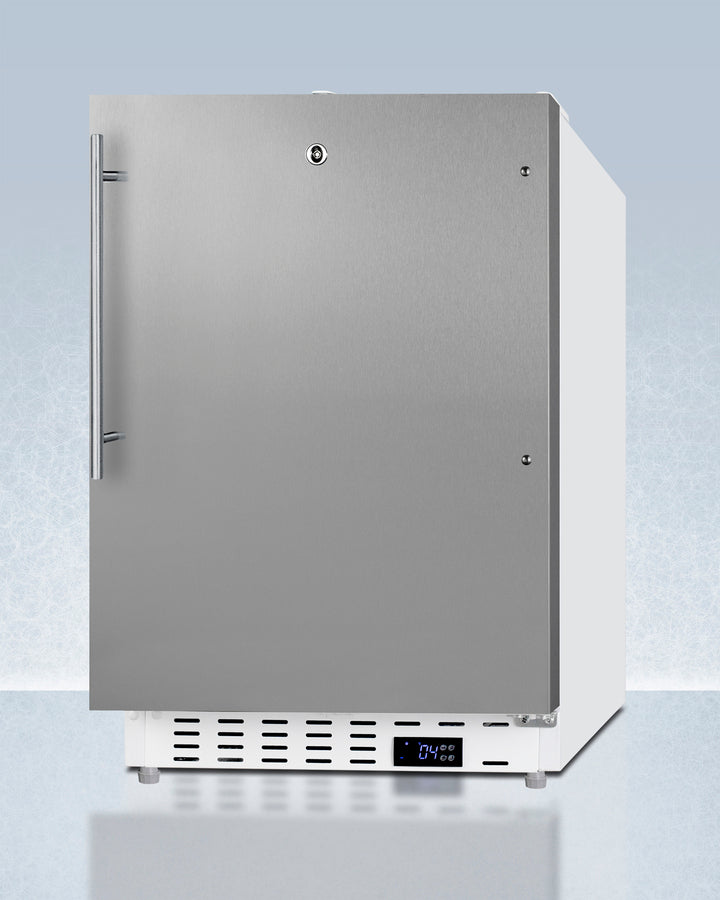

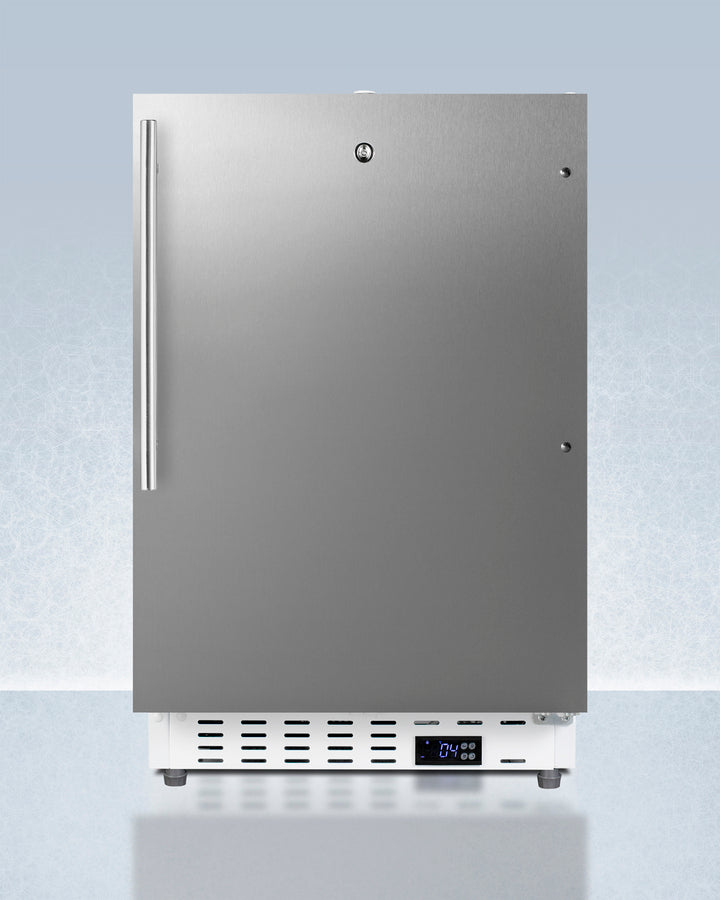

The ADA404REFSSHV is 32" high for use in ADA compliant settings. The fully finished textured white cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door features a sleek, vertically-mounted handlebar that matches many popular cabinetry styles and a top-mounted lock for added security and convenient access. A digital thermostat is located in the kickplate for easy temperature management with a readout in Fahrenheit or Celsius. This unit comes with a hospital-grade cord with a green dot plug for added safety in high-traffic areas. Plus, powerful magnetic gaskets ensure a tight seal.

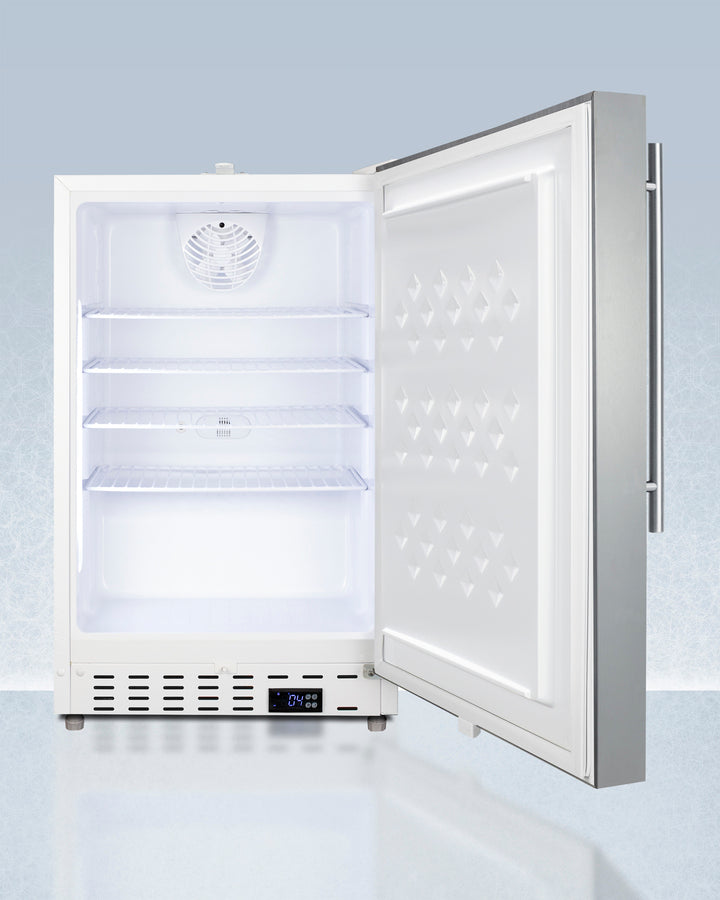

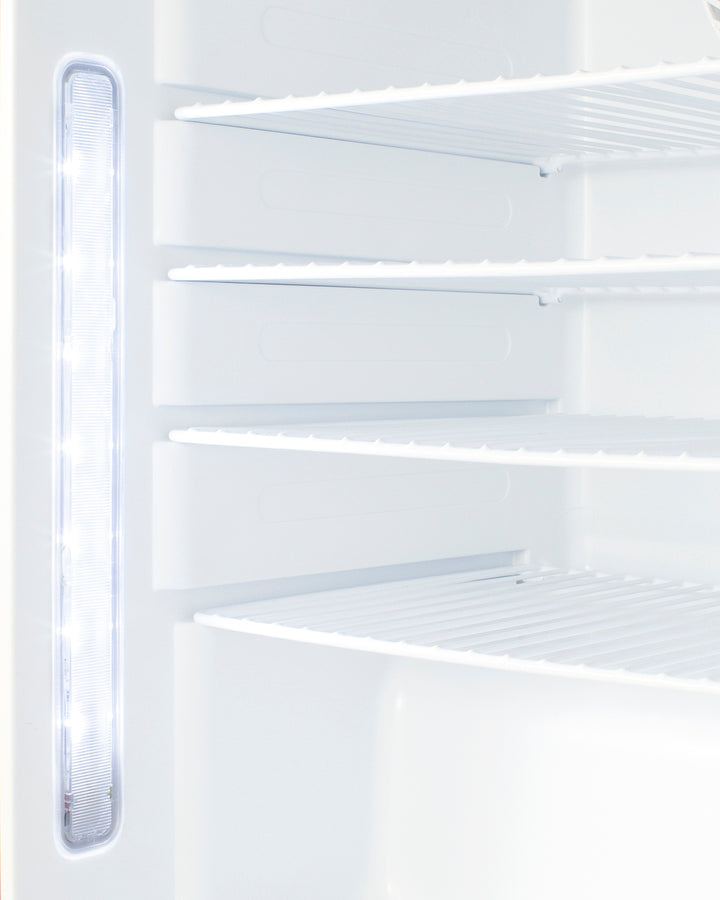

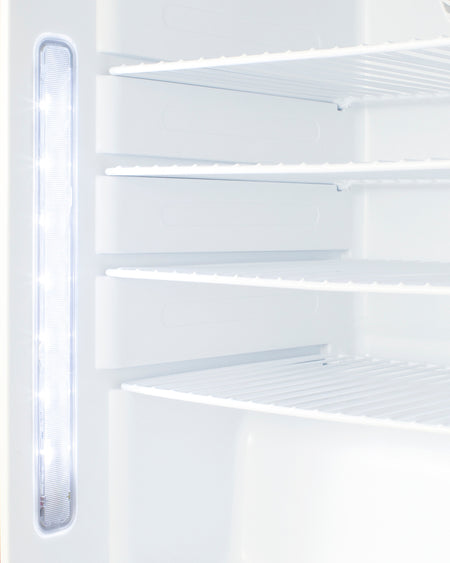

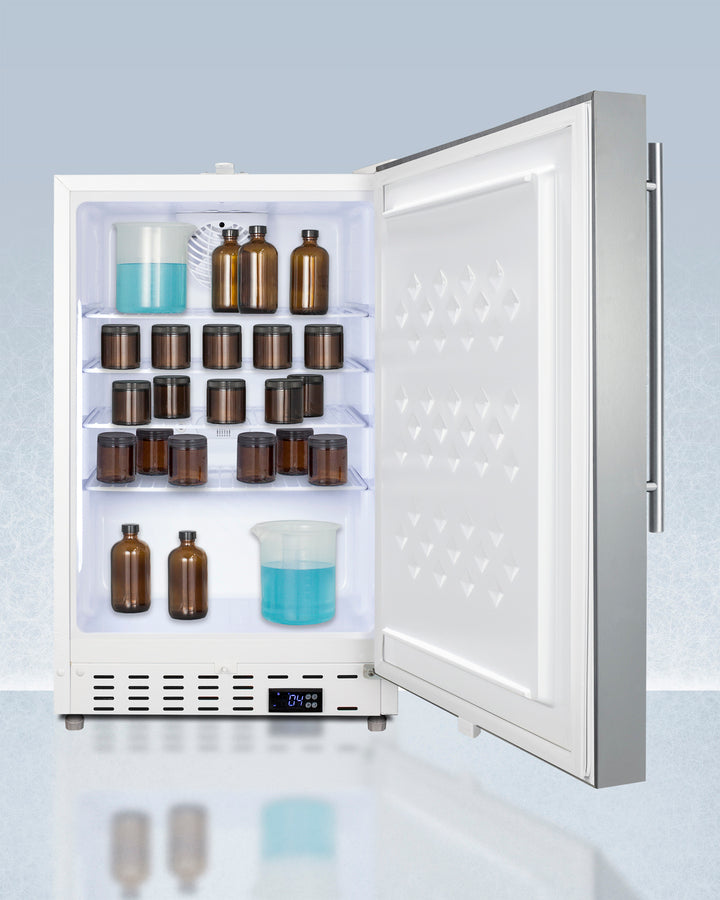

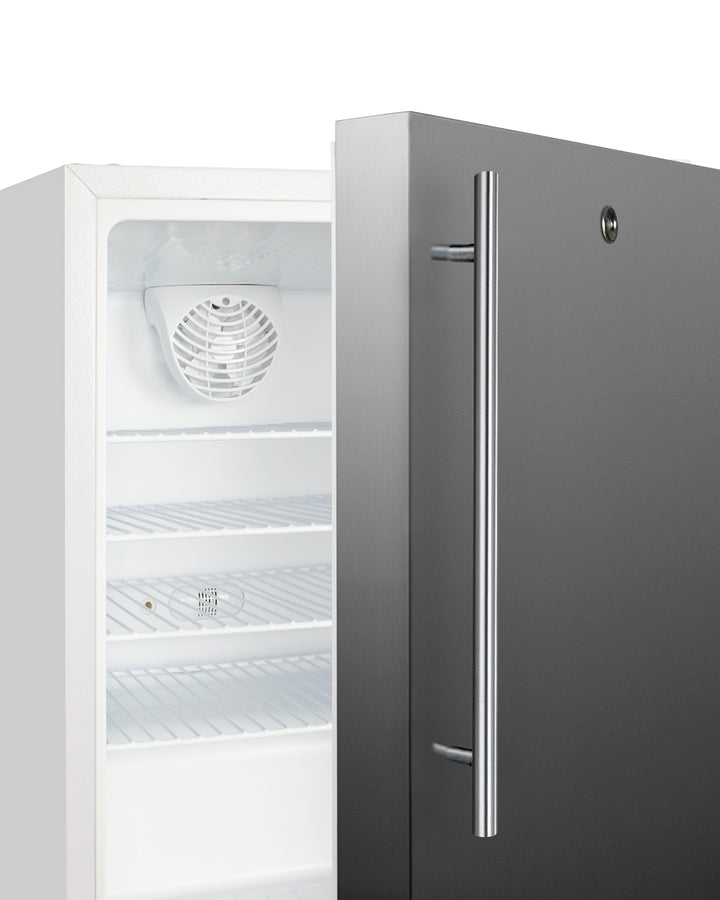

Inside, the ADA404REFSSHV is designed to operate between +2°C and +8°C as recommended for storing select pharmaceuticals and other medical supplies. An LED light located on the front left side of the unit attractively illuminates the interior when the door opens. Automatic defrost operation ensures minimal user maintenance, with an internal fan to help promote even cooling throughout the 3.32 cu.ft. interior. Adjustable wire shelves allow you to rearrange the interior to suit your storage needs best. As recommended by the CDC, this unit has a flat door liner to ensure users don't store sensitive contents on the door.
The user-set high and low-temperature alarms provide added security should the temperature exceed the set point. The open door alarm sounds if the door is ajar for more than a minute for added peace of mind. These alarms can be turned off depending on your needs. A preinstalled probe hole is included to allow users to connect their own monitoring equipment.
Sized at just under 21" wide, the ADA404REFSSHV makes an ideal choice for various healthcare facilities. For a matching freezer, see model ADA305AFSSHV.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Height Adjustable | No |
| Nominal Width | 21.0" (53 cm) | Shelf Type | Wire |
| Width | 20.88" (53 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 23.0" (58 cm) | Thermostat Type | Digital |
| Depth | 23.0" (58 cm) | Fan Type | Interior |
| Depth with door at 90° | 40.25" (102 cm) | Refrigerant Type | R600a |
| Capacity | 3.32 cu.ft. (94 L) | Refrigerant Amount | 0.99oz. |
| Defrost Type | Automatic | High Side PSI | 180.0 |
| Door | Stainless Steel | Low Side PSI | 80.0 |
| Cabinet | White | Level Legs Qty | 4 |
| US Electrical Safety | ETL | Interior Light | Yes |
| Canadian Electrical Safety | ETL-C | Temperature Range | 2 to 8°C |
| Amps | 1.1 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 23.5" (60 cm) |
| Weight | 85.0 lbs. (39 kg) | Interior Width | 16.25" (41 cm) |
| Parts & Labor Warranty | 1 Year | Interior Depth | 17.0" (43 cm) |
| Compressor Warranty | 5 Years | Compressor Step Height | 6.25" (16 cm) |
| UPC | 761101151304 | Compressor Step Width | 16.25" (41 cm) |
| Compressor Step Depth | 6.0" (15 cm) | ||
|
ASSEMBLY DRAWING |
