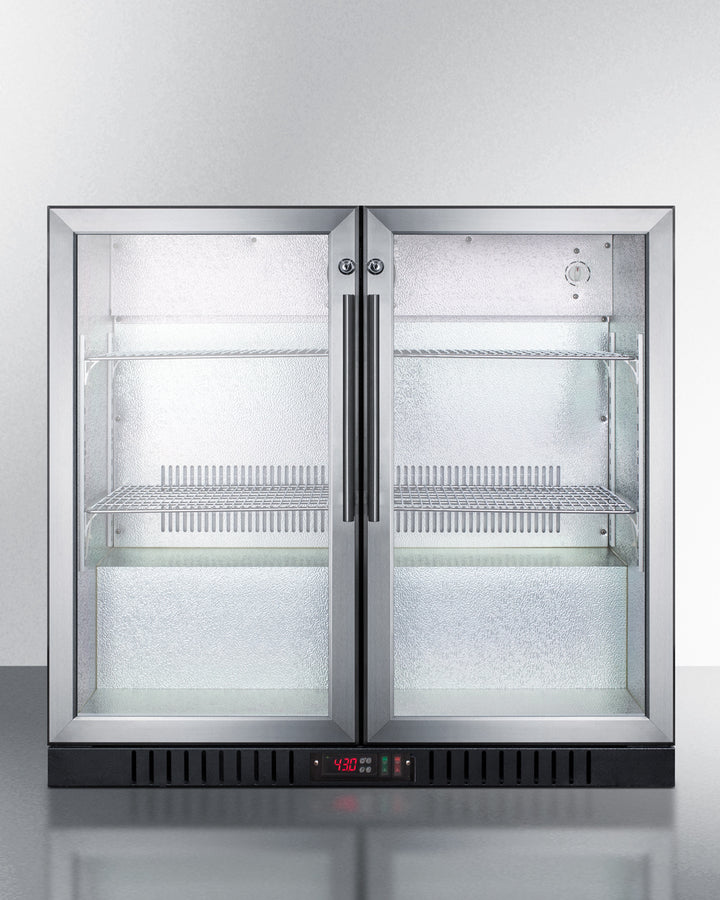

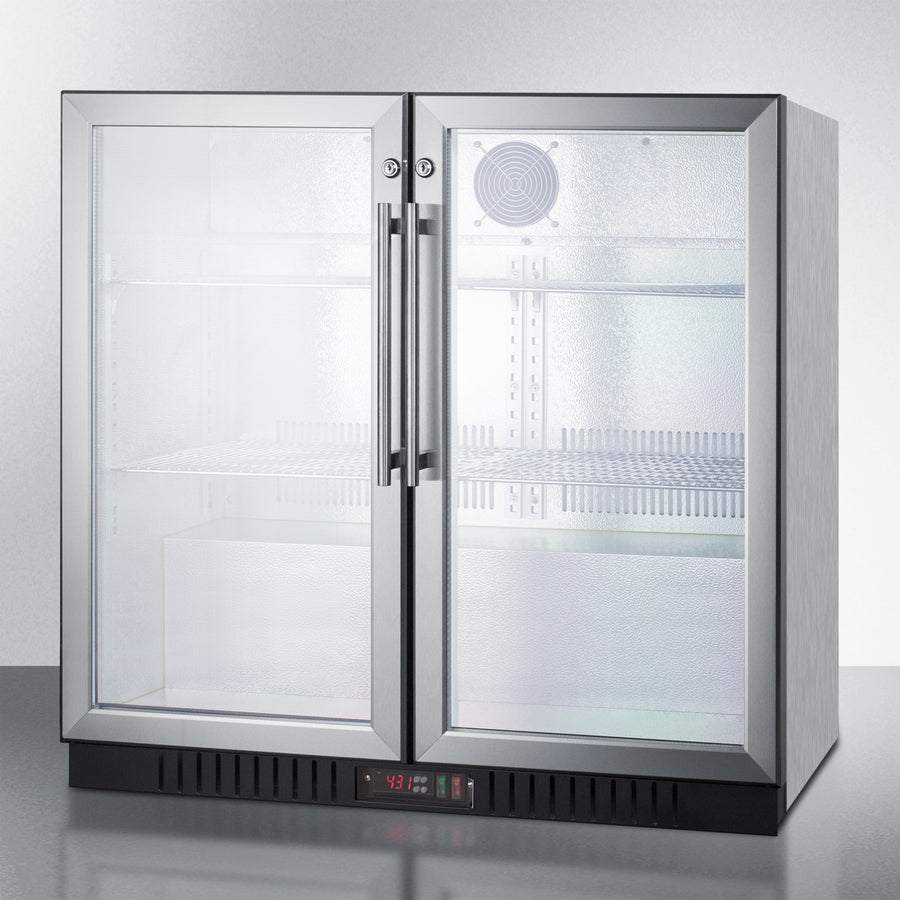

Summit SCR7012DBCSS 36″ Wide Back-Bar Beverage Center – Stainless Steel / Glass Doors
Customer service
Features
- SKU SA-SCR7012DBCSS
SUMMIT's SCR7012DBCSS is a commercial beverage merchandiser designed to maximize impulse sales.
This commercially approved all-refrigerator utilizes automatic defrost for low maintenance, with a digital thermostat for easy temperature control. Adjustable chrome shelves on a cantilevered system let you customize the hammered aluminum interior to accommodate different sized items. Full interior lighting ensures an attractive product display.
Two solid glass doors are trimmed with stainless steel and equipped with front-mounted locks for added security. Both are self-closing to help ensure stored items aren't accidentally left exposed to room temperature. Stainless steel handles complete the professional look. This unit comes in a stainless steel wrapped exterior cabinet.
This model is ETL-S listed to NSF-7 commercial standards. Set this unit above or below the counter (with proper ventilation) as a self-service refrigerator for impulse buys.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 35.0" (89 cm) | Door Swing | French |
| Height of Cabinet | 34.13" (87 cm) | Shelf Type | Chrome |
| Nominal Width | 36.0" (91 cm) | Shelf Qty | 4 |
| Width | 35.5" (90 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 20.0" (51 cm) | Thermostat Type | Digital |
| Depth | 19.63" (50 cm) | Fan Type | Interior |
| Depth with Handle | 21.13" (54 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 36.0" (91 cm) | Refrigerant Amount | 1.92oz. |
| Capacity | 7.4 cu.ft. (210 L) | High Side PSI | 215.0 |
| Defrost Type | Automatic | Low Side PSI | 60.0 |
| Door | Glass | Interior Light | Yes |
| Cabinet | Stainless Steel | Temperature Range | 36 to 43ºF |
| US Electrical Safety | ETL |
Dimensions
|
|
|---|---|---|---|
| Canadian Electrical Safety | ETL-C | Interior Height | 28.25" (72 cm) |
| Sanitation | ETL-S | Interior Width | 32.5" (83 cm) |
| Amps | 1.2 | Interior Depth | 15.0" (38 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 7.5" (19 cm) |
| Weight | 138.0 lbs. (63 kg) | Compressor Step Width | 32.5" (83 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 7.25" (18 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101057057 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
