Summit SCRR232 23 cu ft Commercial Stainless-Steel Reach-In Refrigerator – Dual Door, Forced Air, R290 Refrigerant
Customer service
Features
- SKU SA-SCRR232
Summit Commercial's line of reach-in refrigeration features durable construction built to NSF-7 commercial standards.

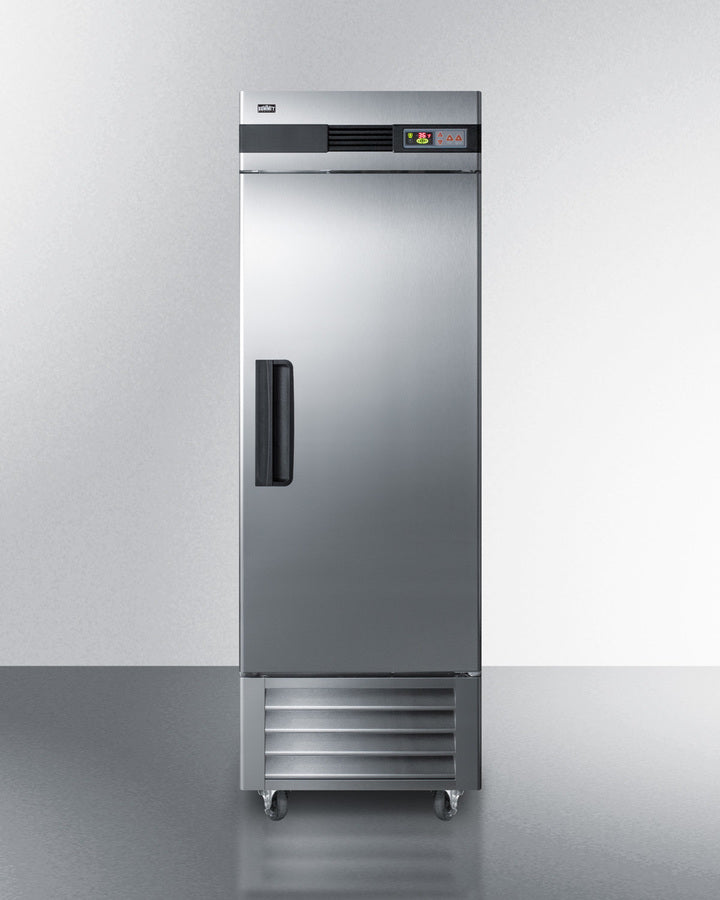

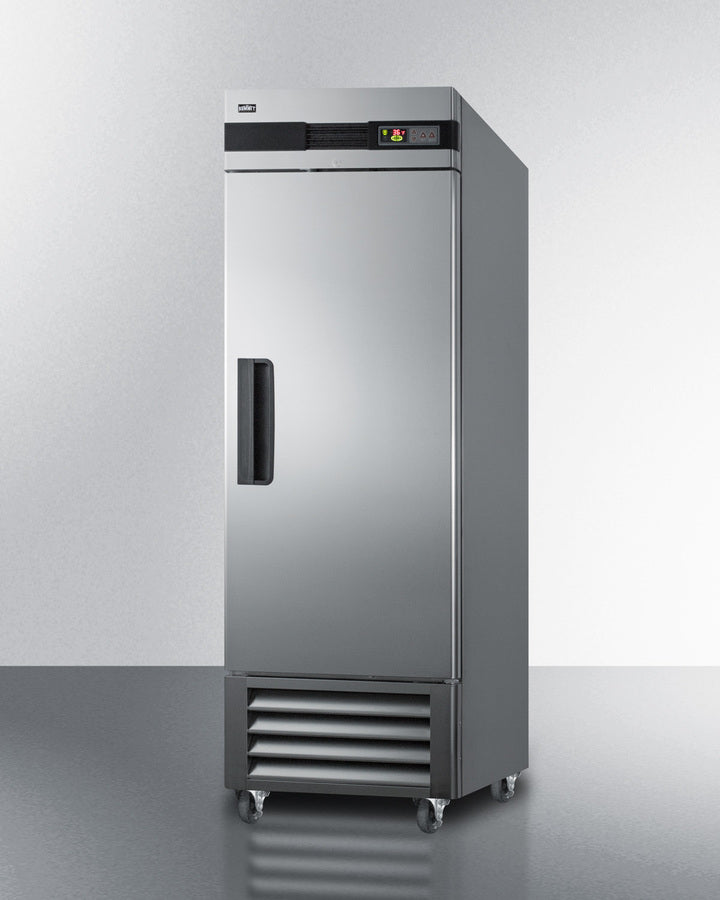

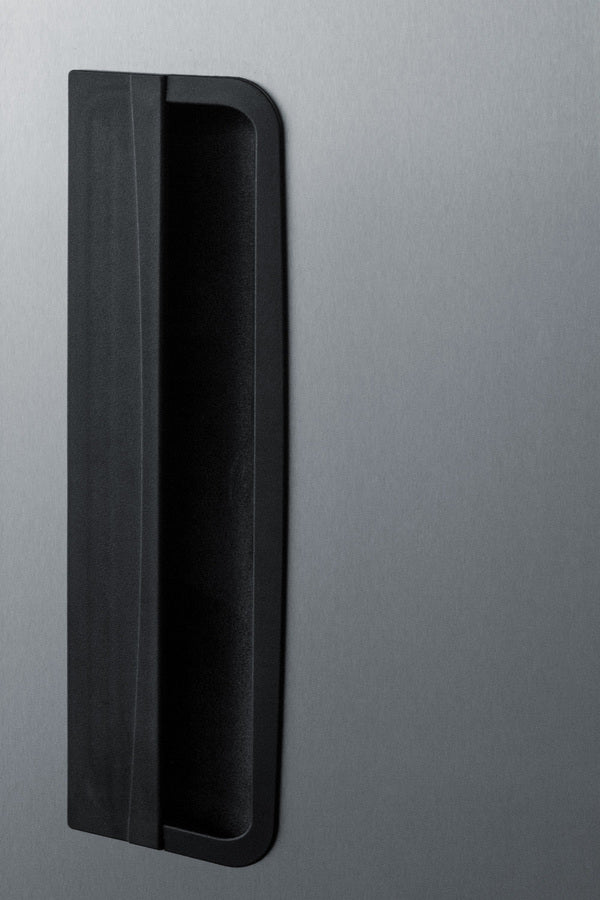

Made in South Korea, the SCRR232 is a commercial all-refrigerator with a complete stainless steel cabinet. The stainless steel door features a self-closing design to help protect stored contents in busy commercial settings where customers may not take the time to make sure the door is closed. It will remain open when pushed to 90º, making it easier to load and unload the unit. The sealed back design helps to simplify cleanup. This unit features a factory-installed lock located towards the top of the door for convenient security. We include a set of locking casters for optional installation.

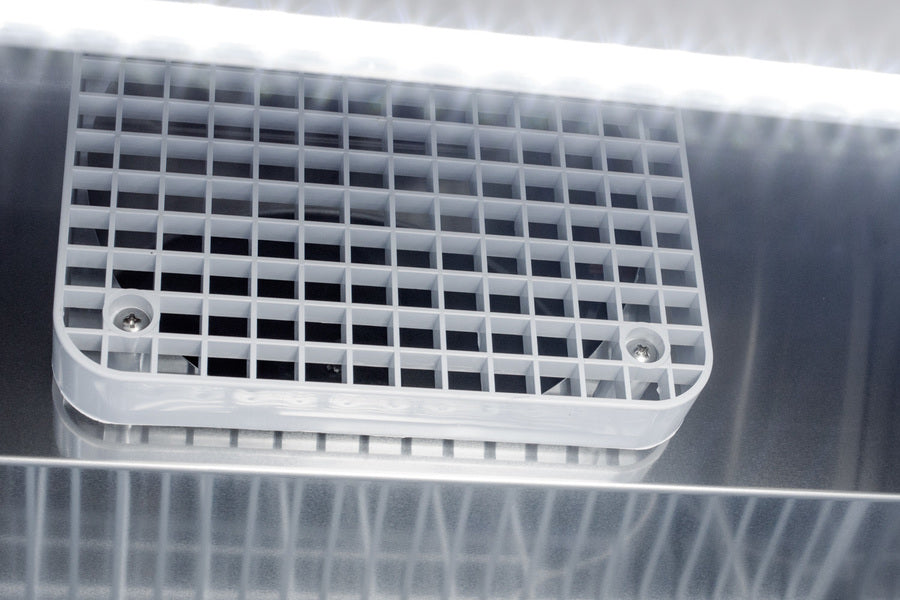

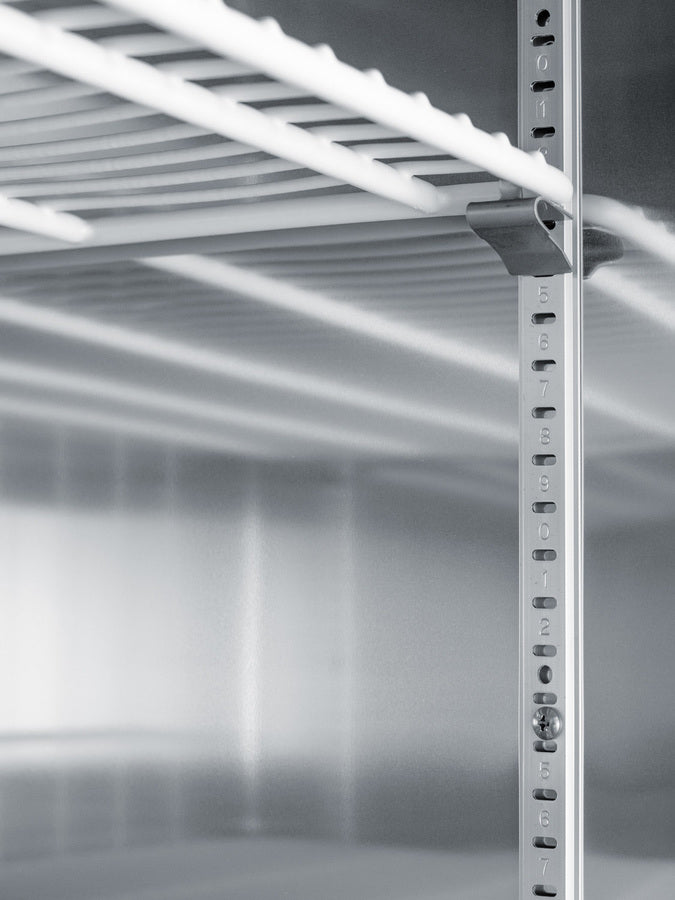

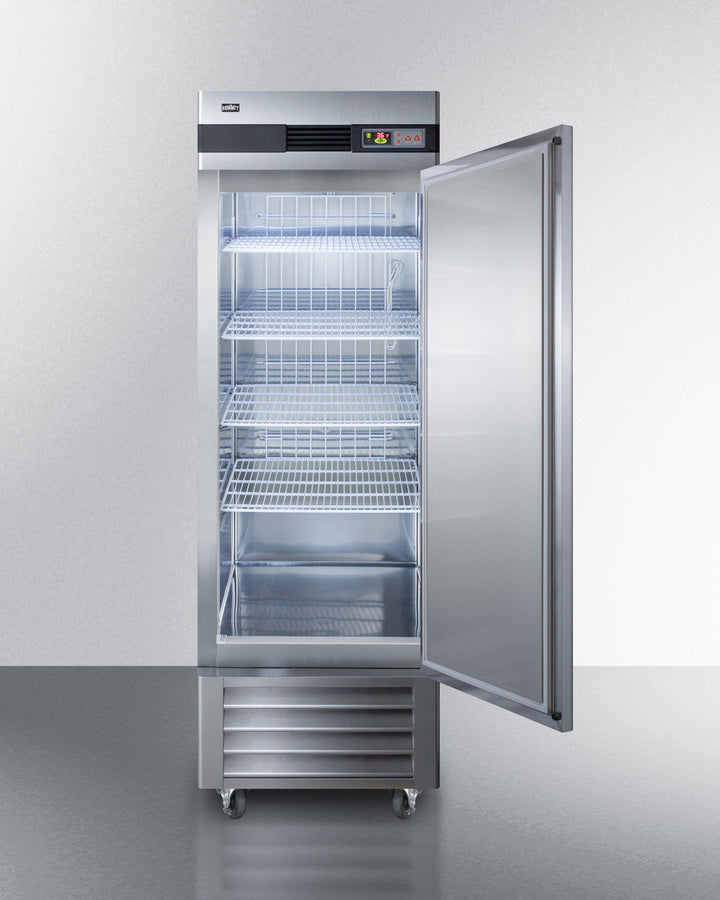

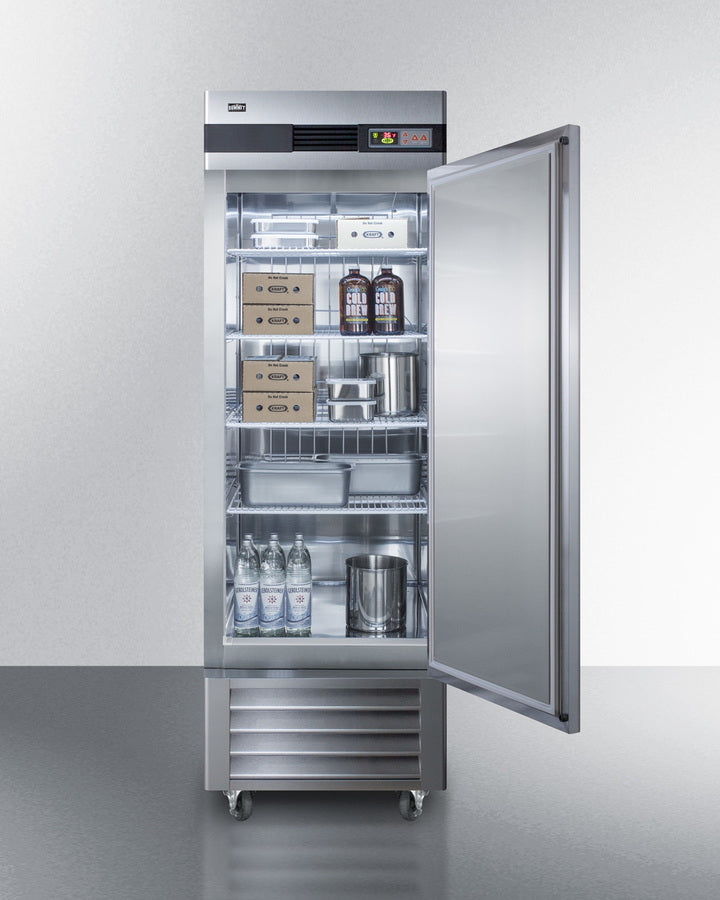

The SCRR232 features a large 23 cu.ft. interior constructed from stainless steel for easy cleanup and lasting durability. The cantilevered shelving system allows you to adjust the four vinyl-coated shelves to virtually any position, making it easy to accommodate any sized item. This unit is designed to fit common commercial baking trays. The LED lighting offers an energy efficient display when the door is opened. This unit utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery.

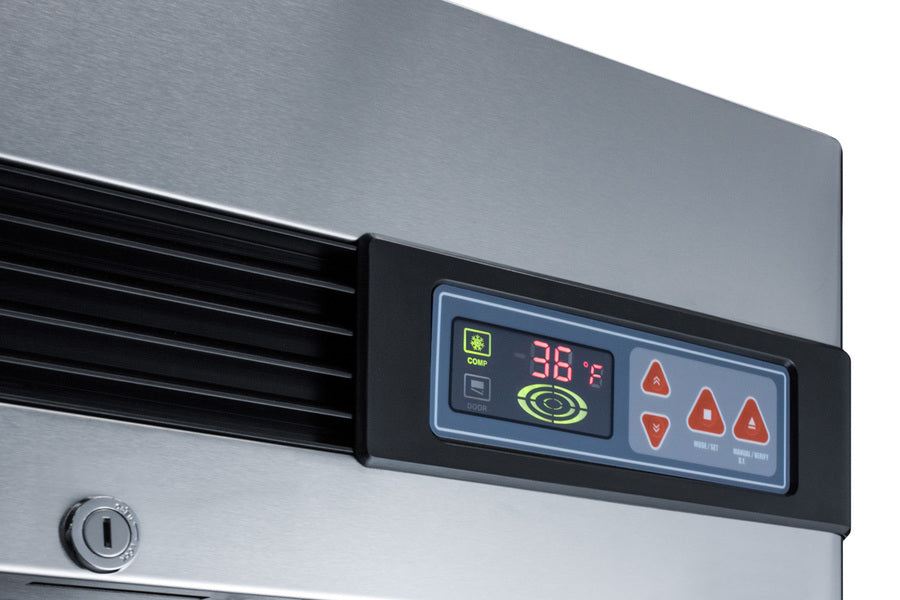

To ensure optimum storage conditions, the SCRR232 is equipped with a microprocessor temperature controller that makes it easy for staff to adjust the temperature. The large digital LED readout displays the current and high/low temperatures in Celsius or Fahrenheit. An audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.
Designed with hydrocarbon refrigerant, the SCRR232 provides an energy efficient solution to large capacity storage. It is ETL-S listed to NSF-7 commercial standards. For a matching frost-free freezer, see the SCFF237. A glass door refrigerator version is also available (model SCR23SSG).
| Overview | Refrigerator/Freezer | ||

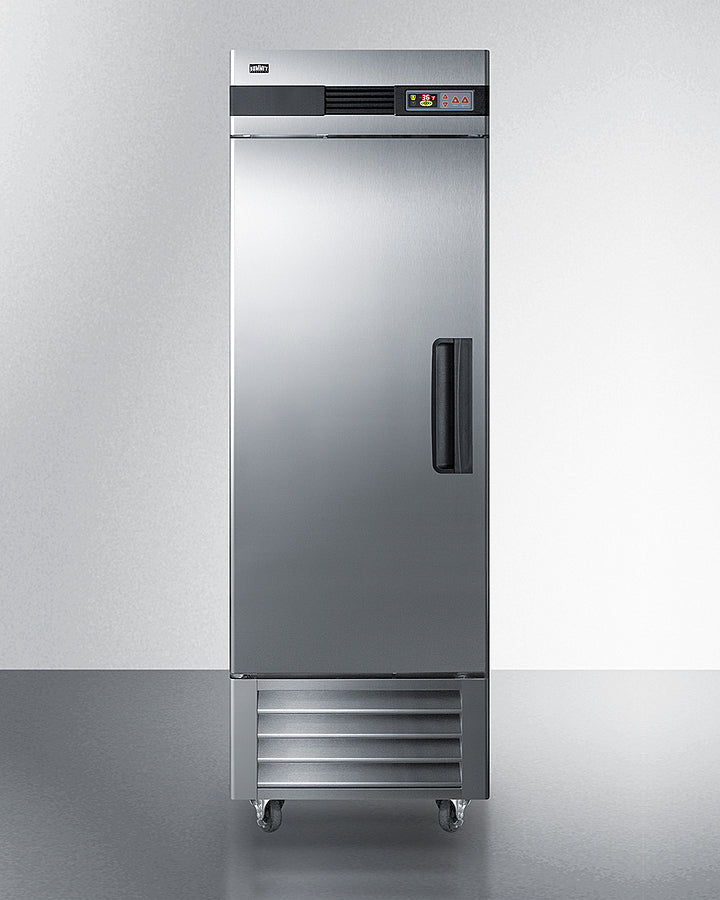

| Nominal Height | 84.0" (213 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 83.75" (213 cm) | Reversible | No |
| Nominal Width | 28.0" (71 cm) | Shelf Type | Wire |
| Width | 27.5" (70 cm) | Shelf Qty | 4 |
| Nominal Depth | 31.0" (79 cm) | Adjustable Shelves | Yes |
| Depth | 31.0" (79 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 56.5" (144 cm) | Fan Type | Interior |
| Capacity | 23.0 cu.ft. (651 L) | Refrigerant Type | R290 |
| Defrost Type | Automatic | Refrigerant Amount | 2.5oz. |
| Door | Stainless Steel | High Side PSI | 290.0 |
| Cabinet | Stainless Steel | Low Side PSI | 155.0 |
| US Electrical Safety | UL | Wheel Qty | 4 |
| Canadian Electrical Safety | ULC | Interior Light | Yes |
| Sanitation | ETL-S | Temperature Range | 33 to 41ºF |
| Amps | 7.5 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 51.5" (131 cm) |
| Weight | 282.0 lbs. (128 kg) | Interior Width | 23.5" (60 cm) |
| Parts & Labor Warranty | 2 Years | Interior Depth | 27.0" (69 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101062358 | ||
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
