Summit SDHW2442 24″ Wide Shallow-Depth Wine Cellar – Glass Door, Built-In Design

SKU: SA-SDHW2442
Regular price $1,995.20
Full Control & Alarm Features — Digital thermostat for 41–68 °F, open-door alarm, high/low temp alert, Sabbath mode, interior LED lighting, and temperature memory.
Commercial-Grade Certification & Secure Door — ETL-S / NSF-7 listing, double-pane tempered glass door with stainless trim, factory lock, and reversible hinge.
Frost-Free & Uniform Cooling — Fan-forced airflow ensures consistent temps and eliminates the need for manual defrosting.
33.75" H x 14.75" W x 18.0" D
(86cm H x 37cm W x 46cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SDHW2442

15" Wide Beverage Center:
Undercounter glass door beverage refrigerator for residential or commercial use

18" depth:
Unique 18" depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

Built-In capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

Double pane tempered glass door:
Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim:
Glass is framed by with a flush one-piece stainless steel trim for an elevated look

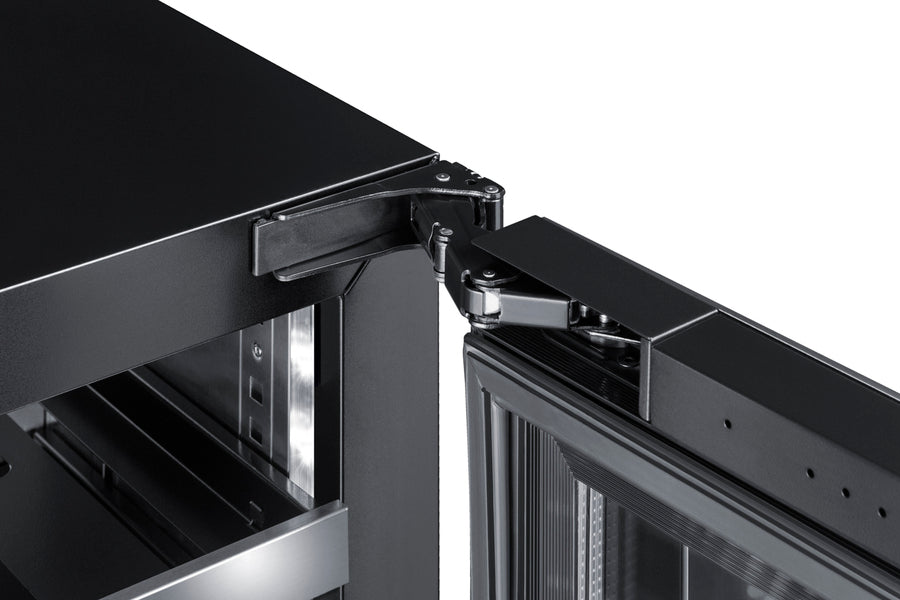

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

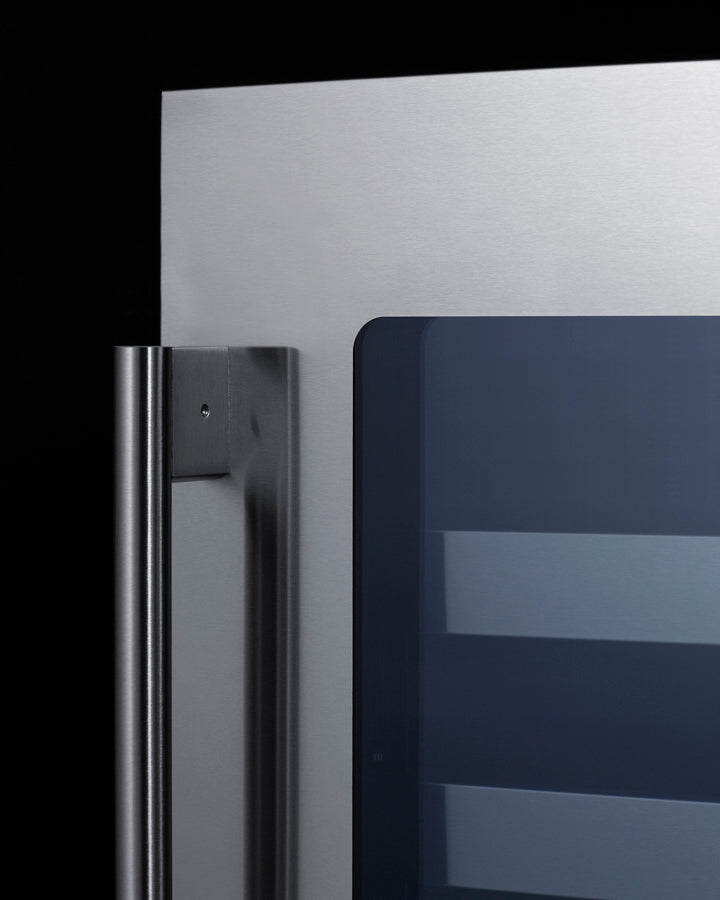

Professional handle:
Stainless steel handle completes the look

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

Frost-free operation:
No-frost operation for minimum user maintenance

Digital controls:
Easy-to-use digital controls allow for precise temperature settings, which is crucial for maintaining the ideal storage temperature

Ideal temperature range:
The unit's temperature range of 36°F to 43°F is ideal for chilling beverages

Angled thermostat:
Thermostat’s unique internal position allows for precise temperature readouts and easier temperature management

Dimmable LED light:
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

Open door alarm:
Alarm sounds if the door is left open for more than 60 seconds

High/low temperature alarm:
Audible alarm sounds if the interior temperature rises out of set range

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Sabbath mode:
Optional setting lets you disable the lighting and alarm for up to 96 hours during periods of observance

Temperature memory function:
Unit will retain its last settings when power is restored in the event of power loss

Adjustable glass shelves:
Spill-proof shelving for easy cleanup and flexible storage

Left hand door swing:
For this unit with a standard right-hand door swing, see model SDHG1533

Fully finished black cabinet:
Allows the unit to be used freestanding

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Quiet operation:
Runs under 34 dB for a quiet performance that won't interrupt your conversation

100% CFC free:
Environmentally friendly design with no ozone-damaging chemicals

CARB compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow-depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

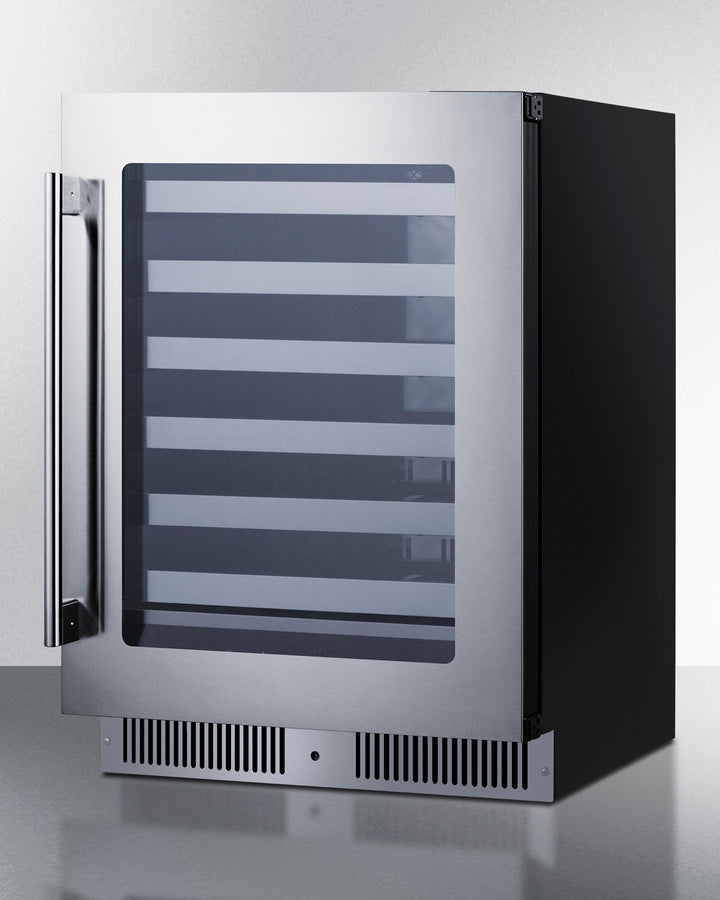

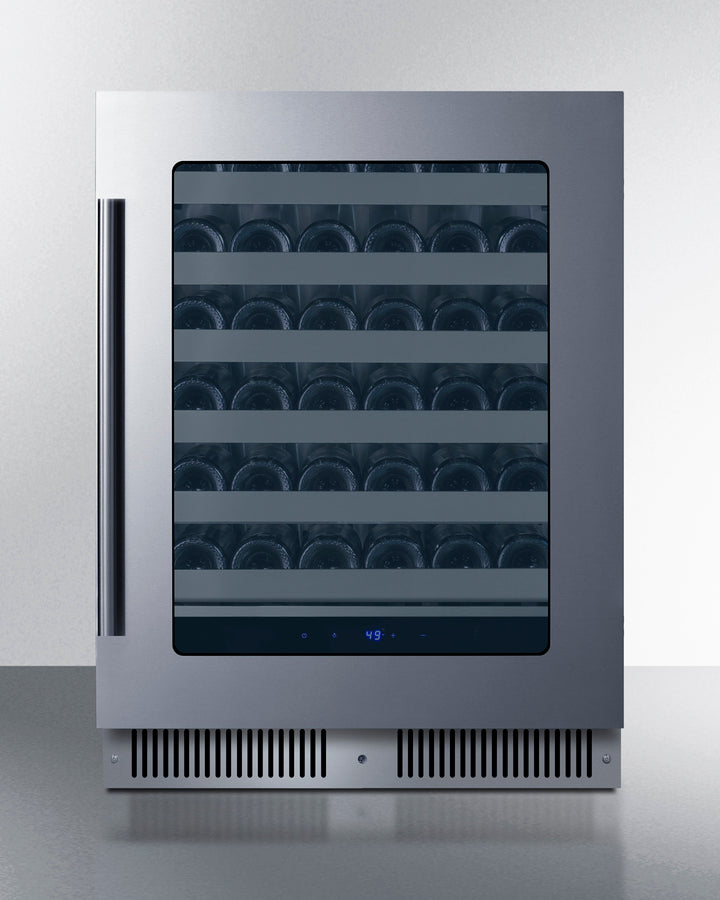

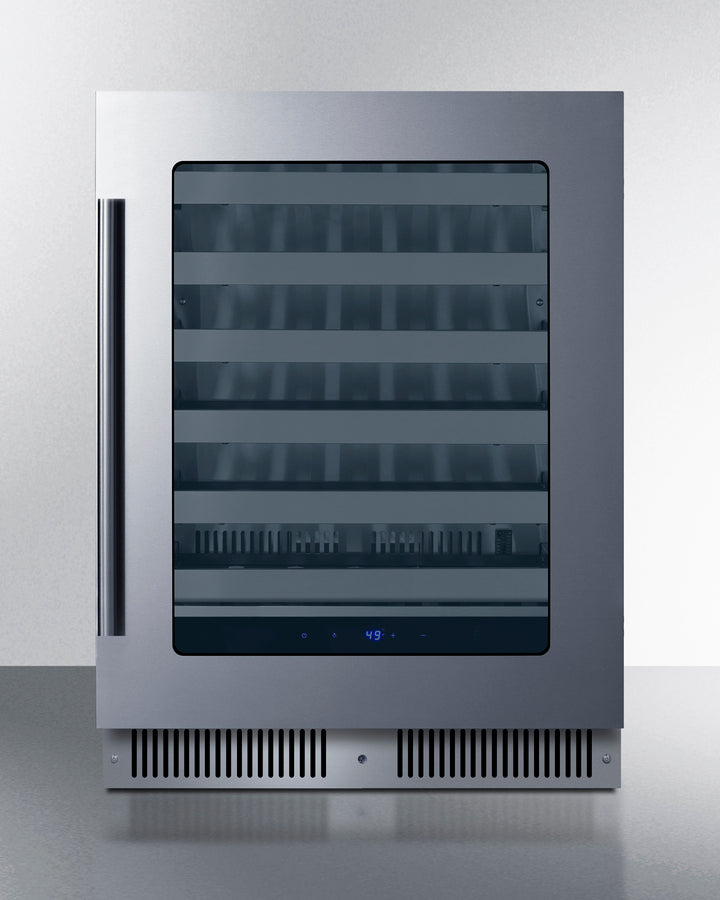

The SDHW2442 is a 24" wide single-zone wine cellar sized at 18" deep. It comes in a 34" height to fit standard undercounter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless, stylish stainless steel trim blends smoothly into the reversible double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The fully articulating European hinge design ensures smoother opening. A lock is located in the kickplate for added convenience and security.

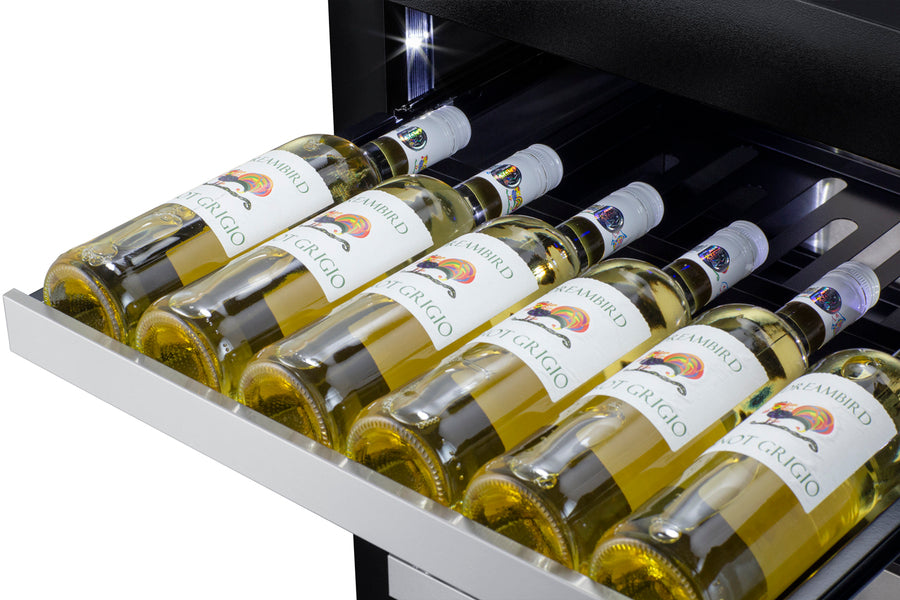

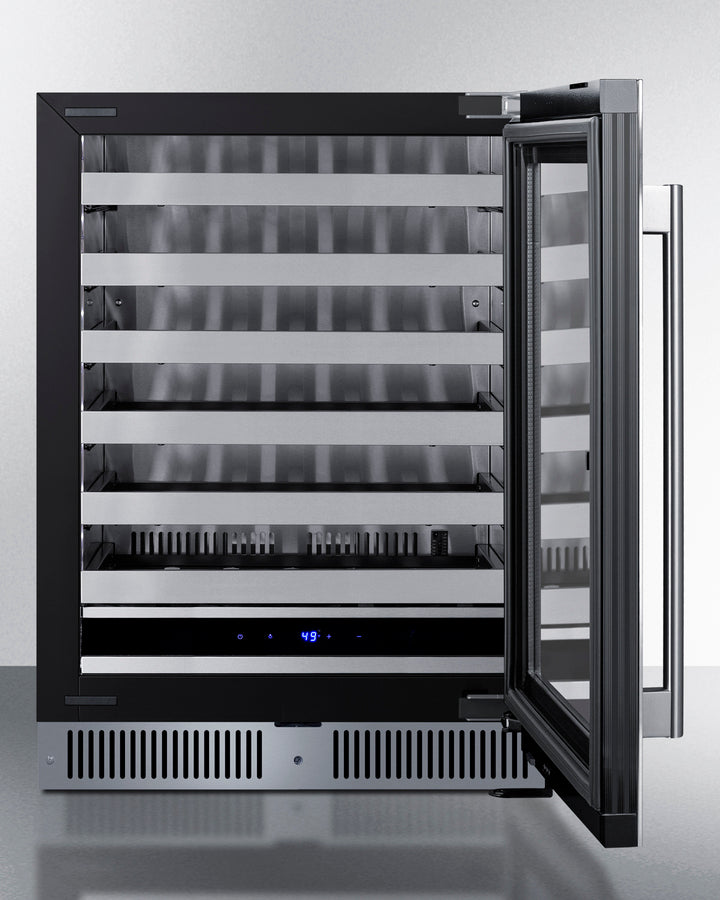

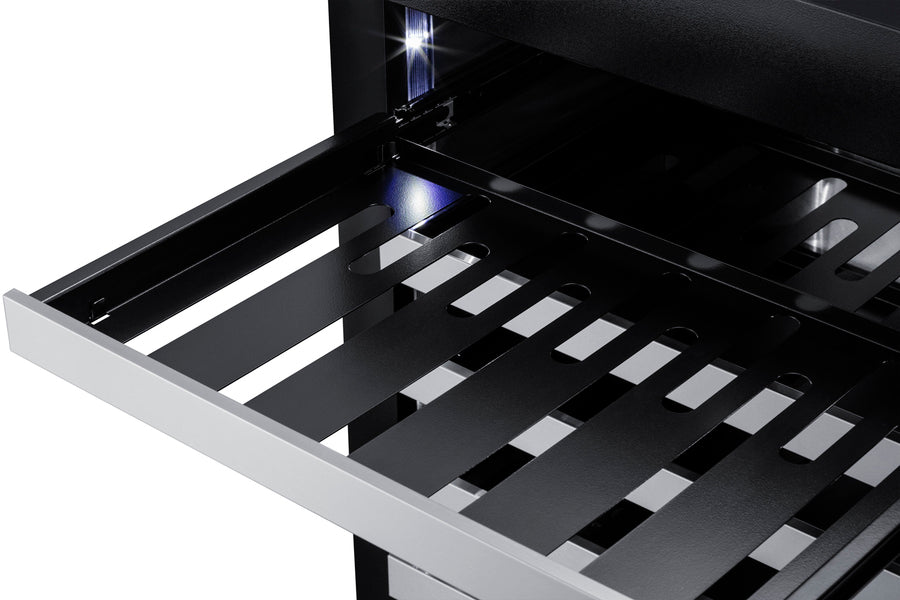

The inside features stainless steel construction for improved durability and sanitation. White LED lighting in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The angled digital control panel enables you to adjust the temperature between 41º and 68ºF to accommodate red, white, or sparkling wine bottles. Our uniquely designed steel shelves in a jet black finish slide out smoothly, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery.

Additional features include an open-door alarm, a high-temperature alarm, and a Sabbath mode setting that turns off some electrical elements for up to 96 hours during observances.

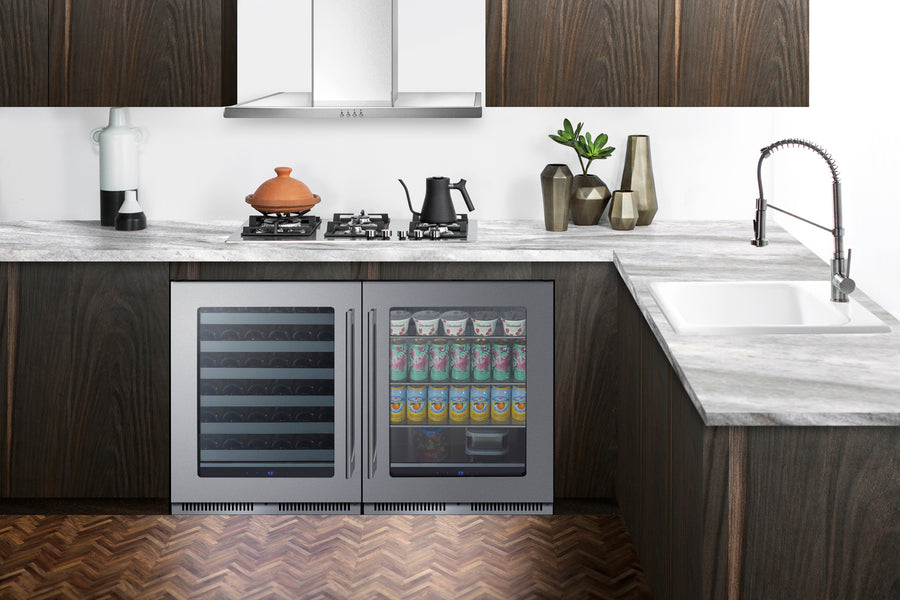

The SDHW2442 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our SDHG2443 beverage center.

Alternative 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more. For a panel-ready version, see model SDHW2442PNR.

NOTE: The interior can store up to 18 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the cork facing the rear for a better fit. Wider Burgundy bottles will fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine.

 Overview


Refrigerator-Freezer

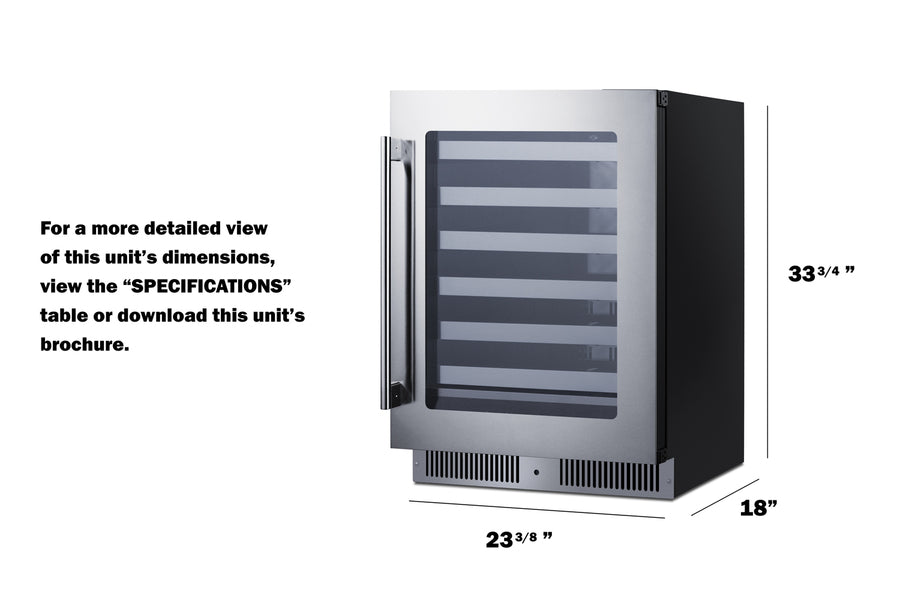

Nominal Height 34.0" (86 cm) Number of Zones 1
Height of Cabinet 33.75" (86 cm) Door Swing RHD/LHD
Nominal Width 24.0" (61 cm) Reversible Yes
Width 23.38" (59 cm) Adjustable Shelves Yes
Nominal Depth 18.0" (46 cm) Shelf Type Steel
Depth 18.0" (46 cm) Shelf Qty 6
Depth with Handle 19.75" (50 cm) Thermostat Type Digital
Depth with door at 90° 41.25" (105 cm) Interior Light Yes
Capacity 3.25 cu.ft. (92 L) Fan Type Interior and Exterior
Bottles 33 bottles Refrigerant Type R600a
Defrost Type Frost-Free Refrigerant Amount 1.38 oz.
Door Glass High Side PSI 270.0
Cabinet Black Low Side PSI 105.0
US Electrical Safety ETL Interior Height 1 26.0" (66 cm)
Canadian Electrical Safety ETL-C Interior Width 1 19.25" (49 cm)
Sanitation ETL-S Interior Depth 1 12.25" (31 cm)
Amps 1.0 Compressor Step Height 3.75" (10 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Width 19.25" (49 cm)
Weight 114.0 lbs. (52 kg) Compressor Step Depth 5.0" (13 cm)
Parts & Labor Warranty 1 Year Level Legs 4
Compressor Warranty 5 Years Temperature Range 41°F to 68°F
UPC 761101106366 Sabbath Mode Yes


Sound Level 33.4 dB
