Summit ASDW2412 24″ Wide ADA-Height Shallow Wine Cellar – Glass Door, Lockable

SKU: SA-ASDW2412
Regular price $1,917.20
Full Feature Digital Control & Protection — Adjustable 41–64 °F, open-door & high-temperature alarms, Sabbath mode, temperature memory, and fan-assisted cooling.
Commercial-Grade Construction — ETL-S / NSF-7 listing; double-pane tempered glass door, stainless steel interior, factory-installed lock, reversible door swing.
Extra-Shallow 17.75″ Depth for Tight Spaces — Designed to fit comfortably in island cutouts or wet bars without wasting room.

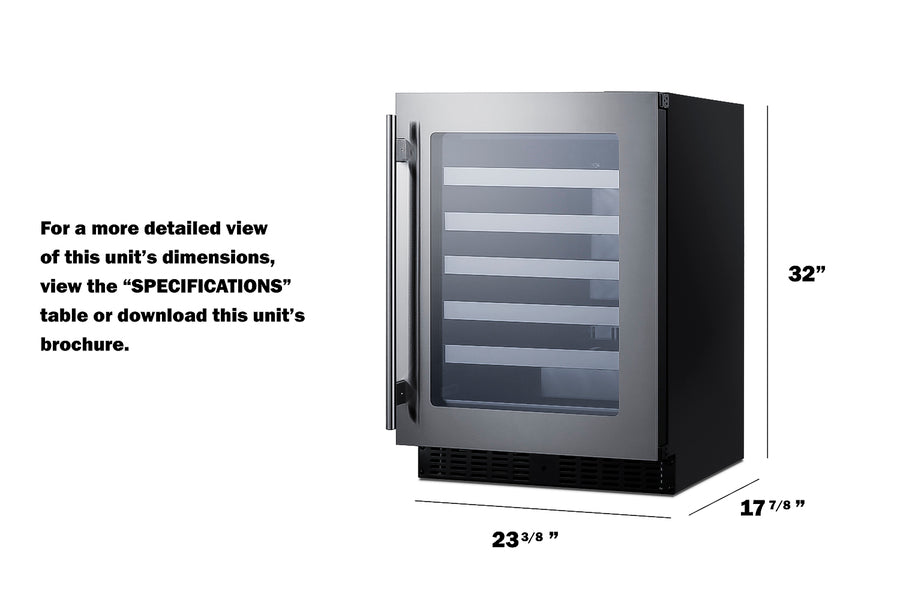

32.0" H x 23.38" W x 17.75" D
(81cm H x 59cm W x 45cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-ASDW2412

24" Wide Wine Cellar:
Single zone wine cooler for residential or commercial cold storage

Less than 18" deep:
Unique 17.75" shallow depth is ideal for wet bars, island kitchens, and other undercounter areas with limited footprint space

ADA compliant design:
32" height allows easy installation under lower ADA compliant counters

Adjustable height:
Leveling legs can be extended up to 2", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34" if used under more standard sized cabinets

Built-in capable:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Stainless steel interior:
Walls and floor are constructed from stainless steel for added strength and easy cleanup

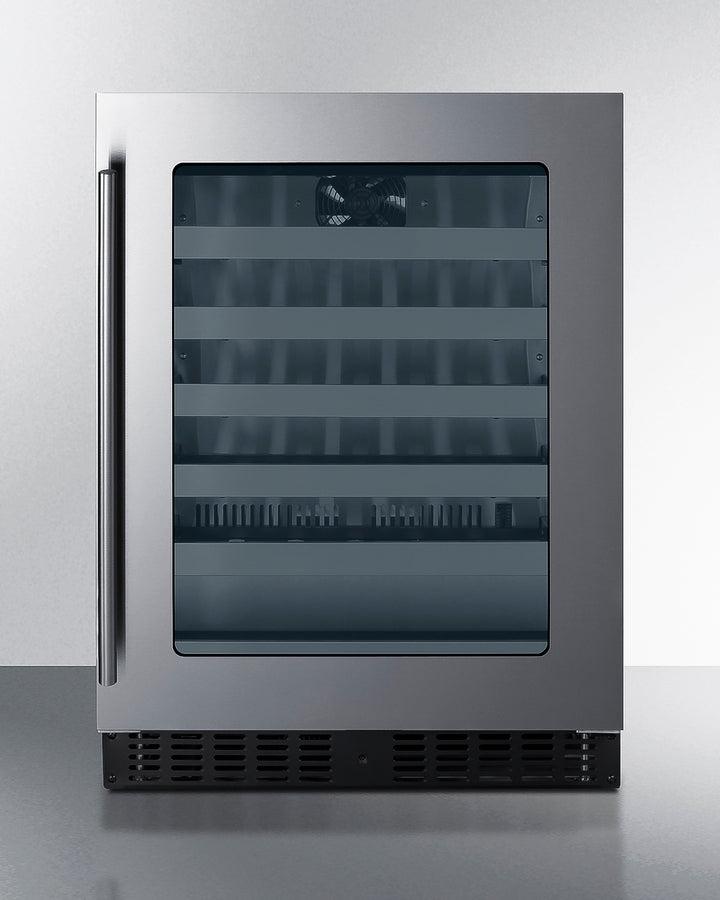

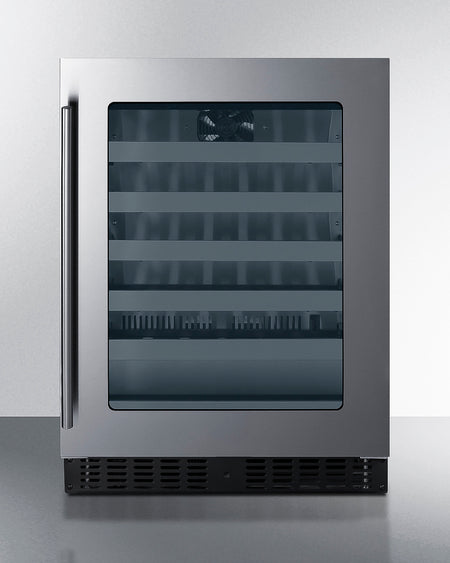

Double pane tempered glass door:
Elegant design offers a clear but protected view of your interior

Seamless stainless steel door trim:
Glass is framed by with a flush one-piece stainless steel trim for an elevated look

Factory installed lock:
Keyed lock for a secure interior (2 keys included)

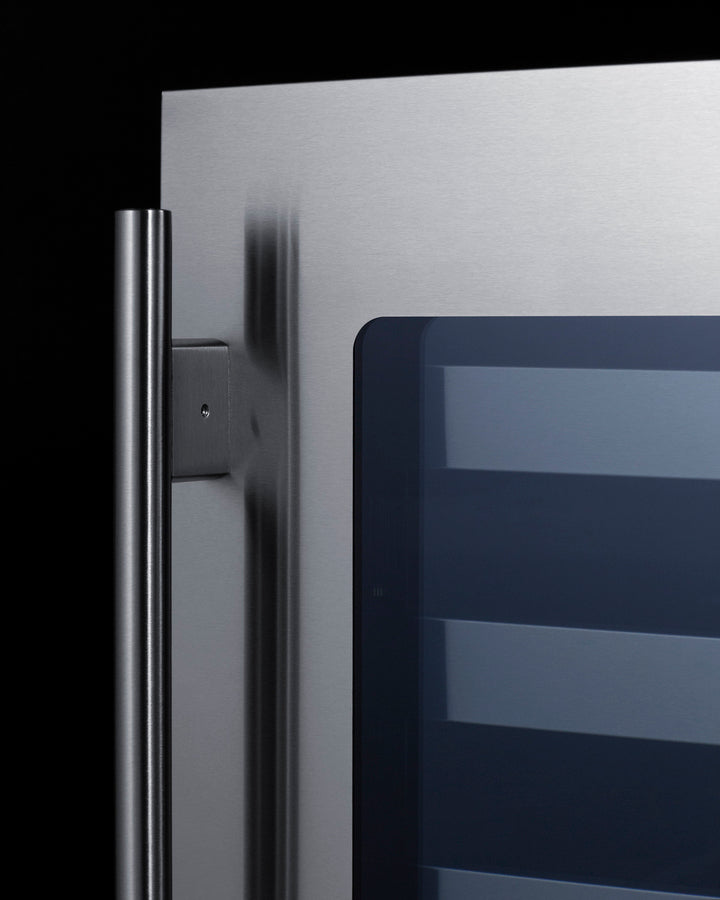

Professional handle:
Stainless steel handle completes the look

Digital thermostat:
Electronic controls located inside the unit for precise temperature management, with a readout viewable in Celsius or Fahrenheit at the touch of a button

Dimmable LED lighting:
Efficient and attractive presentation with white LED lighting strips located on each side of the cabinet that can be adjusted between three levels of brightness

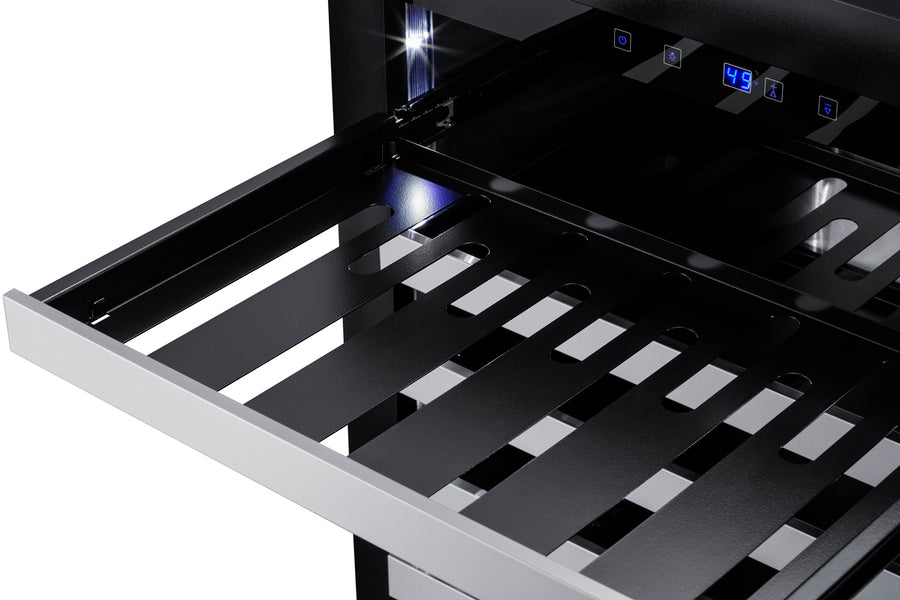

Commercial wine shelving:
Removable steel shelves in a black finish with stainless steel trim for an elegant but modern look

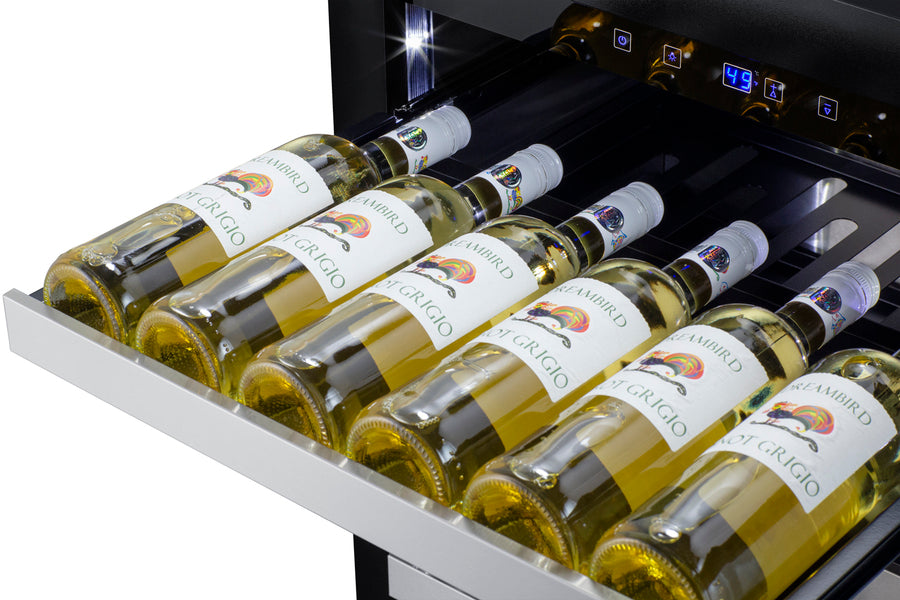

Smooth gliding extension:
Shelving is set on ball-bearing glides for a smoother extension, making it easy to load

Large capacity:
33-bottle capacity with five gliding shelves that can each hold up to 6 bottles, and a floor shelf to hold up to 3 bottles in a horizontal configuration (NOTE: capacity may vary depending on specific bottle style)

Frost-free operation:
No-frost operation for minimum user maintenance

Internal fan:
Fan-forced cooling ensures fast temperature recovery and that the unit is evenly cooled from top to bottom

Open door alarm:
Audible alarm will sound if the door is left open longer than one minute

High temperature alarm:
High temperature alarm sounds if the unit's interior goes out of the recommended range

Sabbath mode setting:
Optional setting lets you disable the lighting and alarm for up to 48 hours

Temperature Memory Function:
Unit will retain its last settings when power is restored in the event of power loss

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

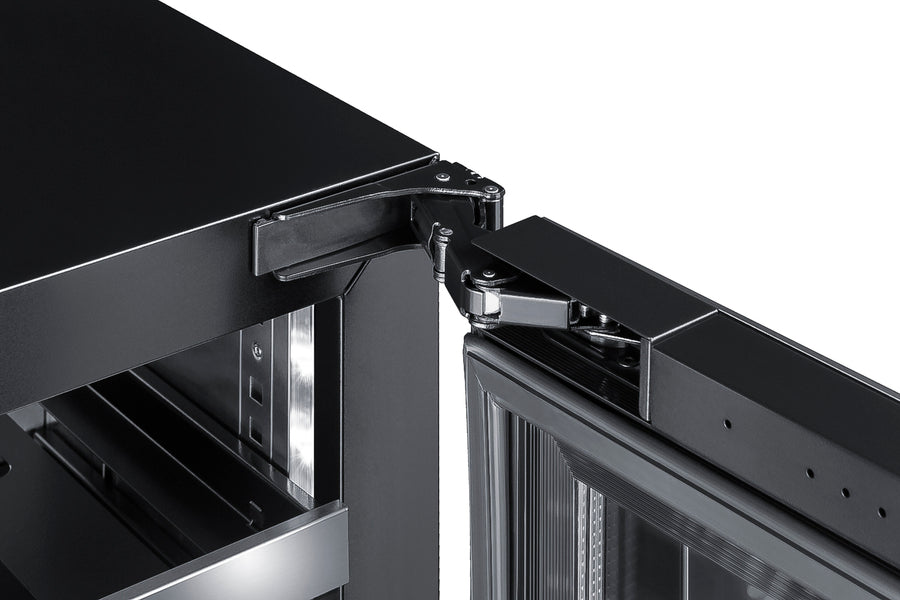

Fully articulating European style hinge:
Smoother opening and a better fit with an integrated European hinge

Reversible door:
User-reversible door swing for added flexibility

Fully finished black cabinet:
Allows the unit to be used freestanding

Commercially approved:
ETL-S listed to NSF-7 Standards and meets UL-471 for use in commercial establishments

100% CFC Free:
Environmentally friendly design with no ozone-damaging chemicals

CARB Compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.

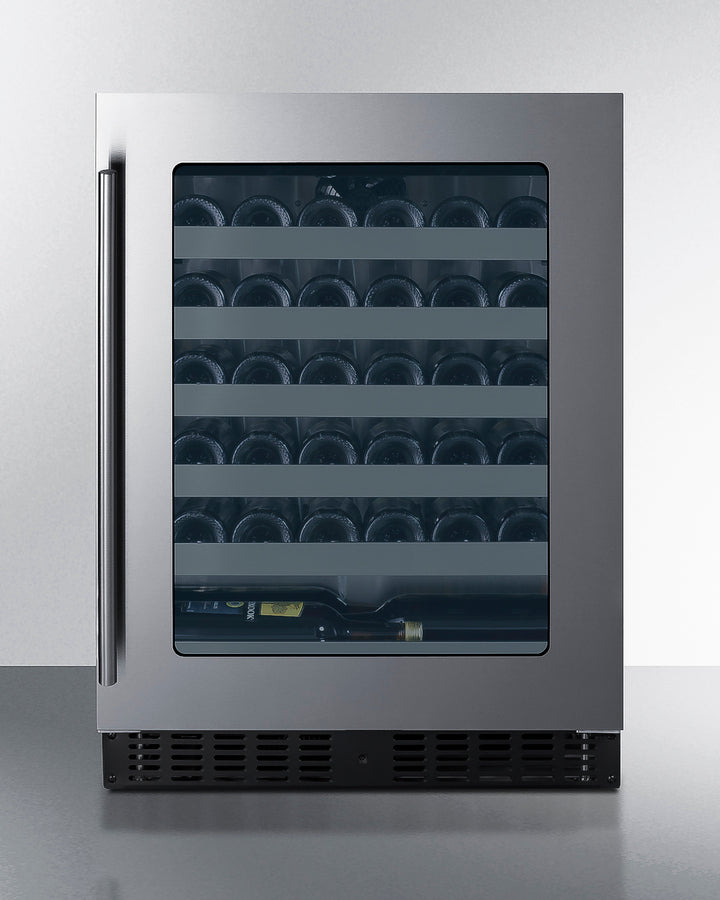

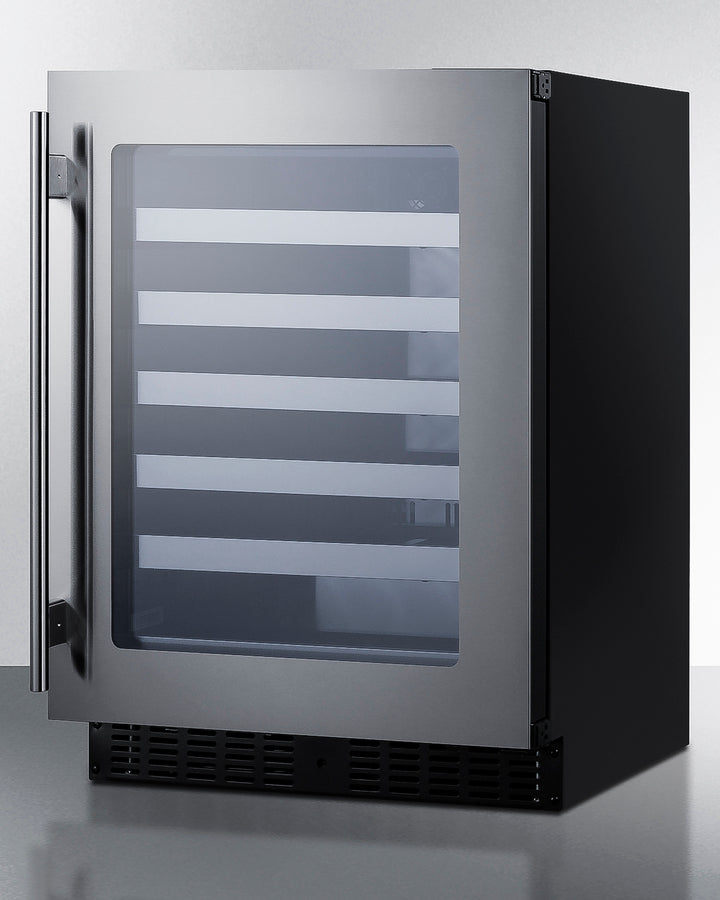

Model ASDW2412 is a 24" wide 33-bottle single zone wine cellar sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. Seamless stainless steel trim blends smoothly into the double pane tempered glass door for an elevated look, with a professional stainless steel handle included. This unit has a sealed rear and right angle cord for a better fit. The door is user-reversible and includes a front lock to protect your collection.

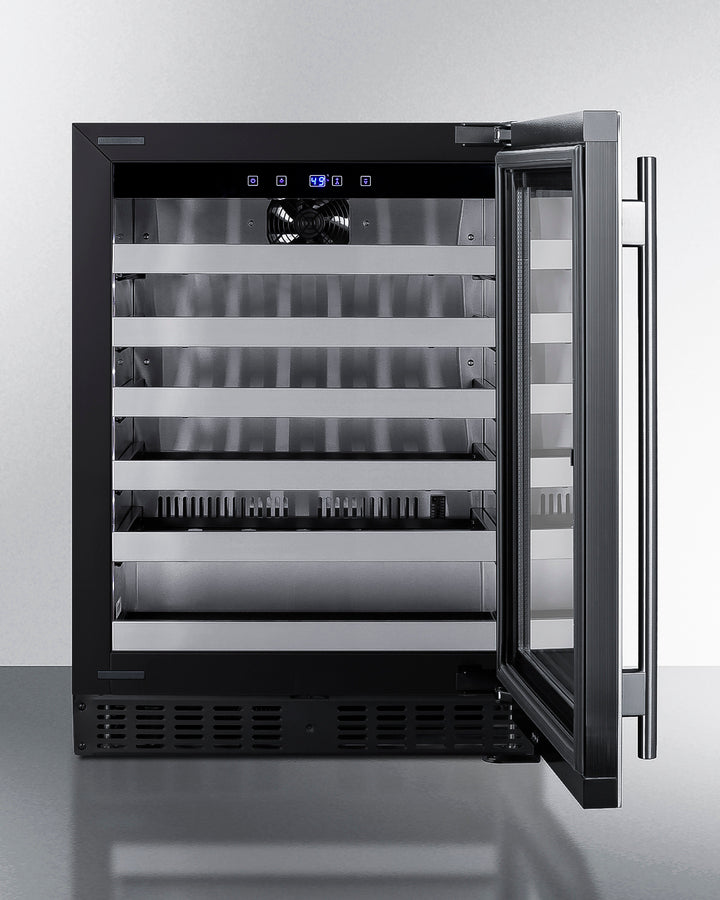

Inside, the ASDW2412 features stainless steel construction for improved durability and sanitation. White LED lighting located in the side walls provides elegant display conditions, with dimmable levels that let you create the perfect presentation. The digital control panel lets you adjust the temperature between 41º and 64ºF to accommodate red, white, or sparkling wine. Our uniquely designed steel shelves in a jet black finish extend smoothly on ball-bearing glides, with stainless steel front trim to complete the classic look. Fan-forced cooling ensures even temperature distribution and fast temperature recovery. Additional features include an open door alarm, high temperature alarm, and Sabbath mode setting that lets you disable some of the electrical elements during periods of observance.

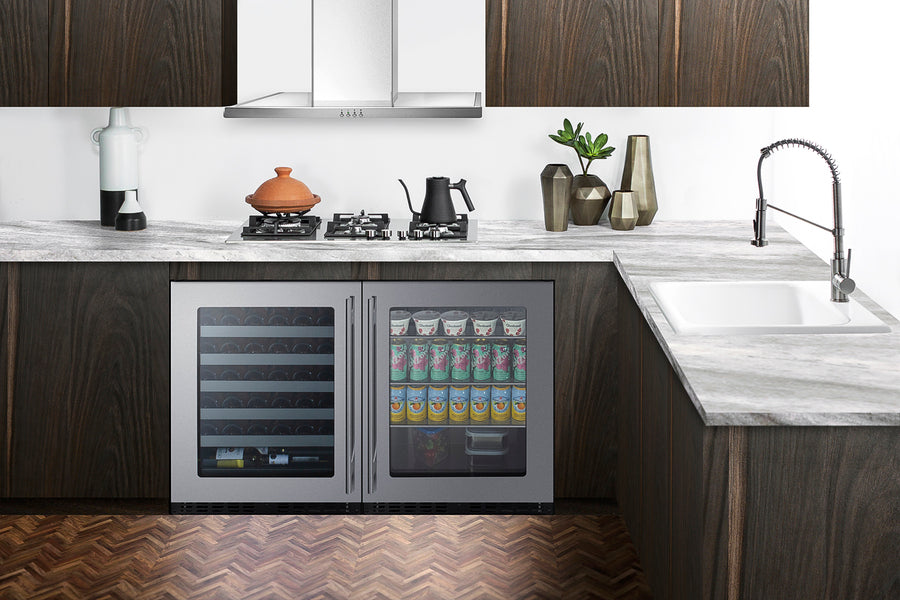

The ASDW2412 is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Create a matching set by pairing this with our ASDW2411 beverage center. Additional 18" deep choices are available in 15", 19", and 24" widths, including outdoor refrigerators, refrigerator drawers, and more.

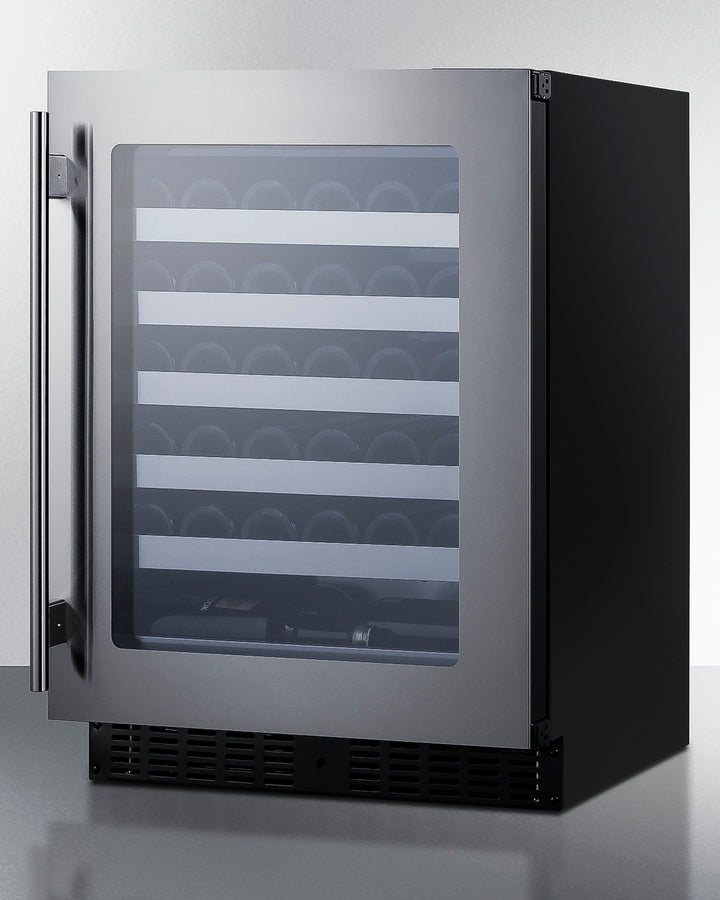

NOTE: The interior can store up to 33 Bordeaux-style bottles. Due to the shallow depth of this unit, we recommend loading the bottles with the corks facing the rear for a better fit. Wider Burgundy bottles will also fit on most shelves, but as these may vary more in size, loading capacity will ultimately depend on your specific bottle design. You may also remove shelves to accommodate thicker bottles, such as champagne and sparkling wine. The lower shelf is designed to hold Bordeaux-style bottles horizontally. Please use care when loading and unloading this section.

 Overview


Refrigerator-Freezer



Nominal Height 32.0" (81 cm) Number of Zones 1
Height of Cabinet 32.0" (81 cm) Door Swing RHD/LHD
Nominal Width 24.0" (61 cm) Reversible Yes
Width 23.38" (59 cm) Height Adjustable Yes
Nominal Depth 18.0" (46 cm) Adjustable Shelves Yes
Depth 17.75" (45 cm) Shelf Type Steel
Depth with Handle 19.63" (50 cm) Shelf Qty 6
Depth with door at 90° 39.88" (101 cm) Thermostat Type Digital
Capacity 3.25 cu.ft. (92 L) Interior Light Yes
Defrost Type Frost-Free Fan Type Interior and Exterior
Door Glass Refrigerant Type R600a
Cabinet Black Refrigerant Amount 1.38 oz.
US Electrical Safety ETL High Side PSI 270.0
Canadian Electrical Safety ETL-C Low Side PSI 105.0
Sanitation ETL-S Interior Height 1 24.25" (62 cm)
Amps 1.0 Interior Width 1 19.5" (50 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Depth 1 12.25" (31 cm)
Weight 120.0 lbs. (54 kg) Compressor Step Height 3.75" (10 cm)
Parts & Labor Warranty 1 Year Compressor Step Width 19.5" (50 cm)
Compressor Warranty 5 Years Compressor Step Depth 4.5" (11 cm)
UPC 761101079462 Level Legs 4


Temperature Range 41º to 64ºF


Sabbath Mode Yes


Sound Level 32.6 dB
