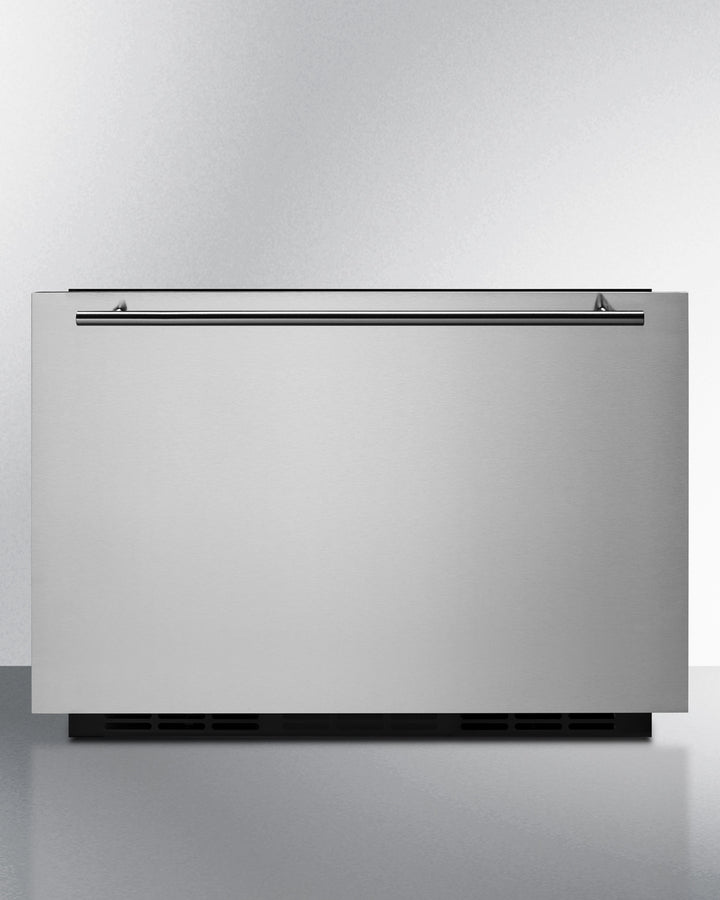

Summit FF1DSS24 24″ Wide Built-In Drawer Refrigerator – Stainless Steel / Panel-Ready Drawer
Customer service
Features
- SKU SA-FF1DSS24
Summit offers a quality line of commercially approved drawer refrigerators fully featured for indoor or outdoor use.

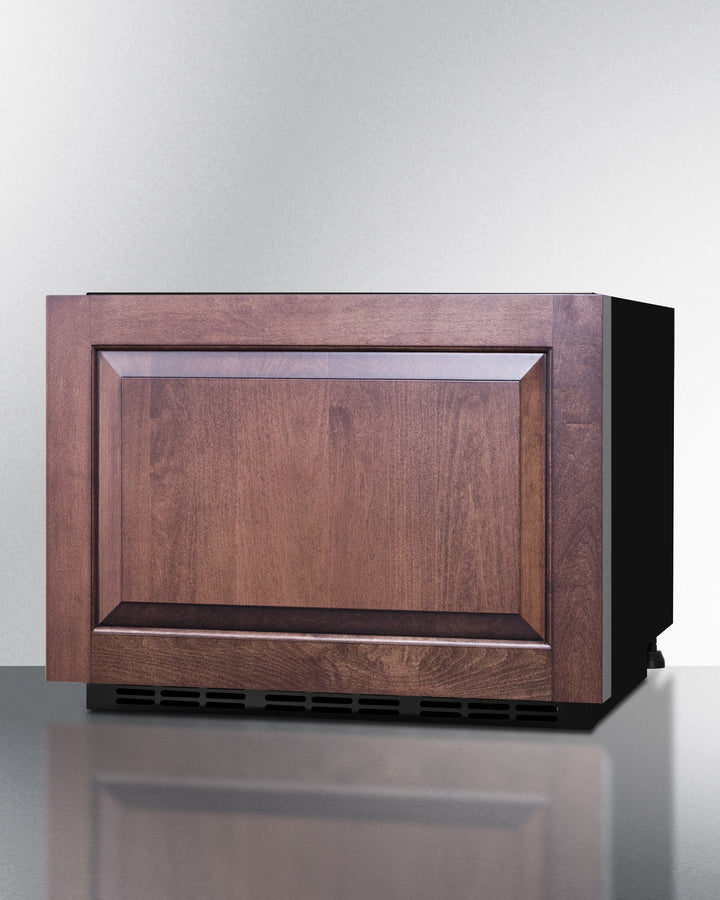

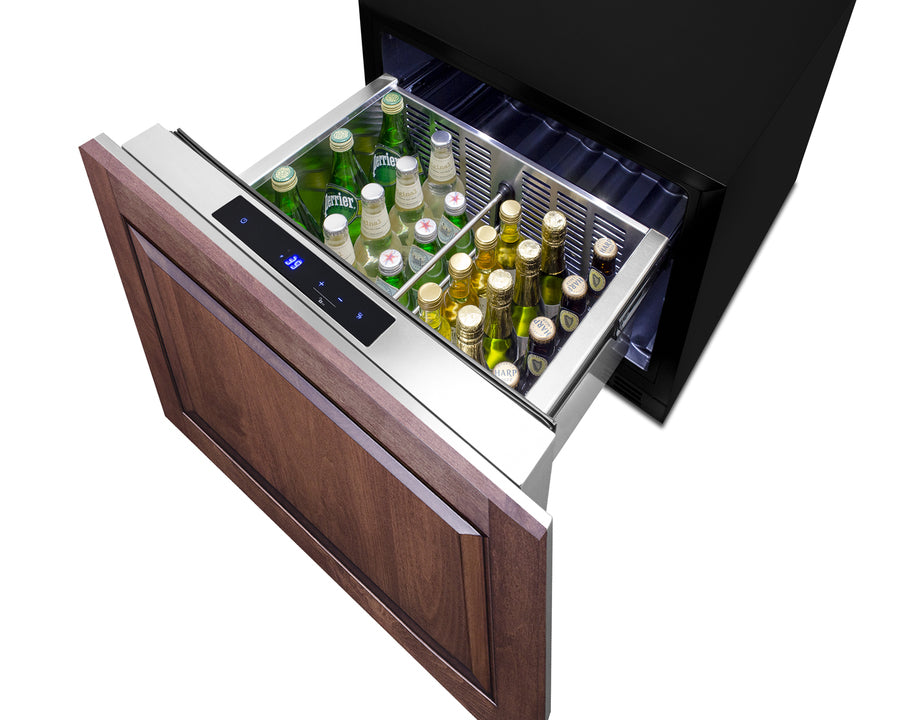

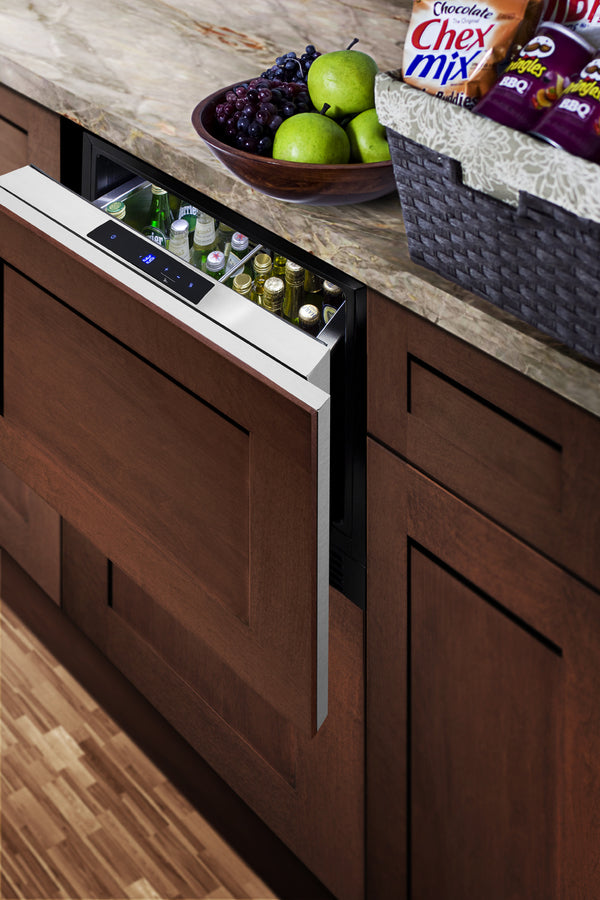

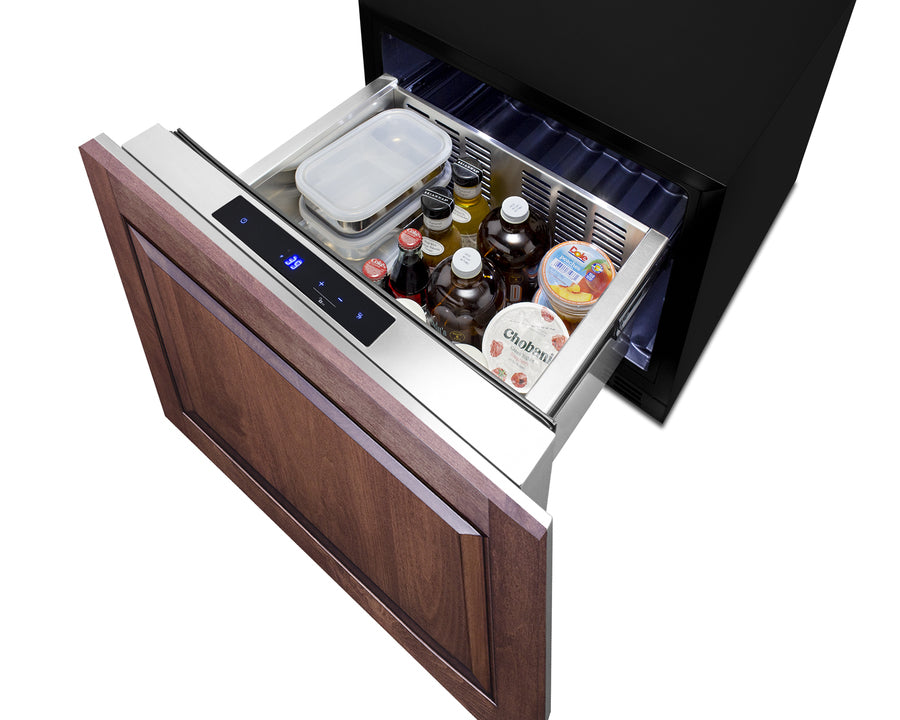

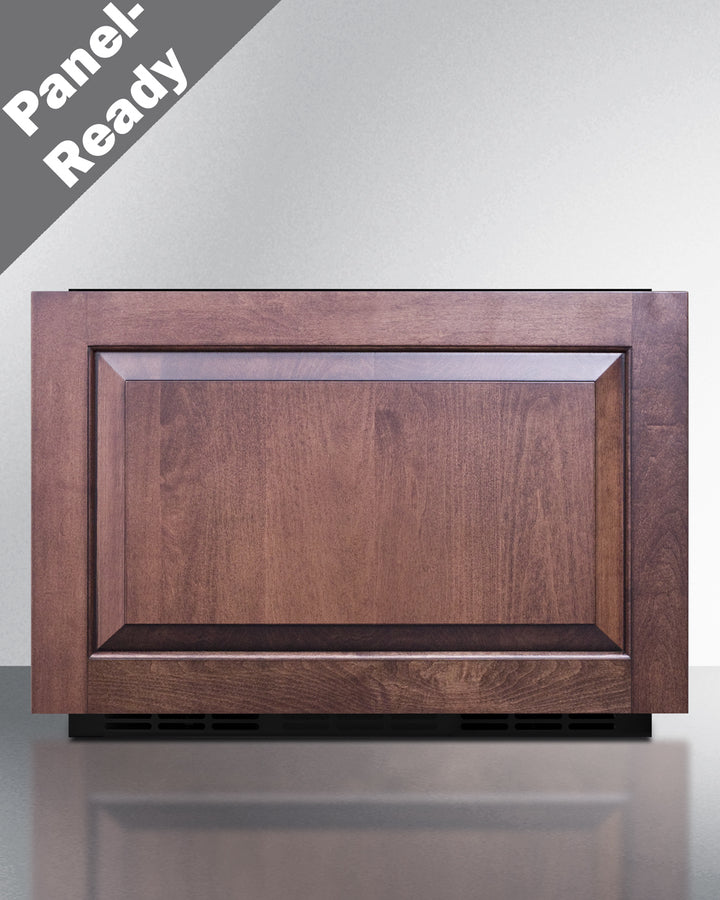

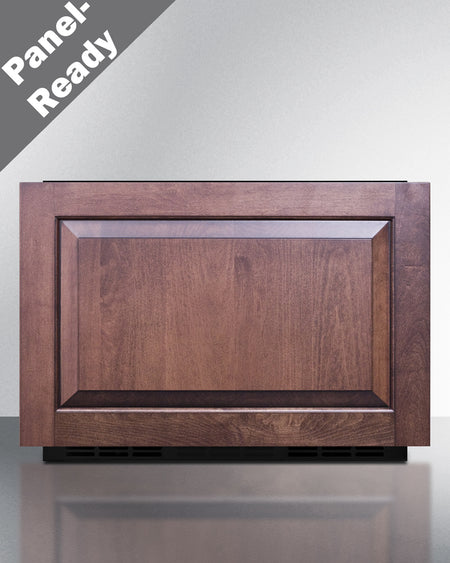

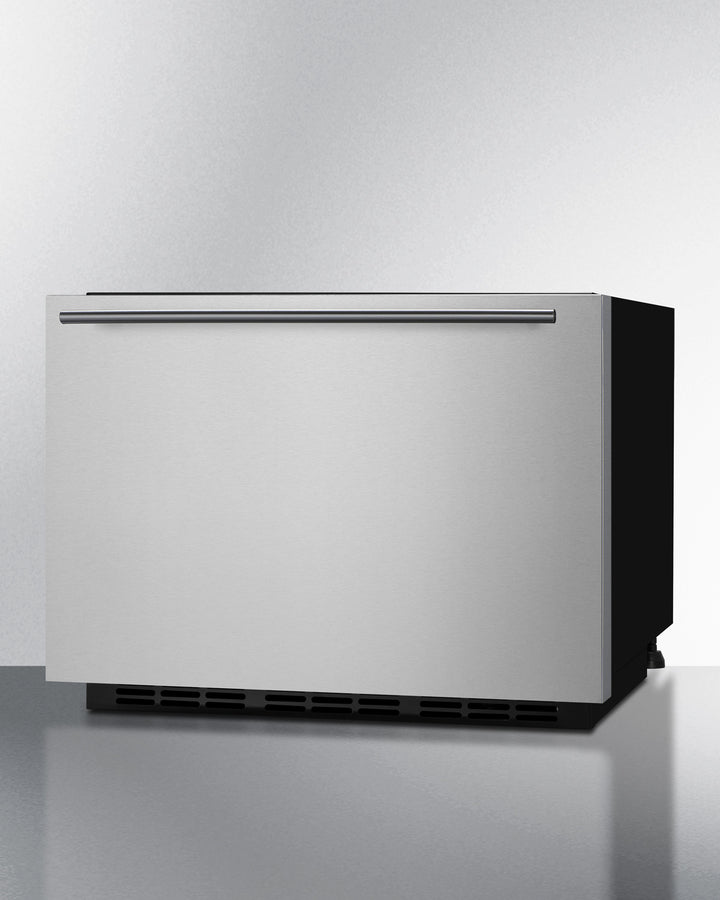

The FF1DSS24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. Its front-breathing design allows built-in installation, while the fully finished black cabinet also enables freestanding use. The cabinet is sized at 21.5" wide, with an oversized pre-installed stainless steel front drawer panel to cover traditional 24" wide openings. The drawer front can be customized with an overlay panel (not included) to match or accent an existing cabinetry design (recommended panel dimensions: 15.6" H x 21.4-24" W at 3/4" maximum thickness).

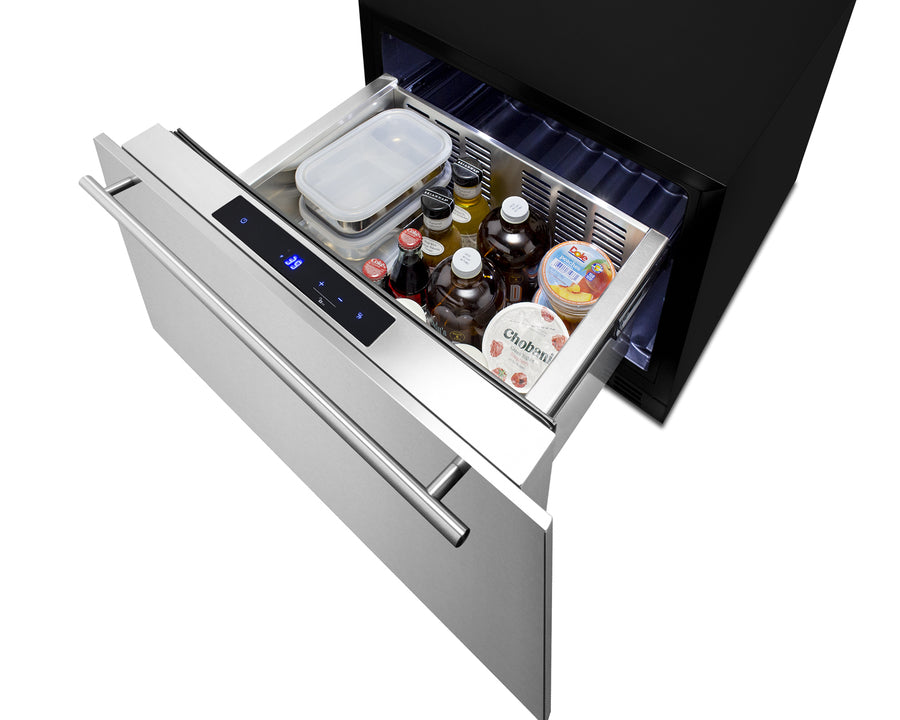

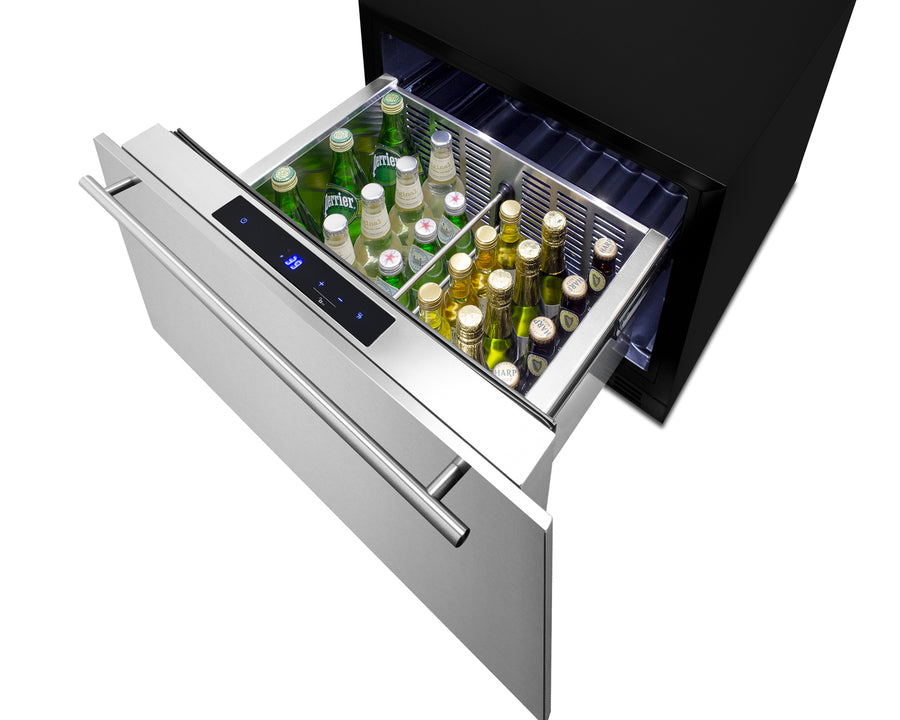

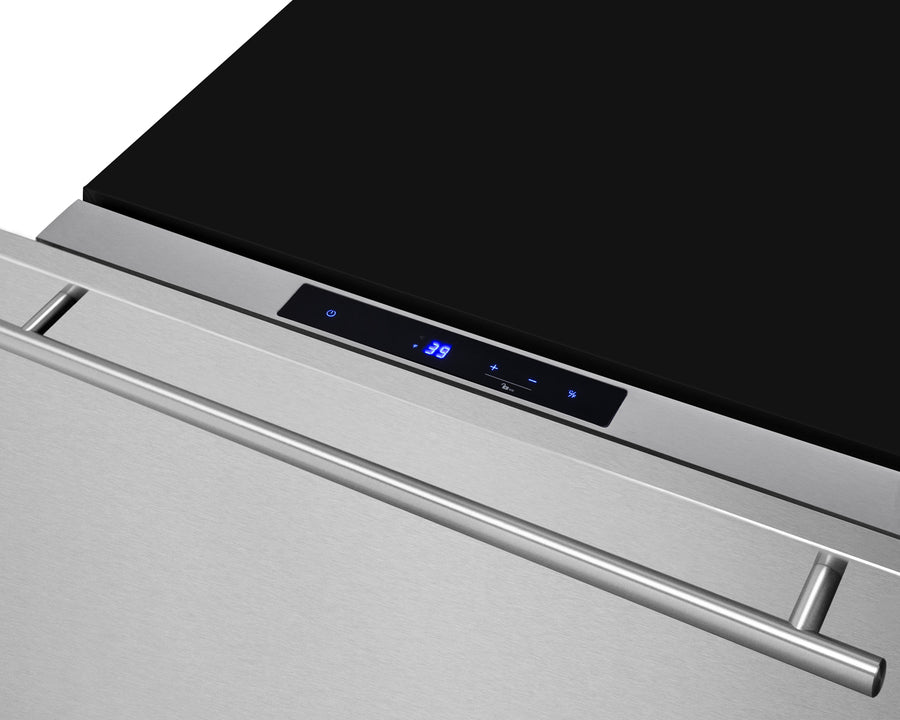

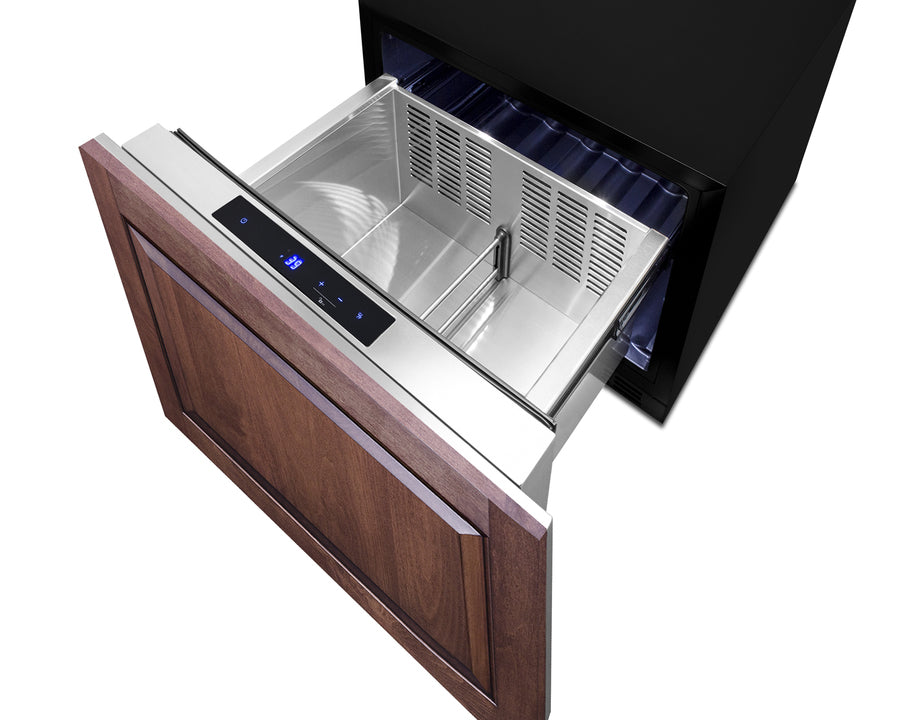

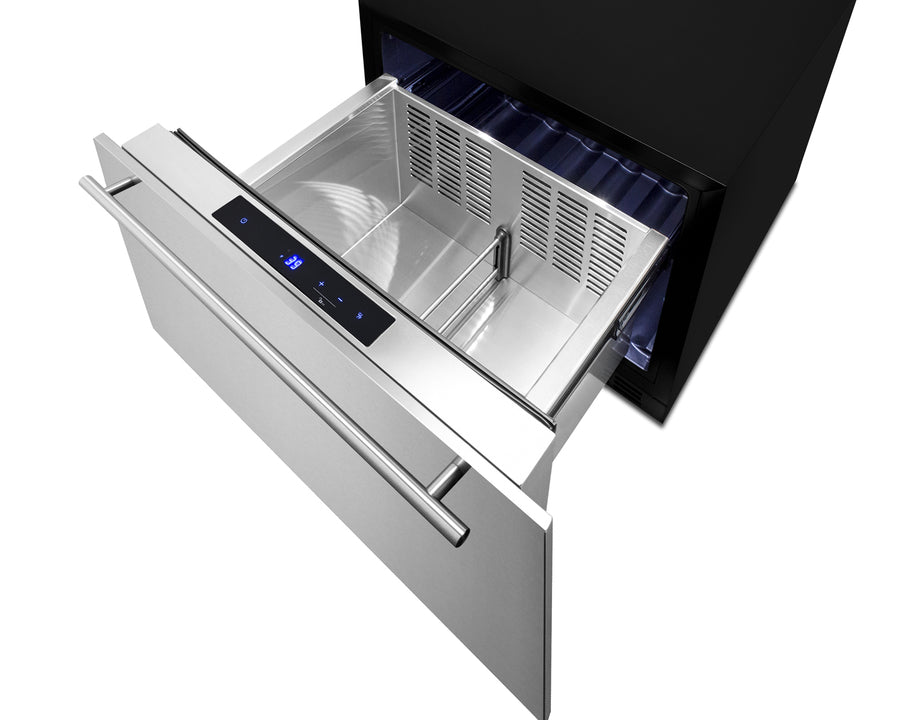

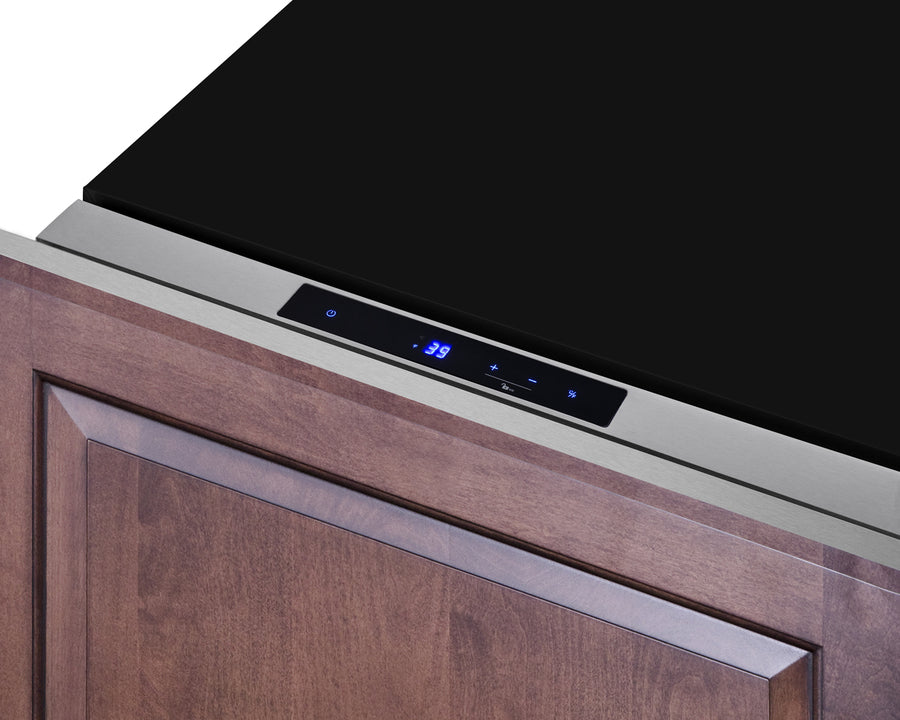

Inside, the FF1DSS24 has a 1.6 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to easily accommodate a variety of sizes. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

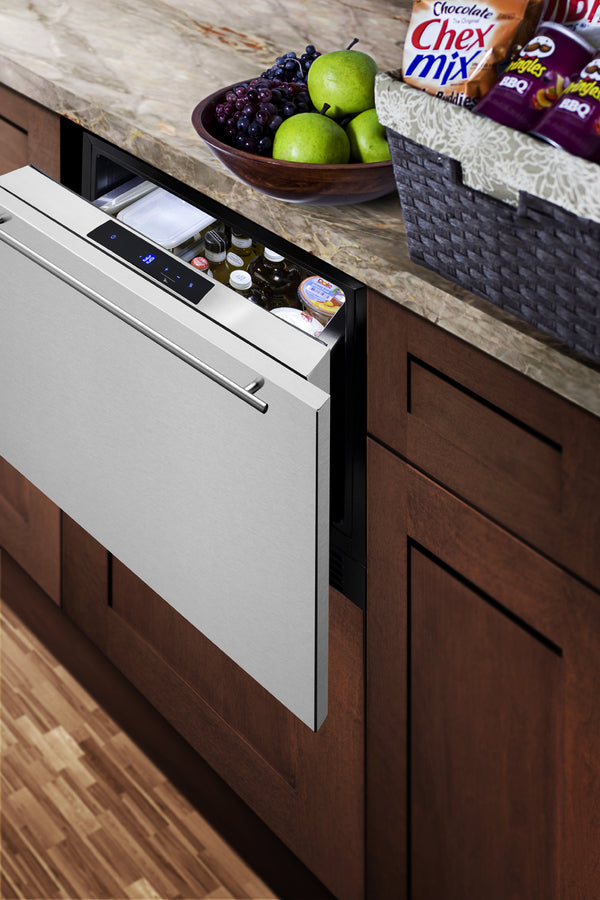

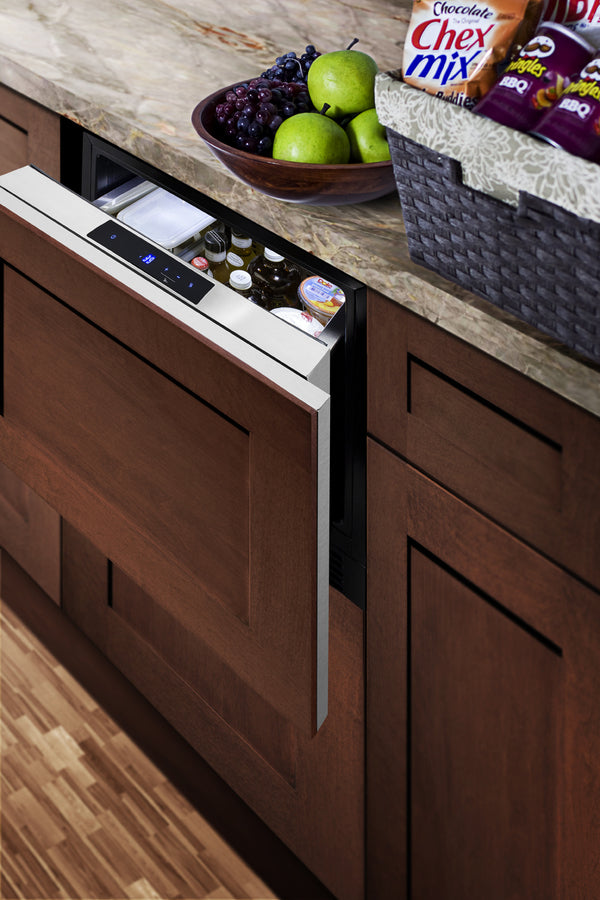

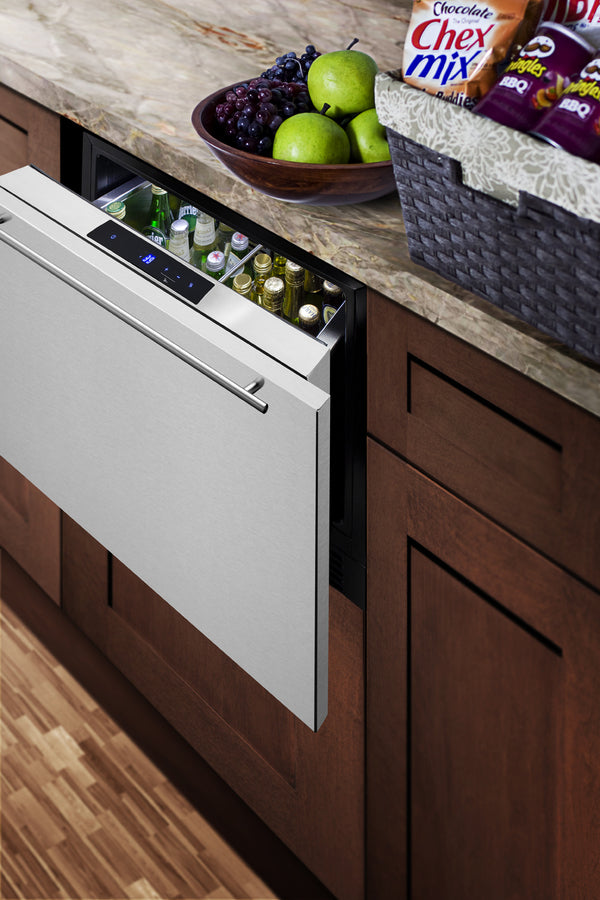

With its fully-featured, weatherproof design, the FF1DSS24 is the perfect cooling compartment or beverage holder in home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit 21" wide spaces, see the FF1DSS.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 18.0" (46 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 17.75" (45 cm) | Door Swing | Drawer |
| Nominal Width | 24.0" (61 cm) | Reversible | No |
| Width | 23.5" (60 cm) | Thermostat Type | Digital |
| Nominal Depth | 23.0" (58 cm) | Fan Type | Interior and Exterior |
| Depth | 22.88" (58 cm) | Refrigerant Type | R600a |
| Depth with Handle | 24.38" (62 cm) | Refrigerant Amount | 0.78oz. |
| Depth with door at 90° | 36.13" (92 cm) | High Side PSI | 270.0 |
| Capacity | 1.6 cu.ft. (45 L) | Low Side PSI | 105.0 |
| Defrost Type | Frost-Free | Level Legs Qty | 4 |
| Door | Stainless Steel/Panel-Ready | Interior Light | Yes |
| Cabinet | Black | Temperature Range | 36 to 43ºF |
| US Electrical Safety | ETL | Sound Level | 33.3 dB |
| Canadian Electrical Safety | ETL-C |
Dimensions
|
|
|---|---|---|---|
| Sanitation | ETL-S | Interior Height | 13.0" (33 cm) |
| Energy Usage/Year | 273.0kWh/year | Interior Width | 16.0" (41 cm) |
| Amps | 1.0 | Interior Depth | 11.5" (29 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 7.0" (18 cm) |
| Weight | 63.0 lbs. (29 kg) | Compressor Step Width | 16.0" (41 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 1.0" (3 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101081519 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
