Summit SDR241OS 24″ Wide Outdoor / Built-In Drawer Refrigerator – Stainless Steel / Panel-Ready
Customer service
Features
- SKU SA-SDR241OS
Summit manufactures an extensive selection of built-in refrigeration specially constructed for safe and reliable cooling in outdoor kitchens.

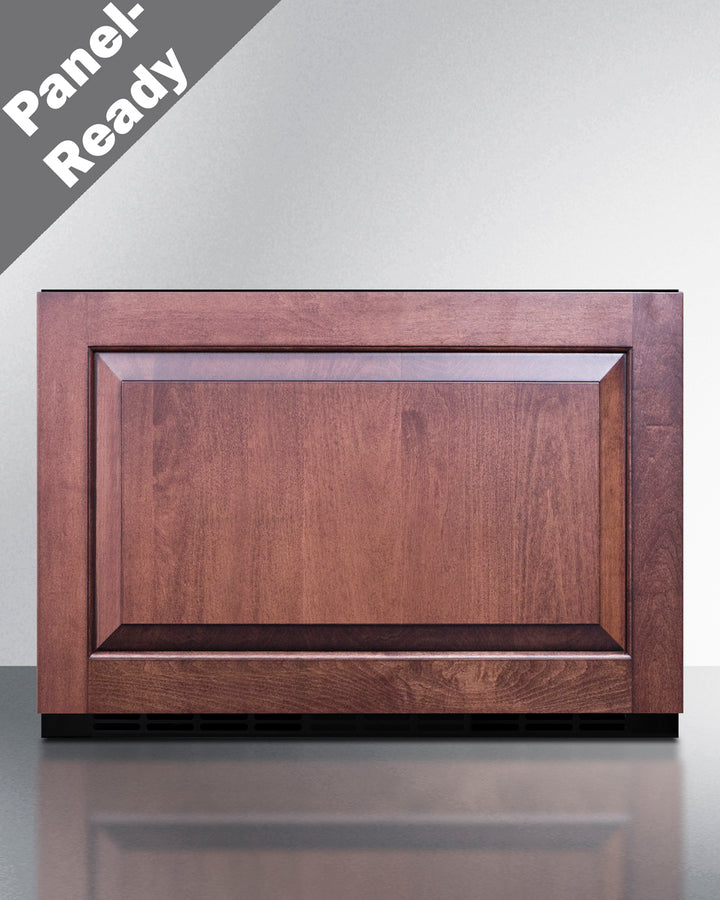

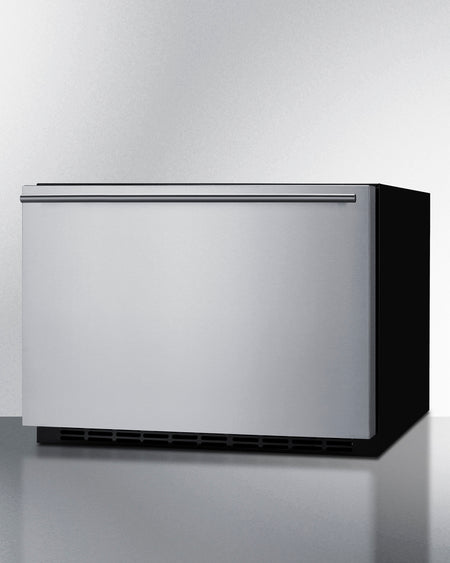

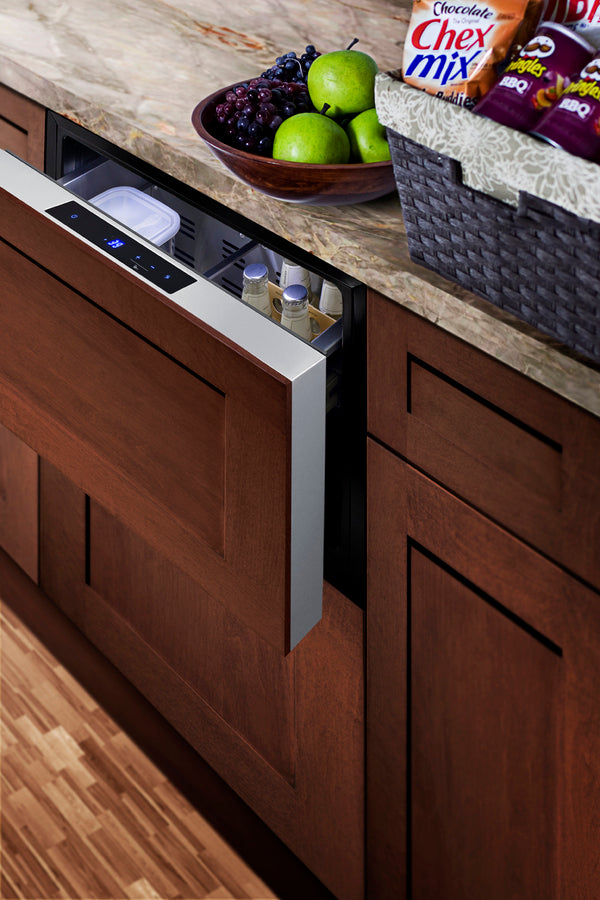

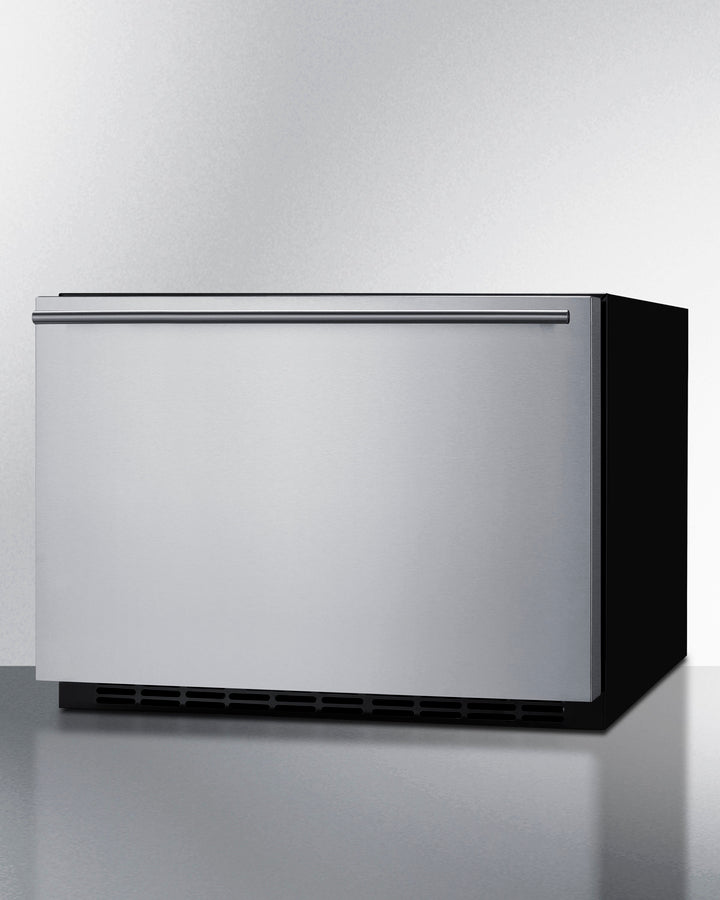

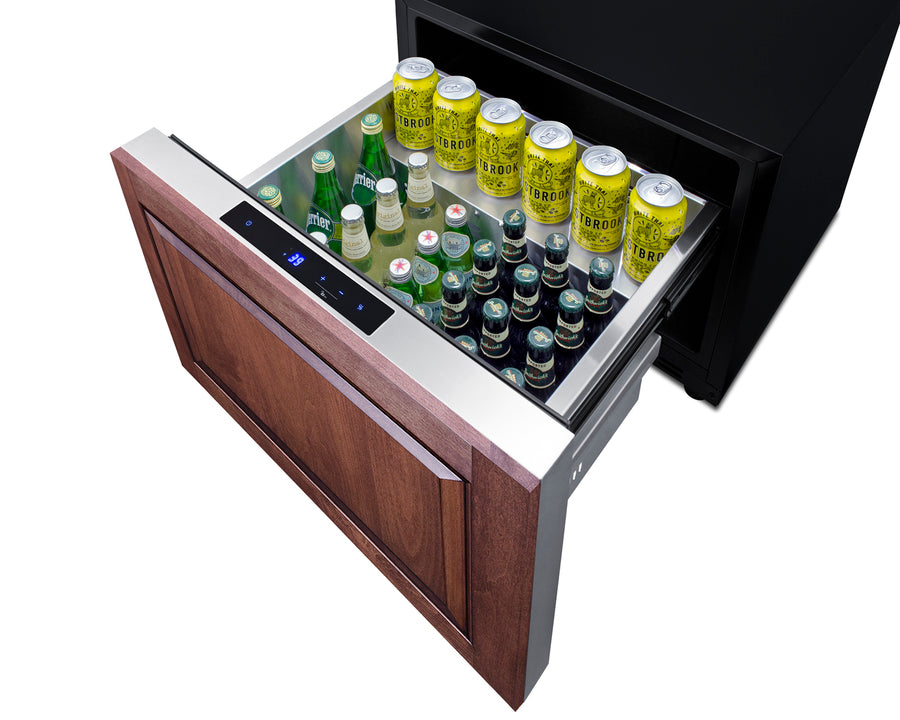

The SDR241OS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The weatherproof construction allows safe use in outdoor settings, with a sealed back and fully finished black cabinet to ensure all components are protected from the elements. The drawer is constructed from 304 grade stainless steel, with a pro style handle and fully finished front. For more custom style, the drawer is panel-ready, allowing you to match or complement existing cabinetry in a few simple steps (suggested panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness).

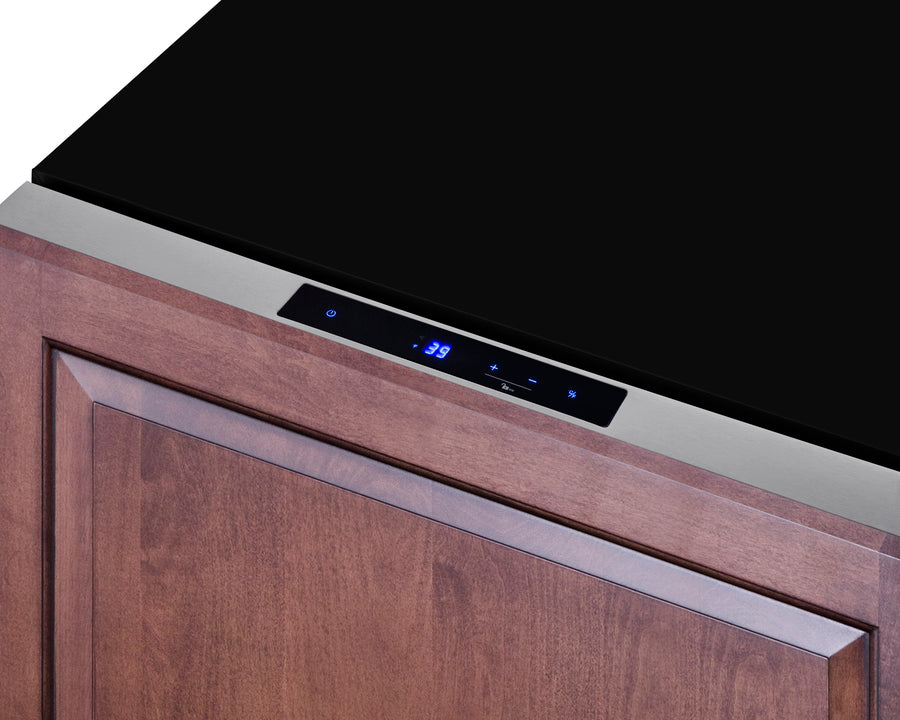

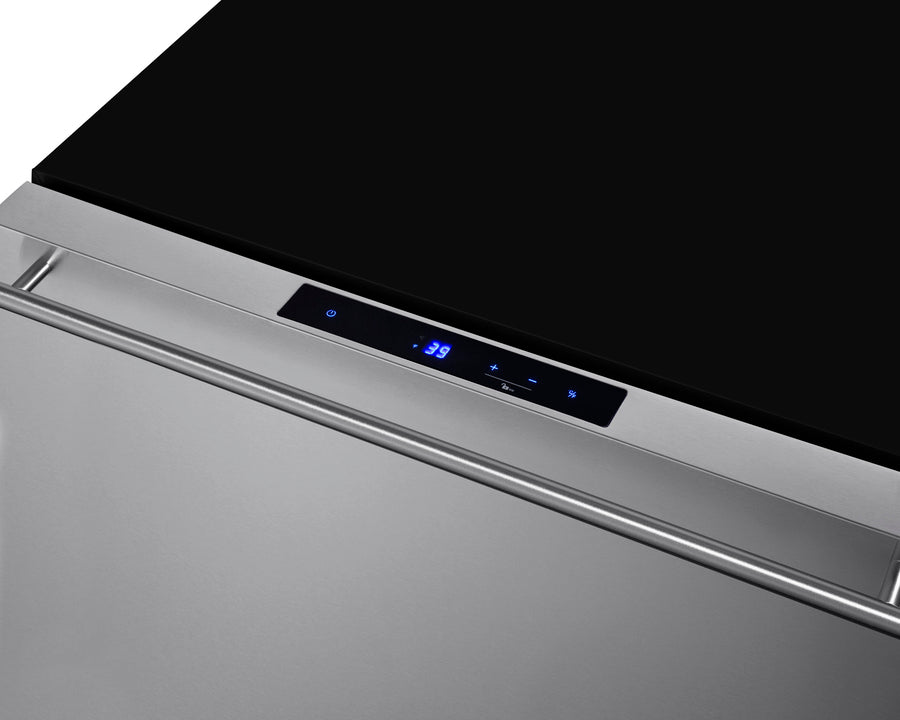

Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. We include a removable clear cover that helps protect all components from the elements. To adjust the settings, slide the off to access the screen.

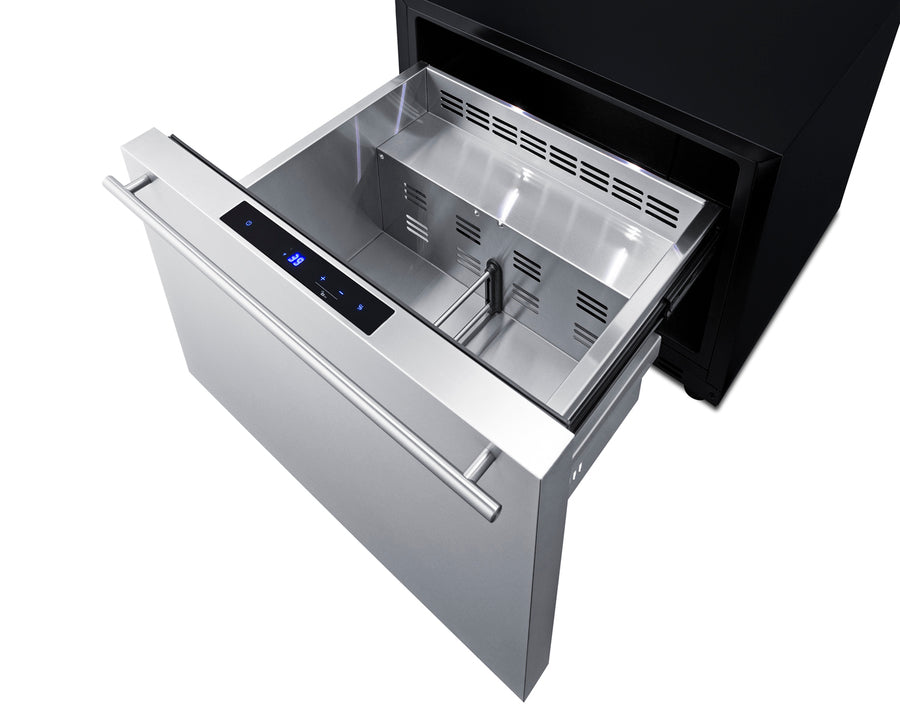

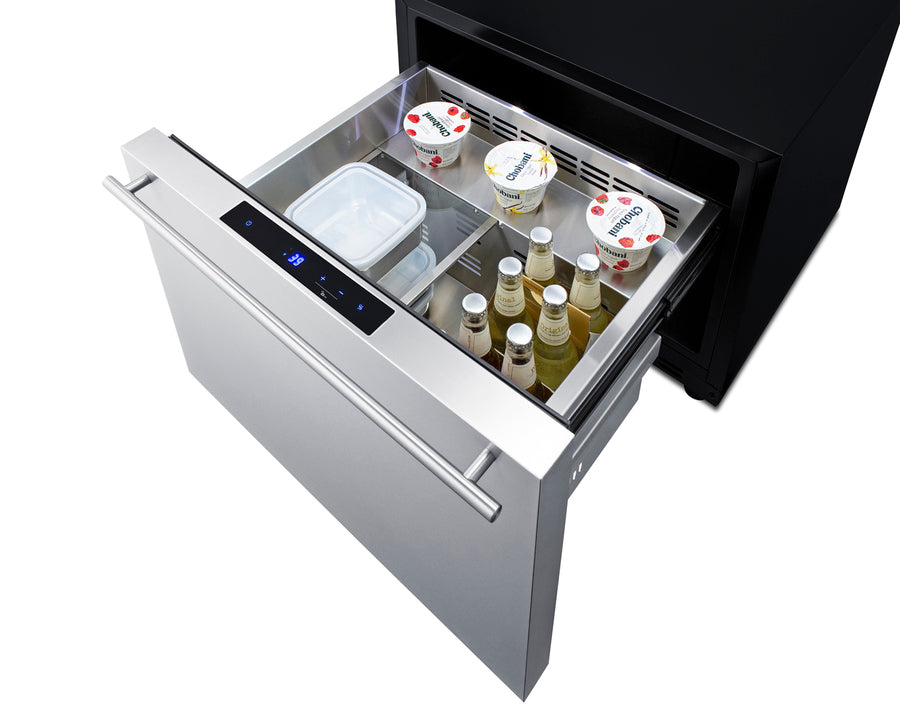

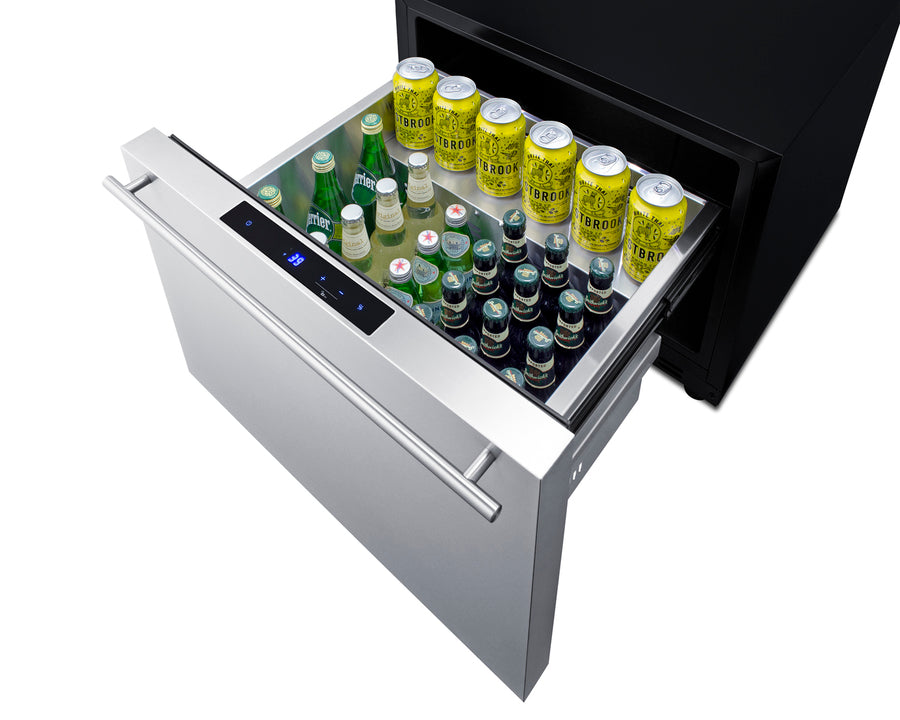

Inside, the SDR241OS offers a full 2 cu.ft. capacity to accommodate your storage needs. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

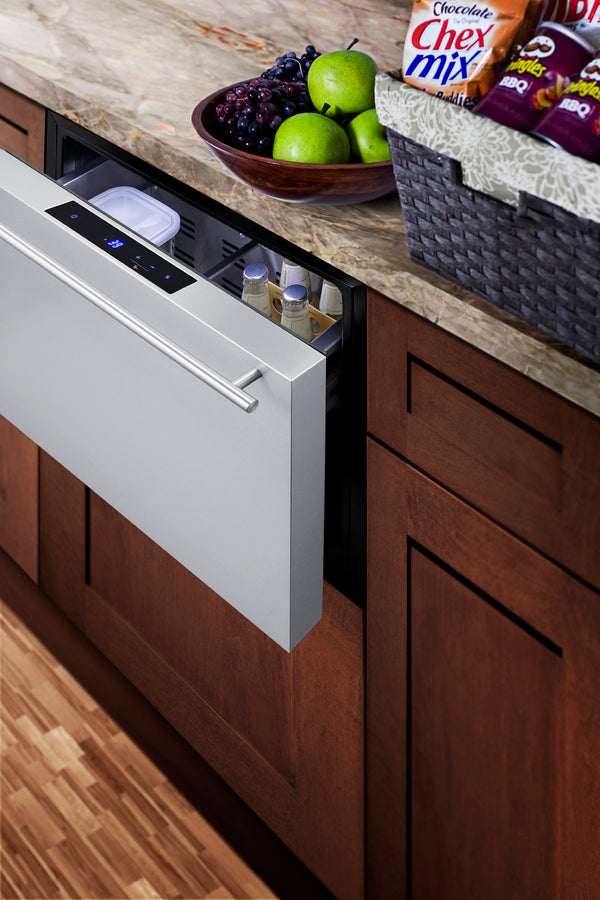

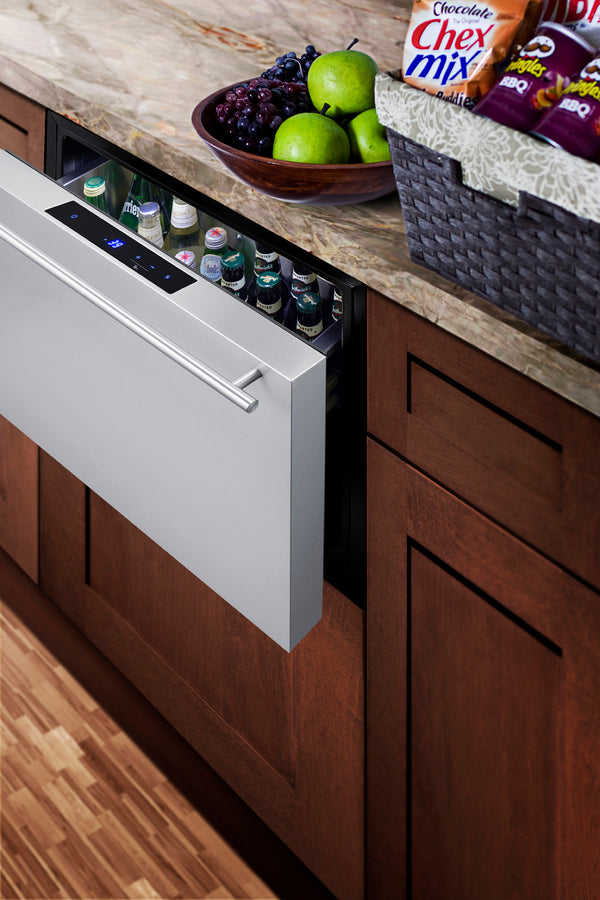

With its fully-featured, weatherproof design, the SDR241OS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 18.0" (46 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 17.75" (45 cm) | Door Swing | Drawer |
| Nominal Width | 24.0" (61 cm) | Reversible | No |
| Width | 23.38" (59 cm) | Shelf Type | Glass |
| Nominal Depth | 22.0" (56 cm) | Shelf Qty | 1 |
| Depth | 22.0" (56 cm) | Adjustable Shelves | Yes |
| Depth with Handle | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 37.88" (96 cm) | Fan Type | Interior and Exterior |
| Capacity | 2.0 cu.ft. (57 L) | Refrigerant Type | R600a |
| Defrost Type | Frost-Free | Refrigerant Amount | 0.85oz. |
| Door | Stainless Steel/Panel-Ready | High Side PSI | 270.0 |
| Cabinet | Black | Low Side PSI | 105.0 |
| US Electrical Safety | ETL | Level Legs Qty | 4 |
| Canadian Electrical Safety | ETL-C | Interior Light | Yes |
| Sanitation | ETL-S | Temperature Range | 36 to 43ºF |
| Energy Usage/Year | 265.0kWh/year | Sound Level | 32.6 dB |
| Amps | 1.0 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 13.0" (33 cm) |
| Weight | 62.0 lbs. (28 kg) | Interior Width | 17.75" (45 cm) |
| Parts & Labor Warranty | 1 Year | Interior Depth | 15.5" (39 cm) |
| Compressor Warranty | 5 Years | Compressor Step Height | 6.5" (17 cm) |
| UPC | 761101089119 | Compressor Step Width | 17.75" (45 cm) |
| Compressor Step Depth | 4.5" (11 cm) | ||
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
