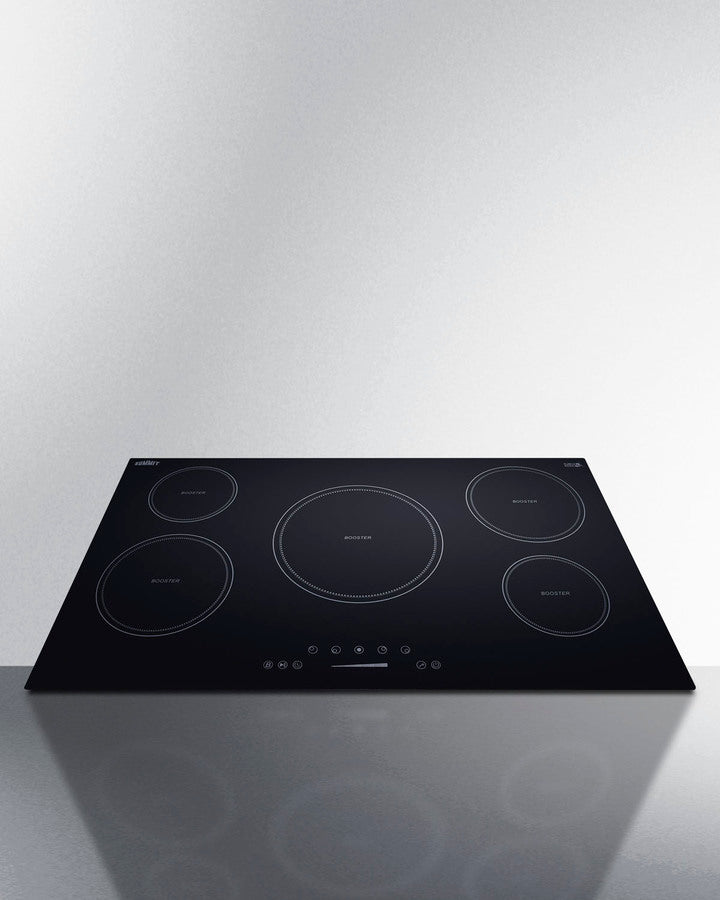

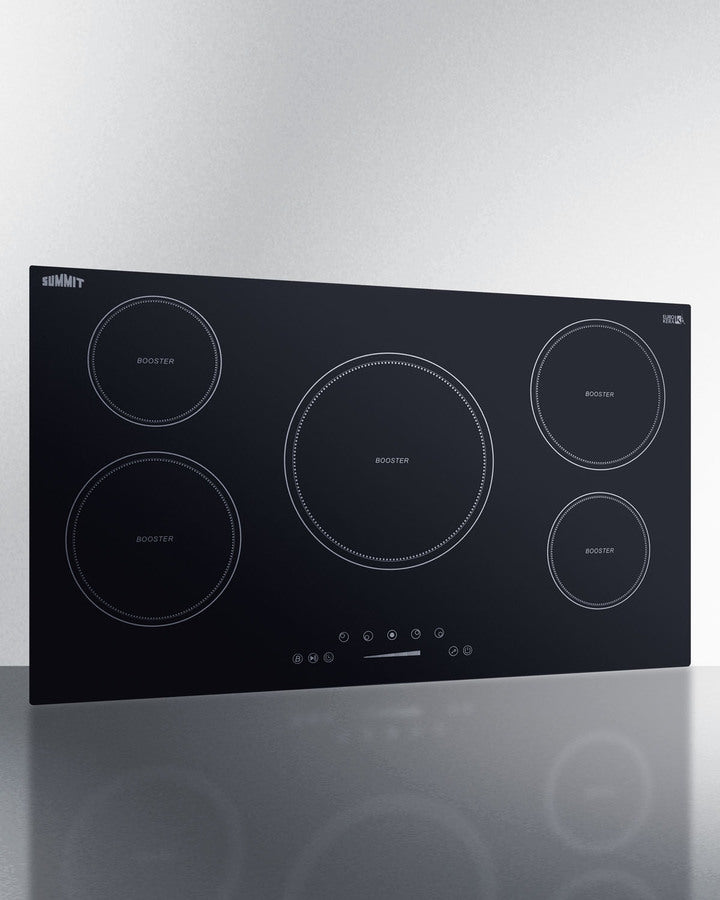

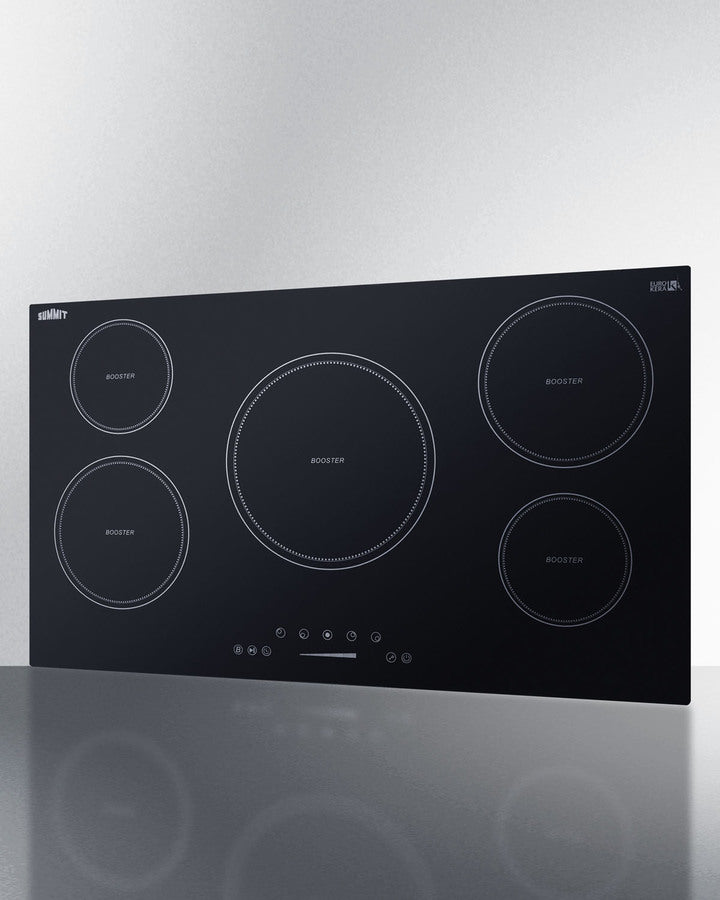

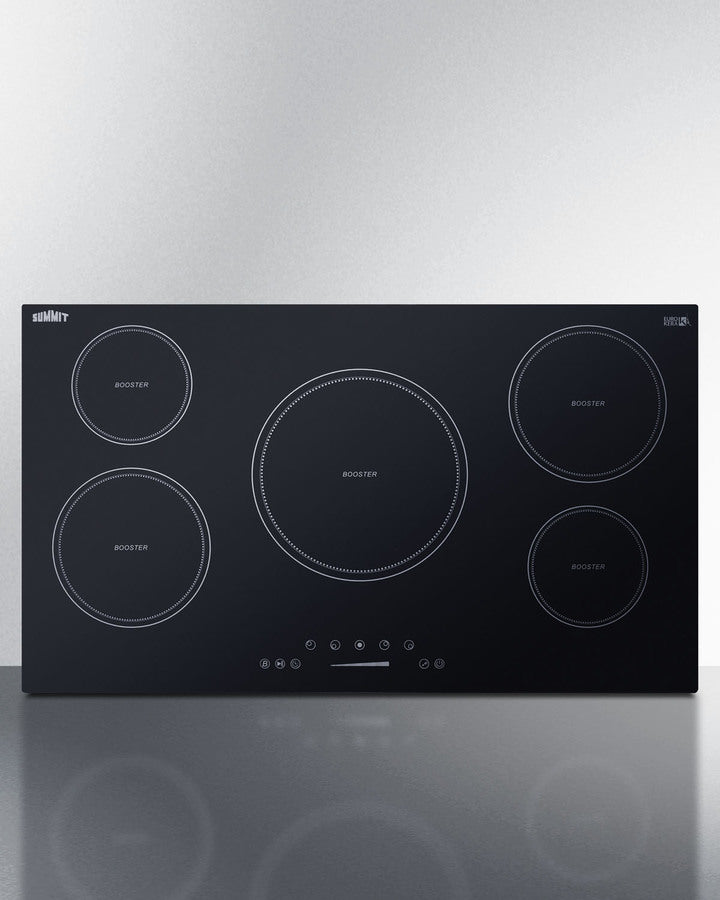

Summit SINC5B36B 36″ Wide 5-Zone Induction Cooktop – Jet Black Glass Surface

SKU: SA-SINC5B36B
Regular price $815.30
Extra-Large 11″ Center Element for Oversized Pots & Woks — Center zone functions at 2,300 W (or 3,000 W in boost) and is flanked by 8¼″ and 6¼″ zones for flexible layout.
Low-Profile Built-In Installation, ADA-Compliant Upfront Controls — Only 2.0″ high, fits 34 5/8″ W × 19 5/8″ D cut-out; professional hard-wired 208-240 V installation required (cord not included).
Advanced Safety & Convenience Features — Includes boost timer, 99-minute countdown timer, residual-heat indicator, child-lock, overflow protection and automatic shut-off.
2.0" H x 35.5" W x 20.5" D
(5cm H x 90cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SINC5B36B

Induction heating:
Electromagnetic heating technology where heat is generated inside your cookware, ensuring a more efficient process with less energy waste, faster heating, and a safer cooking experience

10200W operation:
Powerful elements with fast heating to meet most stovetop cooking needs

Jet black glass surface:
Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean

11" extra large center element:
Ideal when cooking with woks or other oversized cookware, the 11" wide center zone functions at 2300W in normal operation or 3000W when using boost

2 large elements:
8 1/4" elements in the front left and rear right operate at 2000W (with a 3000W capacity at the boost setting) for fast, powerful heating

2 standard elements:
6 1/4" front right and rear left elements operate at 1500W (or 2000W using boost) to cover most general cooking needs

Smart burner layout:
Largest elements are located diagonally, with maximum spacing to allow large cooking vessels in use simultaneously

Boost function:
All cooking zones include a "boost" function that lets them operate at a higher setting for up to 5 minutes, ideal for reducing cook time when boiling water

Timer function:
Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up

Safety cut-off:
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Child lock:
Safety feature lets you lock the cooktop to prevent unsupervised heating

Overflow protection:
Power will automatically shut off if boiling liquid or a wet cloth touches the control panel

Automatic shutoff:
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

Residual heat indicator light:
Indicator shows when the surface is still hot to touch

Energy efficient design:
Approximately 85% of the heat created goes directly towards heating cookware contents

Safer, cleaner surface
Heat is primarily confined to the heated cookware, keeping most of the cooktop surface cooler to touch for a safer experience and less chance of collecting baked-on stains

Mounting clips included:
Ships with a set of clips and screws for easy installation into your counter cutout

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

Built-in cooktop:
Designed for installation in cutouts sized at 34 5/8" W x 19 5/8" D

208-240V Operation:
Requires professional hardwired installation (cord not included)

Enjoy the ease, speed, and safety of induction cooking with Summit's selection of energy efficient induction cooktops.

The SINC5B36B is a 5-zone induction cooktop designed for use with 208-240V power sources. It comes in a popular 36" width that fits commonly sized 34 5/8" W x 19 5/8" D cutouts. This unit requires professional installation (cord not included).

The SINC5B36B's surface is made of jet black glass for a contemporary look that's easier to clean. All five elements include a "booster" setting to maximize cooking power. The center 2300W zone (3000W at boost) features an extra large 11" radius, perfect for woks and other oversized cookware. The front left and rear right elements are sized at 8 1/4", ideal for boiling large pots of water or cooking with woks and other large cookware. They can function at a maximum of 3000W for up to 5 minutes when using the "booster" setting, or 2000W during regular operation. The 6 1/4" rear left and front right elements reach 2000W at the booster setting, or 1500W in normal operation. The smart burner layout helps provide plenty of room so that larger cooking vessels are spaced apart, making it easier to use all four elements without cookware colliding.

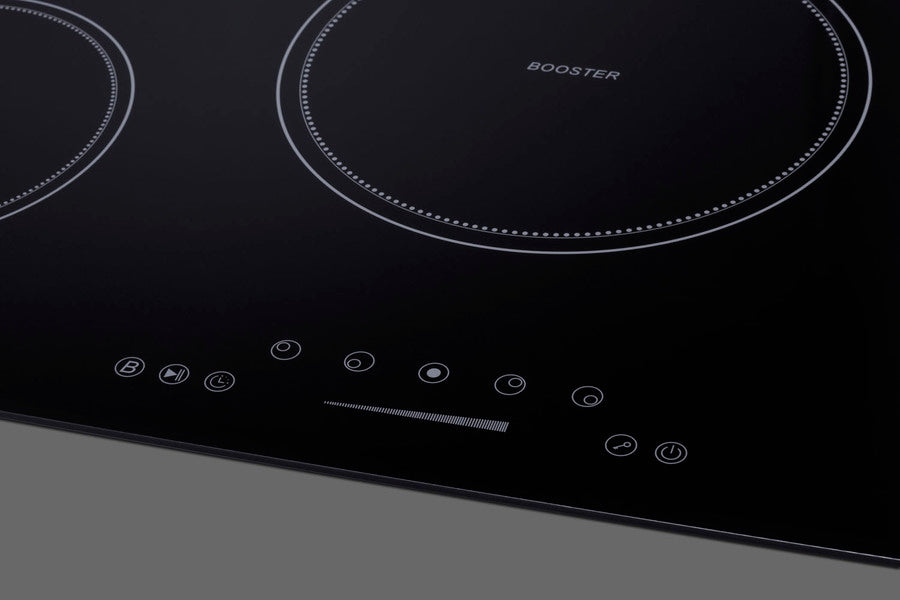

Centered upfront for convenient use, the touch controls allow intuitive operation, with a slider control panel that makes it easy to adjust your heat. The digital display shows which elements are in use and their power setting. Audible beeps sound when the touch controls are activated. This cooktop is equipped with a child lock that allows you to disable the controls to prevent unintended heating. A "stop & go" function allows you to immediately turn both zones off if needed, with the last settings resuming when reactivated. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include automatic shutdown, overheat protection, and overflow protection, which will temporarily disable the power if boiling liquid touches the control panel.

With its ideal size and advanced safety features, the SINC5B36B is the perfect cooktop to ensure intuitive, safe cooking in a variety of small kitchen settings. For this unit in a white finish, see the SINC5B36W. Additional choices are available in smaller and larger sizes, as well as radiant and coil styles. Browse the full Summit line for more options.

NOTE: Induction cooling utilizes magnetized energy that starts inside the cookware, meaning the temperature of the actual cooktop surface does not get nearly as hot as traditional gas or electric elements. Most of the heat is retained inside your cookware, making induction technology the most efficient heating method for your kitchen. Because induction cooking requires magnetic energy, your cookware must be made of cast iron, steel, or magnetic stainless steel. Materials that will not work include aluminum, copper, and non-magnetic stainless steel.  Many of your current pots and pans may already be induction-friendly. In order to determine if your cookware will work on an induction surface, simply place a magnet (such as one hanging on your refrigerator) on the bottom of the pan. If the magnet sticks, the pan will cook. Summit also offers an induction cookware set for purchase.

 Overview

Refrigerator-Freezer

Nominal Height 2.0" (5 cm) Application Built-in
Height of Cabinet 2.0" (5 cm) Heating Type Induction
Nominal Width 36.0" (91 cm) Surface Glass
Width 35.5" (90 cm) Number of Elements 5
Nominal Depth 21.0" (53 cm) Controls Digital
Depth 20.5" (52 cm) Cooking Timer Yes
Cabinet Black Countertop Cutout Width 34.63" (88 cm)
US Electrical Safety ETL Countertop Cutout Depth 19.63" (50 cm)
Canadian Electrical Safety ETL-C Power Source 208-240V
Amps 50.0 Element #1 Size 8.25
Voltage/Frequency 240 V AC/60 Hz Element #1 Wattage 2000.0
Weight 40.0 lbs. (18 kg) Element #2 Size 6.25
Parts & Labor Warranty 1 Year Element #2 Wattage 1500.0
UPC 761101077635 Element #3 Size 11.0


Element #3 Wattage 2300.0


Element #4 Size 8.25


Element #4 Wattage 2000.0


Element #5 Size 6.25


Element #5 Wattage 1500.0


Power Cord Included No
