Summit BIM62ADAPNR 15″ Wide 68-lb Daily Clear Icemaker – ADA Height, Built-In Panel-Ready

SKU: SA-BIM62ADAPNR
Regular price $2,488.30
Built-In Drain & Plumbing-Ready — Equipped with built-in pump and drainage ready for clean, convenient installation; sealed back design simplifies cabinetry integration.
Panel-Ready Door with Custom Integration — Includes bracket kit for custom overlay panel installation to seamlessly integrate with cabinetry; also works with stainless steel factory door.
High-Output Gourmet Ice Production — Produces up to 68 lb of clear “top hat” style cubes daily; ideal for upscale bars, restaurants, or high-demand home entertainment spaces.

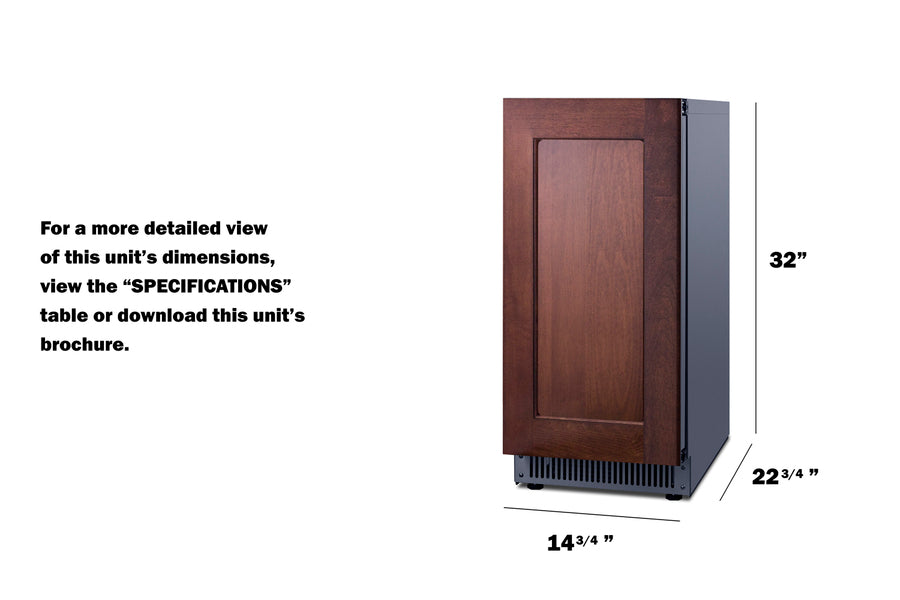

32.0" H x 14.75" W x 22.75" D
(81cm H x 37cm W x 58cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-BIM62ADAPNR

15" Wide Clear Icemaker:
Built-in undercounter icemaker ideal for installation in kitchens, wet bars, break rooms, and other settings

Custom style:

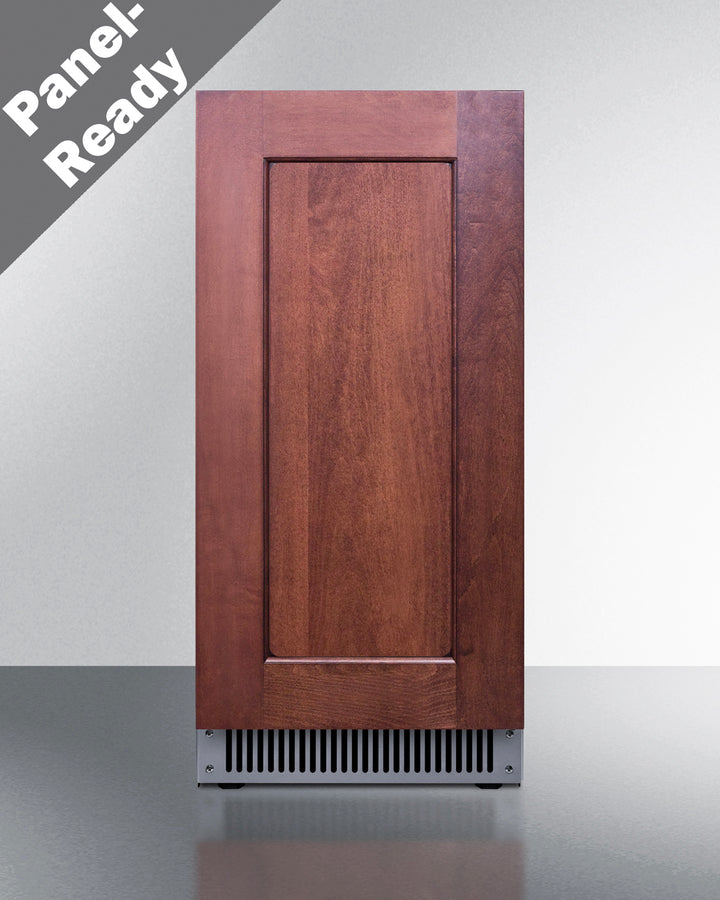

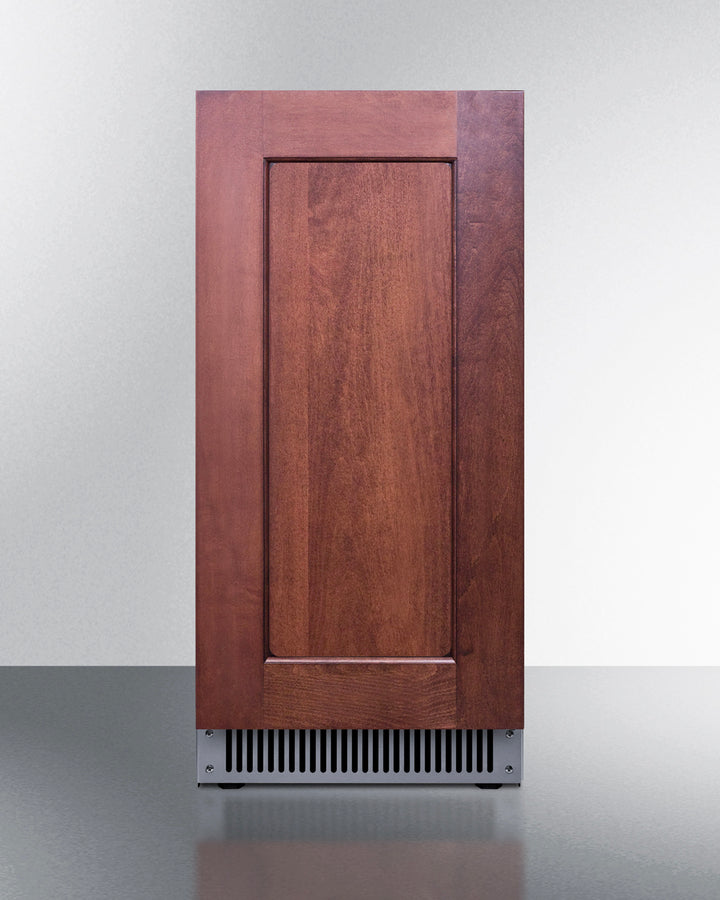

Panel-ready door trim lets you seamlessly integrate this unit into your kitchen or bar

Built-in undercounter design:
Front-breathing design lets you make the best use of space by installing your appliance under the counter

Easy panel installation with included 2-piece bracket kit:
Enhanced panel execution allows the unit to be flush with cabinets (recommended panel size: 3/4" thickness at 28 1/4" H x 14 5/8" W)

Stainless steel front finish:
Fully finished door also allows you to choose a traditional stainless steel front if not installing an overlay panel

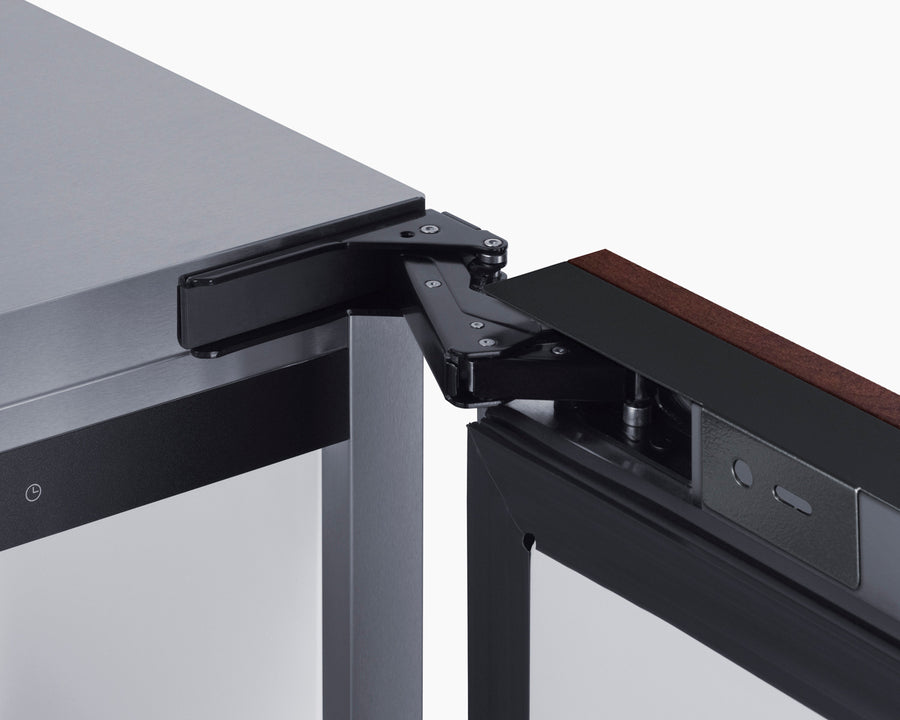

Fully articulating door hinge:
European style hinge design ensures a flush fit and allows for a smoother opening

Versatile design:
Innovative panel-ready bracket kit allows easy custom panel installation, but can also be removed cleanly if you redesign your space and prefer the look of a fully finished stainless steel door

ADA-compliant:
32" height allows installation under lower ADA-compliant counters

Height adjustable:
Leveling legs can be extended up to 2 1/4", with a slide-out kickplate that allows you to raise the overall height from 32" up to 34 1/4" if used under higher cabinets

Built-in pump:
Internal pump allows more flexibility in placing the unit

Commercially approved:
ETL-S listed to NSF-7 Standards for use in commercial establishments

68 lb. production capacity:
High capacity production to keep clear gourmet ice on hand

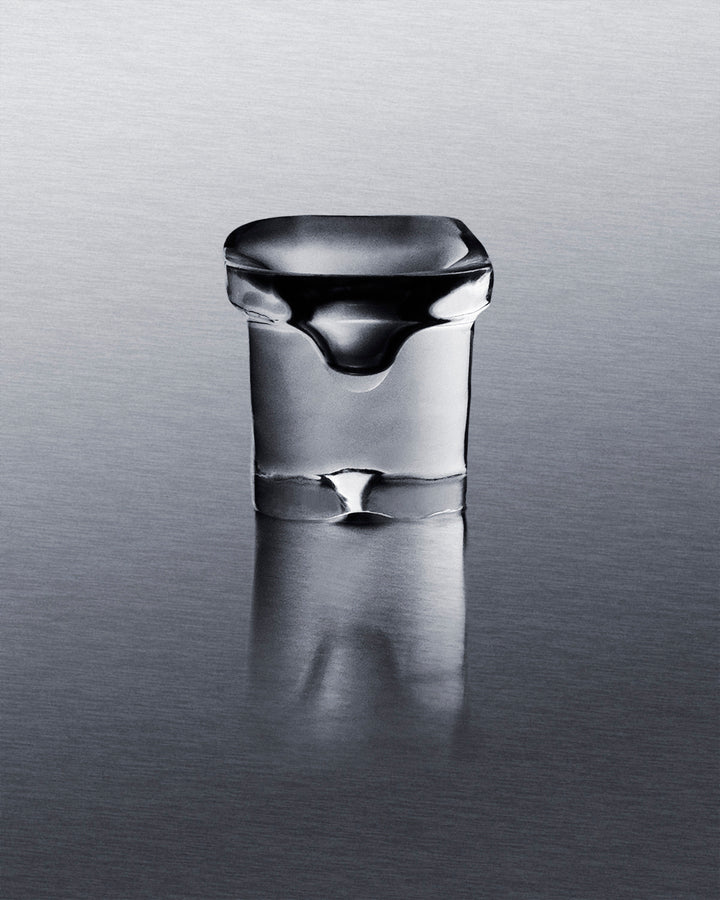

Gourmet top hat ice:
Unique clear ice shape for an upscale presentation, while its dense structure means it melts slower, making it ideal for cocktails where dilution needs to be controlled

Unbranded exterior:
Allows for seamless integration with other appliances

Touch controls:
Provides easy operation of the unit with indicator lights for each stage of the production process

Ice size selection:
Function allows users to choose from small, medium, or large clear ice cubes

Automatic defrost:
No-frost operation for minimum user maintenance

Clean function:
Clean mode allows you to periodically clean the system as needed with a neutral detergent

Cleaning alarm:
Control panel light will flash 180 days after each cleaning cycle as a reminder to run that process

Memory function:
Mode memory function allows the icemaker to its last setting in the event of a power interruption

Sabbath mode:
Optional setting lets you disable the lighting and alarms during periods of religious observance

Ice scoop:
Ice scoop included for added convenience, with an interior hook to keep it in place inside

Sealed back:
Space-saving design with no exposed coils that offers easier cleanability

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Reversible door:
User-reversible door swing for added flexibility to best accommodate your setting

CARB compliant:
Eco-friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

100% CFC free:
Environmentally friendly design with no ozone-damaging chemicals

Lead-free certified:
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

Summit brings proper convenience and streamlined luxury under the counter with built-in clear icemakers sized for residential and commercial spaces.

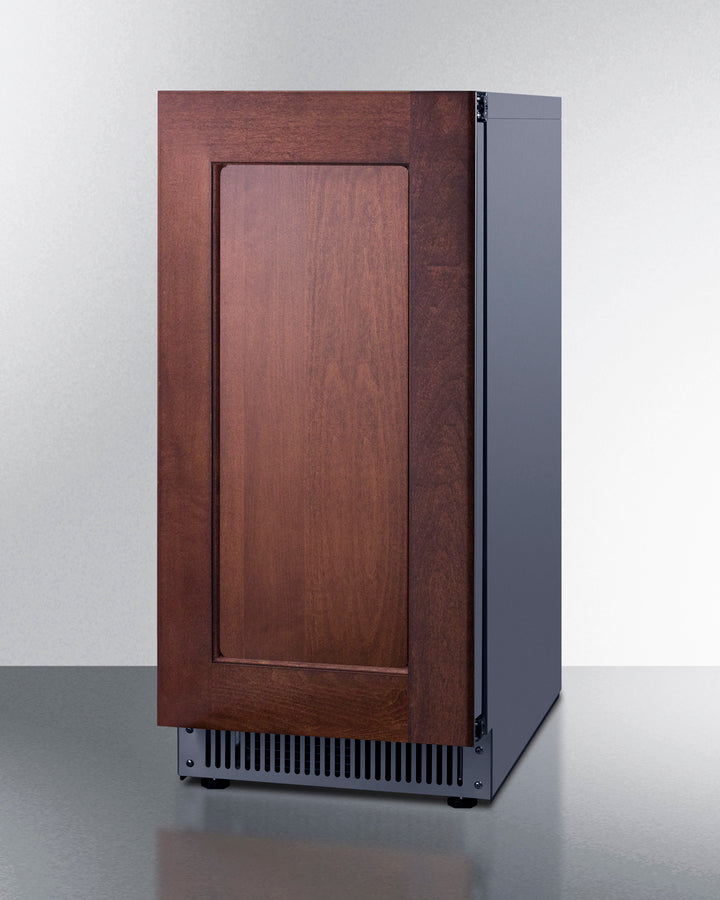

Model BIM62ADAPNR is a 15" wide panel-ready icemaker featuring an attractive and durable stainless steel exterior. This icemaker is sized at just 32" high to fit under ADA compliant counters, but the legs can be raised up to 34 1/4" high to accommodate taller spaces. This unit  ships with a sliding kickplate that helps fill the extra space if needed. The front-breathing design allows built-in installation under counters, the fully finished stainless steel cabinet allows freestanding use, and the sealed back and right-angle cord help ensure an easy fit. The reversible stainless steel door features a fully articulating European-style hinge to ensure a smoother opening. We include a 2-piece bracket kit included to allow easy installation of your own overlay panel to create your customer look. This icemaker is unbranded, allowing you to easily integrate it into any kitchen or bar.

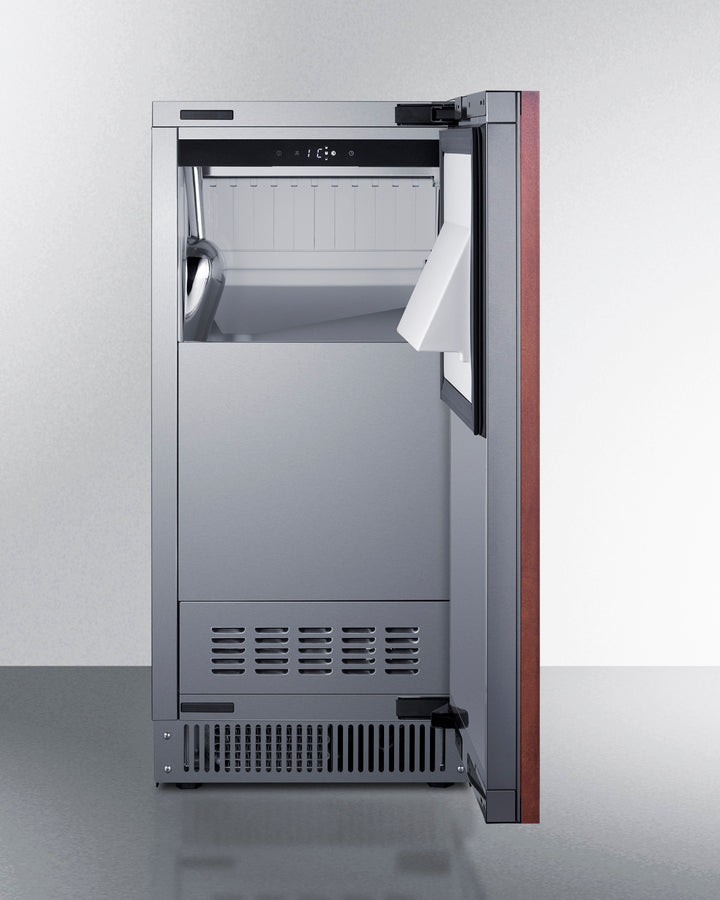

Inside, the BIM62ADAPNR produces up to 68 lbs. of clear, gourmet style top hat-shaped ice cubes daily. Top hat ice, often called gourmet ice, is a cylindrical cube with a slightly wider top resembling a miniature top hat or thimble. The distinct dense structure helps minimize dilution, keeping drinks colder for longer without watering them down. The uniform shape offers an elegant presentation, while its non-clumping design ensures easy dispensing. The size can be adjusted between three settings to best suit your taste. We include a steel ice scoop that can be hung inside for easy serving.

This icemaker features easy-to-use digital controls.  An indicator light alerts users to each step in the production process and when the bin is full. Frost-free operation eliminates the need to defrost the interior. Additional features include a temperature memory function, cleaning setting and alarm, and sabbath mode for periods of observances.

With clear gourmet ice that's gentle on glassware paired with efficient performance, the BIM62ADAPNR is ideal for both residential and commercial settings. For an outdoor version of this unit, see model BIM63OSADA.

In addition to this series, Summit also manufactures drain-free icemakers, as well as 18" wide options, outdoor models, and more. Explore all of Summit's residential and commercial icemakers at summitappliance.com

 Overview


Refrigerator-Freezer



Height of Cabinet 32.0" (81 cm) Door Swing RHD
Width 14.75" (37 cm) Reversible Yes
Depth 22.75" (58 cm) Height Adjustable Yes
Depth with Panel 23.5" (60 cm) Drain Required Yes
Depth with door at 90° 38.13" (97 cm) Daily Ice Production 68.0 lbs. (31 kg)
Defrost Type Automatic Ice Storage Capacity 26.0 lbs. (12 kg)
Door Panel-Ready Ice Shape Top hat
Cabinet Stainless Steel Size of Cube 1 1/4" H x 1 1/8" W x 1 1/8" D
US Electrical Safety ETL Number of Ice Cube Sizes 3
Canadian Electrical Safety ETL-C Refrigerant Type R600a
Sanitation ETL-S Refrigerant Amount 1.58 oz.
Amps 6.0 Interior Height 19.75" (50 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Width 12.25" (31 cm)
Weight 100.0 lbs. (45 kg) Interior Depth 15.5" (39 cm)
Parts & Labor Warranty 1 Year Level Legs 4
Compressor Warranty 5 Years

UPC 761101156200

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
