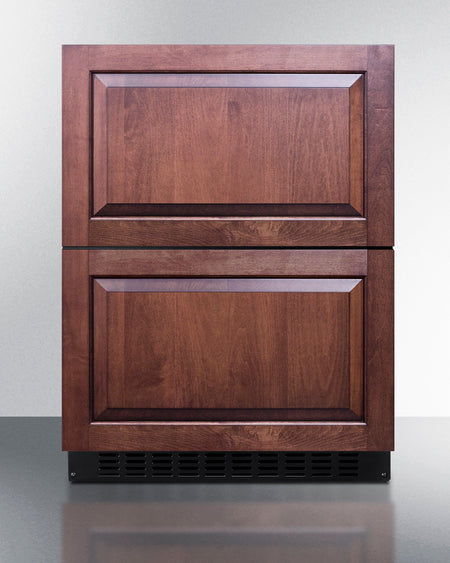

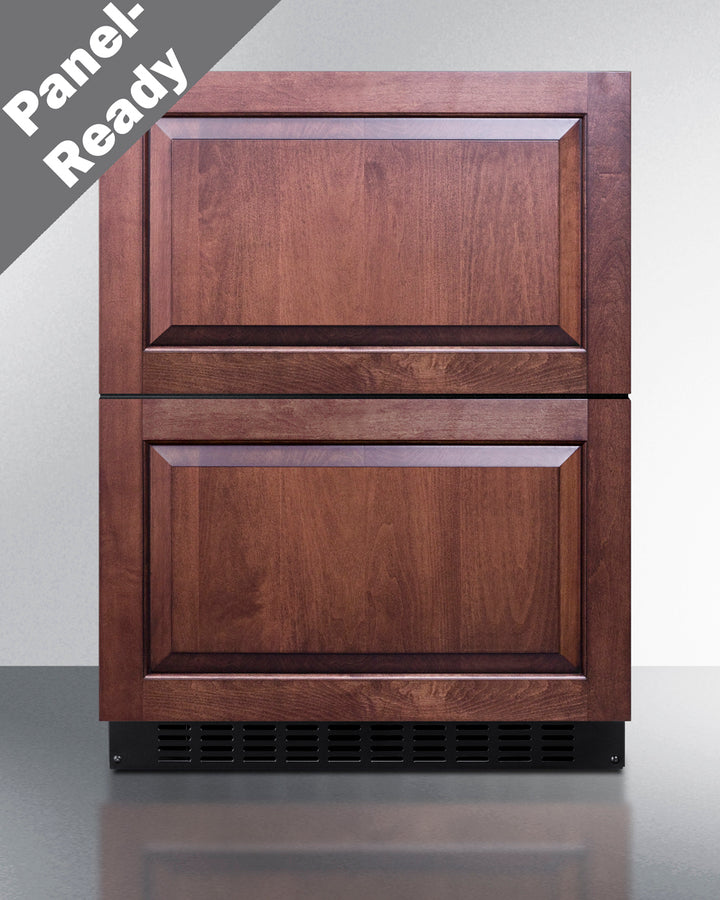

Summit ASDR2414PNR 24″ Wide 2-Drawer ADA All-Refrigerator – Panel-Ready Drawers, Stainless Steel Fronts
Customer service
Features
- SKU SA-ASDR2414PNR
Summit's shallow depth series of built-in undercounter refrigeration brings full functionality to kitchen islands, wet bars, and other settings with space limitations.
Model ASDR2414PNR is a 24" wide 2-drawer refrigerator sized under 18" deep. It comes in a 32" height to fit under lower ADA compliant counters, with adjustable legs and a sliding kickplate cover that also allows you to raise the overall height up to 34" to fit standard counter spaces. The drawer fronts are fully finished in stainless steel, but can also accept panel overlays for a custom look (panel dimensions: 23.43" W x 14.1" H at 3/4" thick). Sleek stainless steel handles are included for optional use. The front-breathing system allows built-in installation, while the fully finished black cabinet also allows freestanding use. This unit has a sealed rear and right angle cord for a better fit.
Inside, the ASDR2414PNR has a generous 3.1 cu.ft. capacity to accommodate your storage needs. Frost-free operation ensures minimal user maintenance, with fan-forced cooling to evenly distribute the temperature. A digital thermostat, located atop the upper drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers allow you to separate the drawer compartments for easy organization. A child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, a temporary memory function to recover all settings in the event of power loss, and sabbath mode to disable certain electrical features during periods of religious observance.
The ASDR2414PNR refrigerator is ETL-S listed to NSF-7 commercial standards but can also be used in the home. With its deluxe style, user-friendly features, and uniquely shallow depth, this unit offers premium value for a variety of settings. Additional 18" deep choices are available in a variety of styles, including 15", 19", and 24" widths, as well as outdoor refrigerators, wine cellars, and more.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 32.0" (81 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 32.0" (81 cm) | Door Swing | Drawer |
| Nominal Width | 24.0" (61 cm) | Height Adjustable | Yes |
| Width | 23.38" (59 cm) | Thermostat Type | Digital |
| Nominal Depth | 18.0" (46 cm) | Fan Type | Interior and Exterior |
| Depth | 17.88" (45 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 29.63" (75 cm) | Refrigerant Amount | 1.38oz. |
| Capacity | 3.1 cu.ft. (88 L) | High Side PSI | 270.0 |
| Defrost Type | Frost-Free | Low Side PSI | 105.0 |
| Door | Stainless Steel/Panel-Ready | Level Legs Qty | 4 |
| Cabinet | Black | Interior Light | Yes |
| US Electrical Safety | ETL | Temperature Range | 36 to 43ºF |
| Canadian Electrical Safety | ETL-C | Sound Level | 33 dB |
| Sanitation | ETL-S |
Drawer Dimensions
|
|
|---|---|---|---|
| Energy Usage/Year | 285.0kWh/year | Interior Height 1 | 8.0" (20 cm) |
| Amps | 1.0 | Interior Width 1 | 17.63" (45 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Depth 1 | 11.25" (29 cm) |
| Weight | 106.0 lbs. (48 kg) | Interior Height 2 | 8.0" (20 cm) |
| Parts & Labor Warranty | 1 Year | Interior Width 2 | 17.63" (45 cm) |
| Compressor Warranty | 5 Years | Interior Depth 2 | 11.25" (29 cm) |
| UPC | 761101088938 |
Dimensions
|
|
| Compressor Step Height | 3.75" (10 cm) | ||
| Compressor Step Width | 17.63" (45 cm) | ||
| Compressor Step Depth | 4.75" (12 cm) | ||
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
