Summit offers a quality line of commercially approved drawer refrigerators, including single drawer options for built-in installation.

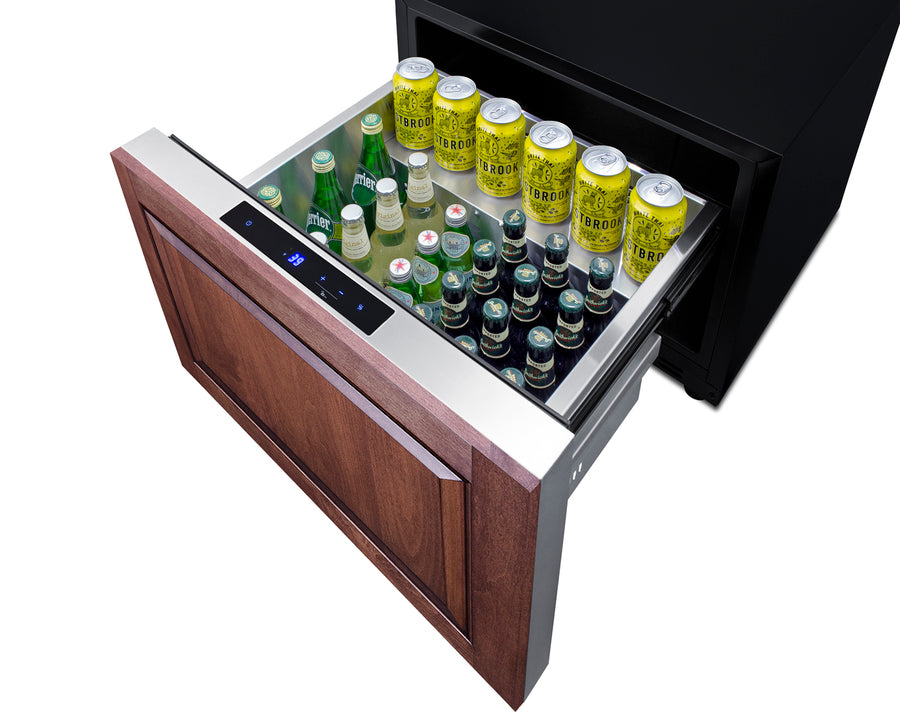

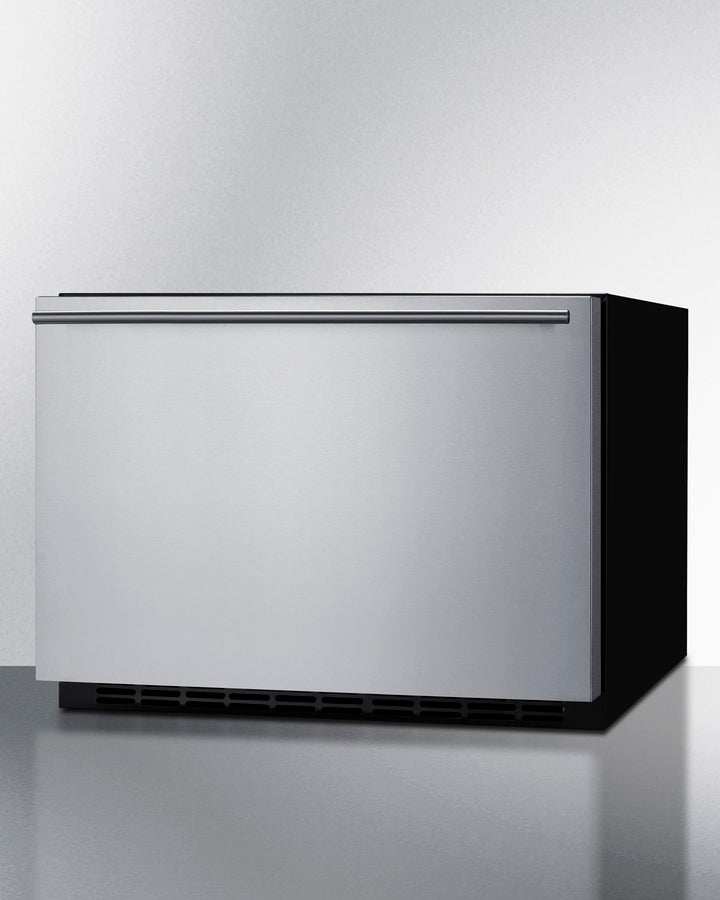

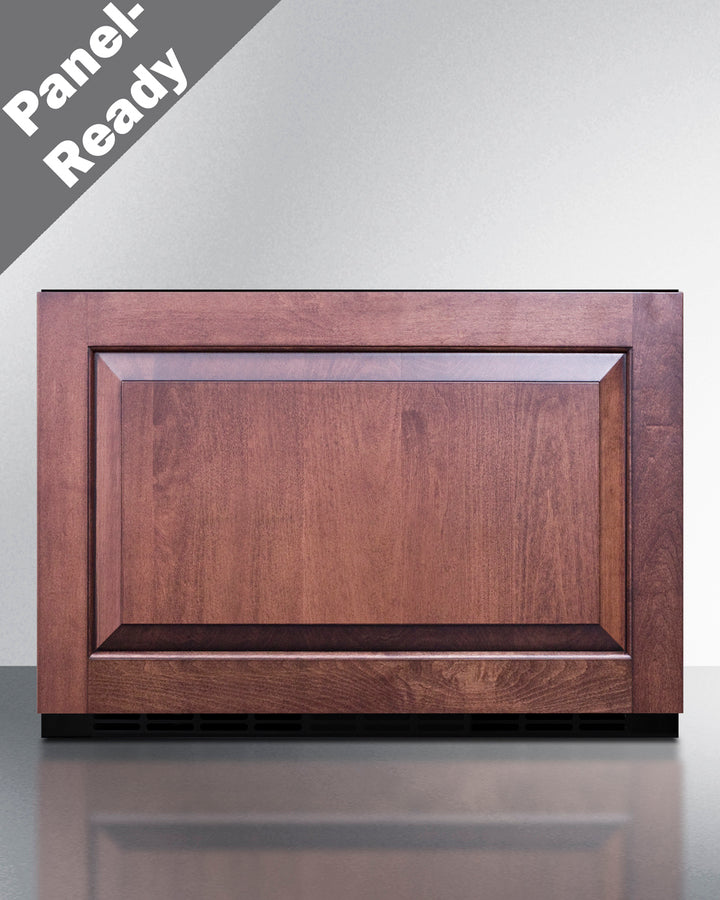

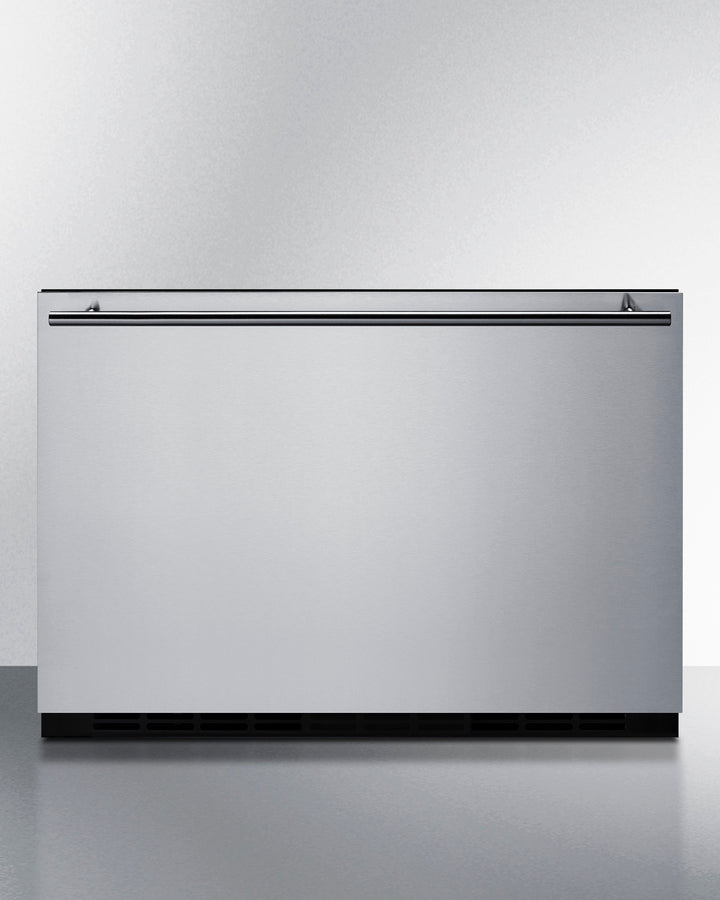

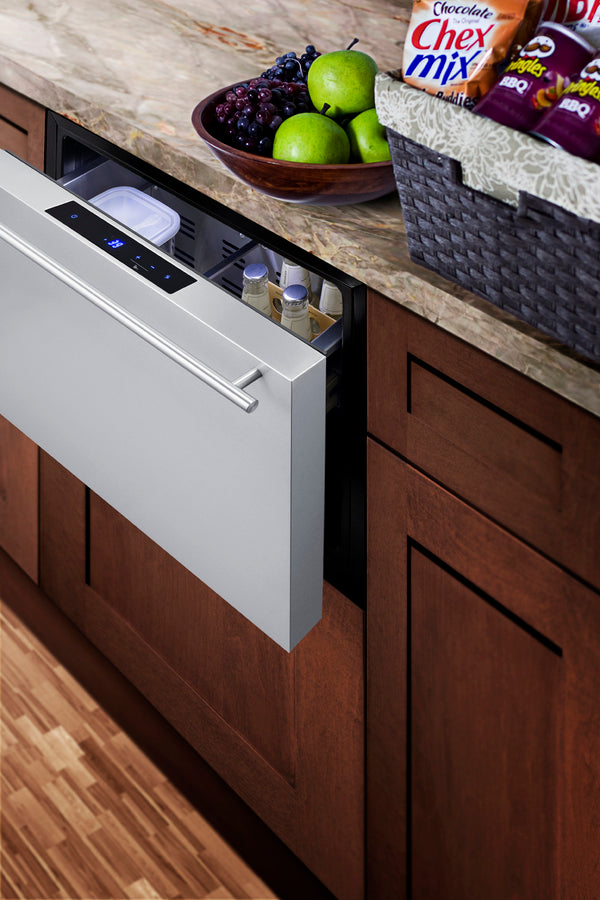

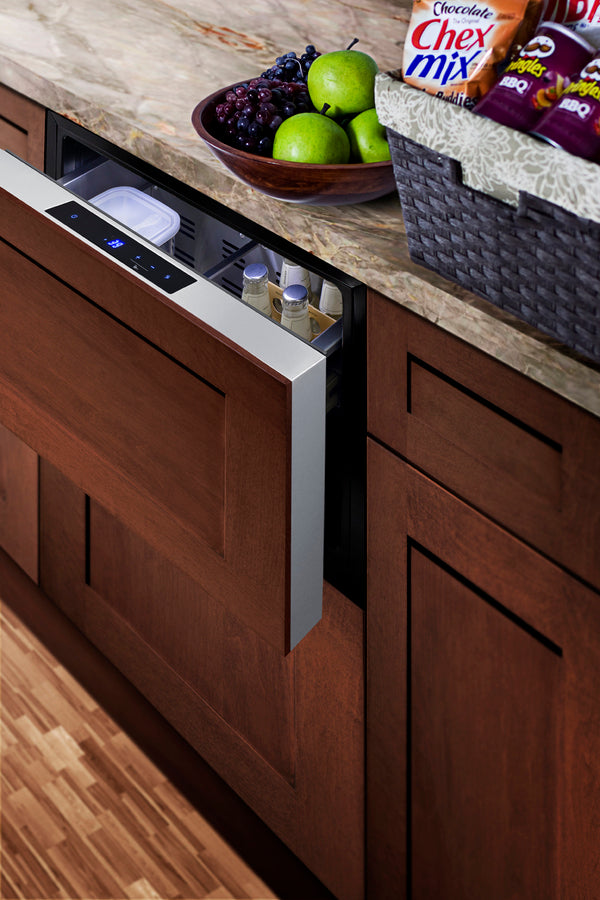

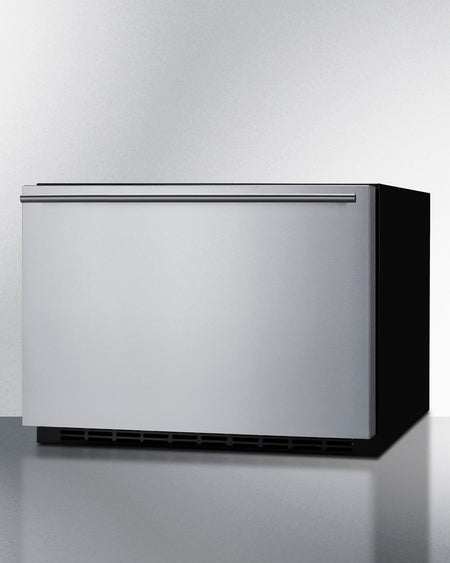

The SDR24 is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. It's sized at just under 24" wide for an easy fit in standard cutouts, with a front-breathing design that allows built-in installation. The fully finished black cabinet also enables freestanding use. The drawer features 304 grade stainless steel construction inside and out, with a fully finished front that can also be customized with your own overlay panels (not included) to match existing cabinetry style (panel dimensions: 15.6" H x 23.4" W at 3/4" maximum thickness). This unit has a sealed rear with no exposed coils and a right angle plug for an easier fit.

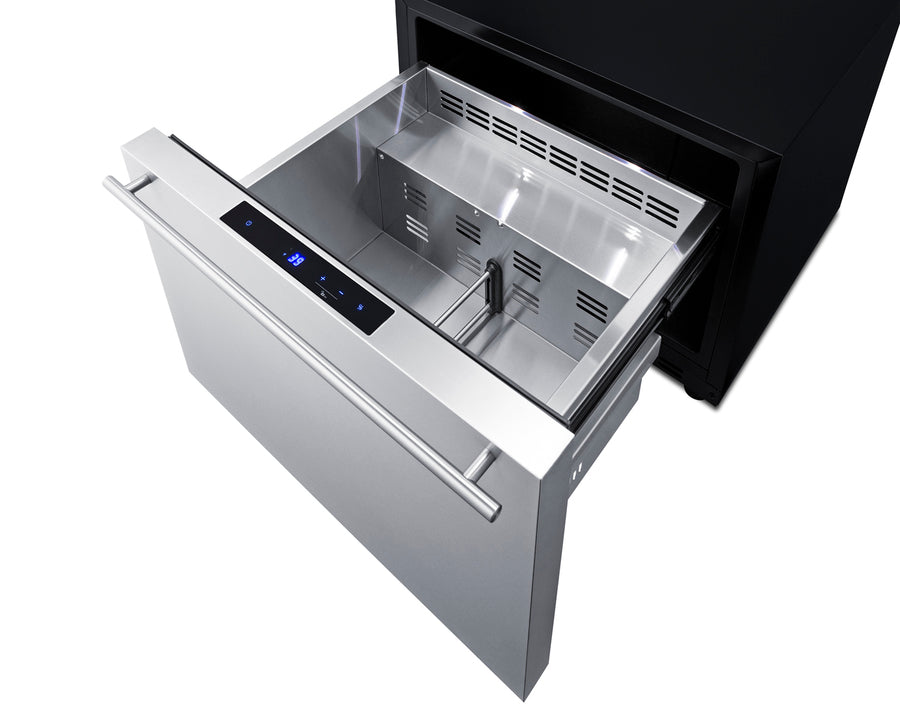

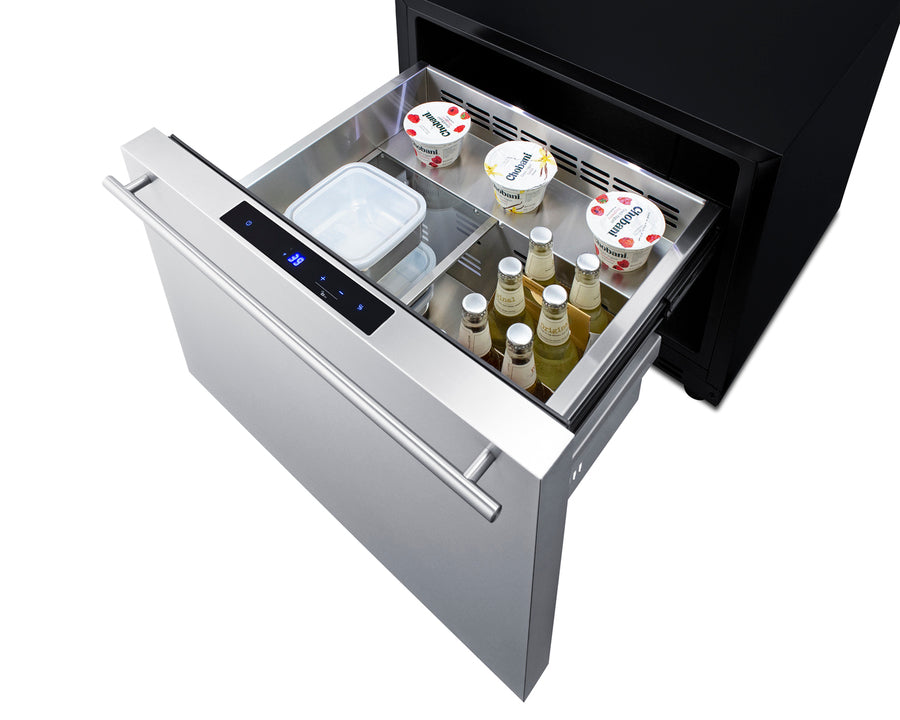

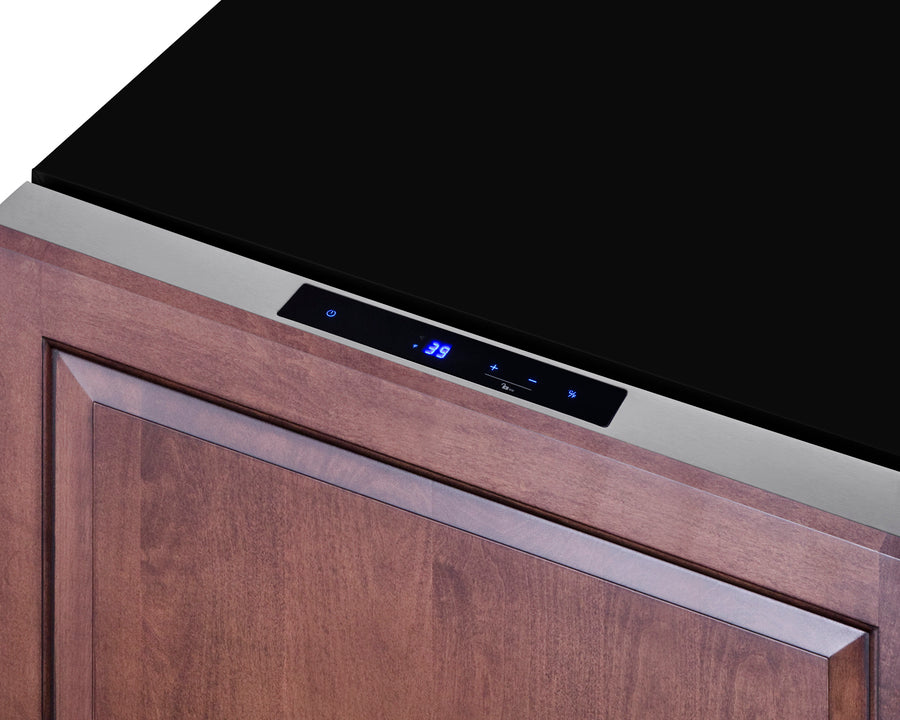

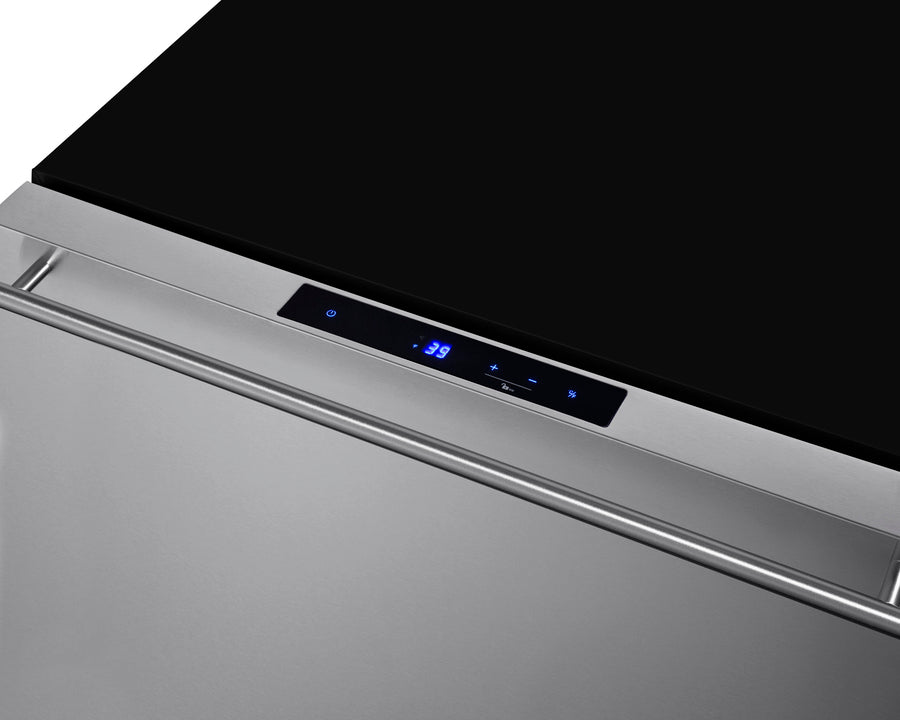

Inside, the SDR24 has a 2 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. We also include a half-sized glass shelf. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.

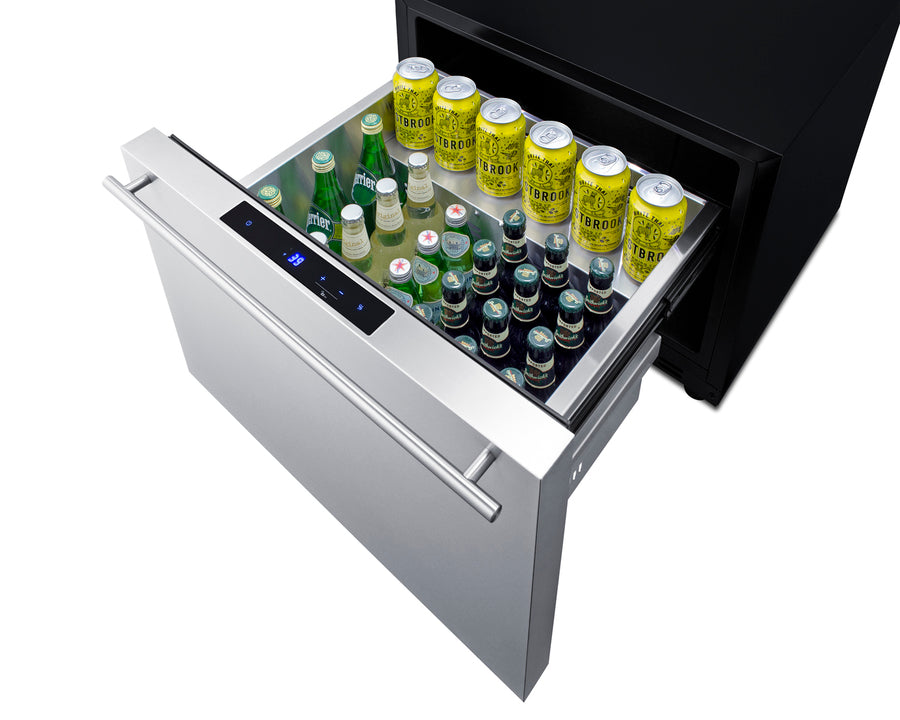

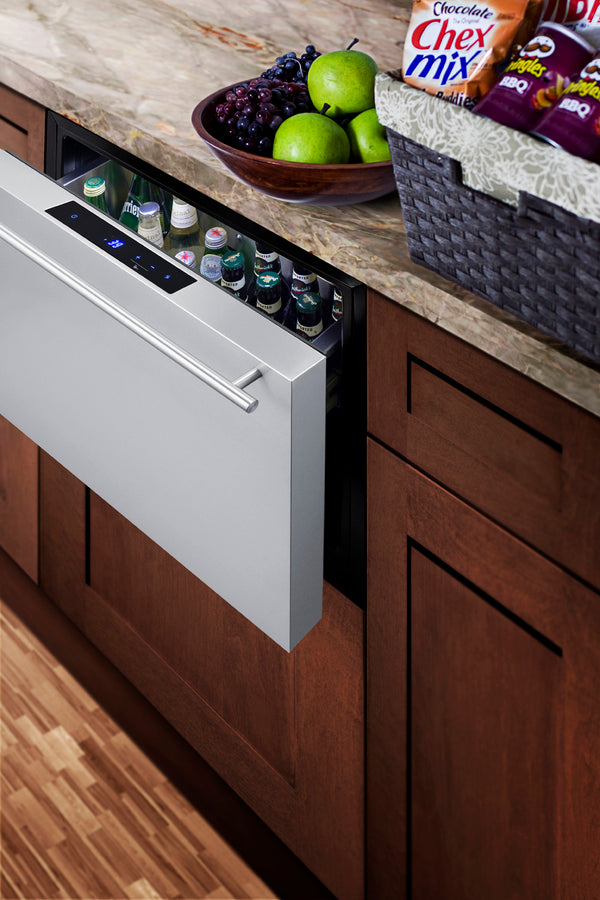

With its fully-featured, weatherproof design, the SDR24 is the perfect cooling compartment or beverage holder for home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit slimmer spaces, see the FF1DSS.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 18.0" (46 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 17.75" (45 cm) | Door Swing | Drawer |
| Nominal Width | 24.0" (61 cm) | Reversible | No |
| Width | 23.38" (59 cm) | Shelf Type | Glass |
| Nominal Depth | 22.0" (56 cm) | Shelf Qty | 1 |
| Depth | 22.0" (56 cm) | Adjustable Shelves | Yes |
| Depth with Handle | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 37.88" (96 cm) | Fan Type | Interior and Exterior |
| Capacity | 2.0 cu.ft. (57 L) | Refrigerant Type | R600a |
| Defrost Type | Frost-Free | Refrigerant Amount | 0.85oz. |
| Door | Stainless Steel/Panel-Ready | High Side PSI | 270.0 |
| Cabinet | Black | Low Side PSI | 105.0 |
| US Electrical Safety | ETL | Level Legs Qty | 4 |
| Canadian Electrical Safety | ETL-C | Interior Light | Yes |
| Sanitation | ETL-S | Temperature Range | 36 to 43ºF |
| Energy Usage/Year | 265.0kWh/year | Sound Level | 32.6 dB |
| Amps | 1.0 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 13.0" (33 cm) |
| Weight | 62.0 lbs. (28 kg) | Interior Width | 17.75" (45 cm) |
| Parts & Labor Warranty | 1 Year | Interior Depth | 15.5" (39 cm) |
| Compressor Warranty | 5 Years | Compressor Step Height | 6.5" (17 cm) |
| UPC | 761101086590 | Compressor Step Width | 17.75" (45 cm) |
| Compressor Step Depth | 4.5" (11 cm) | ||
