Summit ALRF49BCSS 21″ Wide Built-In ADA Refrigerator-Freezer — Stainless Steel Cabinet & Door
Customer service
Features
- SKU SA-ALRF49BCSS
Summit Appliance offers a wide range of built-in undercounter refrigerator-freezers designed for installation under lower ADA compliant counters, with advanced features for user convenience.

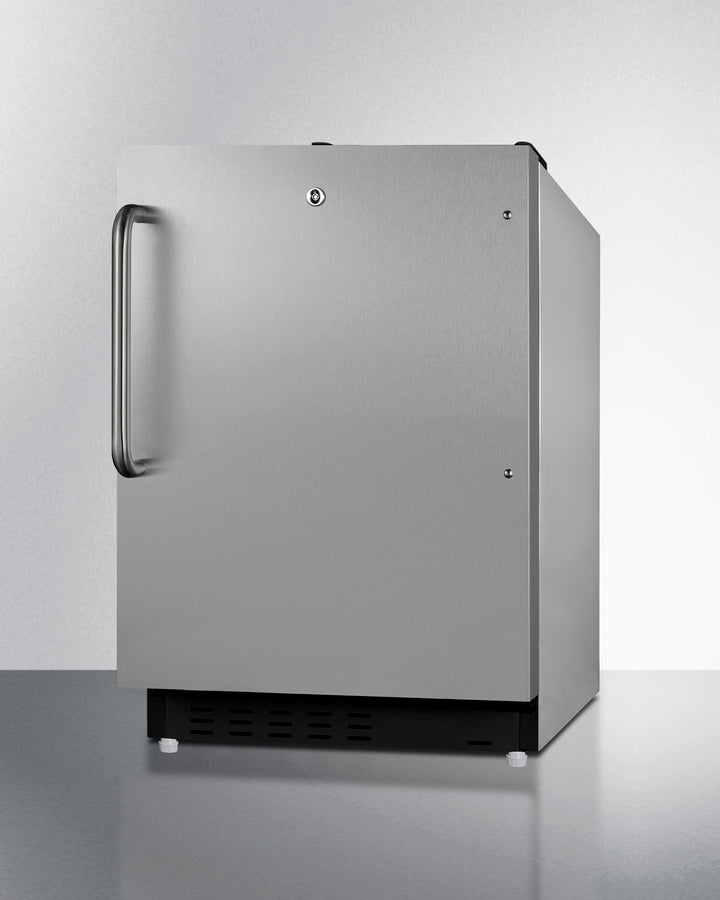

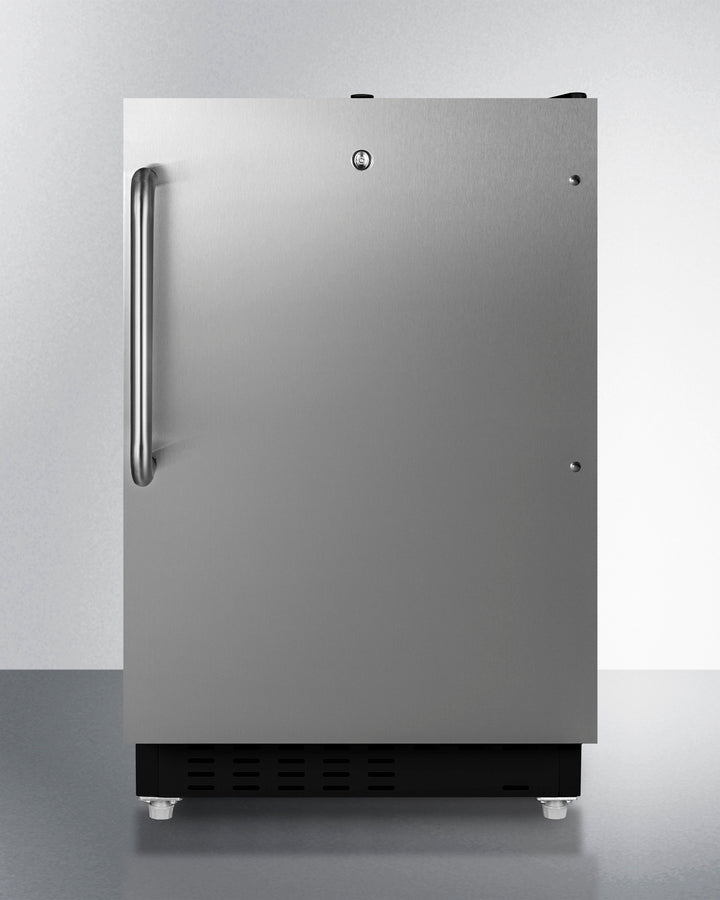

The ALRF49BCSS is sized at 32" high to fit under lower counters complying with ADA guidelines for accessibility. The fully finished stainless steel cabinet allows freestanding use, while the front-breathing system means this unit can be built-in with minimum clearance. The stainless steel, user-reversible door is 3" thick for efficient insulation, with a curved towel bar handle included for added convenience. This unit comes with a right angle cord to allow for easier placement without added depth. A factory-installed lock is conveniently located towards the top of the door to provide security as needed.

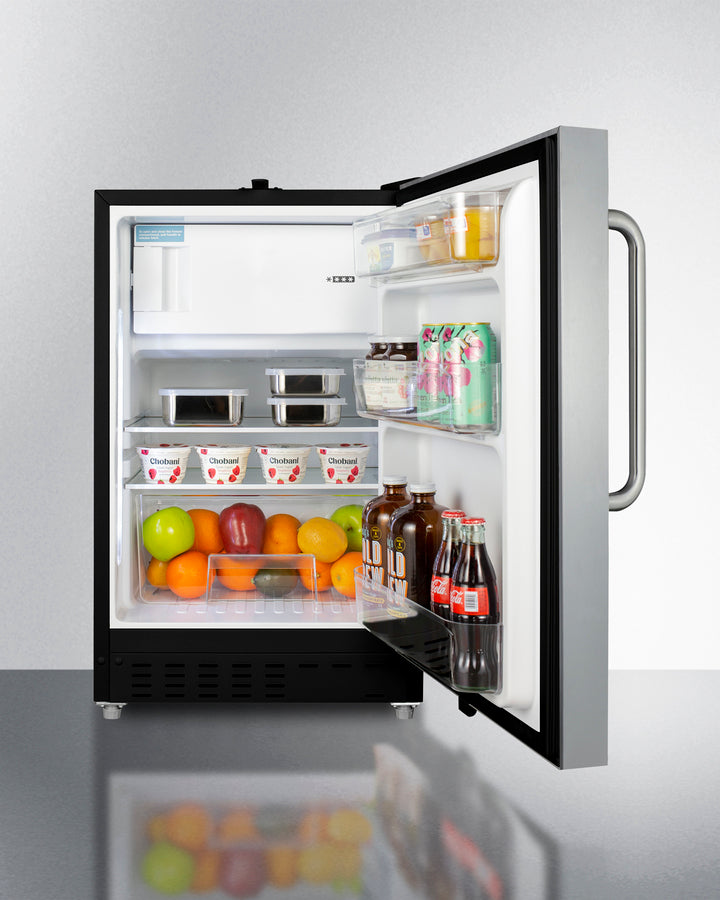

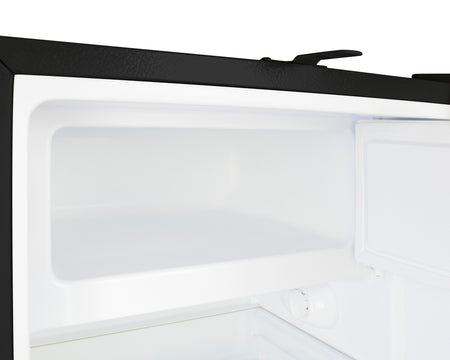

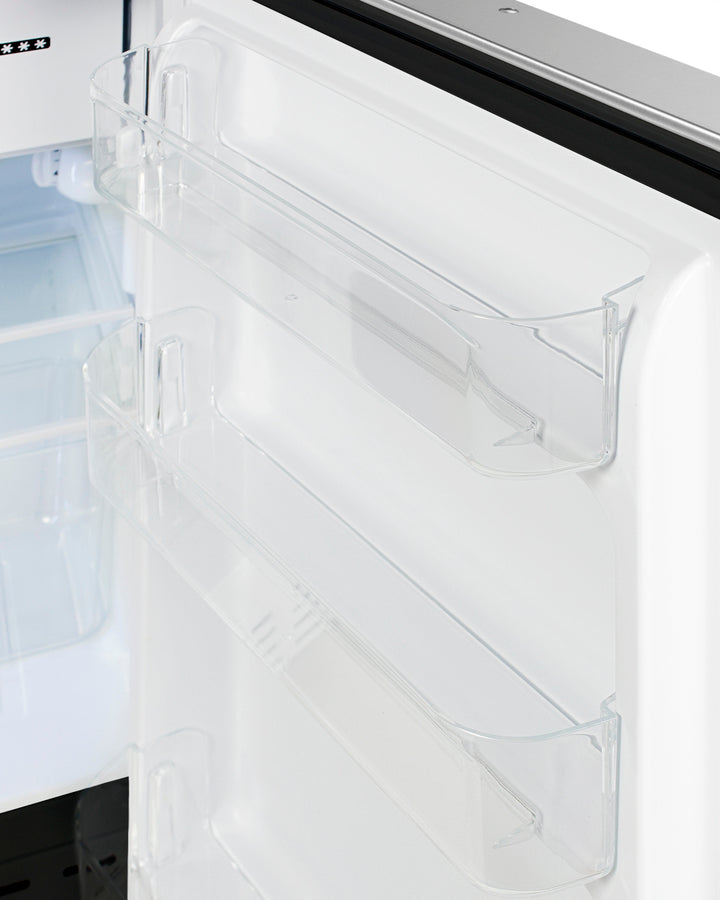

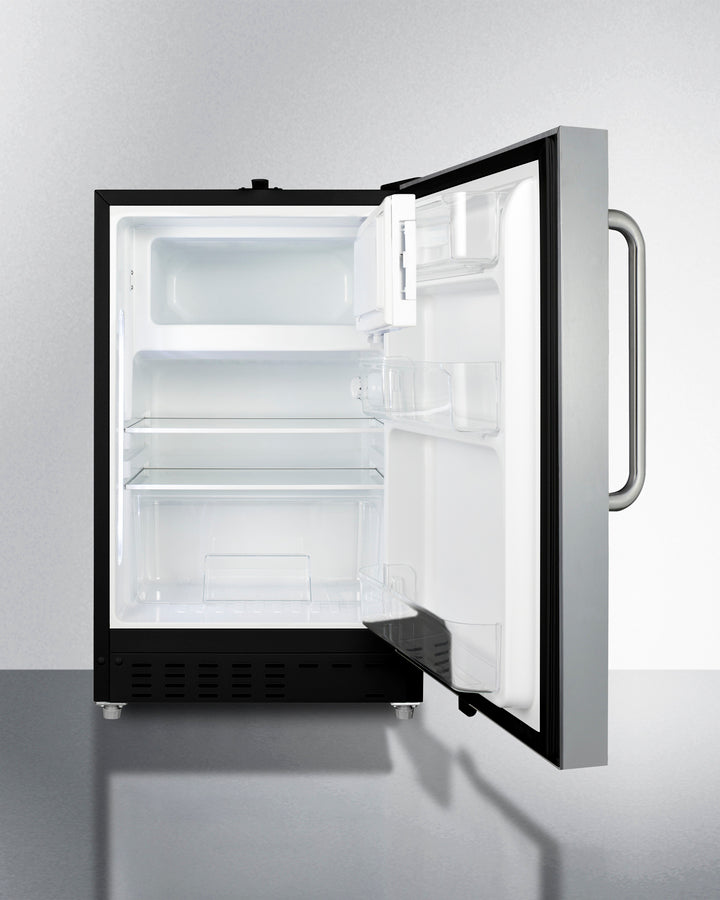

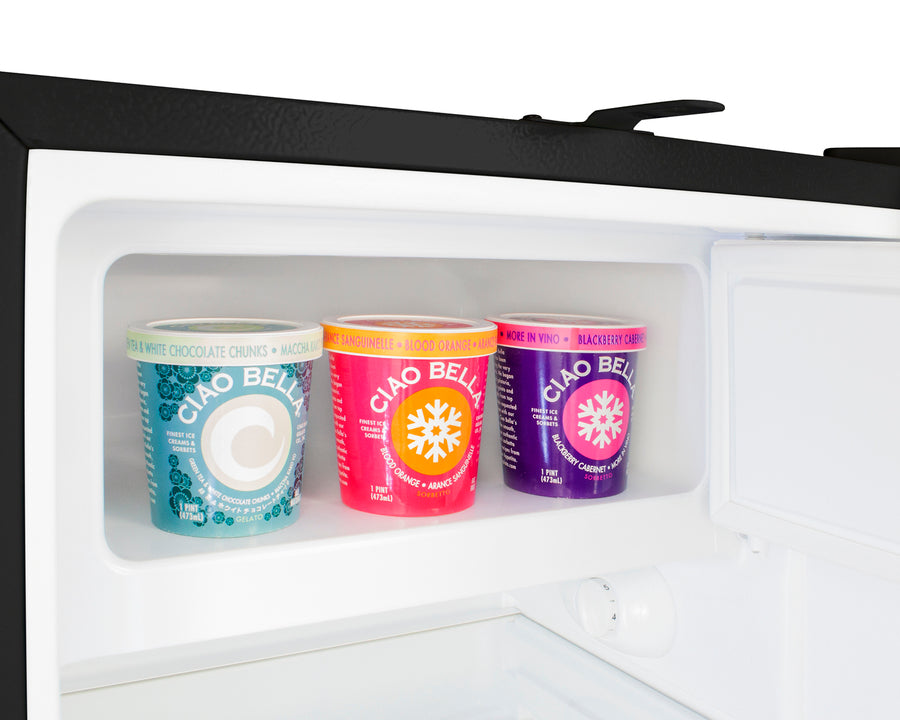

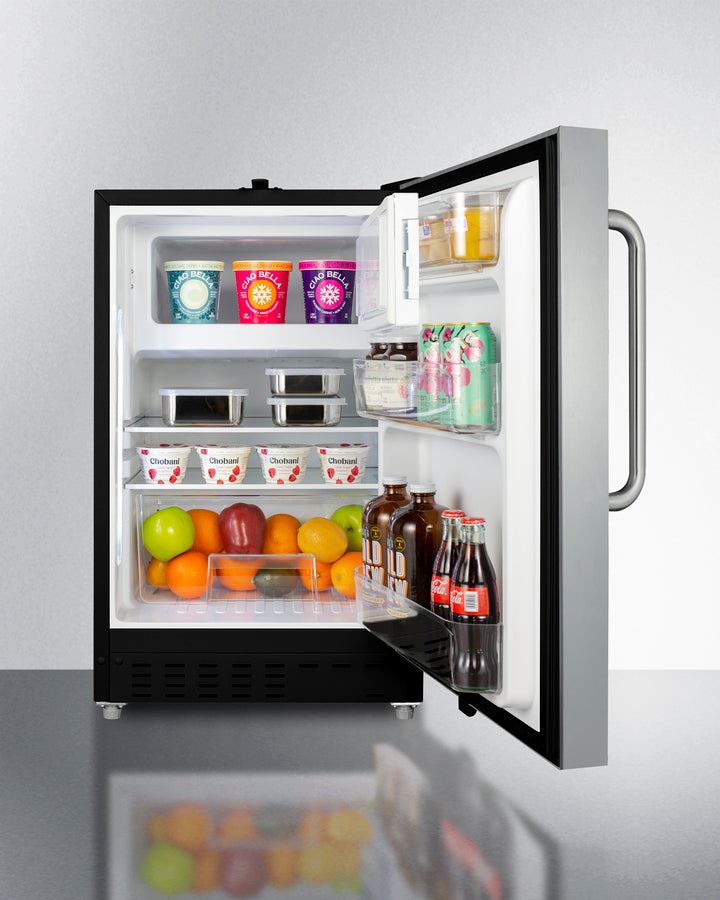

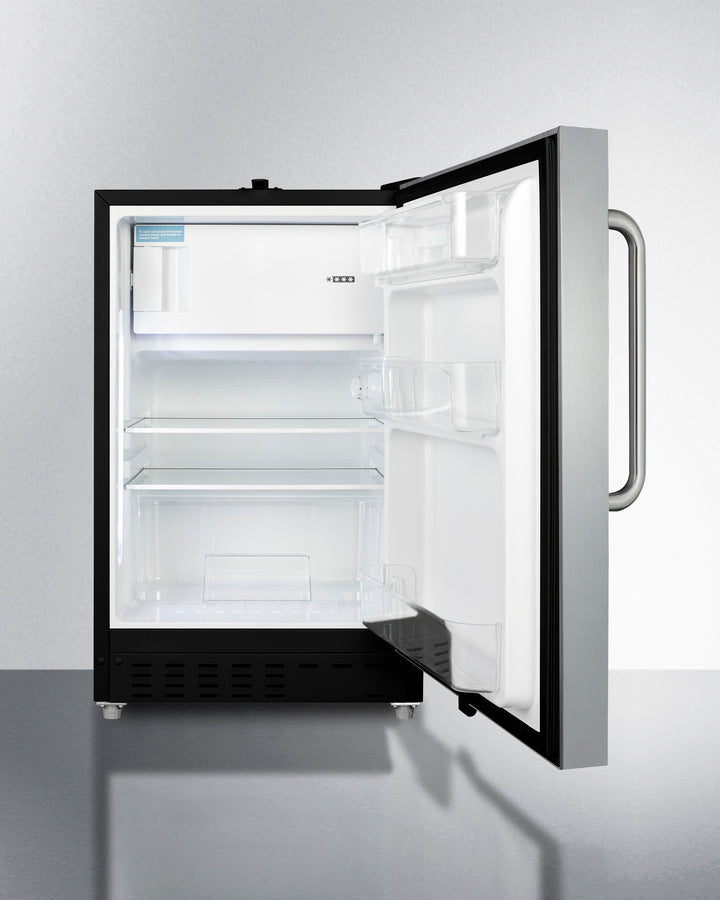

Inside, the ALRF49BCSS features an all-white interior for easy cleaning and viewing of contents. Static manual defrost operation provides efficient cooling inside the 2.68 cu.ft. interior, while the dial thermostat makes temperature management simple. An automatic LED light located toward the front of the unit attractively illuminates the interior when the door opens. Three spill-proof adjustable glass shelves offer flexible storage options for large and small items, while a pull-out crisper drawer provides storage for fruits and vegetables. Three removable door racks accommodate additional storage as needed. This unit includes a compact freezer compartment with a cover.
With its compact size and convenient features, the ALRF49BCSS is the perfect unit for offices, dormitories, and other residential settings in need of an easy-fitting refrigerator-freezer.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 32.0" (81 cm) | Door Swing | RHD |
| Height of Cabinet | 31.75" (81 cm) | Reversible | Yes |
| Height to Hinge Cap | 32.0" (81 cm) | Adjustable Shelves | Yes |
| Nominal Width | 21.0" (53 cm) | Crisper Qty | 1 |
| Width | 20.88" (53 cm) | Crisper Finish | Transparent |
| Nominal Depth | 23.0" (58 cm) | Crisper Cover | Glass |
| Depth | 22.5" (57 cm) | Interior Light | Yes |
| Depth with Handle | 25.0" (64 cm) | Refrigerator - Interior Height | 17.5" (44 cm) |
| Depth with door at 90° | 40.25" (102 cm) | Refrigerator - Interior Width | 16.25" (41 cm) |
| Capacity | 2.68 cu.ft. (76 L) | Refrigerator - Interior Depth | 17.0" (43 cm) |
| Defrost Type | Manual | Refrigerator - Shelf Type | Glass |
| Door | Stainless Steel | Refrigerator - Shelf Qty | 3 |
| Cabinet | Stainless Steel | Refrigerator - Full Door Shelves | 3 |
| US Electrical Safety | ETL | Refrigerator - Temperature Range | 35-46º F |
| Canadian Electrical Safety | ETL-C | Refrigerator - Refrigerant Type | R600a |
| Energy Usage/Year | 259.0kWh/year | Refrigerator - Refrigerant Amount | 0.92 oz. |
| Amps | 1.1 | Freezer - Interior Height | 5.75" (15 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Freezer - Interior Width | 16.25" (41 cm) |
| Weight | 105.0 lbs. (48 kg) | Freezer - Interior Depth | 11.25" (29 cm) |
| Parts & Labor Warranty | 1 Year | Thermostat Type | Dial |
| Compressor Warranty | 5 Years | Refrigerant Type | R600a |
| UPC | 761101076553 | Refrigerant Amount | 0.92 oz. |
| High Side PSI | 180.0 | ||
| Low Side PSI | 80.0 | ||
| Level Legs | 2 | ||
| Compressor Step Height | 6.25" (16 cm) | ||
| Compressor Step Width | 16.25" (41 cm) | ||
| Compressor Step Depth | 6.0" (15 cm) | ||
| Sound Level | 32.9 dB |
