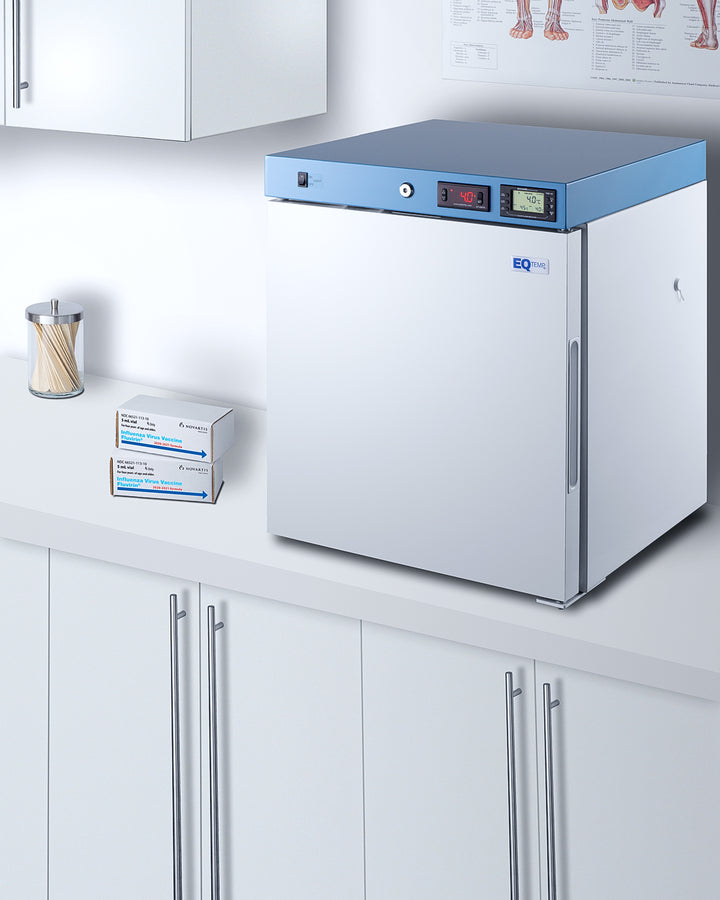

Summit ACR161W 19″ Compact Medical / Vaccine Refrigerator – White Cabinet
Customer service
Features
- SKU SA-ACR161W
EQTemp introduces a new series of affordable, specialty medical refrigeration solutions for healthcare facilities seeking specialized cold storage.
Model ACR161W is a compact 1.58 cu.ft. all-refrigerator. It features a clean white exterior and a blue-accented control panel. The solid door is equipped with a self-closing mechanism to help protect stored items from being overexposed to room temperature. A factory-installed lock offers added security, and the hospital-grade cord with a 'green dot' plug ensures a secure connection for high-traffic areas.
The ACR161W includes an external readout of the interior temperature and the high/low temperature. The buffered temperature probe is encased in a bottle filled with glass beads for improved accuracy. The digital temperature controls allow you to set the interior between 2 and 8ºC. An audible alarm sounds if the temperature goes out of range. We also include a pre-installed 3/8" access port for users to add their own monitoring equipment if preferred.
The interior includes one wire shelf in the center to hold the temperature probes. Internal LED lighting provides an efficient and convenient view. Automatic defrost reduces user maintenance, and an internal fan ensures robust temperature recovery after door openings.
This unit is also available certified to the NSF/ANSI 456 Vaccine Storage Standard with the upgrade of a NIST calibrated temperature readout (see model ACR161WNSF456). Additional sizes are available, as well as more advanced cold storage equipment purpose-built for laboratory and life science storage. Browse the complete product line to explore our extensive selection.
Note: EQTemp's ACR Series refrigerators are intended for various healthcare storage applications. Storage of high-value vaccines, life science materials, and medical/clinical biologicals requires a product offering tighter temperature control and/or alarms, monitoring, and backup. For these applications, browse Accucold's purpose-built PHARMA-VAC line or contact our product specialists at 1-888-4-MED-LAB.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 23.0" (58 cm) | Door Swing | RHD/LHD |
| Height of Cabinet | 22.88" (58 cm) | Reversible | Factory Reversible |
| Nominal Width | 19.0" (48 cm) | Shelf Type | Wire |
| Width | 18.75" (48 cm) | Shelf Qty | 1 |
| Width with Door Open | 19.25" (49 cm) | Thermostat Type | Digital |
| Nominal Depth | 19.0" (48 cm) | Fan Type | Interior |
| Depth | 18.38" (47 cm) | Refrigerant Type | R600a |
| Depth with door at 90° | 35.63" (91 cm) | Refrigerant Amount | 0.85oz. |
| Capacity | 1.58 cu.ft. (45 L) | High Side PSI | 1.45 |
| Defrost Type | Automatic | Low Side PSI | 0.85 |
| Door | White | Level Legs Qty | 2 |
| Cabinet | White | Interior Light | Yes |
| US Electrical Safety | ETL | Temperature Range | 2º to 8ºC |
| Canadian Electrical Safety | ETL-C | Sound Level | 36.8 dB |
| Amps | 0.6 |
Dimensions
|
|
|---|---|---|---|
| Voltage/Frequency | 115 V AC/60 Hz | Interior Height | 16.63" (42 cm) |
| Weight | 38.0 lbs. (17 kg) | Interior Width | 15.63" (40 cm) |
| Parts & Labor Warranty | 1 Year | Interior Depth | 12.13" (31 cm) |
| Compressor Warranty | 5 Years | Compressor Step Height | 7.75" (20 cm) |
| UPC | 761101082912 | Compressor Step Width | 15.63" (40 cm) |
| Compressor Step Depth | 5.25" (13 cm) | ||
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
