Summit SWBV3071 30″ Wide Dual-Zone Wine & Beverage Center – Built-In Undercounter

SKU: SA-SWBV3071
Regular price $1,969.80
Premium Storage & Secure Features — Right side holds up to 33 Bordeaux-style bottles; left side holds up to 72 8-oz cans or 48 12-oz bottles; includes wooden shelves, adjustable wire shelves, slotted floor for larger bottles, factory-installed locks and Sabbath mode.
Elegant Display with French Door Glass & LED Lighting — Stainless steel-trimmed double-pane glass French doors with recessed white LED lighting highlight the collection.
Built-In or Freestanding Flexibility in a 30″ Width — 34″ H × 29.5″ W × 23.5″ D cabinet fits under standard counters or freestanding with fully finished exterior.
34.0" H x 29.5" W x 23.5" D
(86cm H x 75cm W x 60cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SWBV3071

Commercial design:
Meets UL-471 commercial standards

Built-in capable:
Make the best use of space by installing this unit under the counter

Dual zone design:
Two independent zones allow you to store both red and white wine or craft beer at the proper conditions

Digital controls:
Interior digital thermostat lets you separately manage the temperature of each section, with a readout viewable in Celsius or Fahrenheit

Generous storage capacity:

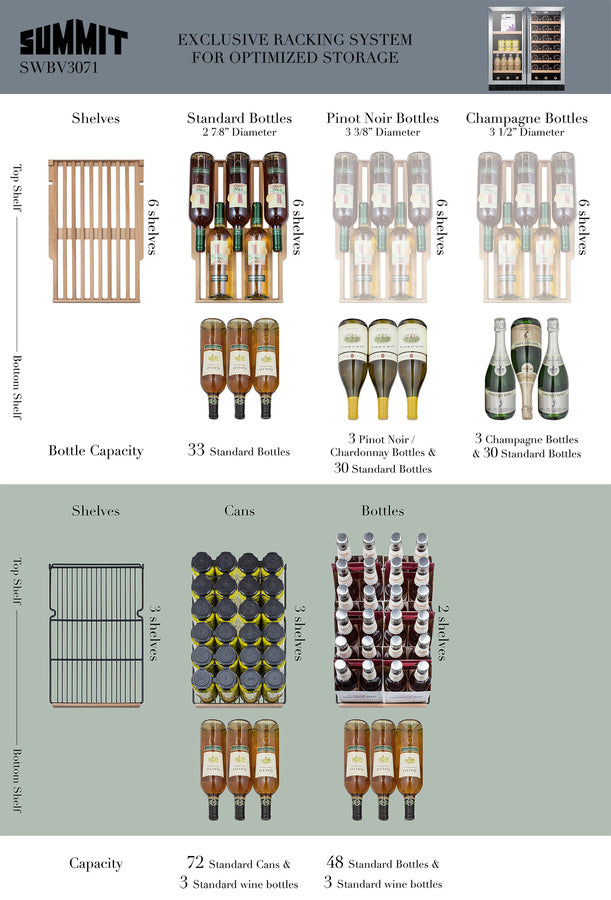

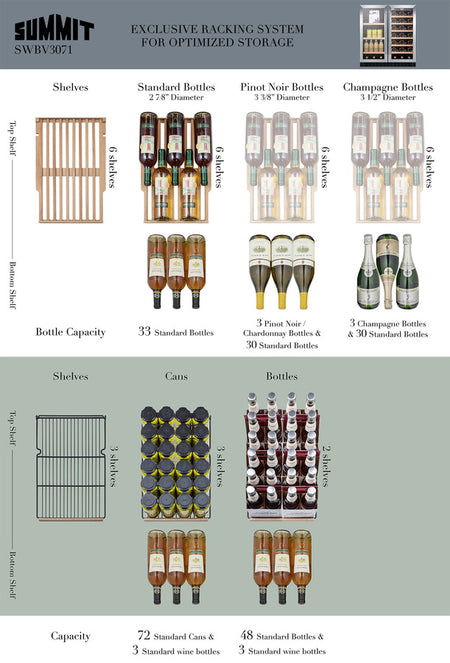

Store up to 33 standard Bordeaux style wine bottles in the right section and up to 72 8 oz. cans or 48 12 oz. bottles in the beverage section. To accommodate wider Burgundy style wine or champagne bottles, you can remove every other wine shelf

Recessed LED lighting:
Gentle and energy efficient LED lighting in an attractive white hue offers an elegant view of stored items

Adjustable wooden shelves:
Red wine section includes six removable wooden shelves for proper bottle storage

Adjustable beverage shelves:
Craft beer section is equipped with three adjustable black wire shelves with an attractive wooden trim to complement the wine section

Slotted floors:
Floor is specially designed with slots to allow you to store larger champagne or Burgundy style bottles safely on their sides

Professional handles:
Sleek stainless steel handles add an elegant touch to any setting

Glass doors:
French door swing offers a modern look, with stainless steel door trim for an added accent

Factory installed locks:
Keyed locks on both zones offer separate security for interior contents

Automatic defrost:
Reduced user maintenance with automatic defrost

Fan-forced cooling:
Internal fans ensure both interiors have a consistent temperature from top to bottom

Sabbath mode:
Setting allows you to disable the digital displays, lights, and alarms for religious observance.

High temperature alarm:
Audible alarm sounds if the interior temperature rises above the recommended range

Open door alarm:
Alarm will sound if either door is left open for over 60 seconds

Temperature memory function:
In the event of power loss, the unit will retain its last temperature settings upon power recovery

Sealed back:
Space-saving design with no exposed coils in the rear offers easy cleanability

Right angle plug:
Design allows you to plug the unit in flush against the wall socket with no need to add extra depth

Fully finished cabinet:
Allows the unit to be used freestanding

100% CFC free:
Environmentally friendly design without ozone-damaging chemicals

CARB Compliant:
Environmentally friendly hydrocarbon-based refrigerant for a greener footprint that meets current CARB regulations

SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

The SWBV3071 is a 30" wide wine and craft beer cooler designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles. Front locks offer keyed security for both compartments. The sealed back design ensures easier cleanability.

Two separate zones feature independent digital thermostats, allowing you to store craft beer or white wine in the left side while preserving your red wine in the right. The left beverage compartment includes three slide-out black wire shelves with wooden trim to match the six wooden shelves included in the right. Both sections feature a slotted floor to hold additional bottles. The digital control panel features an LED temperature readout in Celsius or Fahrenheit. Recessed LED lighting in a white hue offers an attractive and efficient presentation.

With its attractive style and user-friendly features, the SWBV3071 is a great addition to any home looking to bring versatile beverage storage under the counter.

 Overview

Refrigerator-Freezer

Nominal Height 34.0" (86 cm) Number of Zones 2
Height of Cabinet 34.0" (86 cm) Door Swing French
Nominal Width 30.0" (76 cm) Adjustable Shelves Yes
Width 29.5" (75 cm) Shelf Type Wire and Wood
Nominal Depth 24.0" (61 cm) Shelf Qty 9
Depth 23.5" (60 cm) Thermostat Type Digital
Depth with Handle 25.25" (64 cm) Interior Light Yes
Depth with door at 90° 37.0" (94 cm) Fan Type Interior and Exterior
Capacity 5.8 cu.ft. (164 L) Refrigerant Type R600a
Defrost Type Automatic Refrigerant Amount 1.23 oz.
Door Glass High Side PSI 270.0
Cabinet Black Low Side PSI 105.0
US Electrical Safety ETL Interior Height 1 26.38" (67 cm)
Canadian Electrical Safety ETL-C Interior Width 1 12.0" (30 cm)
Amps 1.5 Interior Depth 1 17.5" (44 cm)
Voltage/Frequency 115 V AC/60 Hz Compressor Step Height 3.0" (8 cm)
Weight 132.0 lbs. (60 kg) Compressor Step Width 26.75" (68 cm)
Parts & Labor Warranty 1 Year Compressor Step Depth 5.0" (13 cm)
Compressor Warranty 5 Years Level Legs 2
UPC 761101050423 Temperature Range Left side: 36º to 43ºF; Right side: 41º to 72ºF


Interior Height 2 24.75" (63 cm)


Interior Width 2 12.0" (30 cm)


Interior Depth 2 17.5" (44 cm)


Sabbath Mode Yes

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
