Summit FF1DSS 21.5″ Wide Built-In / Outdoor Drawer Refrigerator – Panel-Ready / Stainless Steel Drawer
Customer service
Features
- SKU SA-FF1DSS
Summit offers a quality line of commercially approved drawer refrigerators fully featured for indoor or outdoor use.

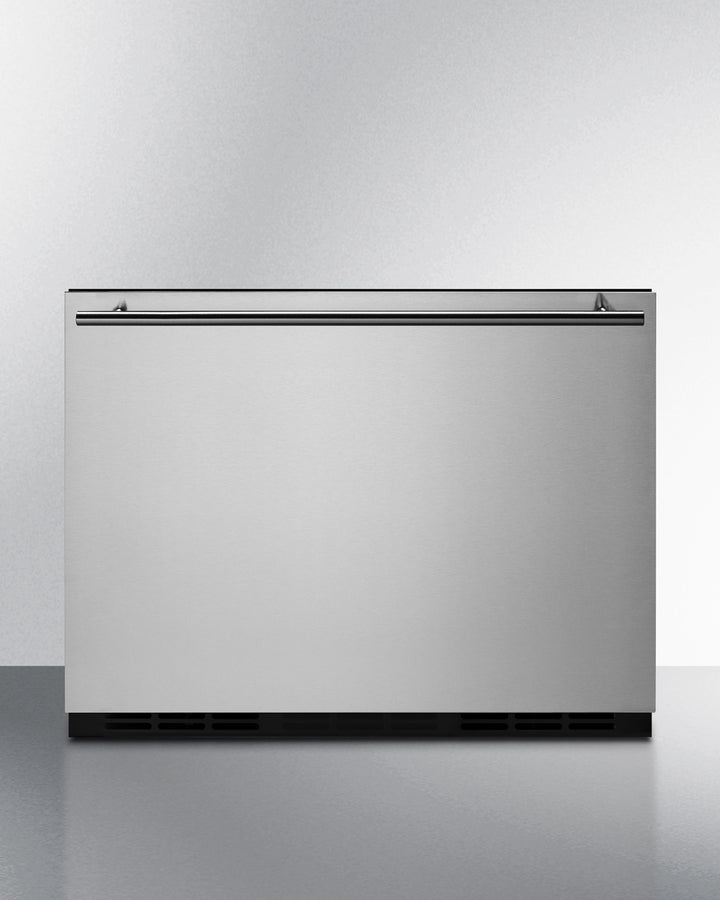

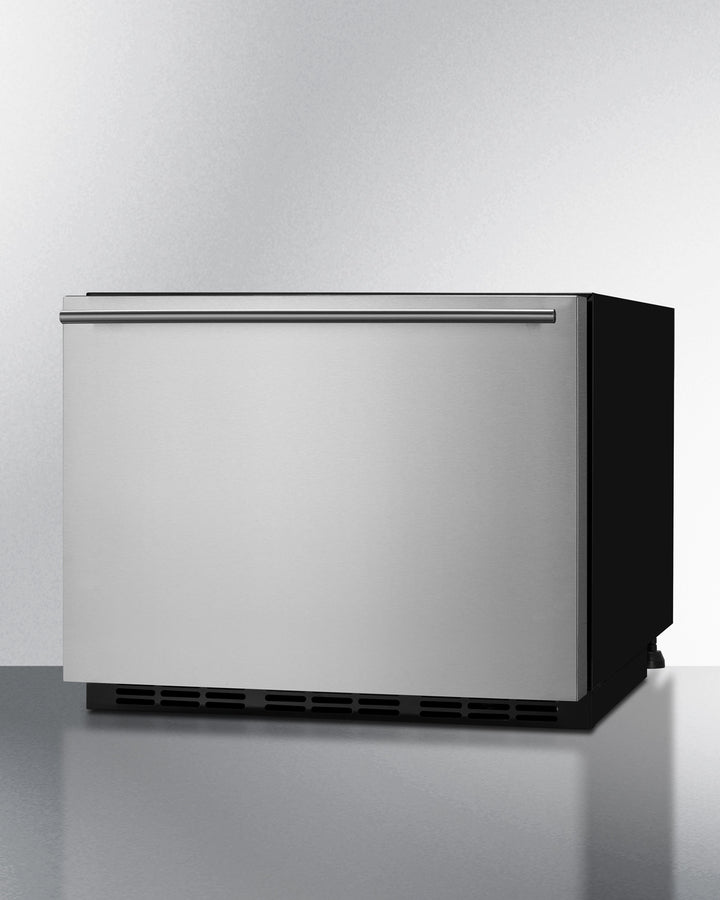

The FF1DSS is a single drawer all-refrigerator that meets NSF-7 and UL-471 commercial standards and is also approved for residential settings. At just 21.5" wide, it has a front-breathing design that allows built-in installation, while the fully finished black cabinet also enables freestanding use. Its versatile 304 grade stainless steel drawer with a full-width pro handle provides durable, weatherproof protection, perfect for use in outdoor kitchens, bars, or similar spaces. Additionally, the drawer is panel-ready and can be customized with an overlay panel (not included) to match or accent an existing cabinetry design (panel dimensions: 15.6" H x 21.4" W at 3/4" maximum thickness). The included ground fault circuit interrupter (GFCI) 3-prong plug helps protect users from electrical shocks for added safety, ideal for outdoor spaces.

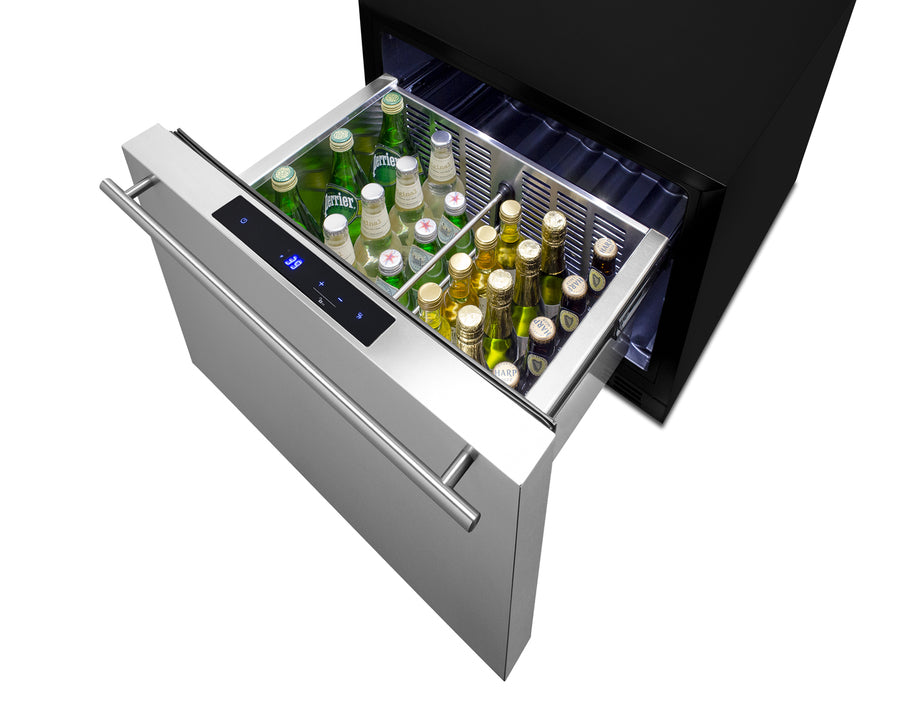

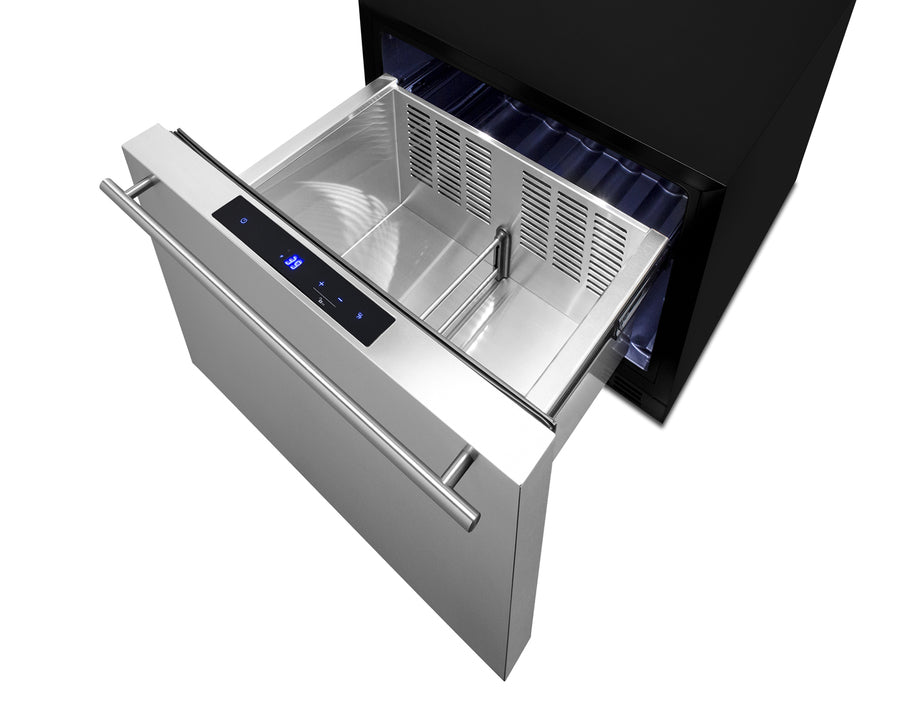

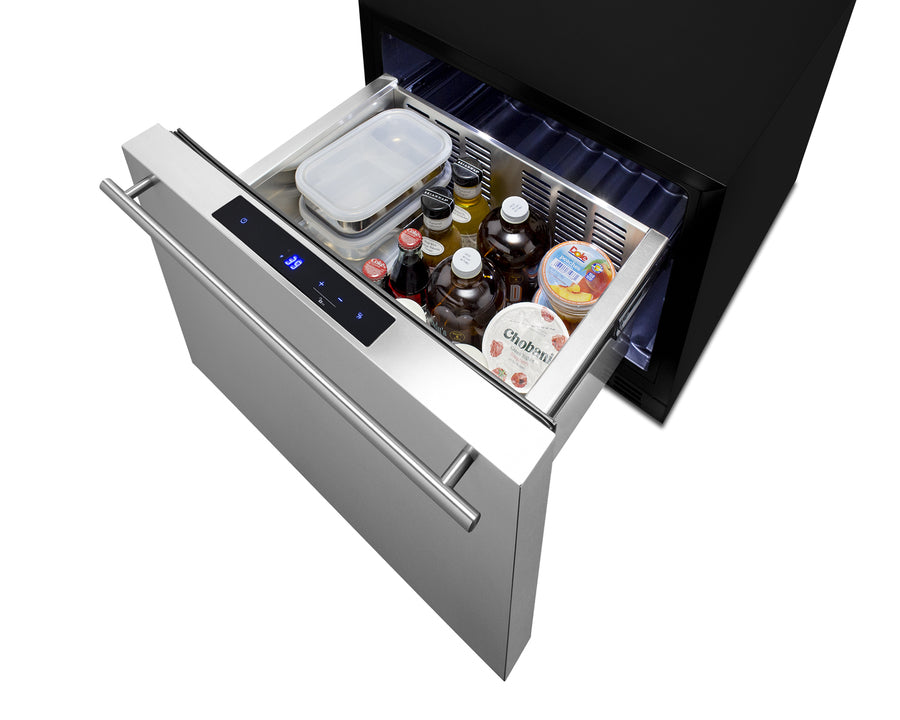

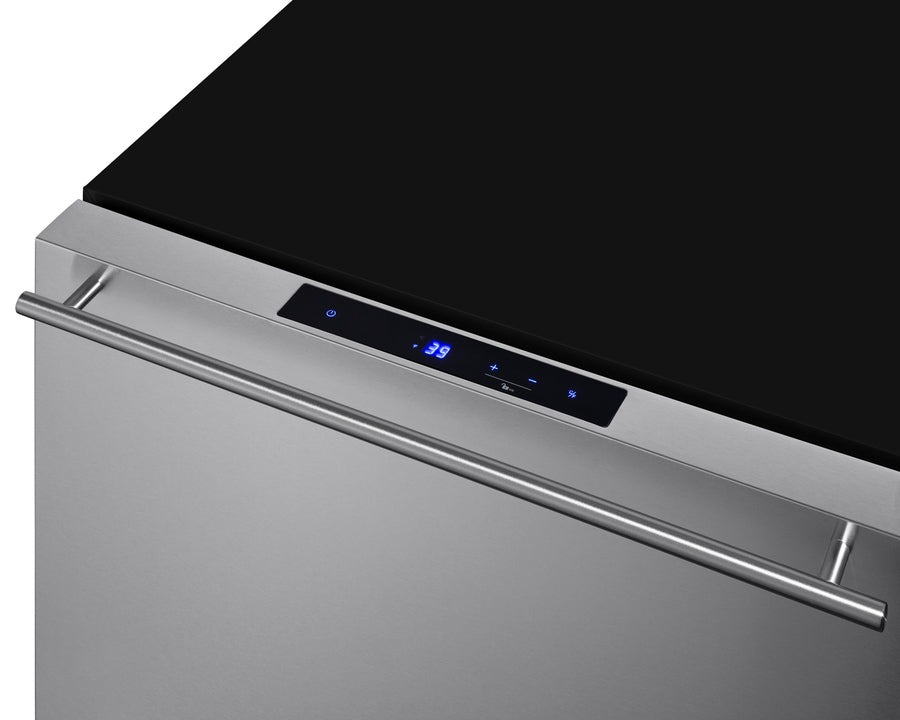

Inside, the FF1DSS has a 1.6 cu.ft. capacity to accommodate your storage needs. Frost-free operation with fan-forced cooling ensures even temperature distribution with minimal user maintenance. A digital thermostat, located atop the refrigerator drawer, makes it easy to manage the temperature, with an LED display that can be read in Celsius or Fahrenheit. Two removable dividers let you separate the drawer into one, two, or three zones to accommodate a variety of sizes. LED lighting affords a convenient view of store contents, while a child lock will disable the digital controls after two minutes of inactivity to prevent accidental adjustments. Additional features include audible alarms for high-temperature fluctuations and open drawer alerts, while a temporary memory function helps to recover all settings in the event of power loss. The Sabbath Mode setting disables certain electrical features during periods of religious observance.
With its fully-featured, weatherproof design, the FF1DSS is the perfect cooling compartment or beverage holder in outdoor or indoor home kitchens, as well as hotel spaces, foodservice areas, and more. For this unit sized to fit 24" wide spaces, see the SDR24.
Note: This unit ships with a polycarbonate strip over the control panel to protect it from the elements. If installing this drawer in outdoor kitchens, keep the cover in place.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 18.0" (46 cm) | Sabbath Mode | Yes |
| Height of Cabinet | 17.75" (45 cm) | Door Swing | Drawer |
| Nominal Width | 22.0" (56 cm) | Reversible | No |
| Width | 21.5" (55 cm) | Thermostat Type | Digital |
| Nominal Depth | 23.0" (58 cm) | Fan Type | Interior and Exterior |
| Depth | 22.25" (57 cm) | Refrigerant Type | R600a |
| Depth with Handle | 23.75" (60 cm) | Refrigerant Amount | 0.78oz. |
| Depth with door at 90° | 35.5" (90 cm) | High Side PSI | 270.0 |
| Capacity | 1.6 cu.ft. (45 L) | Low Side PSI | 105.0 |
| Defrost Type | Frost-Free | Level Legs Qty | 4 |
| Door | Stainless Steel/Panel-Ready | Interior Light | Yes |
| Cabinet | Black | Temperature Range | 36 to 43ºF |
| US Electrical Safety | ETL | Sound Level | 33.3 dB |
| Canadian Electrical Safety | ETL-C |
Dimensions
|
|
|---|---|---|---|
| Sanitation | ETL-S | Interior Height | 13.0" (33 cm) |
| Energy Usage/Year | 273.0kWh/year | Interior Width | 16.0" (41 cm) |
| Amps | 1.0 | Interior Depth | 11.5" (29 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 7.0" (18 cm) |
| Weight | 53.0 lbs. (24 kg) | Compressor Step Width | 16.0" (41 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 1.0" (3 cm) |
| Compressor Warranty | 5 Years | ||
| UPC | 761101066974 | ||
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
