Summit FFUF194IM 33″ Wide Upright All-Freezer with Icemaker – White Cabinet
Customer service
Features
- SKU SA-FFUF194IM
Accucold's general purpose series offers reliable cold storage in a variety of designs, including full-sized freezers with frost-free operation for low maintenance use.

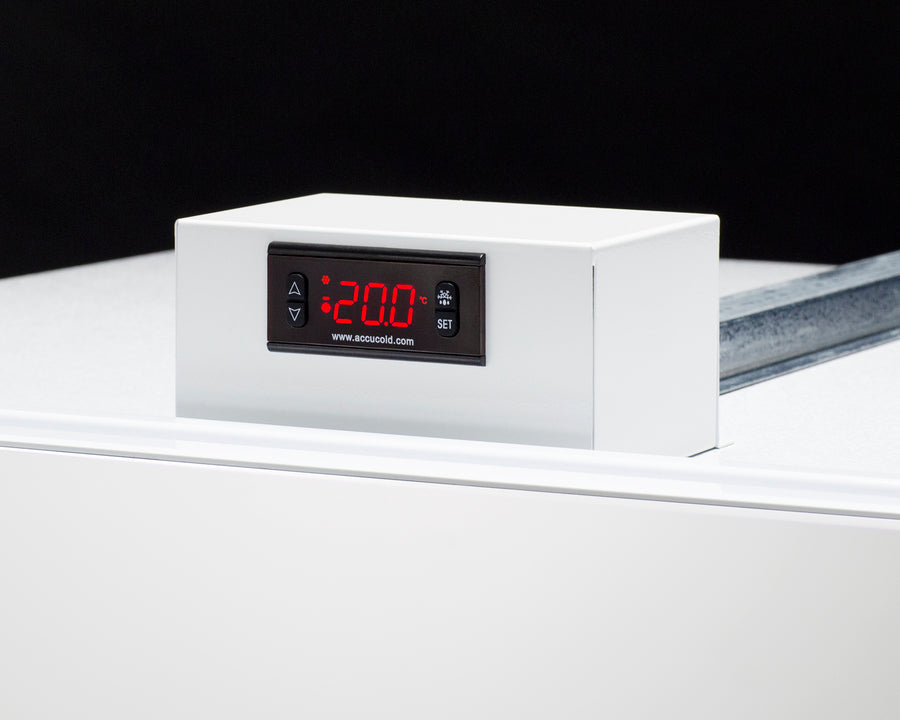

Model FFUF194IM is an upright all-freezer with a full 17 cu.ft. storage capacity and factory-installed 8 lb. icemaker. It comes in a white exterior finish with a right hand door swing and powerful seal to ensure items are protected. This unit has a sealed back for easier cleanup and a right angle cord to allow a better fit. The digital control panel is located on top of the cabinet, allowing you to manage the interior temperature without opening the door. The FFUF194IM is designed to operate between -25 to -10ºC. For a matching all-refrigerator, see the FFUR19.

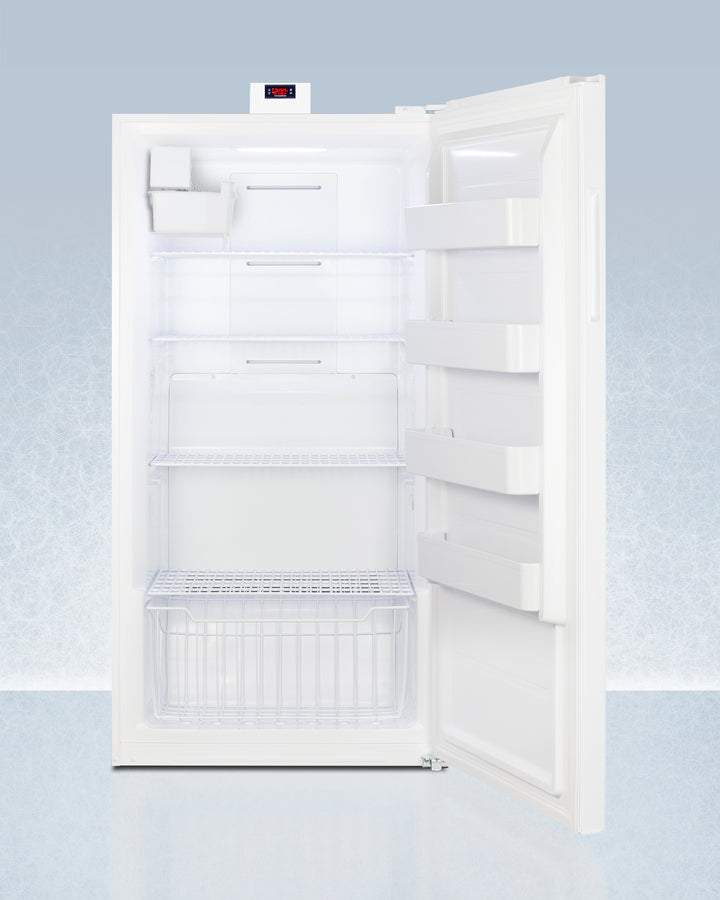

The FFUF194IM utilizes frost-free operation, eliminating the need to manually defrost the interior. Adjustable wire shelves accommodate a variety of sizes, with a removable lower basket for additional storage. Four door racks are included. This unit features LED lighting for an efficient view.
With its low maintenance design and large storage capacity, the FFUF194IM is ideal for storing non-critical products in research, clinical, and industrial laboratory applications.
NOTE: This unit is intended for use in healthcare, medical, life science, and laboratory settings, and is not intended for residential use.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 67.0" (170 cm) | Door Swing | RHD |
| Height of Cabinet | 67.0" (170 cm) | Reversible | No |
| Nominal Width | 33.0" (84 cm) | Crisper Cover | Wire |
| Width | 32.75" (83 cm) | Interior Height | 57.0" (145 cm) |
| Width with Door Open | 33.75" (86 cm) | Interior Width | 26.5" (67 cm) |
| Nominal Depth | 31.0" (79 cm) | Interior Depth | 22.5" (57 cm) |
| Depth | 30.25" (77 cm) | Shelf Type | Wire |
| Depth with door at 90° | 59.75" (152 cm) | Shelf Qty | 4 |
| Capacity | 17.0 cu.ft. (481 L) | Full Door Shelves | 4 |
| Defrost Type | Frost-Free | Adjustable Shelves | Yes |
| Door | White | Gallon Door Storage | Yes |
| Cabinet | White | Can Storage | Yes |
| US Electrical Safety | CSA | Thermostat Type | Digital |
| Canadian Electrical Safety | CSA-C | Interior Light | Yes |
| Amps | 1.8 | Refrigerant Type | R600a |
| Voltage/Frequency | 115 V AC/60 Hz | Refrigerant Amount | 2.12 oz. |
| Weight | 217.0 lbs. (98 kg) | High Side PSI | 210.0 |
| Parts & Labor Warranty | 1 Year | Low Side PSI | 103.0 |
| Compressor Warranty | 5 Years | Level Legs | 2 |
| UPC | 761101084473 | Interior Drawers | Yes |
| Drawers Qty | 1 | ||
| Compressor Step Height | 11.0" (28 cm) | ||
| Compressor Step Width | 26.5" (67 cm) | ||
| Compressor Step Depth | 4.0" (10 cm) | ||
| Temperature Range | -25 to -10ºC |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
