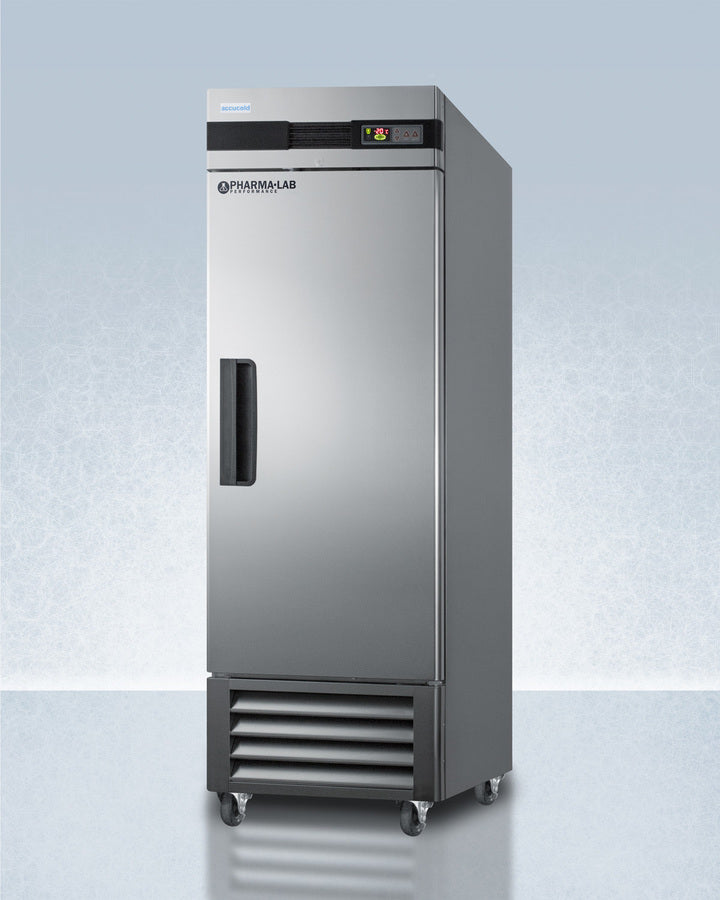

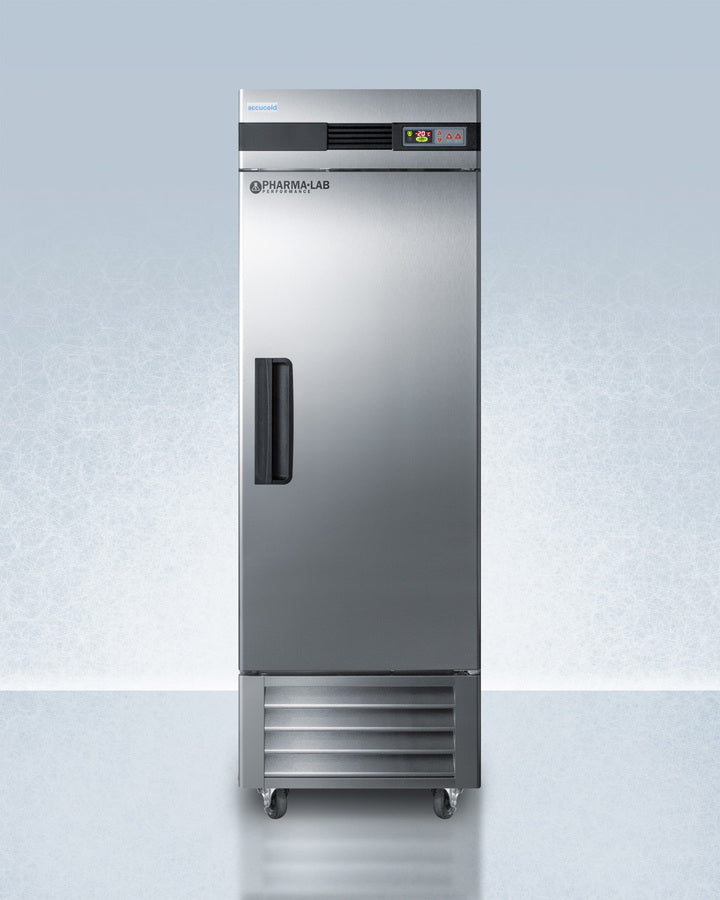

Accucold AFS23ML 23 cu. ft. Upright All-Freezer – Stainless Steel Cabinet
Customer service
Features
- SKU SA-AFS23ML
Accucold's Pharma-Lab Performance Series features reach-in refrigerators and matching freezers designed and purpose-built to meet the demanding needs for pharmacy, medication, vaccine, laboratory, and life science applications.

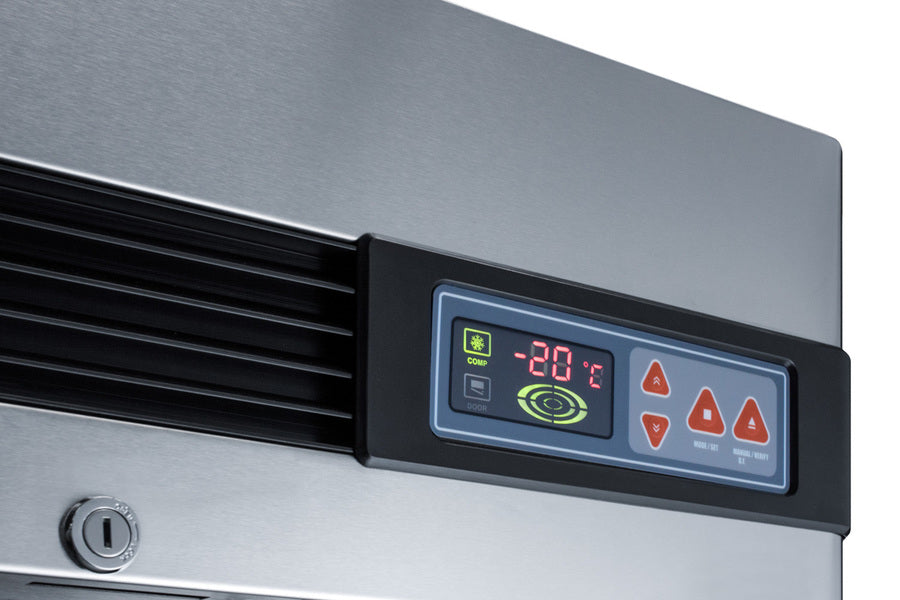

The AFS23ML is a 23 cu.ft. all-freezer with an adjustable control range from -30 to -15ºC. The microprocessor temperature controller features a large digital LED display viewable in Celsius or Fahrenheit, making it easy for staff to manage and monitor the temperature. The unit is equipped with an air sensor for rapid control response and a product sensor for a more accurate reading of the interior, including a display of the min/max temperature in 15 minute increments The audible and visual temperature alarm sounds if the unit rises or falls above a user-set range. Additional alarms include a power failure alert, door open alarm, and a condenser cleaning reminder.

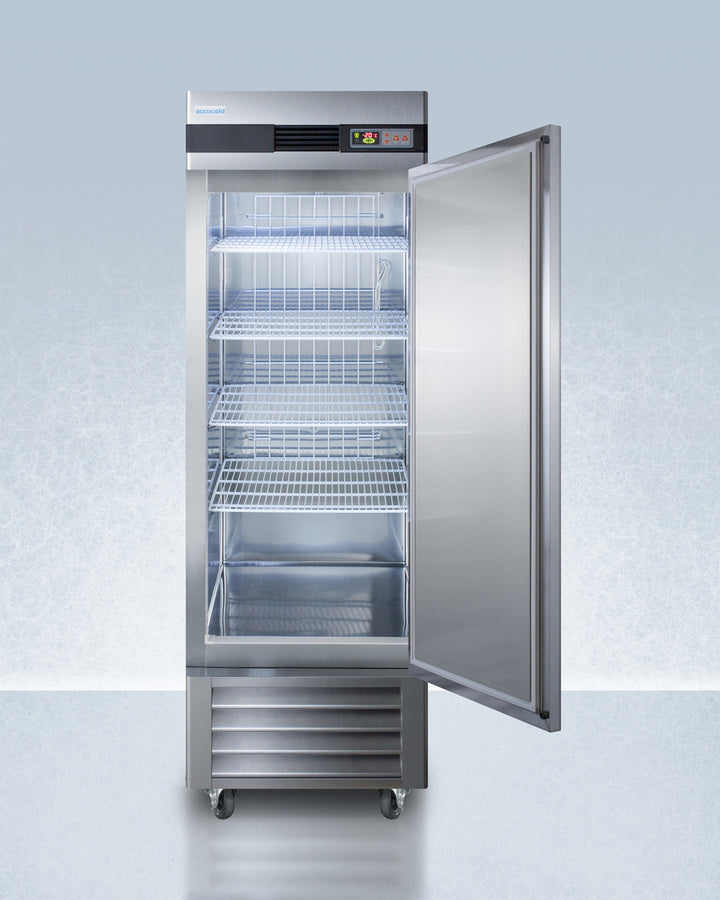

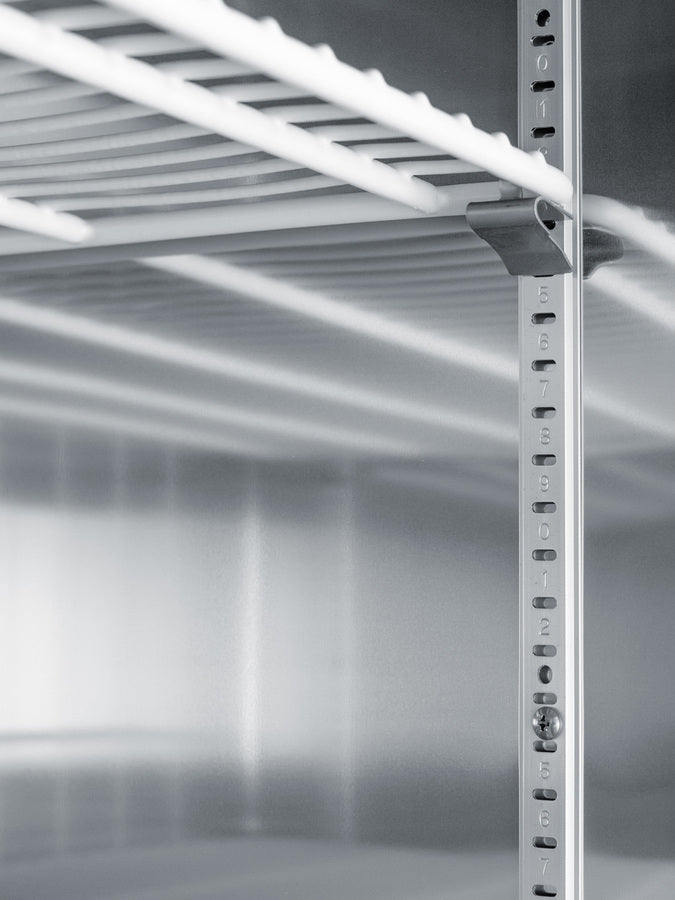

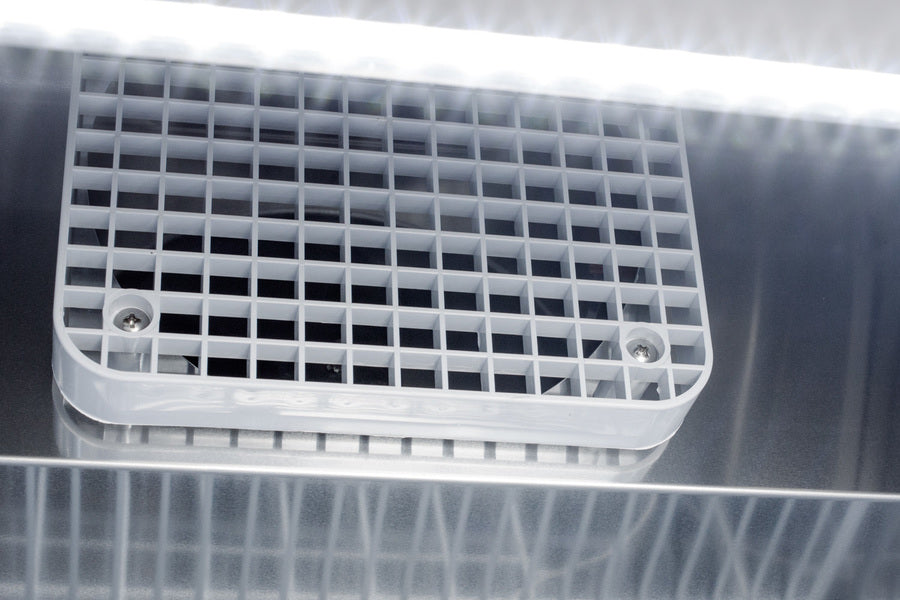

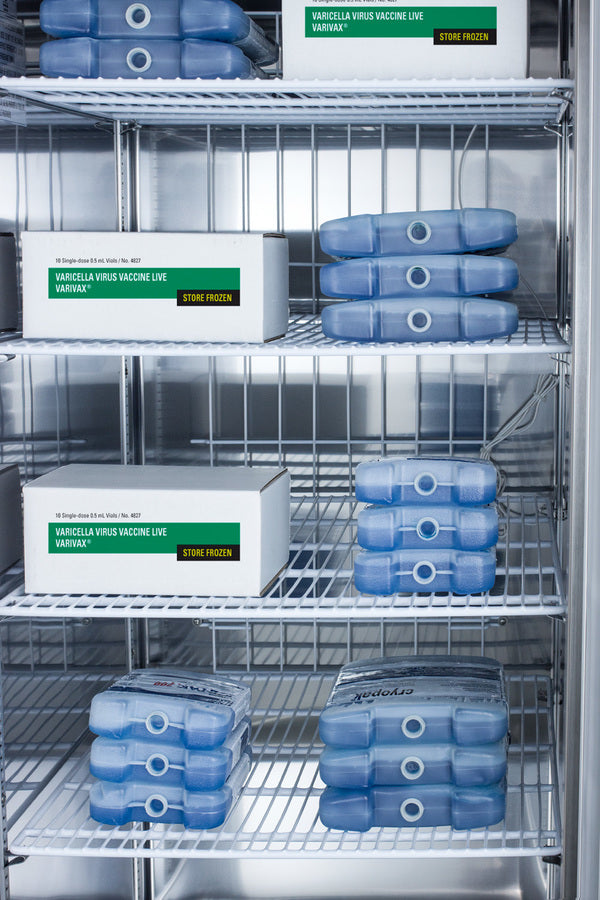

Inside, the AFS23ML utilizes adjustable cycle defrost operation to avoid temperature spikes, with a top-mounted forced air cooling system to ensure rapid temperature recovery. Four vinyl-coated wire shelves on cantilevered clips allow you to accommodate virtually any sized item. The LED lighting displays automatically when the door is open, providing a full and energy efficient display.
The AFS23ML features a durable stainless steel cabinet and interior, with a sealed back for easier cleanup. We include a set of casters (2 locking) for optional installation. A factory-installed lock offers added security, with two keys included for your facility. Magnetic door gaskets ensure a strong seal. The door is self-closing to help protect contents, but will remain open at 90º for easier loading.
Designed with hydrocarbon refrigerant, the AFS23ML provides an energy efficient solution to large capacity storage. This unit is Pyxis, Omnicell, and AcuDose RX compatible and meets NSF-7 commercial standards. For a matching refrigerator, see the ARS23ML.
NOTE: Accucold freezers are purpose-built to the support meeting the current CDC (Centers for Disease Control) guidelines for the storage of vaccines. As referenced in the current Vaccine Storage and Handling Toolkit, these units incorporate several key features for stable operation. For additional temperature assurance, the CDC recommends a calibrated digital data logger (DDL), which can be added with the factory-installed option DL2B or addition of the DL2BKit accessory. Select Accucold products have been tested and certified to the new NSF 456 standard, and are now available for purchase. For additional information, contact our products specialists.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 84.0" (213 cm) | Door Swing | RHD |
| Height of Cabinet | 83.75" (213 cm) | Reversible | No |
| Nominal Width | 28.0" (71 cm) | Interior Height | 51.5" (131 cm) |
| Width | 27.5" (70 cm) | Interior Width | 23.5" (60 cm) |
| Nominal Depth | 31.0" (79 cm) | Interior Depth | 27.0" (69 cm) |
| Depth | 31.0" (79 cm) | Shelf Type | Wire |
| Depth with Handle | 32.75" (83 cm) | Shelf Qty | 4 |
| Depth with door at 90° | 56.5" (144 cm) | Adjustable Shelves | Yes |
| Capacity | 23.0 cu.ft. (651 L) | Thermostat Type | Digital |
| Defrost Type | Frost-Free | Interior Light | Yes |
| Door | Stainless Steel | Fan Type | Interior |
| Cabinet | Stainless Steel | Refrigerant Type | R290 |
| US Electrical Safety | UL | Refrigerant Amount | 3.5 oz. |
| Canadian Electrical Safety | ULC | Wheels | 4 |
| Sanitation | ETL-S | Temperature Range | -30 to -15ºC |
| Amps | 8.0 | Sound Level | 39 dB |
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 273.0 lbs. (124 kg) | ||
| Parts & Labor Warranty | 2 Years | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101062310 |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
