Summit BIM44GADA 15″ Wide ADA-Height Built-In Clear Icemaker – 50 lb/Day, Auto-Defrost

SKU: SA-BIM44GADA
Regular price $2,078.40
Built-In or Freestanding Capability — Front-venting design with finished sides and reversible stainless steel door makes it install-friendly in many settings.
Automatic Defrost & Internal Pump — Self-defrosting system for easier maintenance, plus a built-in pump allows flexible drain placement.
50 lb/Day Clear Ice Production with 25 lb Bin — Produces crystal-clear ⅞″ cubes, ideal for restaurants, bars, or upscale refrigerators.
32.56" H x 14.5" W x 23.5" D
(83cm H x 37cm W x 60cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-BIM44GADA

ADA compliant:
32 3/8" height fits under lower ADA compliant counters (note: if installing under a counter, you must add a notch for the hinge that reaches 32 9/16")

ENERGY STAR certified commercial performance:
Efficient performance for commercial use

Commercially approved:
NSF listed for use in commercial establishments

Built-in pump:
Internal pump allows more flexibility in placing the unit

Automatic defrost:
Simplify appliance care by letting your icemaker defrost itself

Reversible door:
Keep your options flexible with a reversible door that is easy to switch when your arrangement changes; Unit ships LHD but can be reversed in our factory or by the user

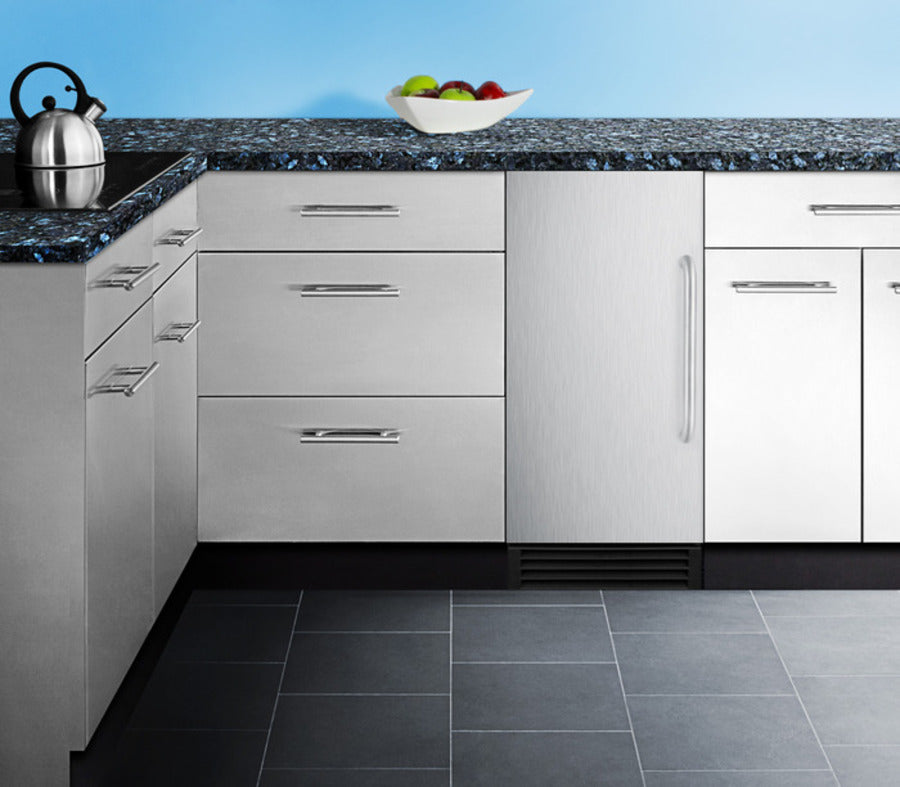

Built-in capable:
Make the best use of space by installing your icemaker under the counter

Stainless steel door:
Professional styling with lasting durability

Professional towel bar handle:
A curved handle in brushed stainless steel offers an easy grip

Fully finished black cabinet:
Allows the icemaker to be used as a freestanding model

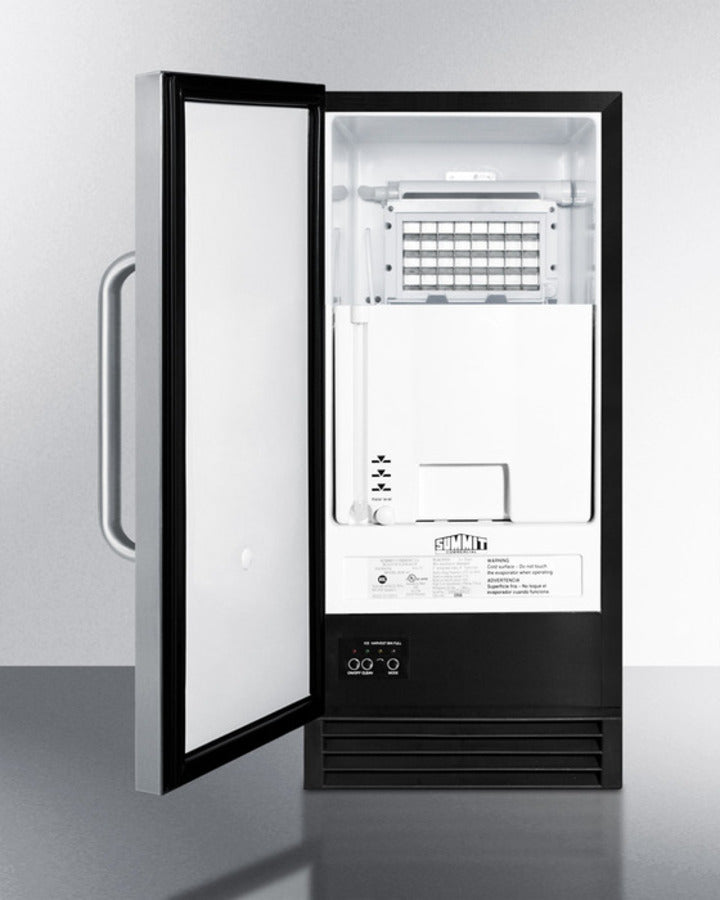

Insulated storage bin:
Ice stays solid longer in this cold-protected bin

Clear ice cube production:
Clear cubes offer the perfect cooling of your beverages; NOTE: ice is produced in sheets and can easily be broken into cubes using the provided scoop

Ice scoop:
Included for your convenience

100% CFC free:
Environmentally friendly design without ozone-damaging chemicals

Lead-free certified:
Complies with California Health and Safety Code 116876 lead leaching requirements per NSF NSF/ANSI/CAN 61-2022 standard, as well as with lead content requirements for ‘lead free’ plumbing as defined by California, Vermont, Maryland, and Louisiana state laws and the U.S. Safe Drinking Water Act Section 1417(d) per NSF/ANSI/CAN 372-2022 standard

SUMMIT BIM44GADA is an auto defrost clear icemaker designed for use under ADA compliant counters.

Automatic defrost makes maintenance simple and stress-free, while the BIM44GADA's front-breathing cooling system and fully finished sides allow built-in or freestanding use in 15" wide cutouts. This unit is 32 3/8" high to fit under counters following ADA guidelines and now comes equipped with an internal pump for versatile installation. Note: the hinge cover reaches 32 9/16", so if installing under a counter, we recommend notching out added space.

The BIM44GADA  can make up to 50 pounds of clear cube-shaped ice, with an adjustable bin capacity that can temporarily hold up to 25 pounds. The ice is produced in sheets and can be easily broken into cubes using the provided scoop.

The BIM44GADA has a jet black cabinet with user-reversible stainless steel door (LHD is default door swing; specify upon ordering for RHD). A curved towel bar handle is included.

This unit is NSF listed for use in commercial establishments and is ENERGY STAR certified for commercial use.

 Overview


Refrigerator-Freezer



Nominal Height 32.0" (81 cm) Door Swing LHD
Height of Cabinet 32.38" (82 cm) Reversible Yes
Height to Hinge Cap 32.56" (83 cm) Drain Required Yes
Nominal Width 15.0" (38 cm) Daily Ice Production 50.0 lbs. (23 kg)
Width 14.5" (37 cm) Ice Storage Capacity 25.0 lbs. (11 kg)
Nominal Depth 24.0" (61 cm) Ice Shape Cube
Depth 23.5" (60 cm) Size of Cube 7/8" x 7/8" x 7/8"
Depth with Handle 25.0" (64 cm) Number of Ice Cube Sizes 1
Depth with door at 90° 36.75" (93 cm) Fan Type Exterior
Defrost Type Automatic Refrigerant Type R134a
Door Stainless Steel Refrigerant Amount 3.88 oz.
Cabinet Black High Side PSI 350.0
US Electrical Safety UL Low Side PSI 130.0
Canadian Electrical Safety ULC Interior Height 18.5" (47 cm)
Sanitation NSF Interior Width 12.0" (30 cm)
Amps 4.8 Interior Depth 16.0" (41 cm)
Voltage/Frequency 115 V AC/60 Hz
Weight 100.0 lbs. (45 kg)
Parts & Labor Warranty 1 Year

Compressor Warranty 5 Years

UPC 761101021959

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
