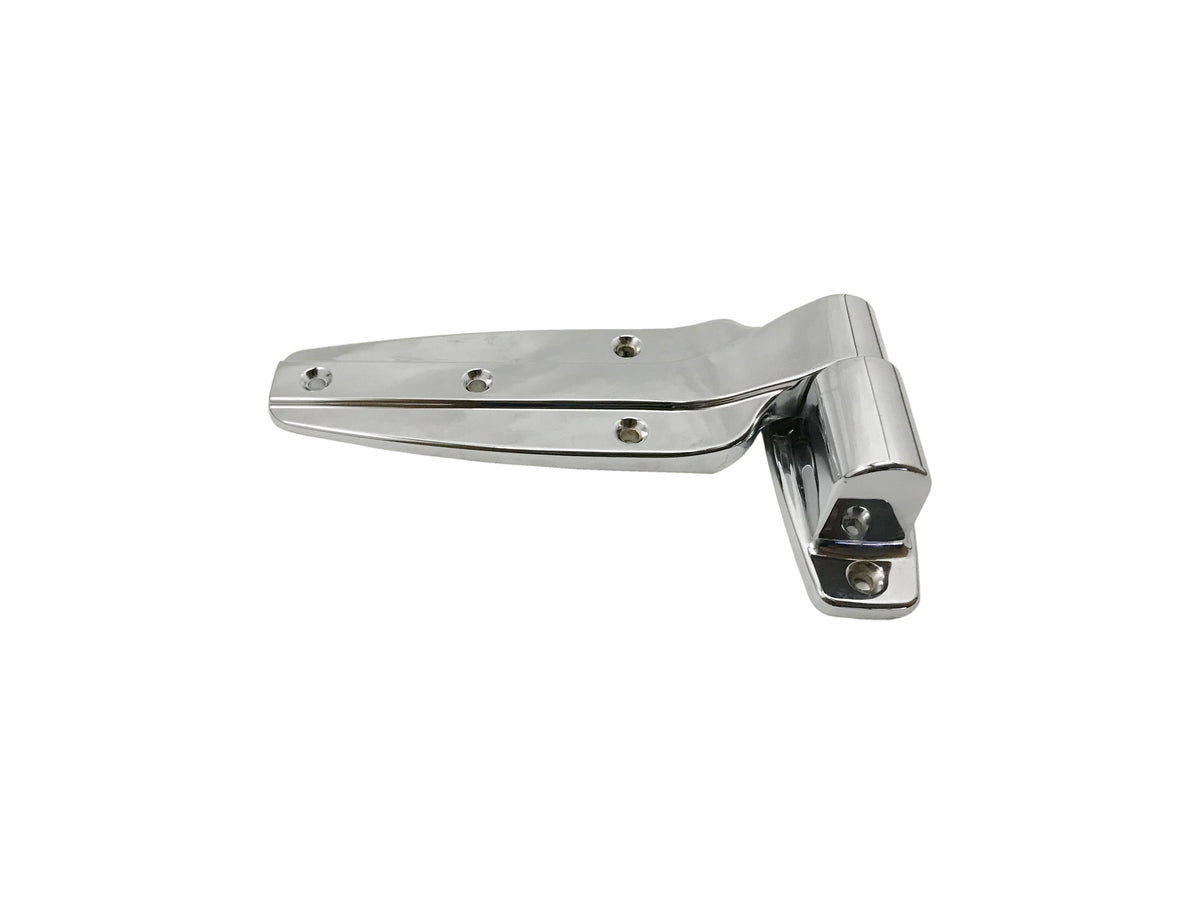

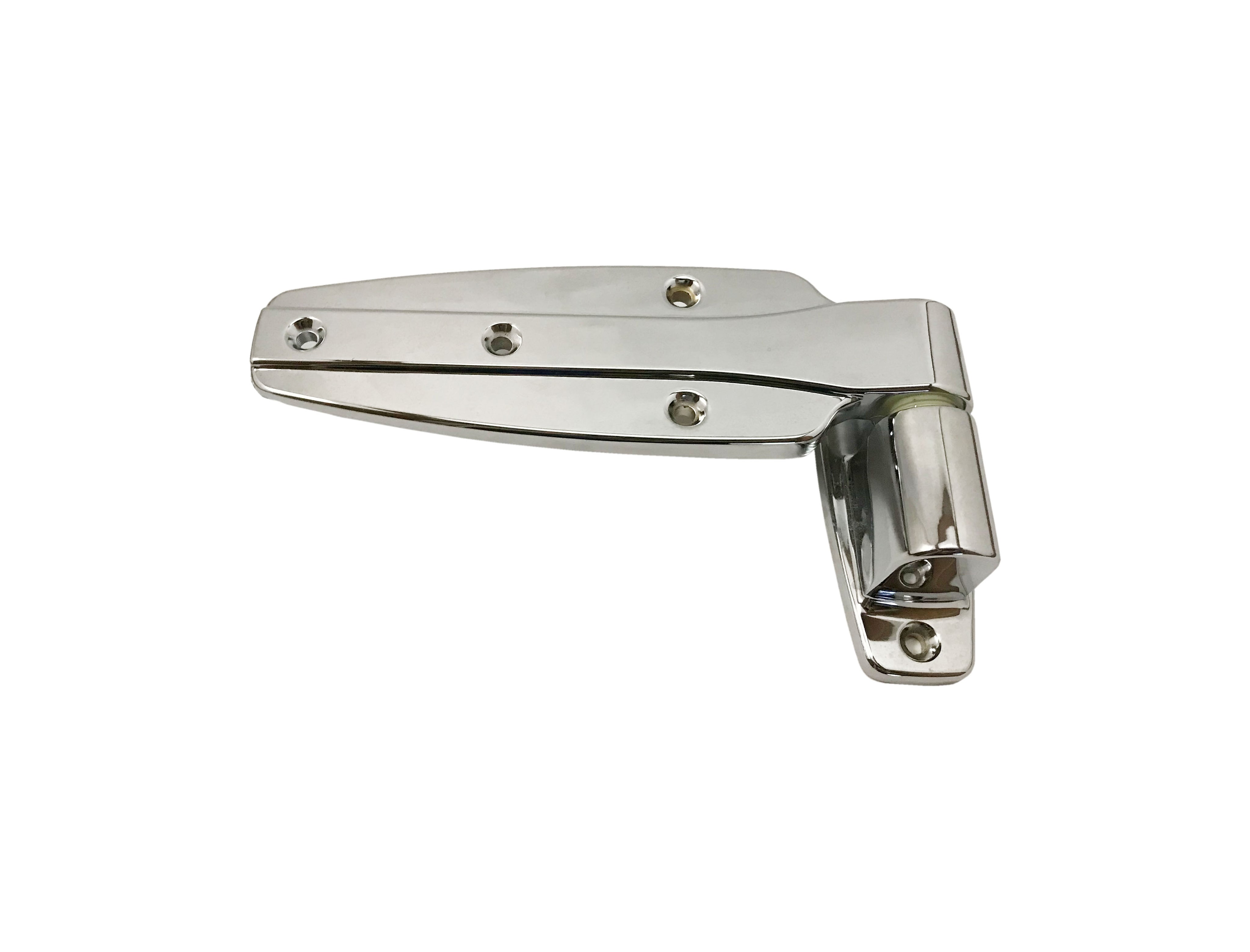

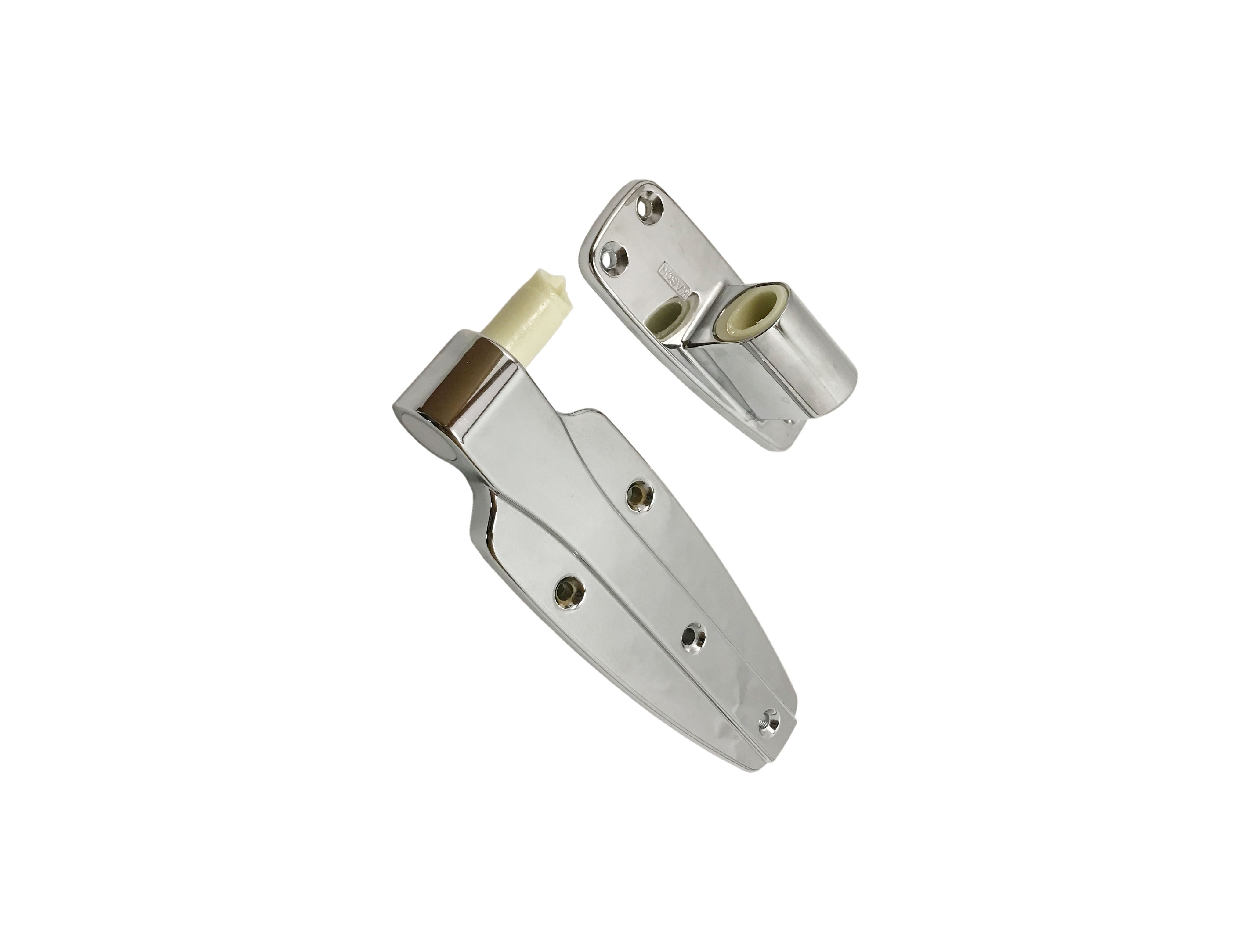

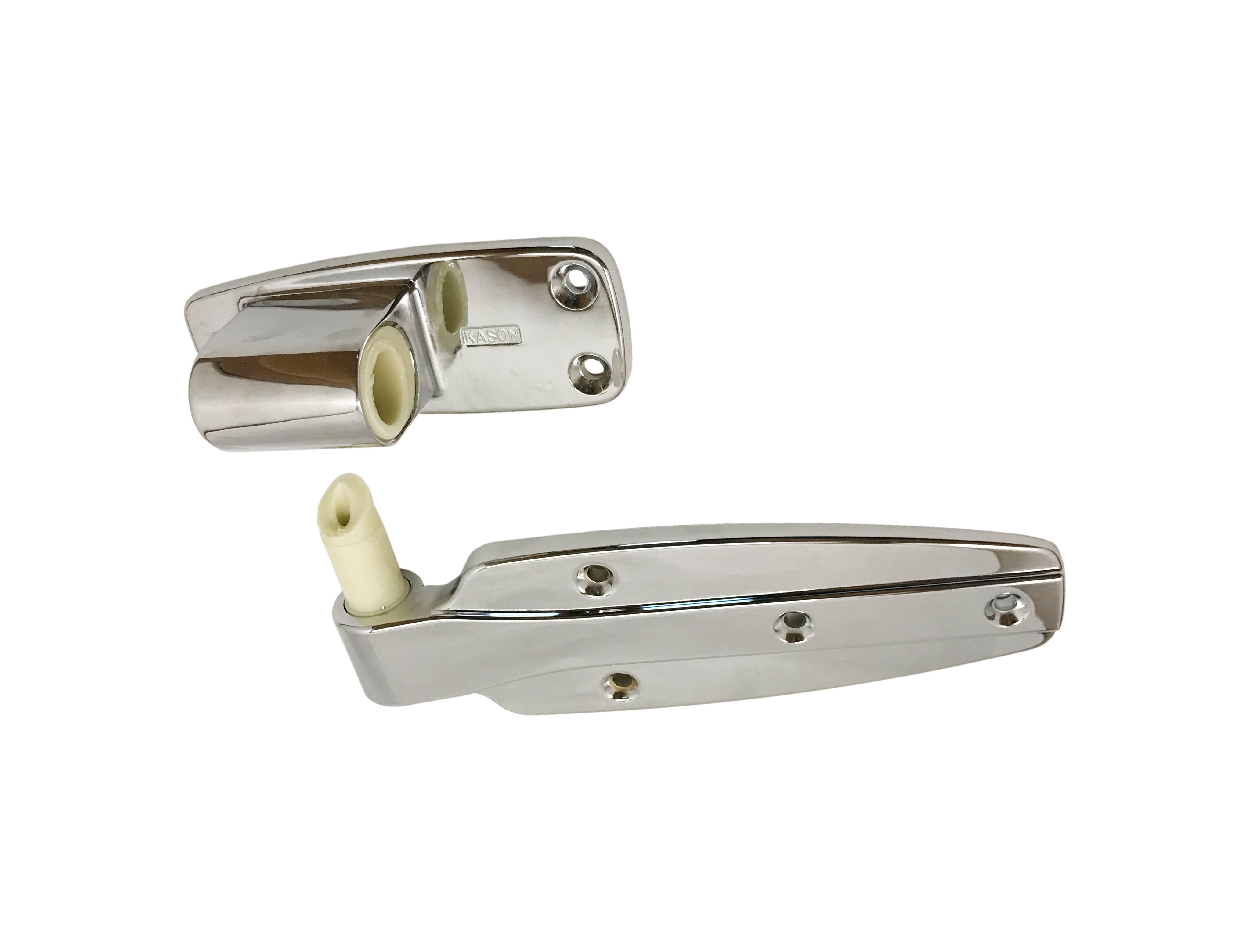

1245 Reversible Cam-Rise Hinge
- Industry standard self-closing cam-rise hinges.
- Door opens with minimum effort.
- Strong self-lubricating nylon cam delivers smooth, trouble-free door operation.
- Cam-rise action reduces gasket wear, even with irregular floors.
- Holds door open beyond approximately 130°

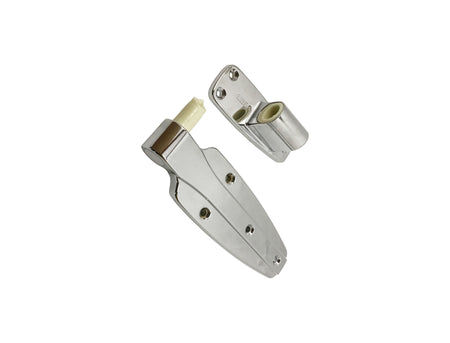

- Doors lift off without disassembly or removing hinges.
- Simple manual operation reverses hinges for use on right or left opening door.

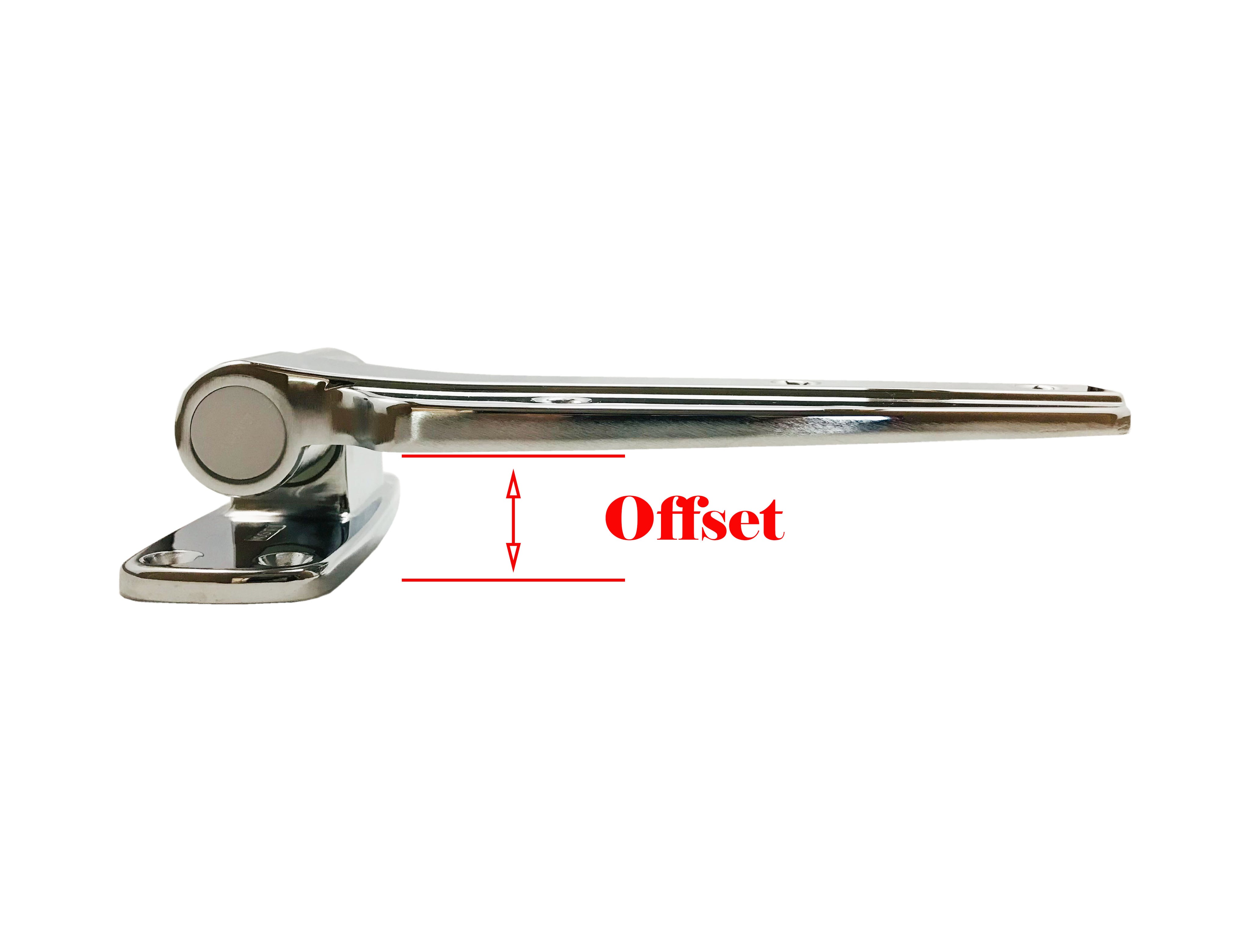

| Part Number | Description | Offset |

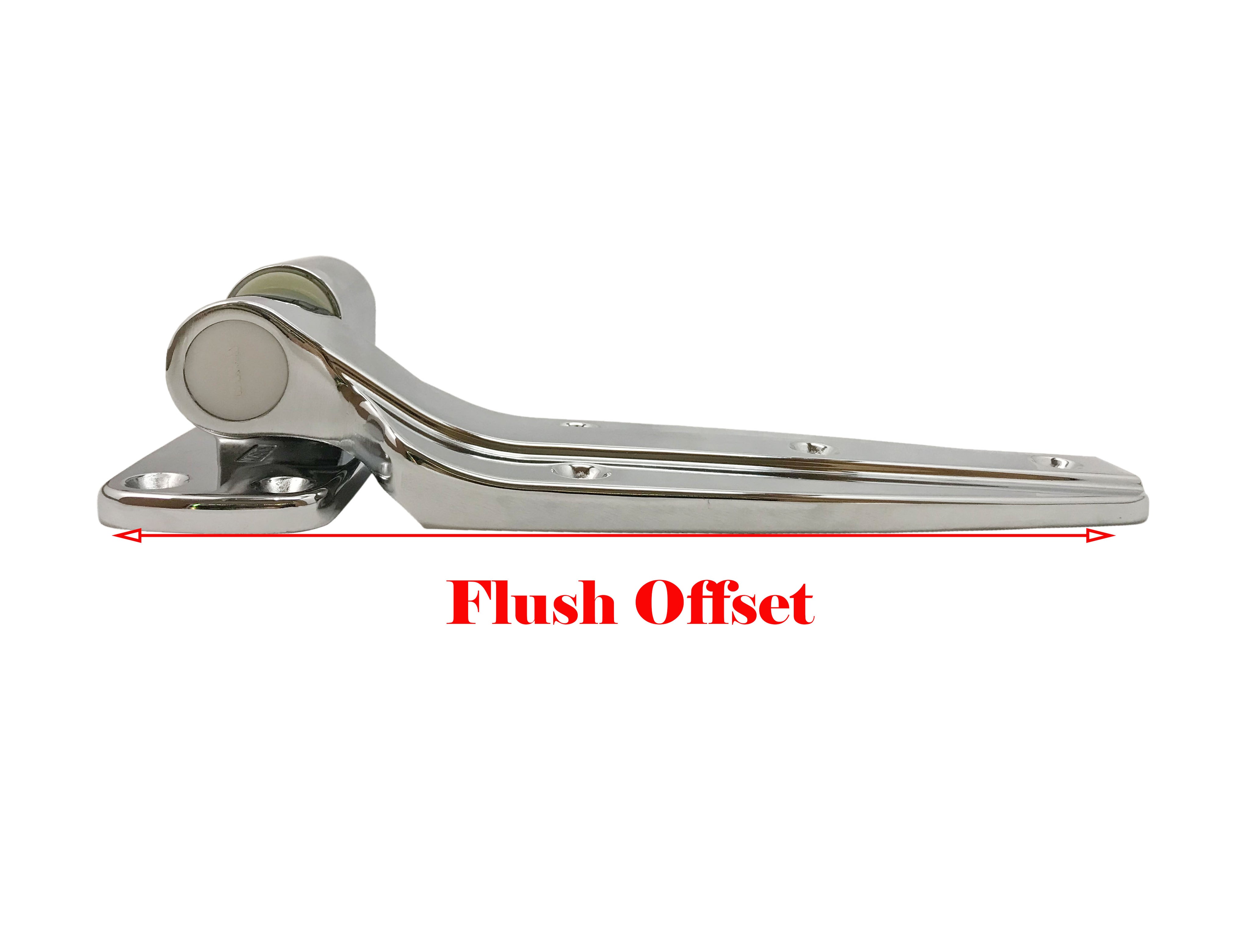

| K1245-C000 | Reversible Cam-Lift Hinge | Flush |
| K1245-C118 | Reversible Cam-Lift Hinge | 1-1/8" |
| K1245-C114 | Reversible Cam-Lift Hinge | 1-1/4" |
| K1245-C138 | Reversible Cam-Lift Hinge | 1-3/8" |
| K1245-C112 | Reversible Cam-Lift Hinge | 1-1/2" |
| K1245-C158 | Reversible Cam-Lift Hinge | 1-5/8" |
| K1245-C134 | Reversible Cam-Lift Hinge | 1-3/4" |
| K1245-C200 | Reversible Cam-Lift Hinge | 2" |
Finish: Chrome Screws: (7) 1/4" Wood Screws
Note: Screws are included.
