Summit SWC1224B 12″ Wide Built-In Wine Cellar – 21-Bottle Capacity, Glass Door, Black Cabinet
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT's collection of built-in wine cellars provides the perfect conditions for storing your collection under the counter.

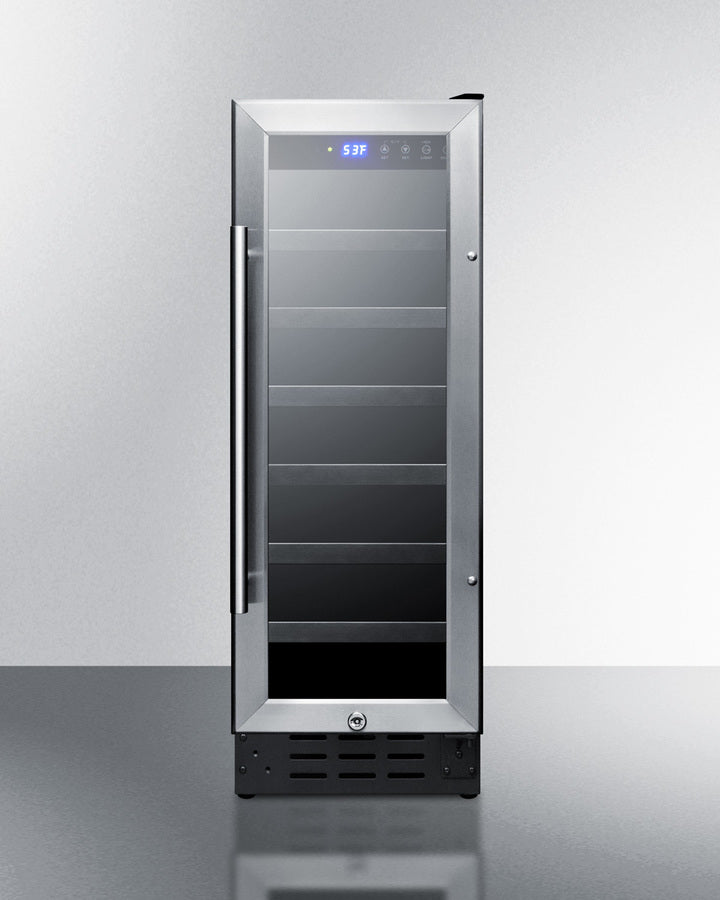

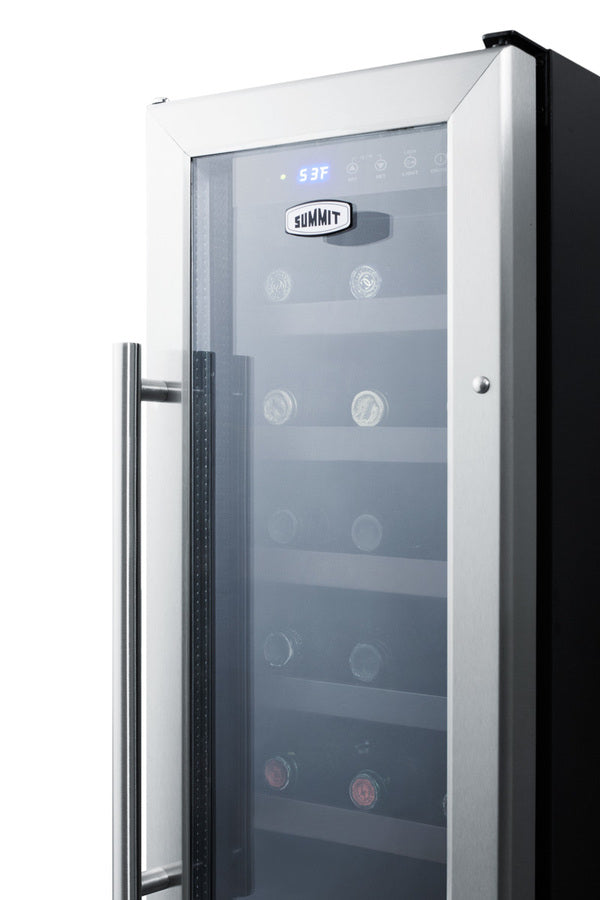

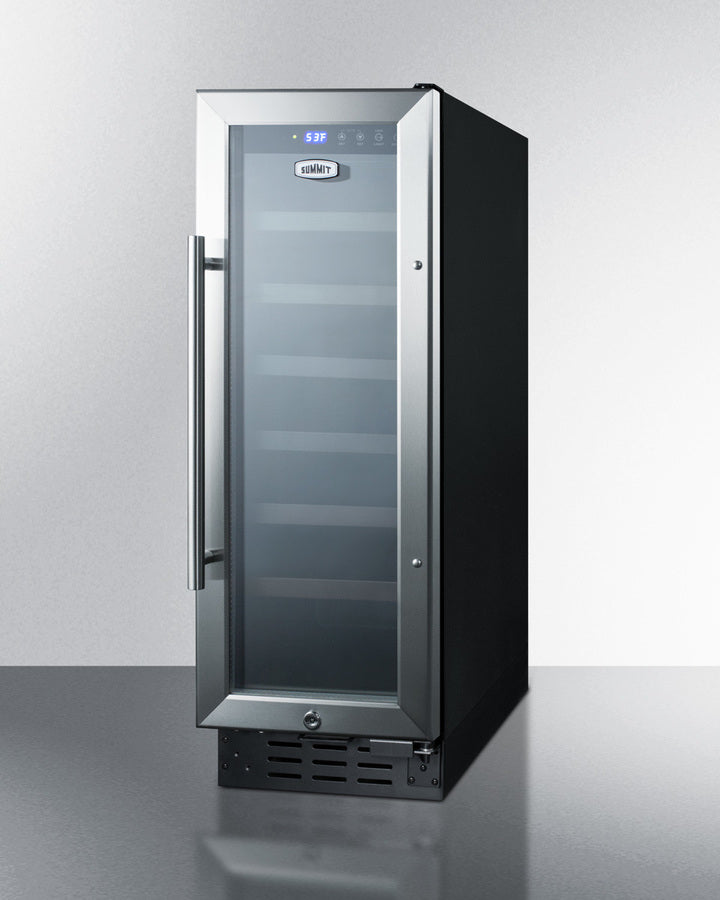

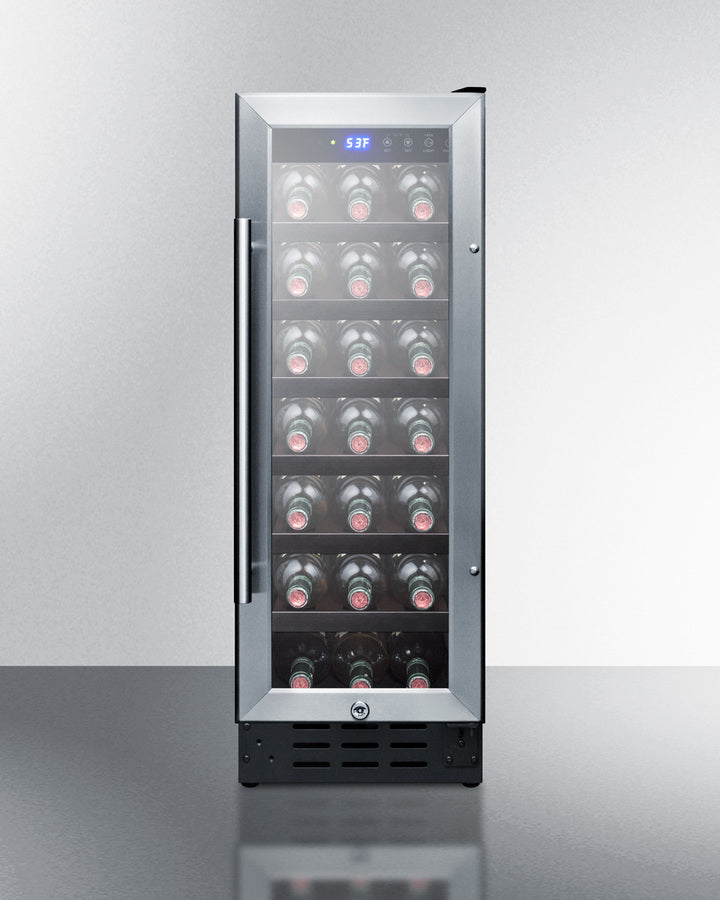

At just 12" wide, SUMMIT SWC1224B features a front-breathing design for built-in installation under counters, but also has a fully finished cabinet for alternate freestanding use. The interior can store up to 21 standard Bordeaux style or wider Burgundy style bottles. The reversible glass door features stainless steel trim and a professional handle, with a factory installed lock to prevent unsupervised access.

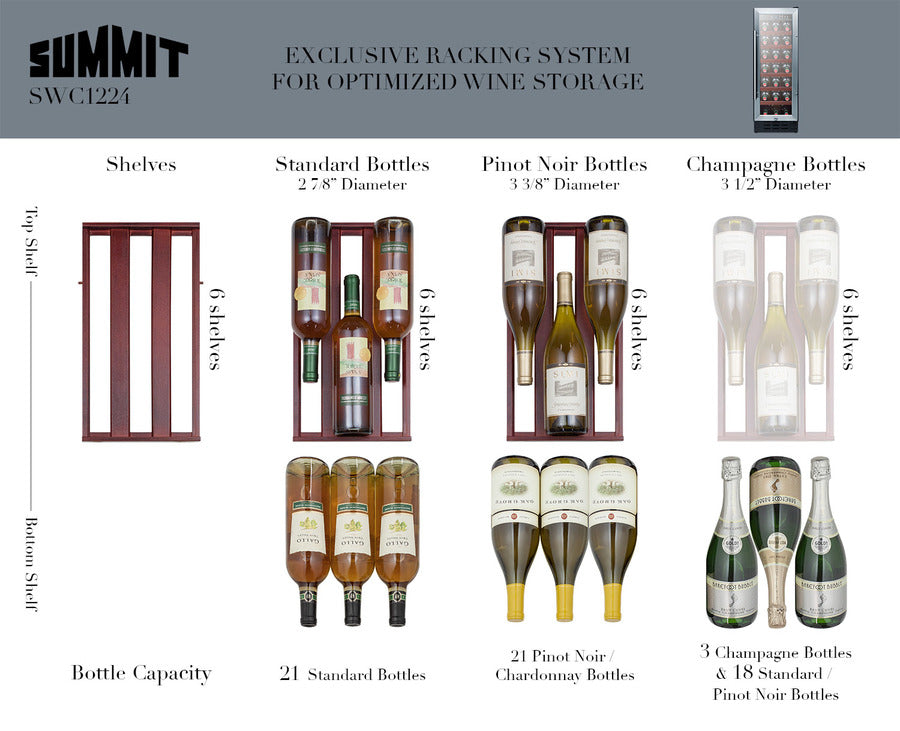

Inside, the SWC1224B includes six wooden shelves in a jet black finish and a floor specially slotted to hold bottles. Recessed LED lighting offers an attractive and efficient display. The digital thermostat allows easy temperature management in Celsius or Fahrenheit, with indicator lights to show the proper storage temperature for red, white, or sparkling wine.

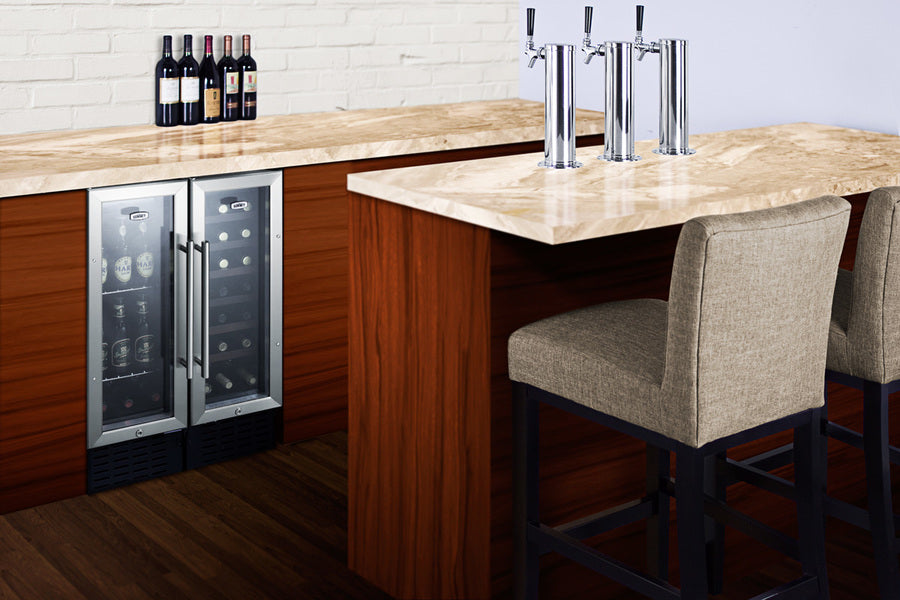

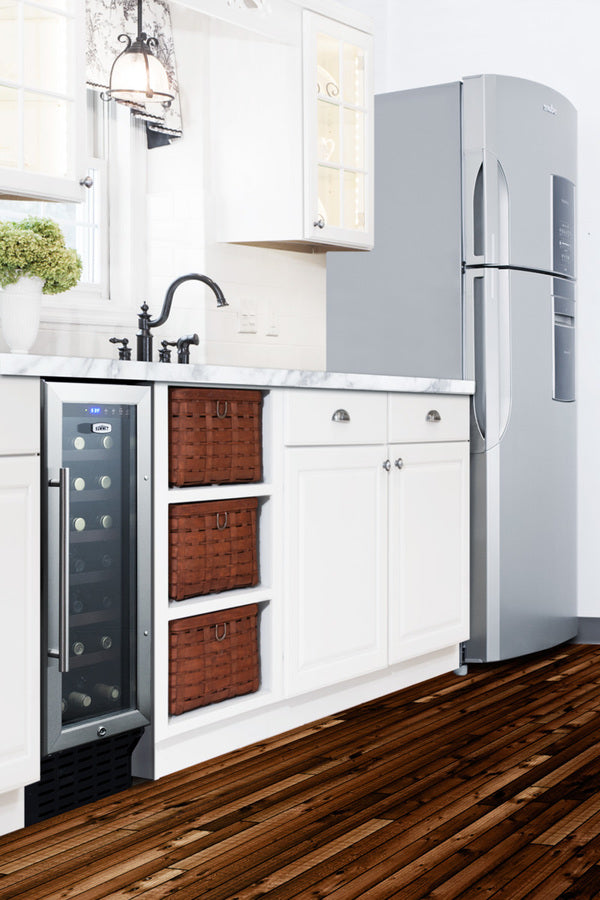

With its slim fit and user-friendly features, the SWC1224B is perfect for a 12" cutout in any wet bar or kitchen. This unit is ETL-S listed to NSF-7 standards and meets UL-471. For a matching beverage center, see the SCR1225B.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 35.0" (89 cm) | Number of Zones | 1 |
| Height of Cabinet | 34.38" (87 cm) | Door Swing | RHD |
| Nominal Width | 12.0" (30 cm) | Reversible | Yes |
| Width | 11.88" (30 cm) | Adjustable Shelves | Yes |
| Nominal Depth | 23.0" (58 cm) | Shelf Type | Wood |
| Depth | 22.38" (57 cm) | Shelf Qty | 6 |
| Depth with Handle | 24.13" (61 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 33.0" (84 cm) | Interior Light | Yes |
| Bottles | 21 bottles | Fan Type | Interior and Exterior |
| Defrost Type | Automatic | Refrigerant Type | R600a |
| Door | Glass | Refrigerant Amount | 0.88 oz. |
| Cabinet | Black | High Side PSI | 150.0 |
| US Electrical Safety | ETL | Low Side PSI | 50.0 |
| Canadian Electrical Safety | ETL-C | Interior Height 1 | 25.0" (64 cm) |
| Sanitation | ETL-S | Interior Width 1 | 9.13" (23 cm) |
| Amps | 1.25 | Interior Depth 1 | 17.0" (43 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Height | 3.75" (10 cm) |
| Weight | 66.0 lbs. (30 kg) | Compressor Step Width | 9.13" (23 cm) |
| Parts & Labor Warranty | 1 Year | Compressor Step Depth | 4.5" (11 cm) |
| Compressor Warranty | 5 Years | Level Legs | 4 |
| UPC | 761101059501 | Temperature Range | 41 to 68ºF |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
