Summit SWC3066B 30″ Wide Built-In Dual-Zone Wine Cellar – 66 Bottle Capacity, French Doors, Stainless Trim
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT's collection of built-in undercounter wine cellars offers quality storage with user-friendly convenience and elegant style.

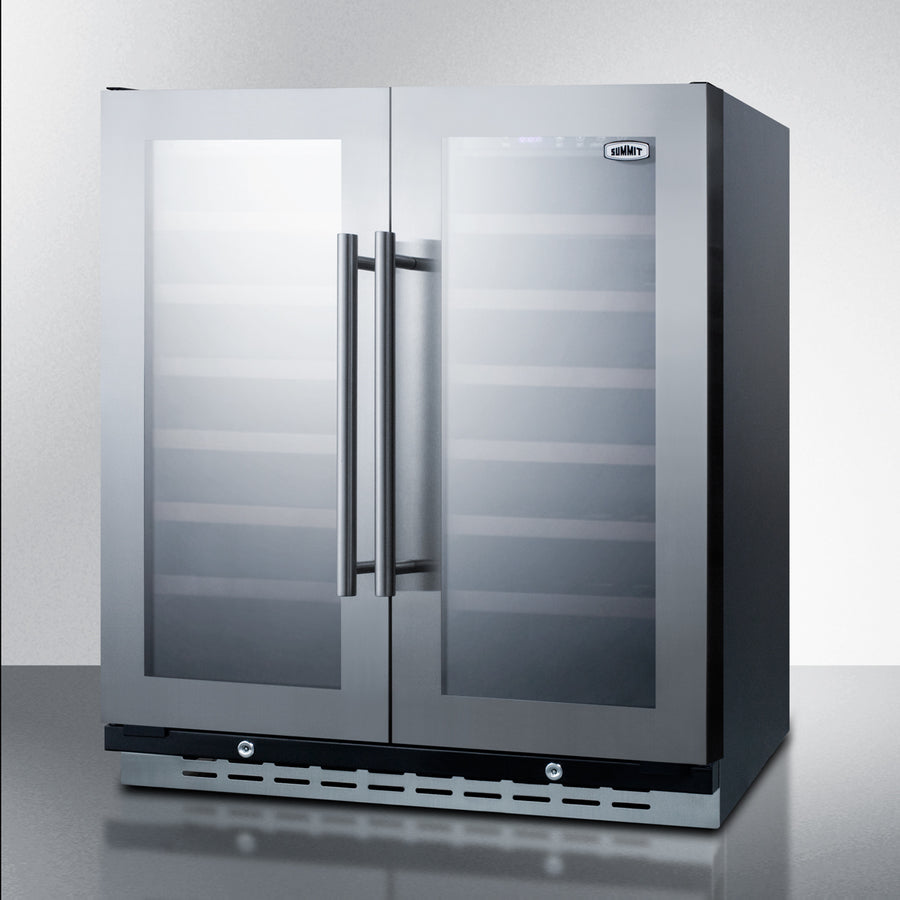

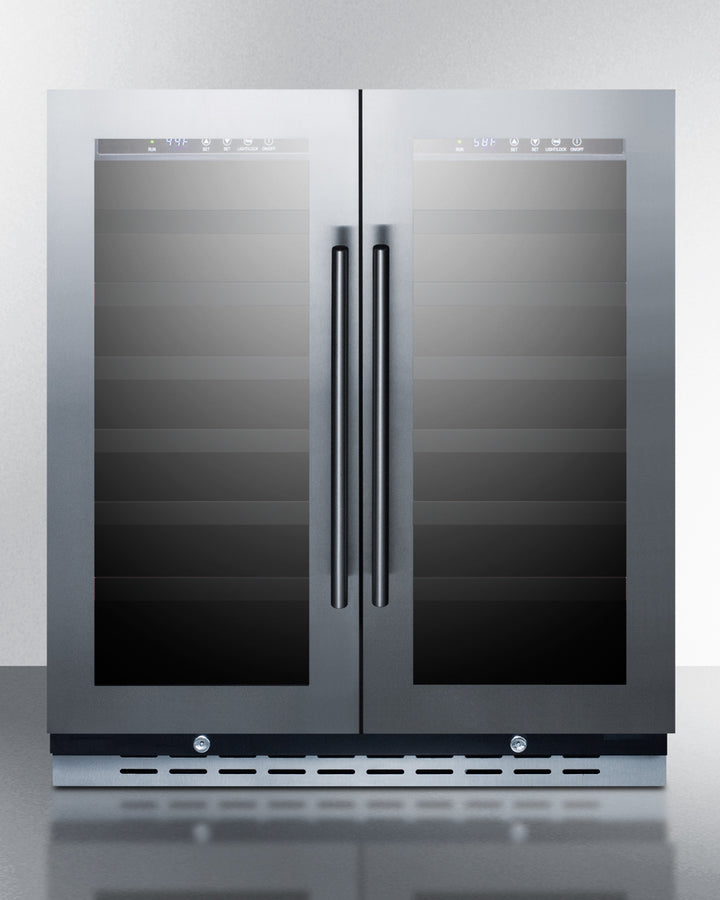

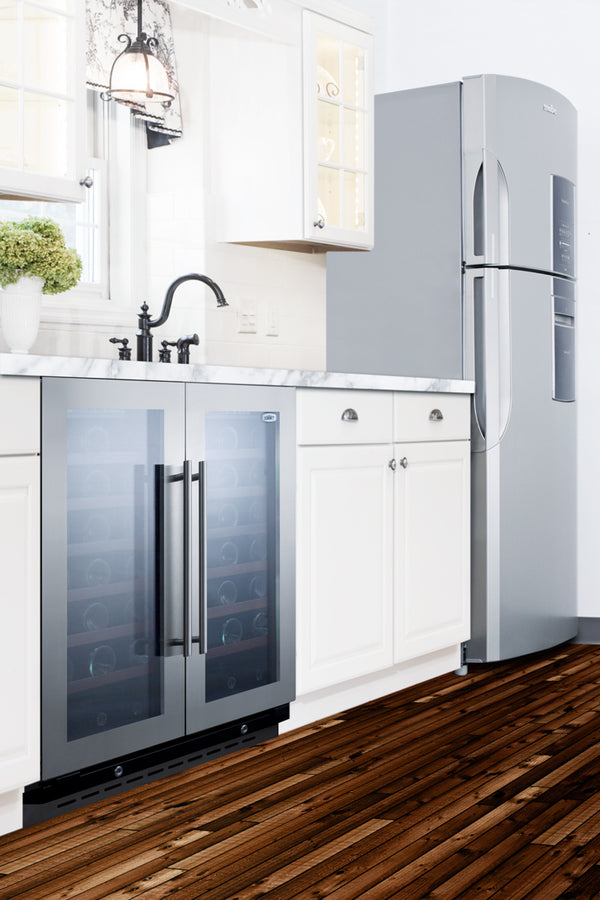

The SWC3066B is a 30" wide wine cellar designed for built-in installation under counters. The fully finished black cabinet also allows freestanding use. This unit includes two seamless stainless steel trimmed glass doors with a unique French door swing. Both include factory installed locks and professional handles.

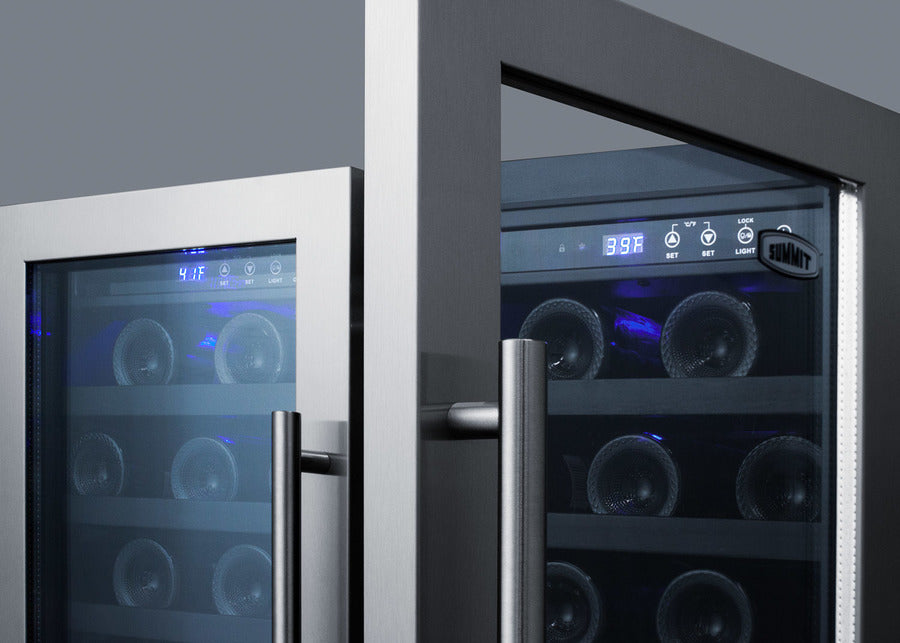

Two separate zones feature independent digital thermostats, letting you chill white and sparkling wine in one section while preserving reds under warmer temperatures in the other. Both zones include six wooden shelves in a jet black finish and slotted floors, letting you store up to 66 standard 750ml Bordeaux bottles inside the unit. Alternatively, you can fit up to 46 wider "Burgundy" style bottles (often used for chardonnay and pinot noir) in addition to 10 Bordeaux bottles. The slotted floor can store six champagne bottles. Recessed LED lighting offers an attractive view to let you display your wine collection in style.
With a professional look and innovative design, SUMMIT SWC3066B is a unique addition to any home. For a similar unit designed for wine and beverage storage, see the SWBV3067B.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 35.0" (89 cm) | Number of Zones | 2 |
| Height of Cabinet | 34.38" (87 cm) | Door Swing | French |
| Nominal Width | 30.0" (76 cm) | Adjustable Shelves | Yes |
| Width | 29.5" (75 cm) | Shelf Type | Wood |
| Nominal Depth | 23.0" (58 cm) | Shelf Qty | 12 |
| Depth | 22.5" (57 cm) | Thermostat Type | Digital |
| Depth with Handle | 24.25" (62 cm) | Interior Light | Yes |
| Depth with door at 90° | 36.0" (91 cm) | Fan Type | Interior and Exterior |
| Bottles | 66 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.06 oz. |
| Door | Glass | High Side PSI | 150.0 |
| Cabinet | Black | Low Side PSI | 50.0 |
| US Electrical Safety | ETL | Level Legs | 4 |
| Canadian Electrical Safety | ETL-C | ||
| Sanitation | ETL-S | ||
| Amps | 1.25 | ||
| Voltage/Frequency | 115 V AC/60 Hz | ||
| Weight | 132.0 lbs. (60 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| Compressor Warranty | 5 Years | ||
| UPC | 761101055787 |
|
ASSEMBLY DRAWING |
| SUPPORT |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
