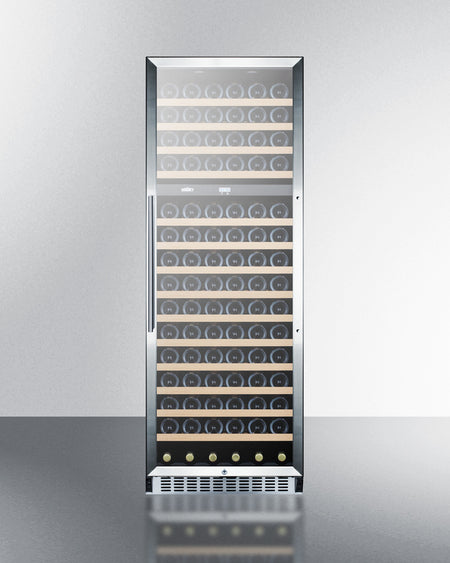

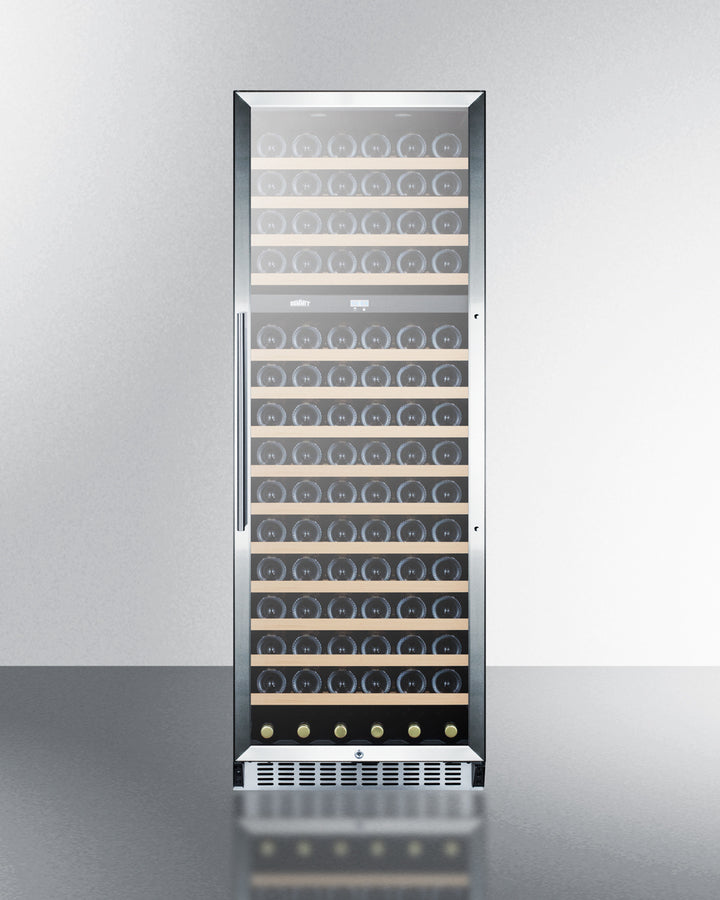

SUMMIT SWC1966CSS is a full-sized dual zone wine cellar designed for optimum wine storage with user-friendly convenience.

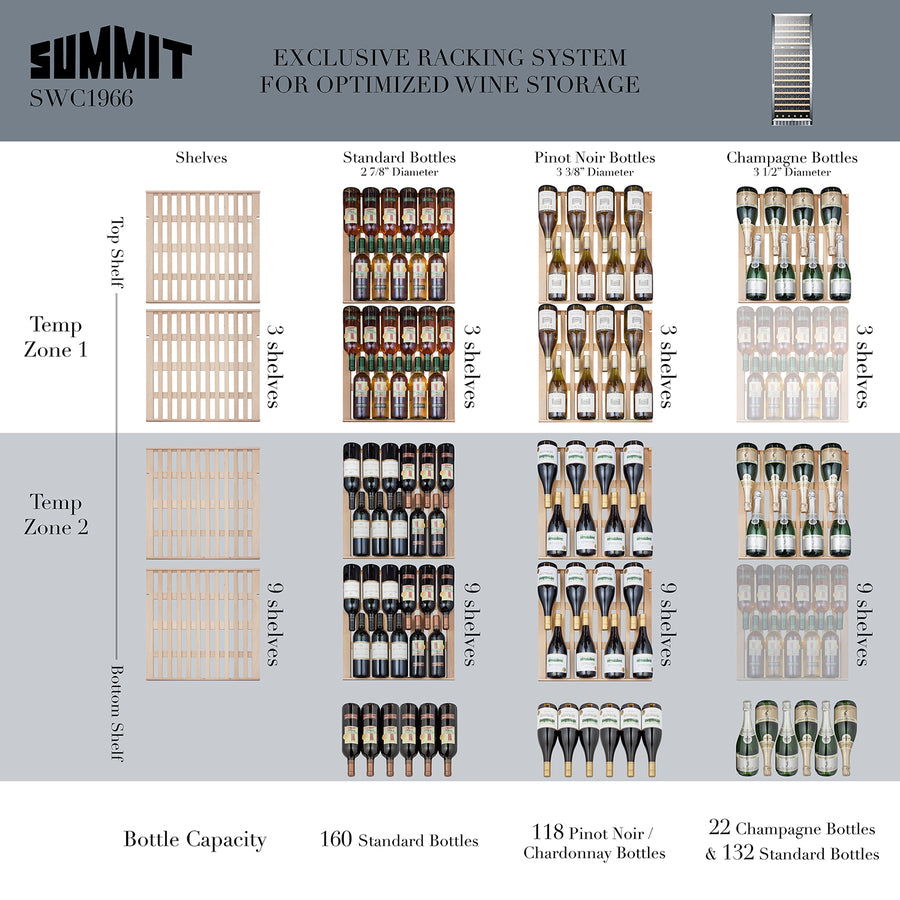

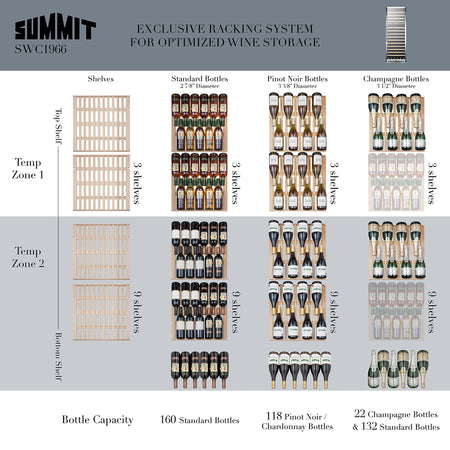

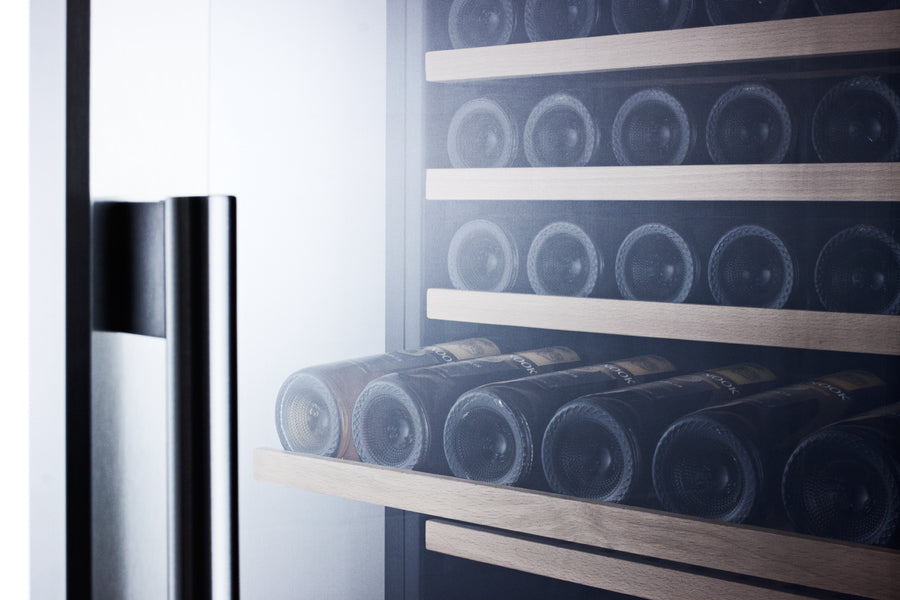

Sized at just under 24" wide and 27" deep, the SWC1966CSS can store up to 160 standard 750ml Bordeaux bottles on slide-out wooden shelves. Alternatively, this unit can hold up to 118 larger Burgundy style bottles (often used for Chardonnay or Pinot Noir) or a combination of 22 champagne bottles and 132 Bordeaux style. Two digital thermostats let you manage the temperature zones with ease and include an LED temperature display that can be shown in Celsius or Fahrenheit. The larger lower compartment is best suited for red wines stored between 55º and 72ºF, while the upper zone is designed for white wine and champagne stored between 41º and 55ºF. Recessed LED lighting offers an attractive touch. Additional features include a Sabbath mode setting, open door alarm, temperature memory function in case of power loss, and high temperature alarm for added protection.

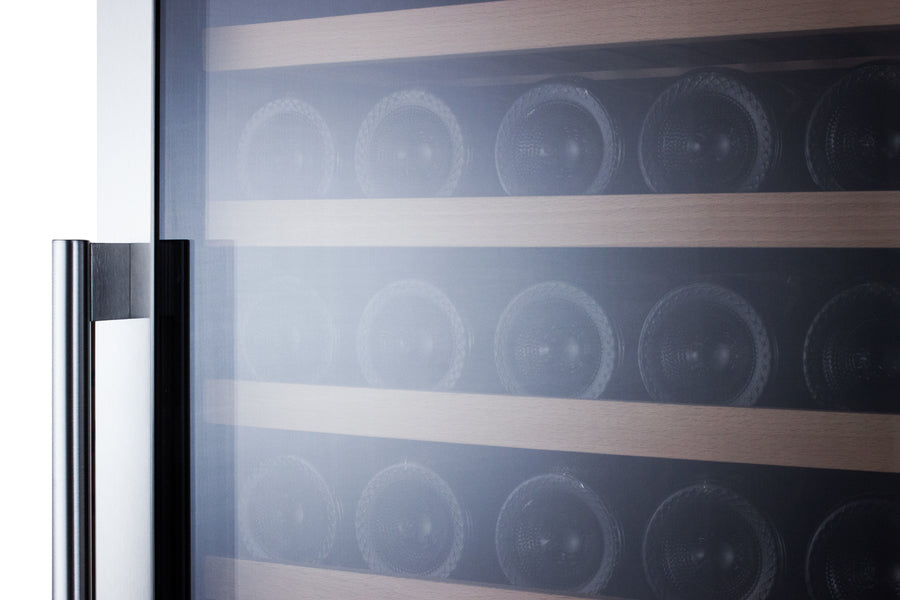

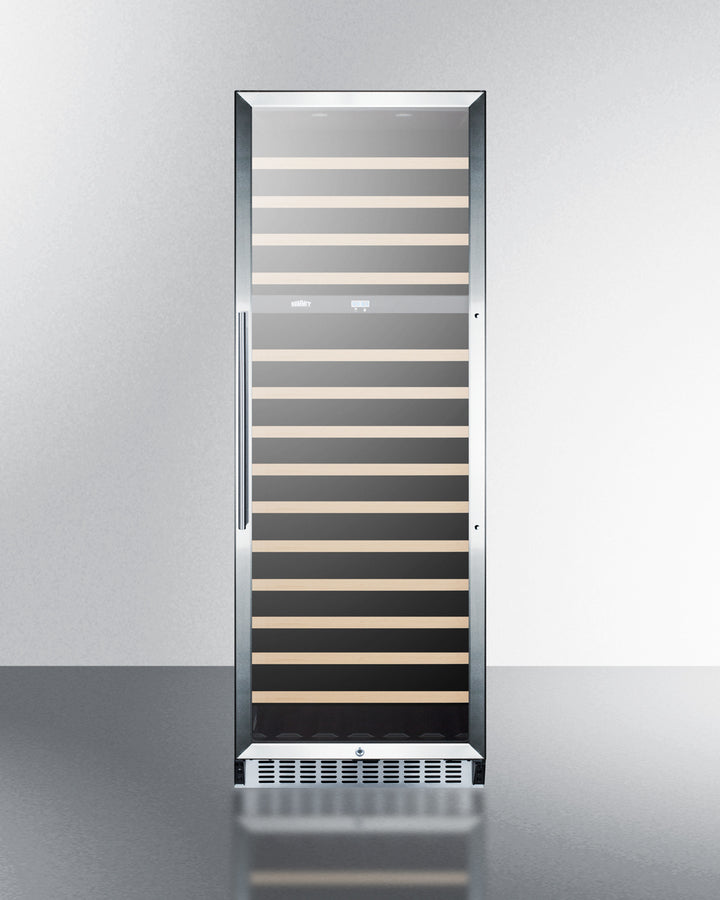

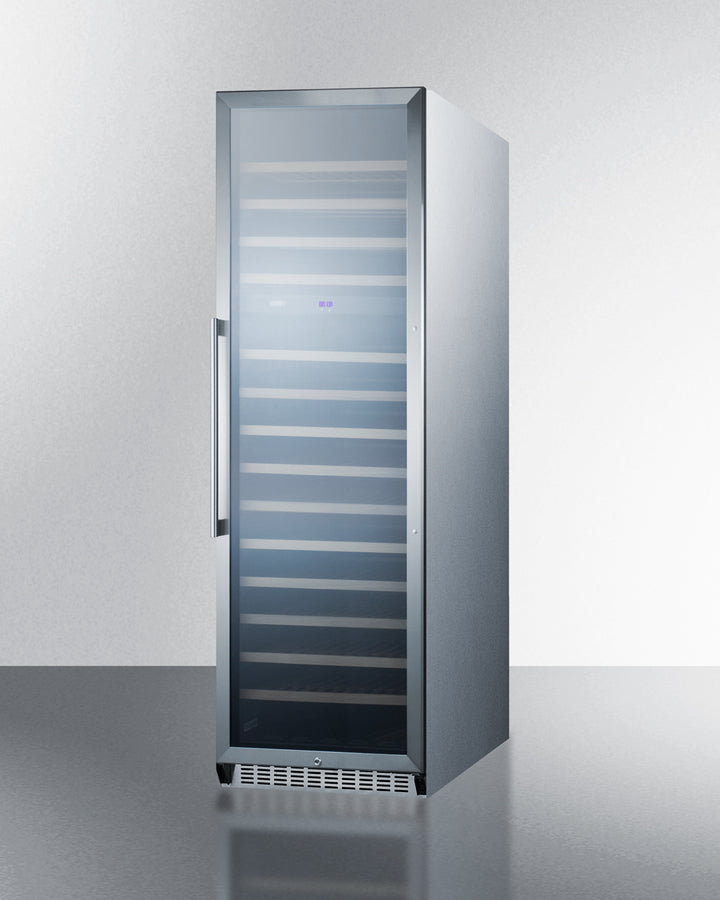

The SWC1966CSS features a stainless steel wrapped cabinet cabinet and reversible stainless steel trimmed glass door that offers a full display of the interior. A sleek stainless steel handle completes the look, and a factory installed lock offers added security. This unit can be used freestanding or built-in with extra rear clearance. See the user manual for more information.
With its ideal size and handy features, the SWC1966CSS is an elegant yet affordable wine cellar for full storage needs.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 70.0" (178 cm) | Number of Zones | 2 |
| Height of Cabinet | 69.75" (177 cm) | Door Swing | RHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Yes |
| Width | 23.63" (60 cm) | Shelf Type | Wood |
| Nominal Depth | 27.0" (69 cm) | Shelf Qty | 14 |
| Depth | 26.63" (68 cm) | Thermostat Type | Digital |
| Depth with Handle | 27.75" (70 cm) | Interior Light | Yes |
| Depth with door at 90° | 48.75" (124 cm) | Fan Type | Interior and Exterior |
| Capacity | 15.9 cu.ft. (450 L) | Refrigerant Type | R600a |
| Bottles | 160 bottles | Refrigerant Amount | 1.91 oz. |
| Defrost Type | Automatic | High Side PSI | 270.0 |
| Door | Glass | Low Side PSI | 105.0 |
| Cabinet | Stainless Steel | Interior Height 1 | 29.5" (75 cm) |
| US Electrical Safety | ETL | Interior Width 1 | 19.75" (50 cm) |
| Canadian Electrical Safety | ETL-C | Interior Depth 1 | 21.0" (53 cm) |
| Amps | 1.7 | Compressor Step Height | 3.75" (10 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 19.75" (50 cm) |
| Weight | 195.0 lbs. (88 kg) | Compressor Step Depth | 5.5" (14 cm) |
| Parts & Labor Warranty | 1 Year | Temperature Range | 41°F to 55°F (upper zone); 55°F to 72°F (lower zone) |
| Compressor Warranty | 5 Years | Interior Height 2 | 31.0" (79 cm) |
| UPC | 761101059242 | Interior Width 2 | 19.75" (50 cm) |
| Interior Depth 2 | 21.0" (53 cm) | ||
| Sound Level | 33.7 dB |
|
ASSEMBLY DRAWING |
