Summit SWC182Z 17.75″ Wide Built-In/Freestanding Dual-Zone Wine Cellar – 3.3 cu. ft, 28-Bottle Capacity
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
SUMMIT's collection of built-in wine cellars offers fully featured choices in slim fits, allowing smaller kitchens to bring convenient and reliable wine storage for every undercounter space.

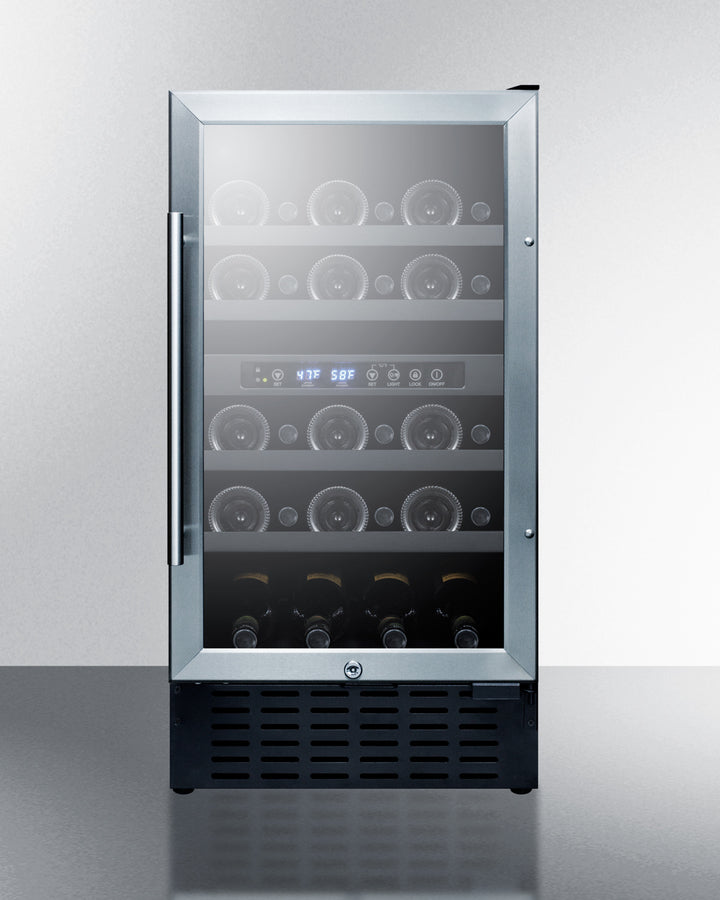

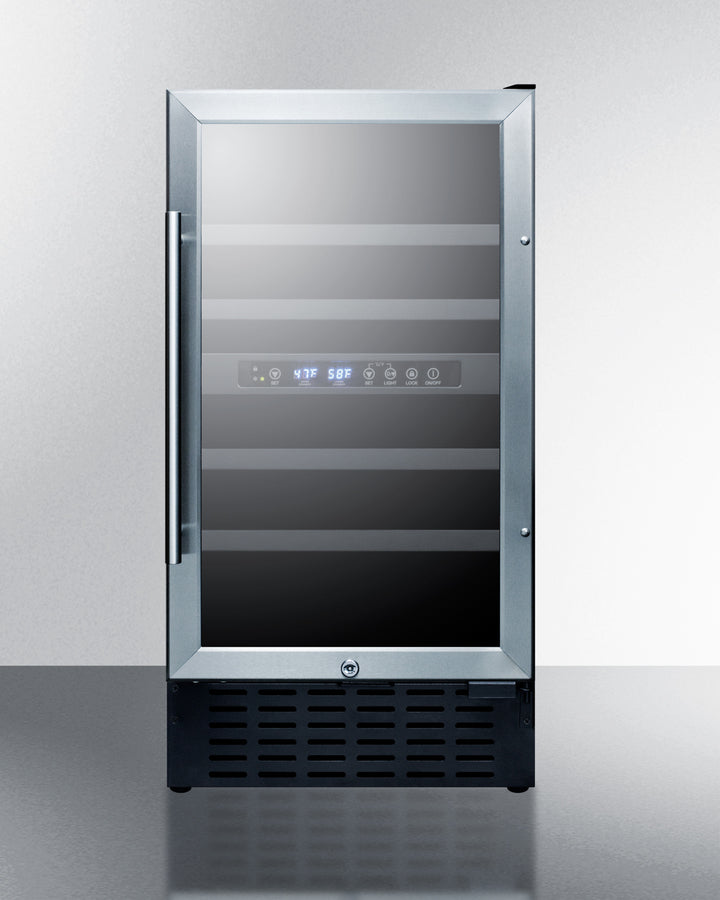

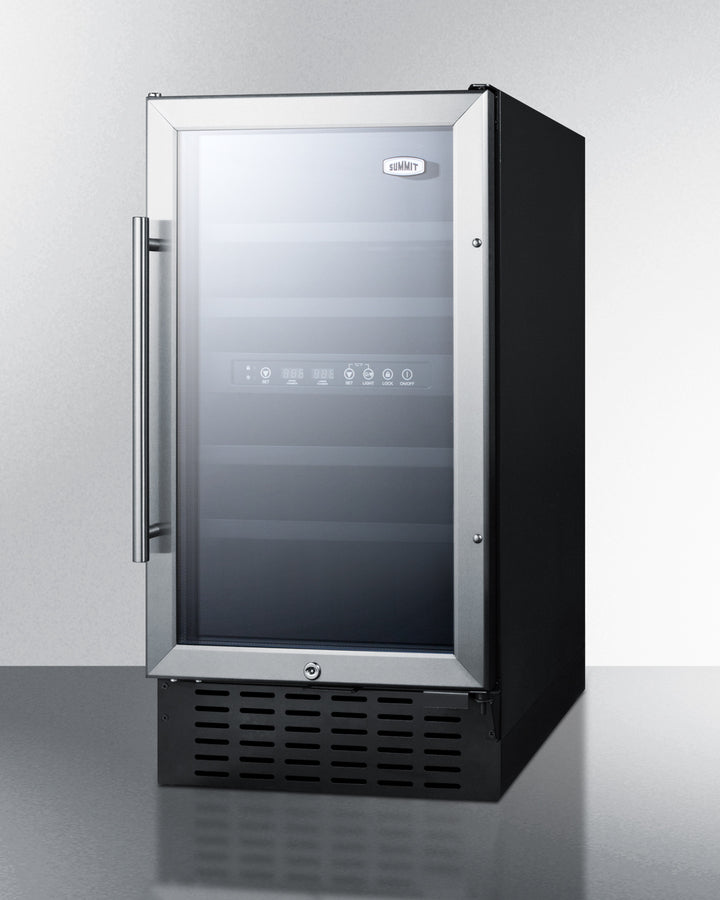

Sized just under 18" wide, the SWC182Z is front-breathing for built-in installation under counters, while the fully finished black cabinet also allows freestanding use. The reversible glass door features an elegant stainless steel trim and professional handle. A factory installed lock offers added security, with two keys included.

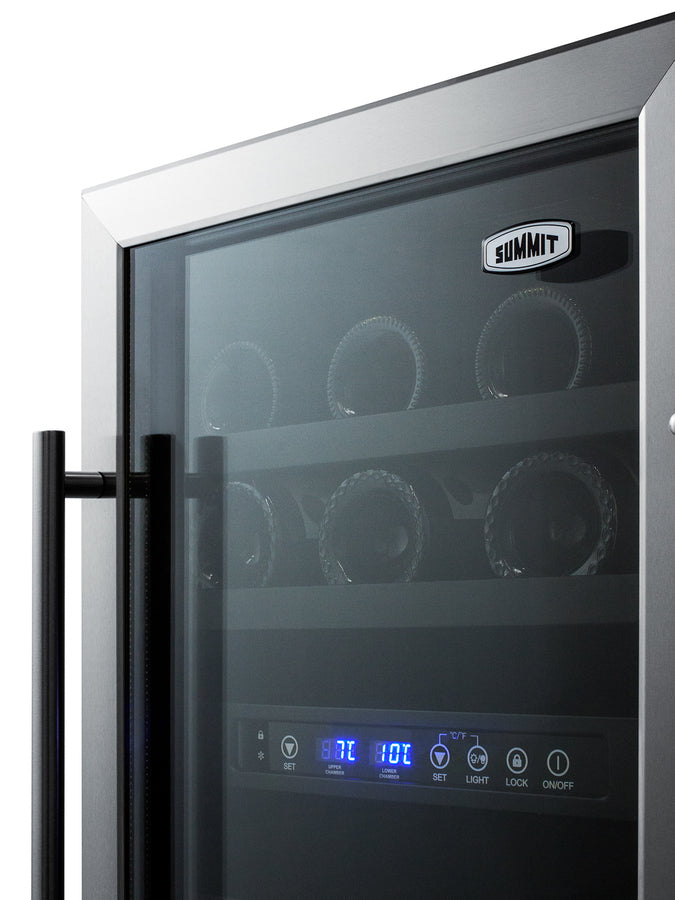

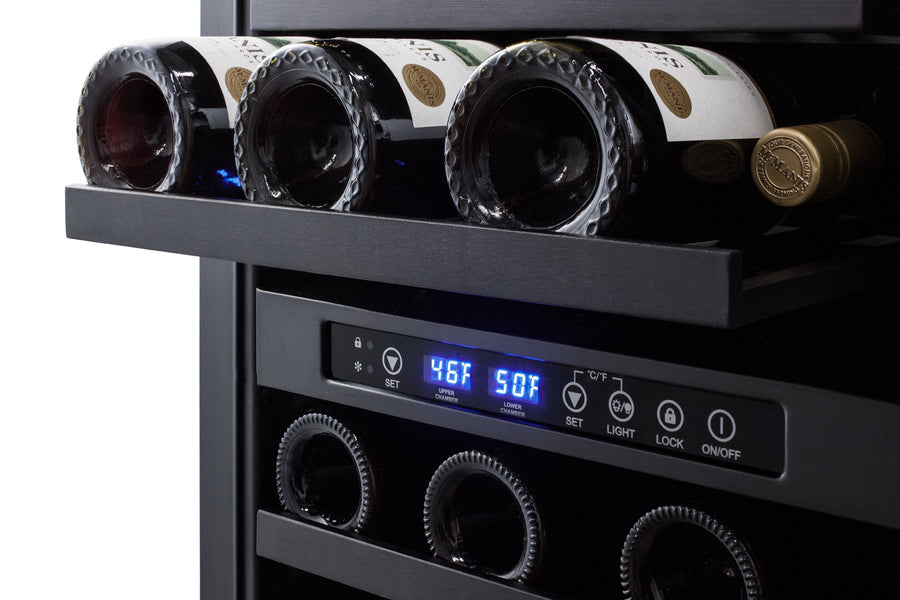

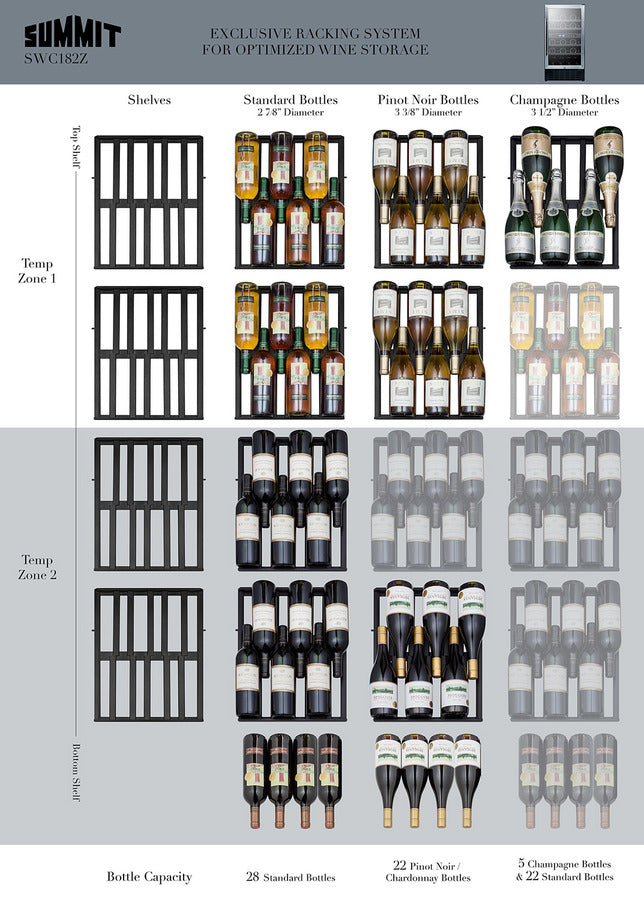

Two separate zones allow you to store your reds and whites at their own temperature, ensuring each bottle is kept under the proper conditions. This unit can hold up to 28 standard Bordeaux style bottles or 22 wider Burgundy style bottles. The wooden shelves feature a black finish for a modern look, with recessed LED lighting to provide an attractive and efficient presentation. The digital controls are located in the center for easy temperature management.
With its slim fit and convenient design, the SWC182Z makes an attractive addition to any room. For this unit in a 32" ADA compliant height, see the SWC182ZADA.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 35.0" (89 cm) | Number of Zones | 2 |
| Height of Cabinet | 34.25" (87 cm) | Door Swing | RHD |
| Nominal Width | 18.0" (46 cm) | Reversible | Yes |
| Width | 17.75" (45 cm) | Shelf Type | Wood |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 4 |
| Depth | 23.5" (60 cm) | Thermostat Type | Digital |
| Depth with door at 90° | 39.75" (101 cm) | Interior Light | Yes |
| Capacity | 3.3 cu.ft. (93 L) | Fan Type | Interior and Exterior |
| Bottles | 28 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.23 oz. |
| Door | Glass | High Side PSI | 150.0 |
| Cabinet | Black | Low Side PSI | 50.0 |
| US Electrical Safety | ETL | Interior Height 1 | 10.63" (27 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 14.25" (36 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 18.0" (46 cm) |
| Amps | 1.25 | Compressor Step Height | 5.25" (13 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Compressor Step Width | 14.25" (36 cm) |
| Weight | 95.0 lbs. (43 kg) | Compressor Step Depth | 5.0" (13 cm) |
| Parts & Labor Warranty | 1 Year | Level Legs | 4 |
| Compressor Warranty | 5 Years | Temperature Range | 41º to 64ºF |
| UPC | 761101055084 | Interior Height 2 | 12.25" (31 cm) |
| Interior Width 2 | 14.25" (36 cm) | ||
| Interior Depth 2 | 18.0" (46 cm) |
|
ASSEMBLY DRAWING |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
