Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.

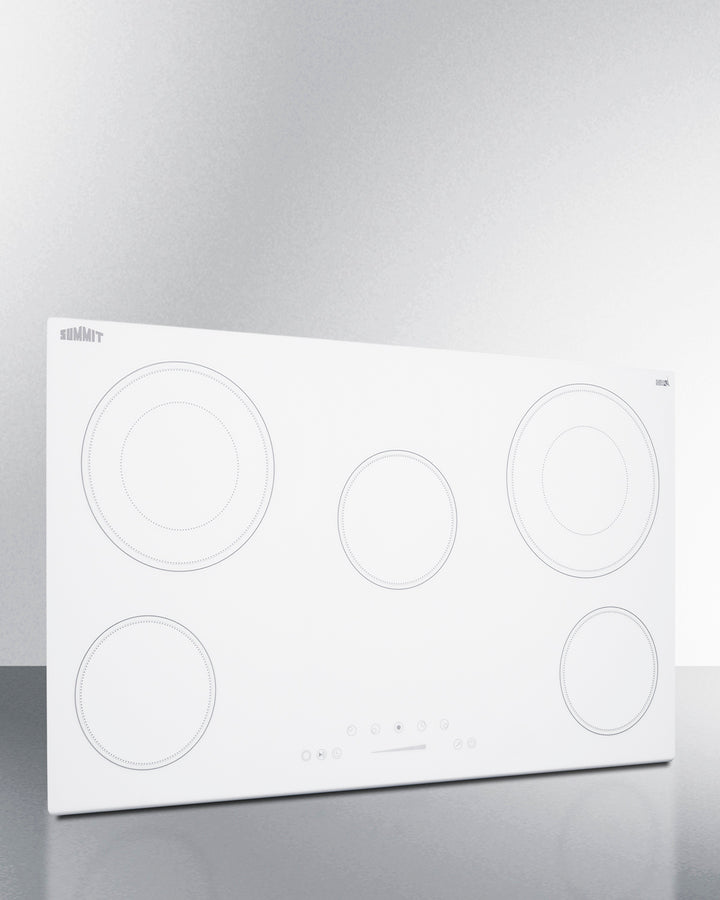

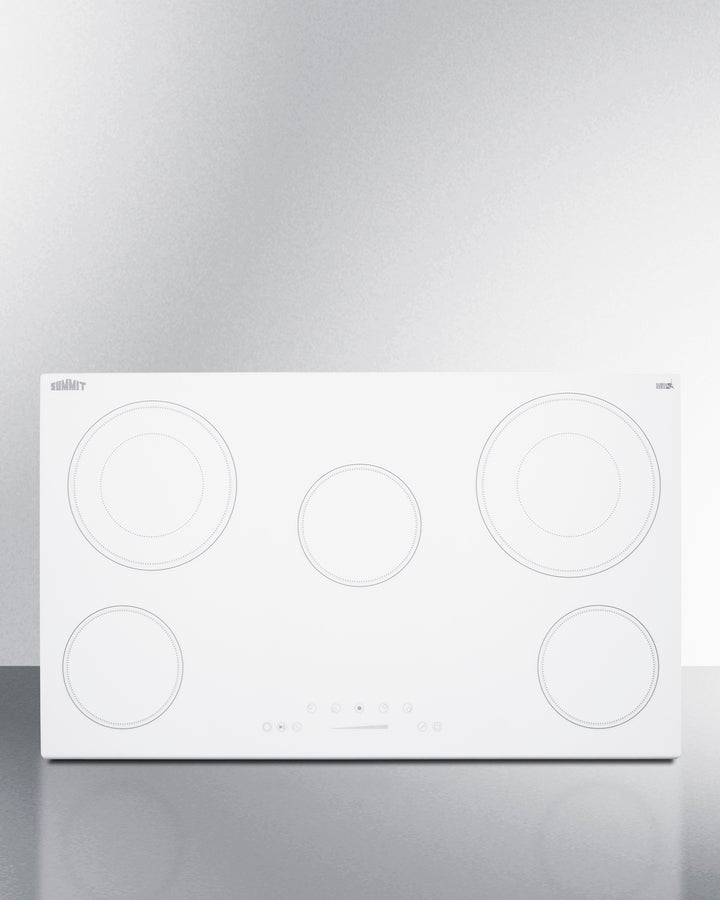

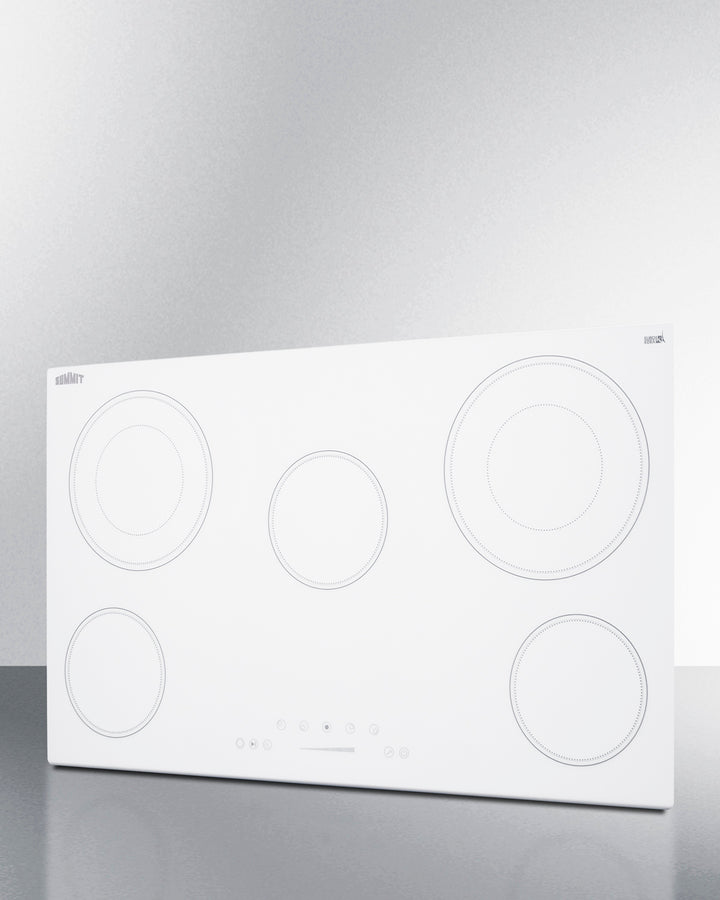

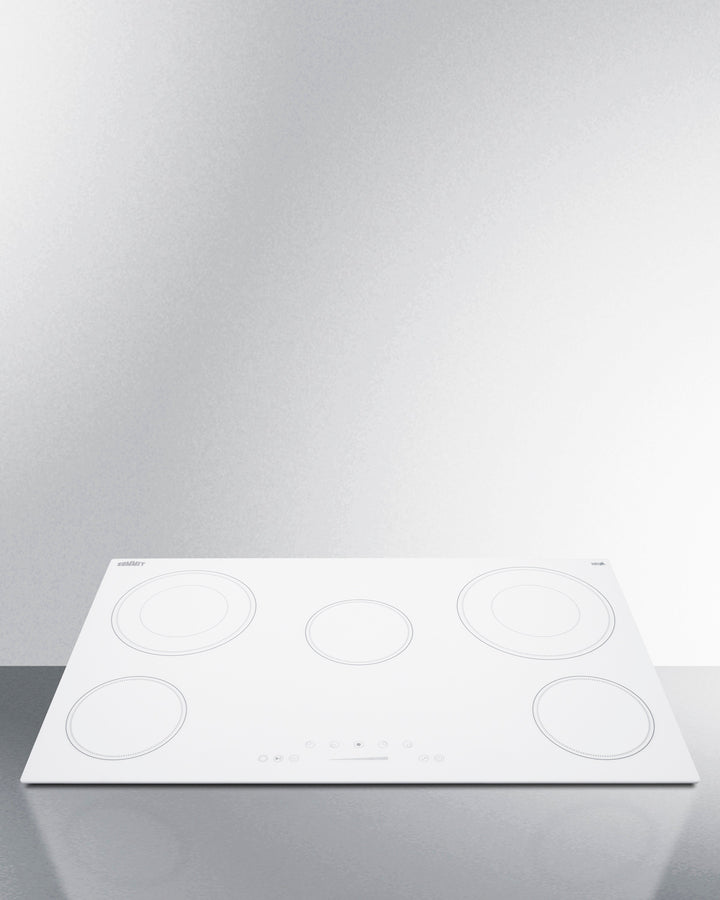

The CR5B36TXW is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

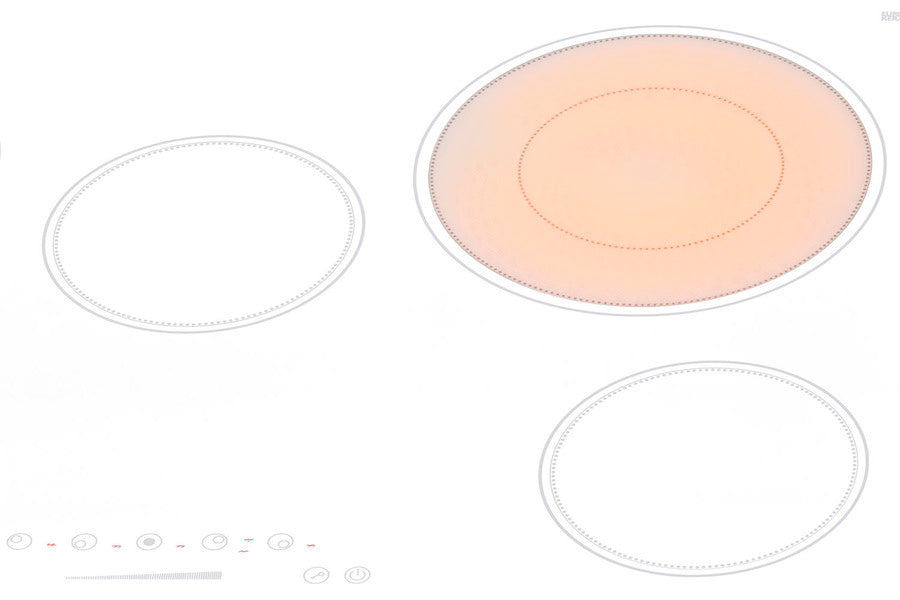

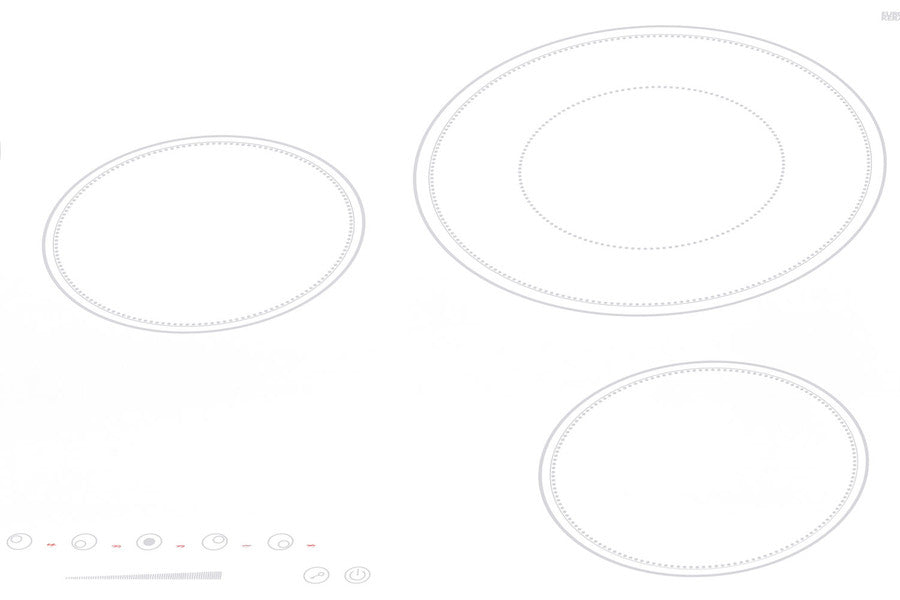

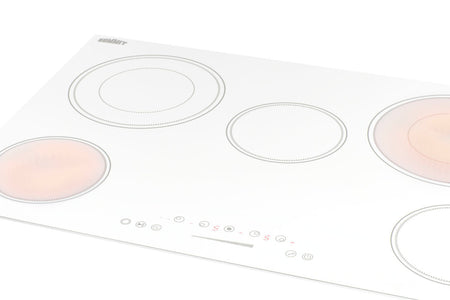

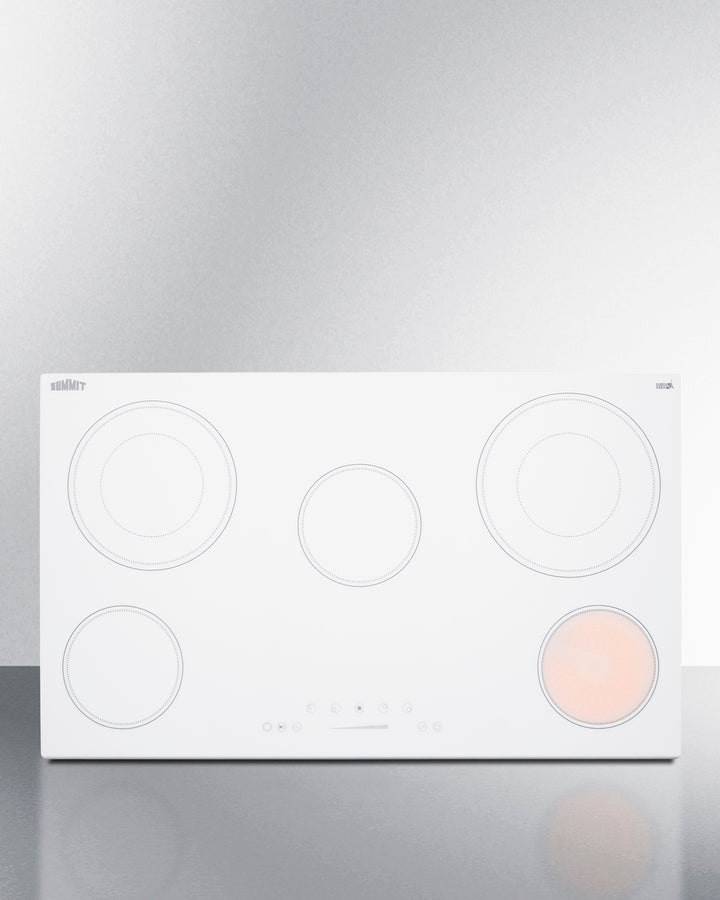

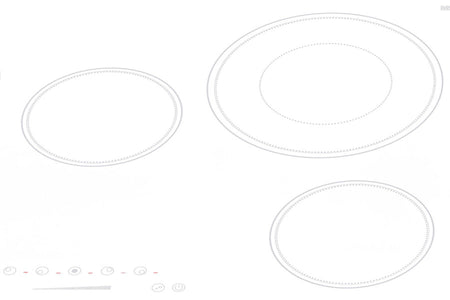

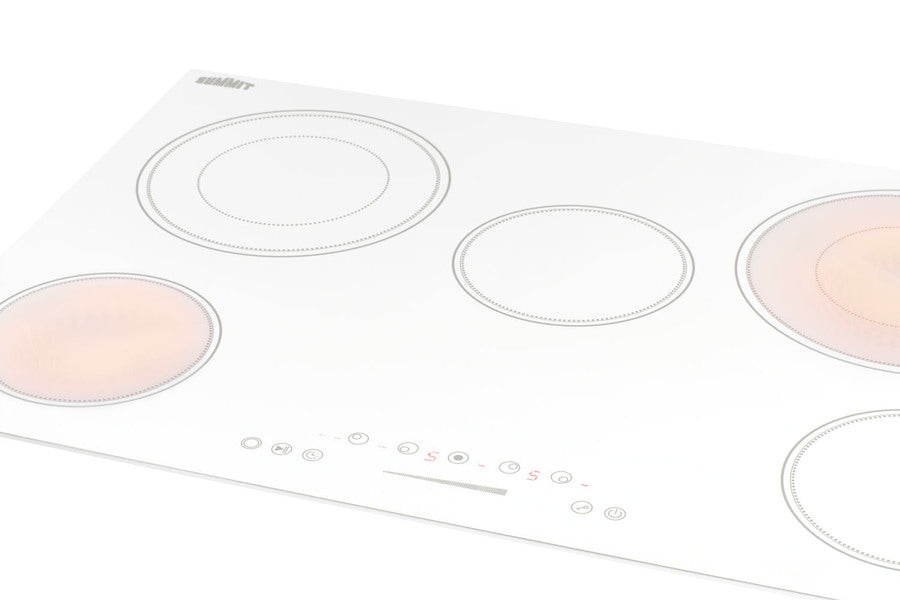

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.

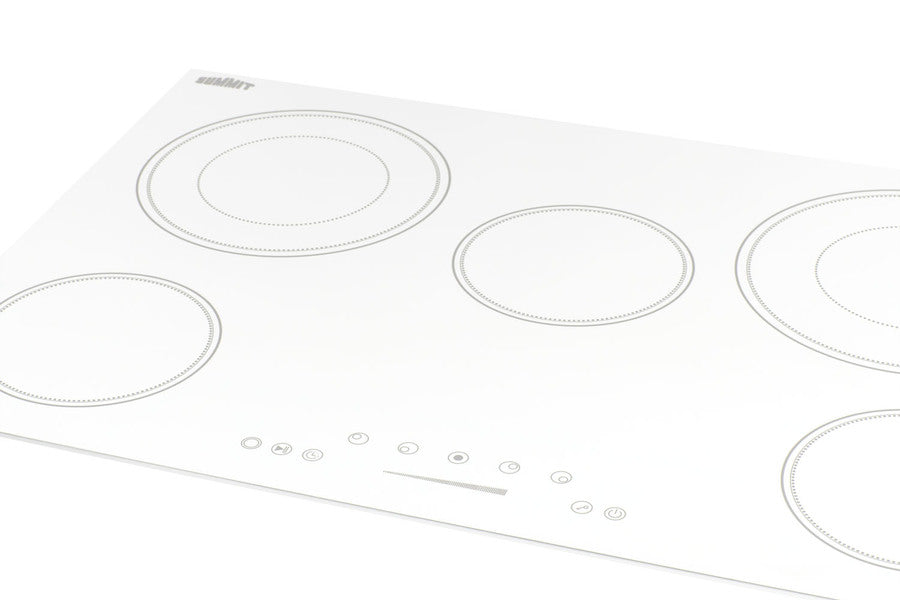

The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator.
With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B36TXW brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 30" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 2.13" (5 cm) | Heating Type | Radiant |
| Height of Cabinet | 2.13" (5 cm) | Surface | Glass |
| Nominal Width | 36.0" (91 cm) | Element Type | Glasstop |
| Width | 35.5" (90 cm) | Number of Elements | 5 |
| Nominal Depth | 21.0" (53 cm) | Controls | Digital |
| Depth | 20.5" (52 cm) | Cooking Timer | Yes |
| Cabinet | White | Countertop Cutout Height | 3.2" (8 cm) |
| US Electrical Safety | ETL | Countertop Cutout Width | 34.75" (88 cm) |
| Canadian Electrical Safety | ETL-C | Countertop Cutout Depth | 19.63" (50 cm) |
| Amps | 30.0 | Element #1 Size | 6.5" (17 cm) |
| Voltage/Frequency | 240 V AC/60 Hz | Element #1 Wattage | 1200.0 |
| Weight | 36.0 lbs. (16 kg) | Element #2 Size | 9.0" (23 cm) |
| Parts & Labor Warranty | 1 Year | Element #2 Wattage | 2200.0 |
| UPC | 761101077581 | Element #3 Size | 6.5" (17 cm) |
| Element #3 Wattage | 100.0 | ||
| Element #4 Size | 9.75" (25 cm) | ||
| Element #4 Wattage | 3000.0 | ||
| Element #5 Size | 6.5" (17 cm) | ||
| Element #5 Wattage | 1200.0 | ||
| Power Cord Included | No |
