Summit CR2B23T3B 12″ Wide 2-Burner Radiant Electric Cooktop – Jet Black Glass Surface, 230 V, Built-In Fit

SKU: SA-CR2B23T3B
Regular price $420.50
Digital Touch Controls with 9 Power Levels, Timer & Safety Features – Offers precise heat control (9 levels), a 99-minute timer, residual-heat indicators, automatic shut-off (after 2 h idle), child-lock and safety cut-off for maximum user safety and convenience.
Sleek Jet-Black Glass Surface – Easy to Clean with Modern Look – The smooth, ceramic-glass top resists stains and spills, giving a contemporary aesthetic while making cleanup fast and simple.
Two Powerful Radiant Burners (1800 W + 1200 W) – Rear 7.0″ burner supplies 1800 W for rapid boiling or larger pots; the front 5.5″ burner delivers 1200 W, perfect for simmering sauces or smaller cookware.
2.0" H x 11.38" W x 20.5" D
(5cm H x 29cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-CR2B23T3B

ENERGY STAR certified:
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

2-Burner Radiant Cooktop:
230V cooktop with digital controls and a smooth glass surface

Jet black glass surface:
Elegant style on a smooth, jet blaack glass surface for a contemporary look that is easier to clean

Large 1800W burner:
Rear 7" burner offers 1800W for faster heating of larger cooking vessels

Standard 1200W burner:
Front burner is 5.5" in diameter to meet most cooking needs

Digital touch controls:
Easy operation with a digital control panel and digital display

9 power levels:
Select and adjust your heating levels at the touch of a button

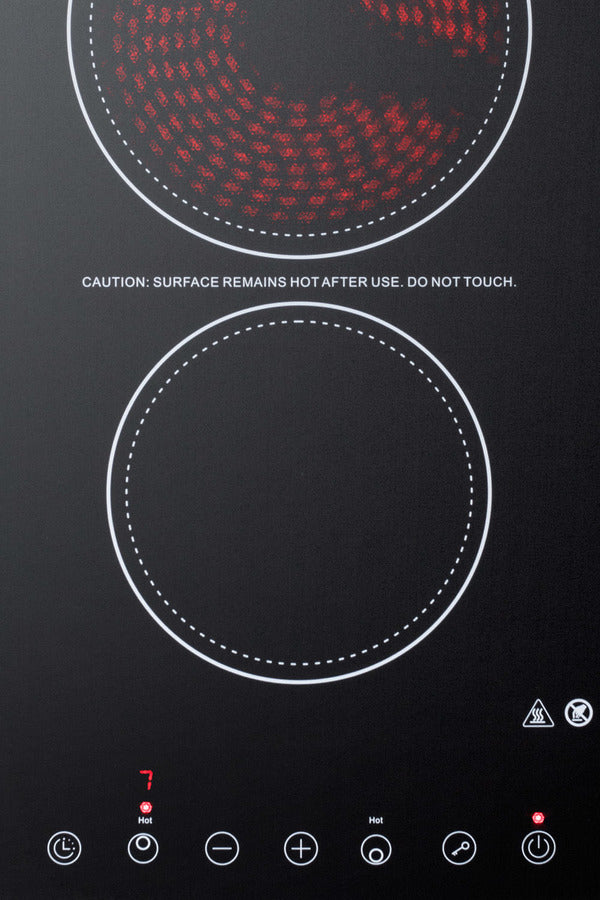

Residual heat indicator lights:
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation:
Fits counter cutout sizes that are 10.75" wide by 19.9" deep

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

Timer:
Allows you to program either burner to heat at a specified level for up to 99 minutes

Child lock:
Safety feature lets you lock the cooktop to prevent unsupervised heating

Automatic shutoff:
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

Safety cut-off function:
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

230V operation:
Requires professional hardwired installation to 230V power supply

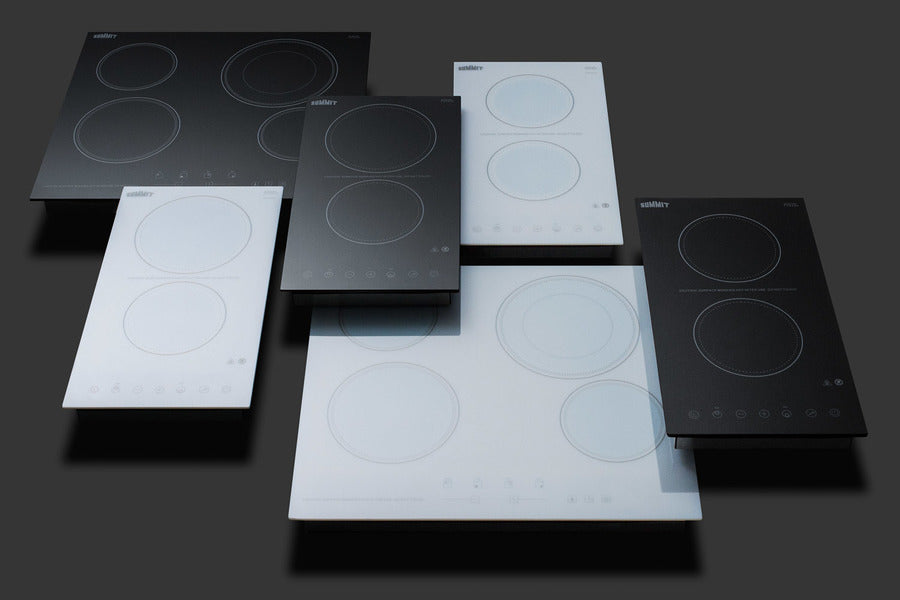

Summit's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

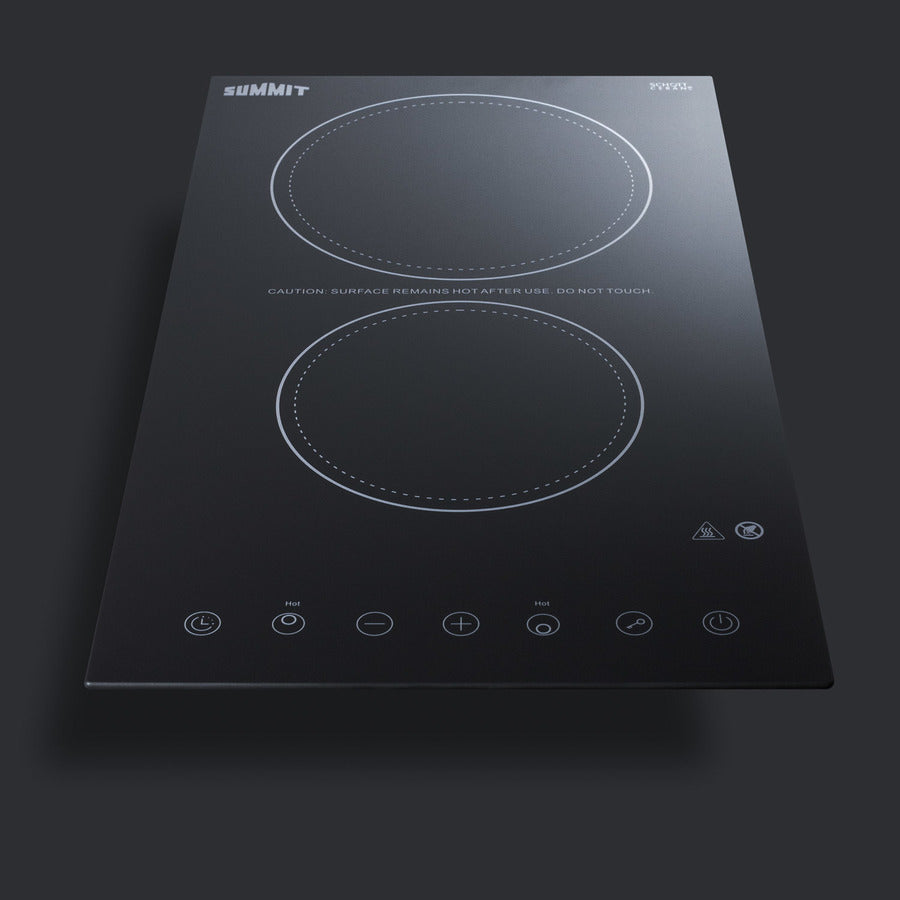

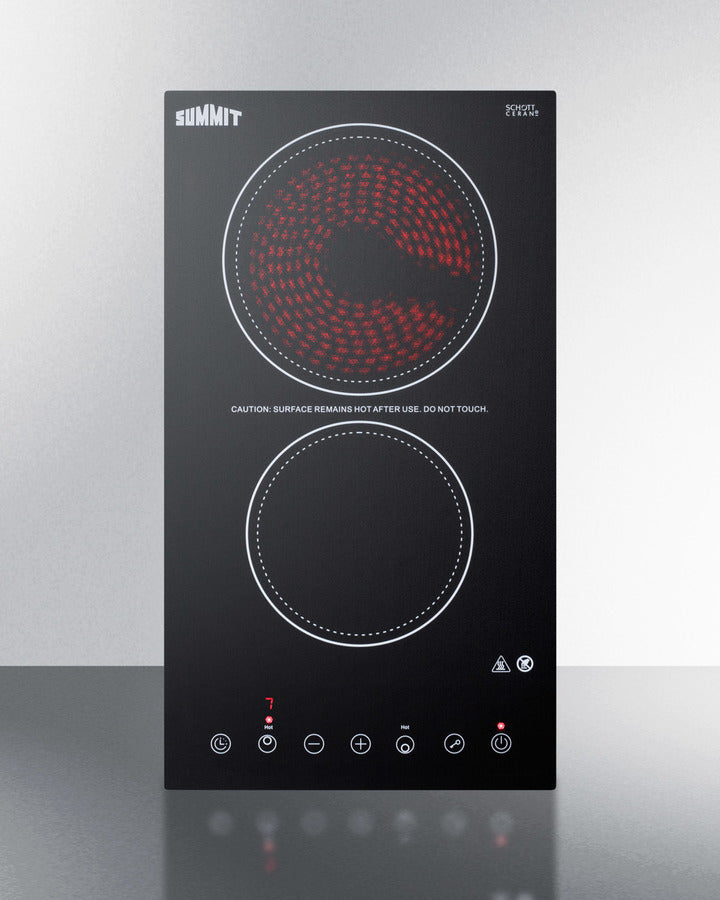

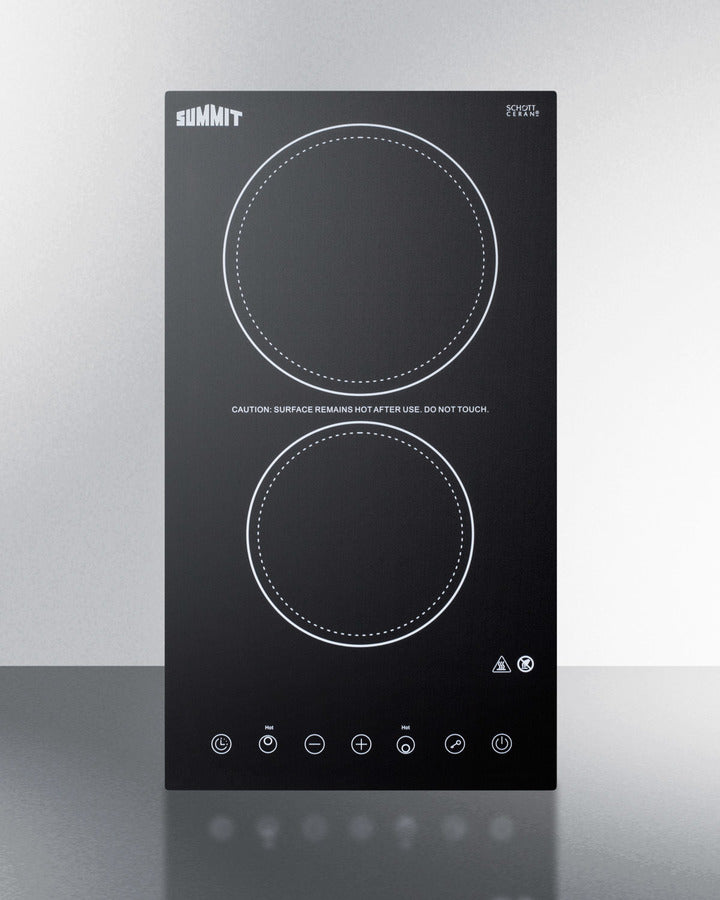

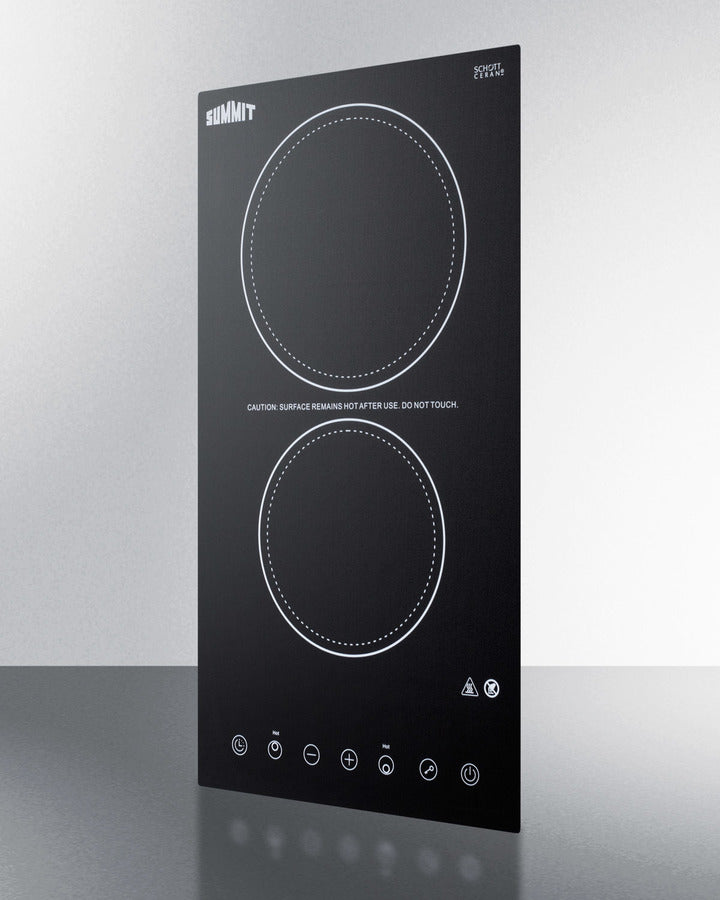

The CR2B23T3B is an ENERGY STAR certified 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional.

For true cooking versatility, the CR2B23T3B features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements.

With its attractive design, ideal size, and intuitive touch controls, the CR2B23T3B brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

 Overview

Refrigerator-Freezer

Nominal Height 2.0" (5 cm) Heating Type Radiant
Height of Cabinet 2.0" (5 cm) Surface Glass
Nominal Width 12.0" (30 cm) Element Type Glasstop
Width 11.38" (29 cm) Number of Elements 2
Nominal Depth 21.0" (53 cm) Controls Digital
Depth 20.5" (52 cm) Cooking Timer Yes
Cabinet Black Countertop Cutout Height 5.9" (15 cm)
US Electrical Safety ETL Countertop Cutout Width 10.75" (27 cm)
Canadian Electrical Safety ETL-C Countertop Cutout Depth 19.9" (51 cm)
Amps 15.0 Power Source 230V
Voltage/Frequency 230 V AC/60 Hz Element #1 Size 7.0" (18 cm)
Weight 10.0 lbs. (5 kg) Element #1 Wattage 1800.0
Parts & Labor Warranty 1 Year Element #2 Size 5.5" (14 cm)
UPC 761101053295 Element #2 Wattage 1200.0


Power Cord Included No


Auto Shutoff Time 2 Hours

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
