Summit CR5B30T8W 30″ Wide 208-240 V 5-Burner Radiant Cooktop – White Glass Surface

SKU: SA-CR5B30T8W
(0)
$1,014.20
Large Dual-Ring High-Power Elements — Rear-right 9.75″/2500 W and rear-left 9″/2200 W burners handle large pots or switch to inner 5.5″ rings for smaller cookware.
Digital Touch Controls & Safety Features — Front-center digital panel with 9 power levels, timer up to 99 minutes, residual heat indicator, child lock and automatic shut-off.
Professional Hard-Wired Installation – 208-240 V — Designed for 208-240 V power and professional installation (power cord not included).
2.13" H x 30.25" W x 20.5" D
(5cm H x 77cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-CR5B30T8W

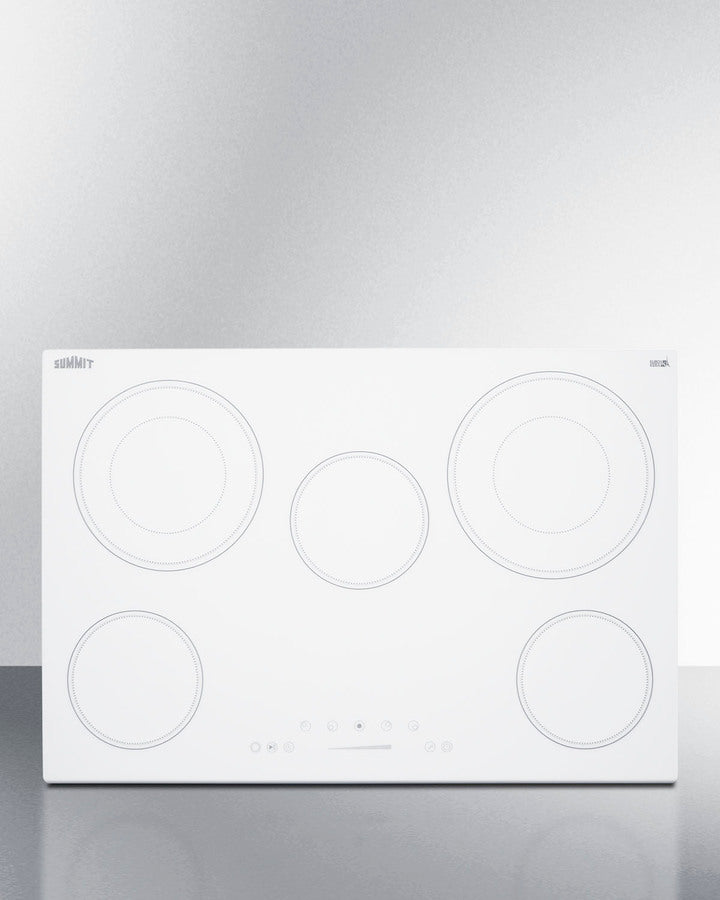

30" wide 5-burner radiant cooktop:
Designed to fit common 29 1/2" x 19 5/8" counter cutouts

EuroKera glass surface:
Easy cleanup and elegant style on a smooth ceramic glass surface in a clean white finish

Extra large 2500W burner:
Rear right burner comes with a 9 3/4" diameter and powerful 2500W cooking power to handle large pots and help boil water with more speed

Large 2200W burner:
Left rear 2200W element is 9" in diameter to handle larger cooking vessels

2 Standard 1200W burners:

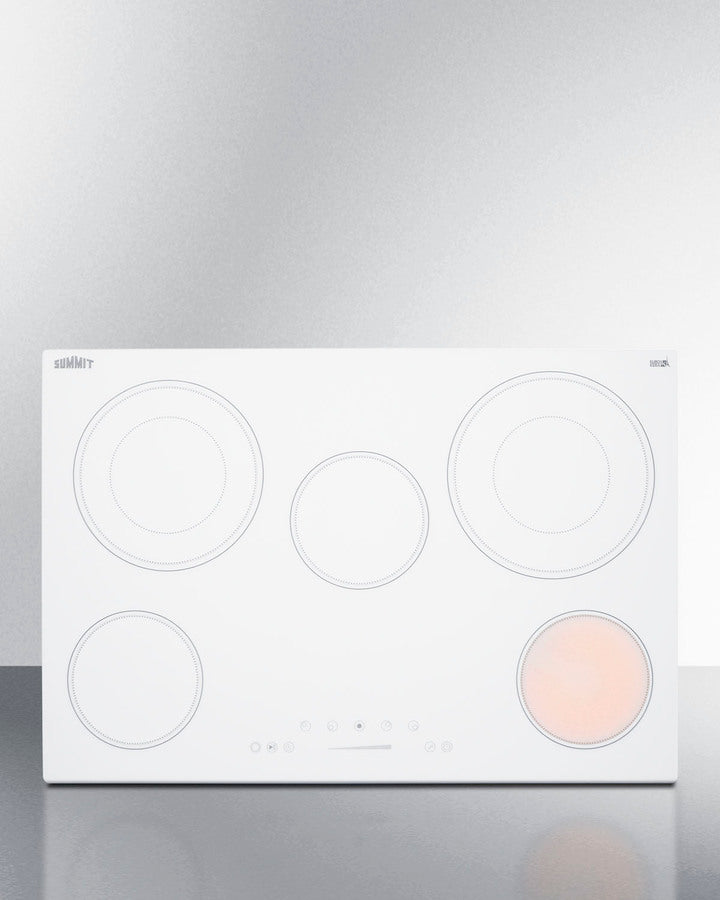

Front left and front right burners are 6.5" in diameter to meet most cooking needs

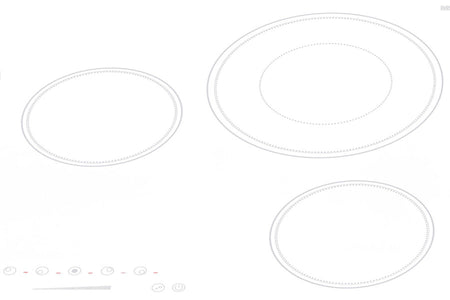

Dual cooking zones:

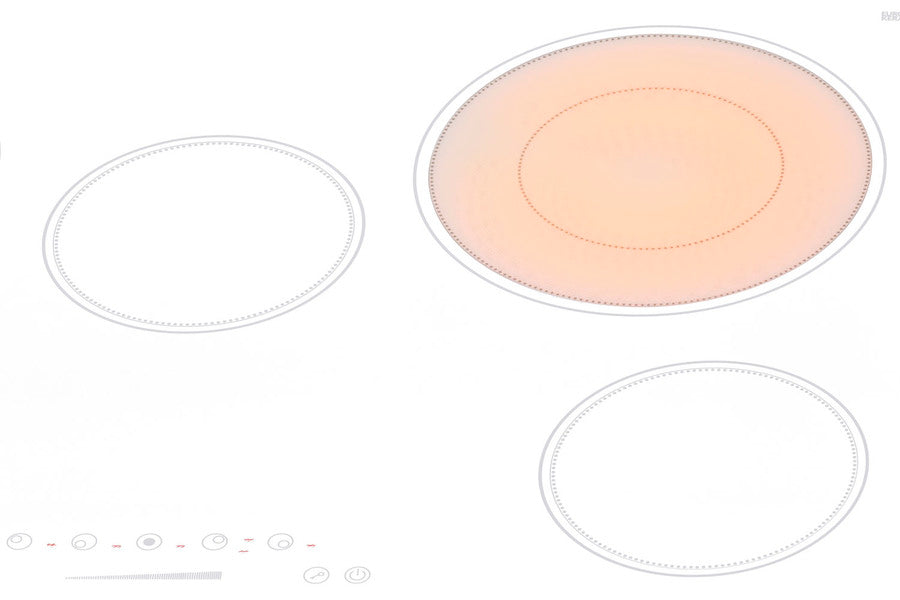

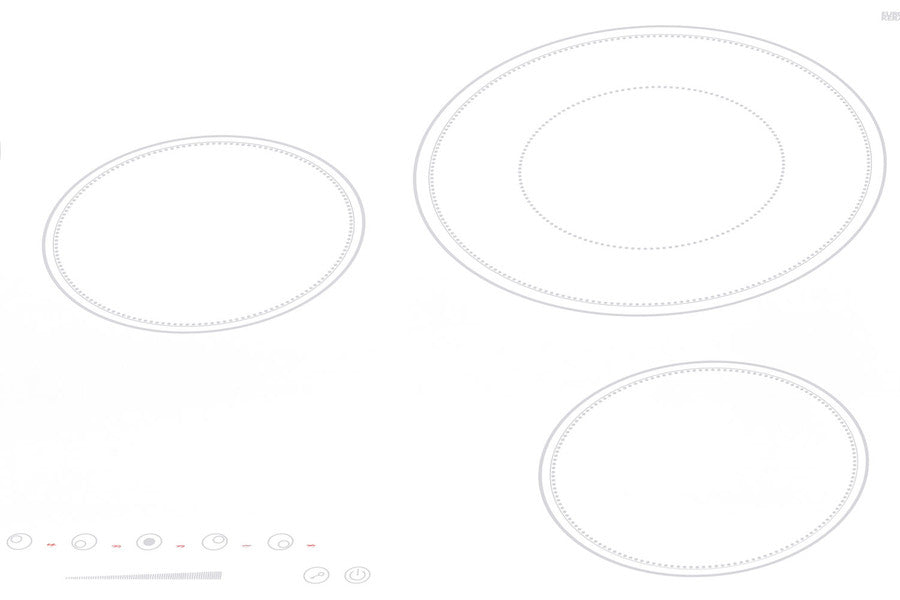

Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware

Warming zone:
Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

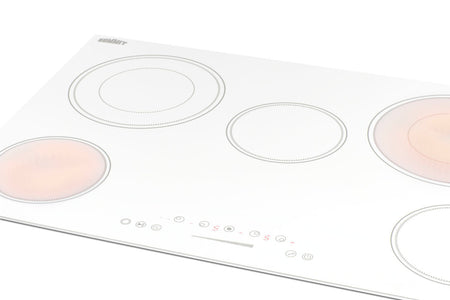

Digital touch controls:

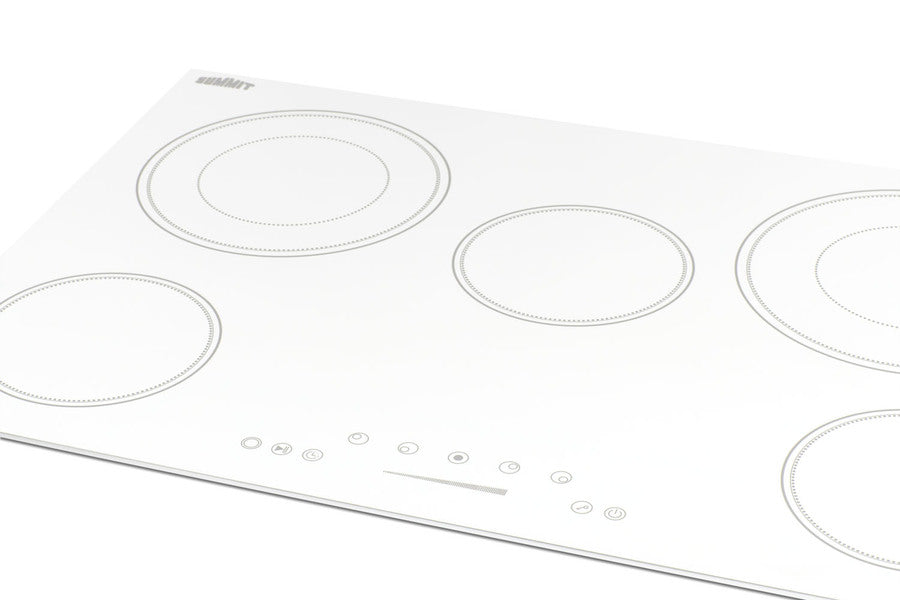

Easy operation with a digital control panel and digital display conveniently centered upfront

9 power levels:
Select and adjust your heating levels at the touch of a button

Timer:
Allows you to program either burner to heat at a specified level for up to 99 minutes and either turn off when finished or display a countdown with an audible alert when the time is up

Residual heat indicator light:
Indicator shows when the surface is still hot to touch

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

Child lock:
Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function:
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff:
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

208-240V operation:
Requires professional hardwired installation (cord not included)

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters, with user-friendly touch controls.

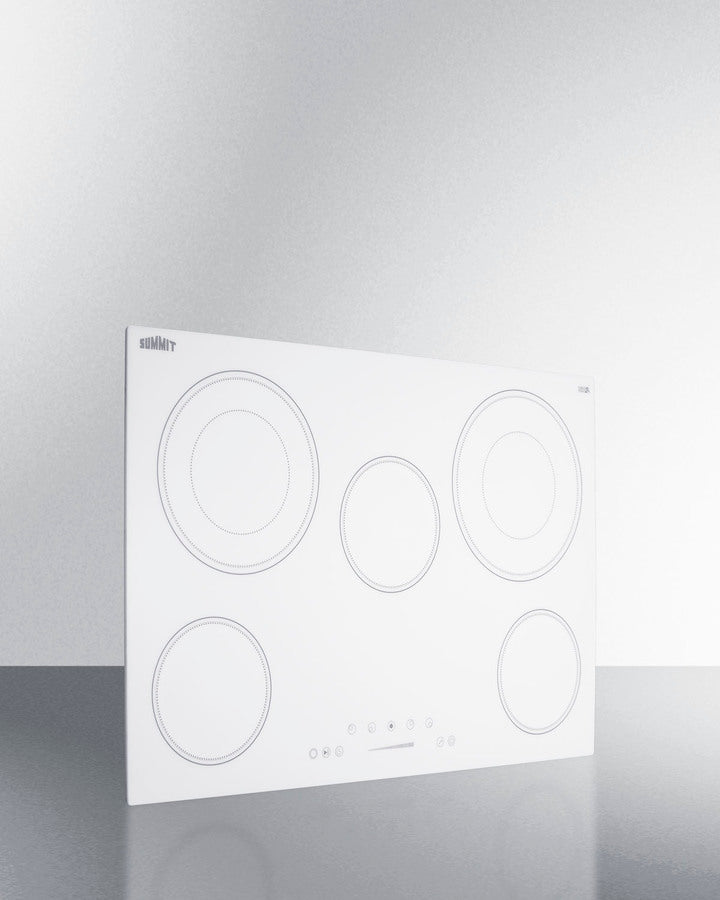

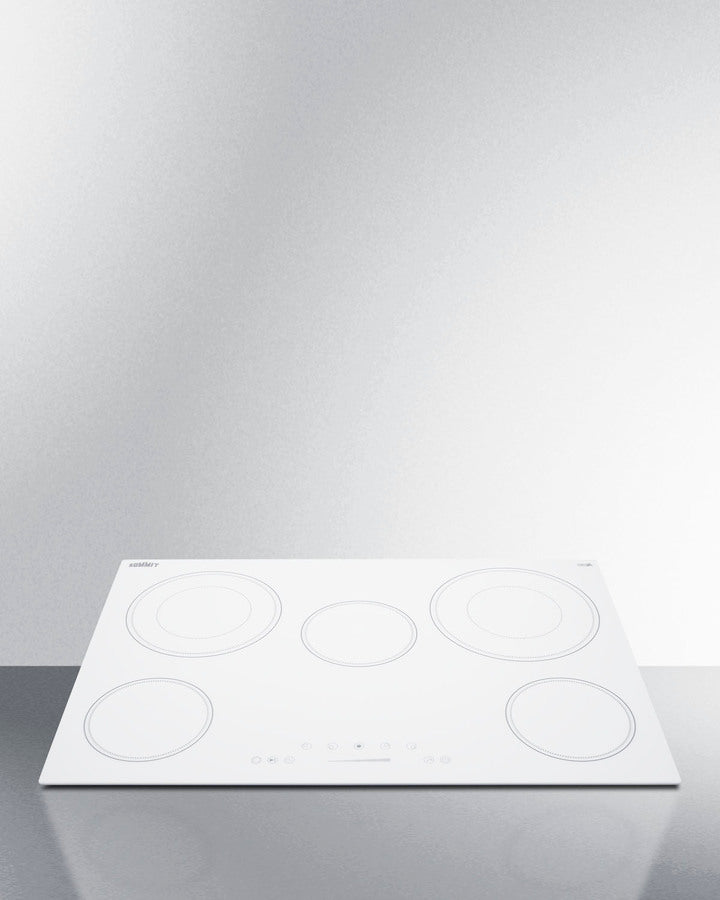

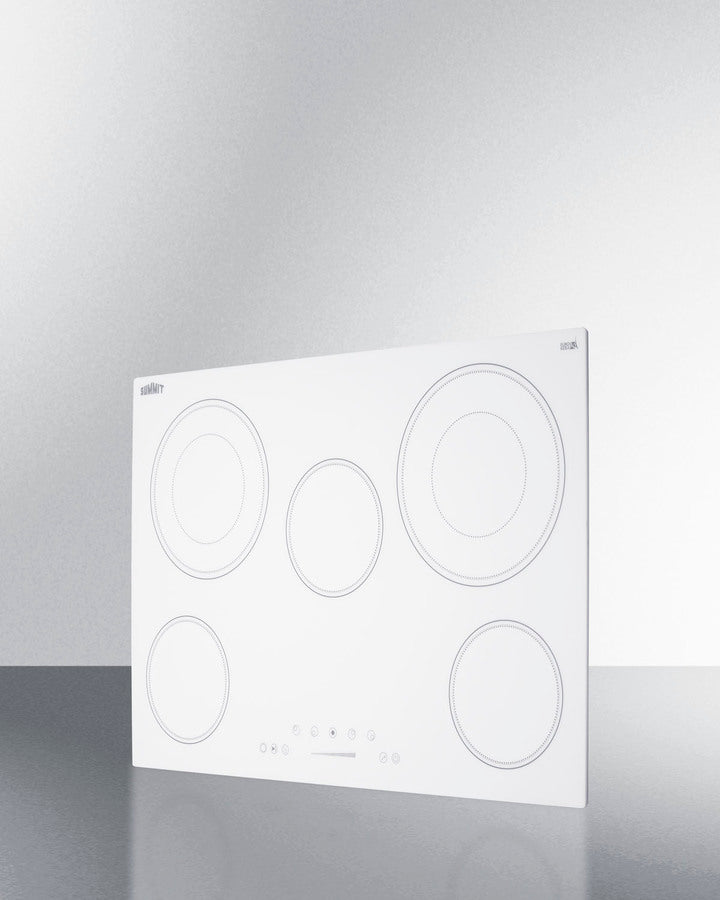

The CR5B30T8W is a 30" wide 208-240V radiant cooktop designed to fit popular 29 1/2" W x 19 5/8" D counter cutouts. The surface is made from smooth EuroKera ceramic glass in a clean white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

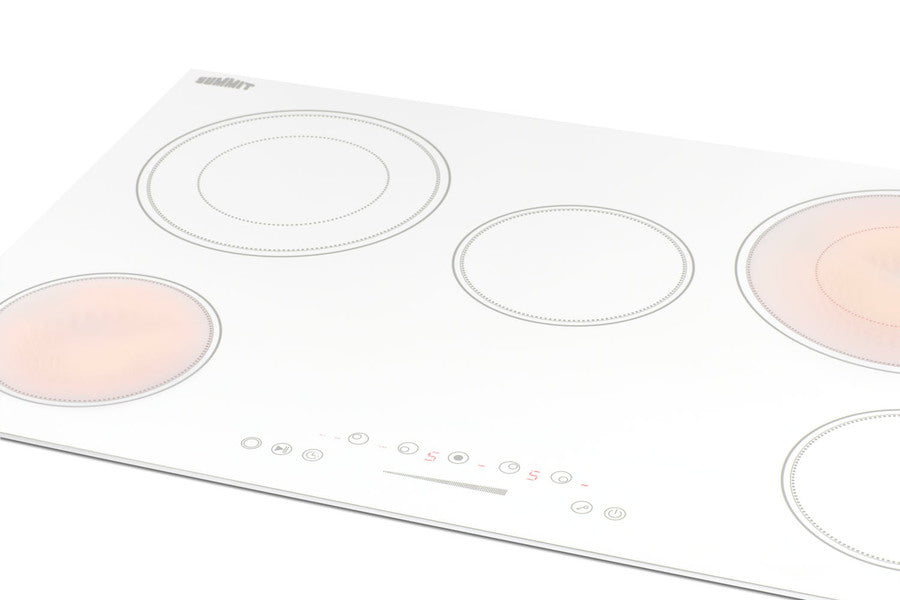

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 2500W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.

The digital controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. The intuitive touch design is easy to operate and clean. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes) that can either turn the unit off when complete, or serve as a visual countdown with an audible alert when the set time has been reached. Safety features include a child lock function, automatic shutoff after two hours, and a residual heat indicator.

With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR5B30T8W brings a user-friendly cooking performance with reliable safety to the kitchen. Additional choices are available in 24" and 36" wide sizes, as well as black glass finishes. Browse the full Summit lineup for more.

 Overview

Refrigerator-Freezer
Nominal Height 2.13" (5 cm) Heating Type Radiant
Height of Cabinet 2.13" (5 cm) Surface Glass
Nominal Width 31.0" (79 cm) Element Type Glasstop
Width 30.25" (77 cm) Number of Elements 5
Nominal Depth 21.0" (53 cm) Controls Digital
Depth 20.5" (52 cm) Cooking Timer Yes
Cabinet White Countertop Cutout Height 3.2" (8 cm)
US Electrical Safety ETL Countertop Cutout Width 29.5" (75 cm)
Canadian Electrical Safety ETL-C Countertop Cutout Depth 19.63" (50 cm)
Amps 30.0 Element #1 Size 6.5" (17 cm)
Voltage/Frequency 240 V AC/60 Hz Element #1 Wattage 1200.0
Weight 28.0 lbs. (13 kg) Element #2 Size 9.0" (23 cm)
Parts & Labor Warranty 1 Year Element #2 Wattage 2200.0
UPC 761101077550 Element #3 Size 6.5" (17 cm)


Element #3 Wattage 100.0


Element #4 Size 9.75" (25 cm)


Element #4 Wattage 2500.0


Element #5 Size 6.5" (17 cm)


Element #5 Wattage 1200.0


Power Cord Included No
