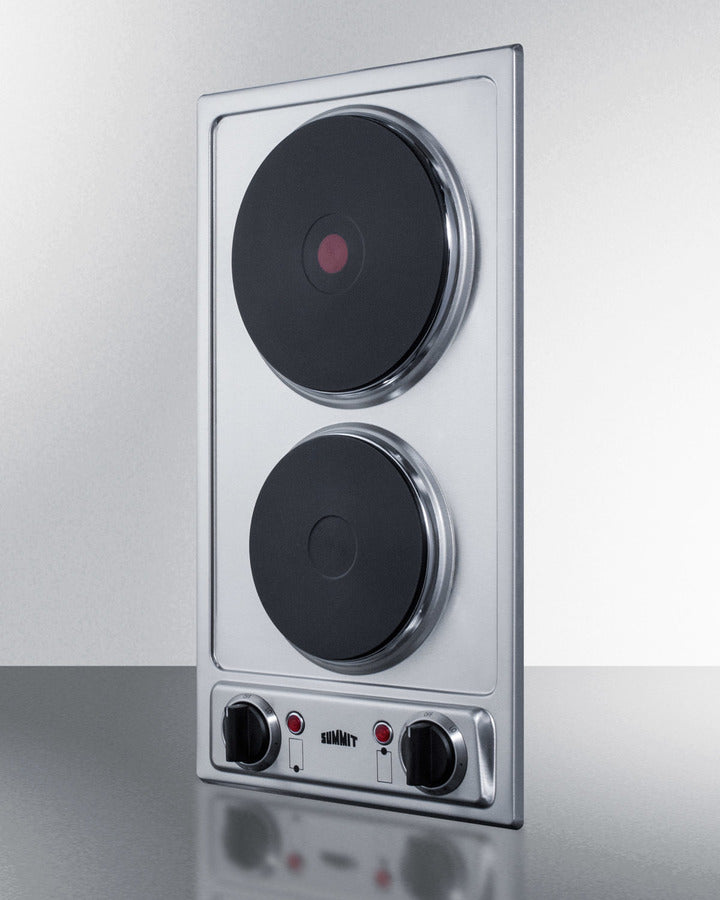

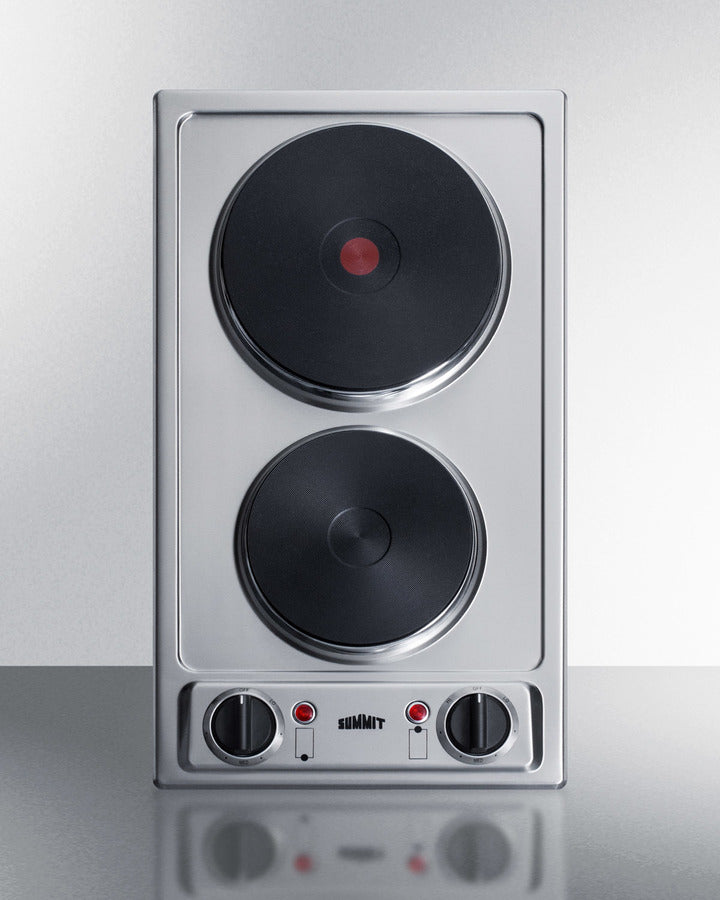

Summit CSD2B230 12″ Wide 2-Burner Electric Cooktop – Stainless Steel Radiant Surface, Cast Iron Solid-Disk Elements

SKU: SA-CSD2B230
Regular price $337.30
Safety-Focused Controls: Push-to-Turn Knobs & Burner Indicator Lights — Controls require deliberate activation to turn on (preventing accidental ignition), and each burner has an indicator light to show when it’s active — enhancing safety and awareness during cooking.
Stainless Steel Surface with Built-In Installation Design — Brushed stainless steel surface gives a clean, professional look and fits countertop cut-outs sized 10.5″ W × 19.25″ D — ideal for built-in installation in kitchens or compact cooking areas.
Dual Solid-Disk Cast-Iron Burners for Durable, Even Heating — Offers a rear 8″ / 2,000 W burner for large pots and fast boiling, and a front 6″ / 1,000 W burner for everyday cooking — suitable for boiling, simmering or small-batch cooking.
4.13" H x 11.25" W x 20.0" D
(10cm H x 29cm W x 51cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-CSD2B230

Solid disk elements:
Popular in Europe, solid disk cooktops offer even heat distribution and longer heat retention for a uniquely efficient cooking experience

Durable cast iron design:
Solid metal elements hold up to heavy duty use

8" element:
Rear 2000W burner with wide 8" diameter is ideal for heating larger cooking vessels

6" element:
Front element offers 1000W of cooking power to accommodate most heating needs

Easier cleanup:
Fully sealed cast iron elements offer easier cleanup than traditional coil elements

Stainless steel finish:
Surface is made from stainless steel for an attractive and easy to clean look

Push-to-turn controls:
Knobs require a small amount of force to help prevent accidents

Indicator lights:
Operating indicators light up to show which burner is in use

Designed for built-in installation:
Fits counter cutout sizes that are 10 1/2" W x 19 1/4" D

ADA compliant design:
Upfront controls and easy-to-operate knobs offer easier accessibility

Summit's selection of electric cooktops offers the perfect fit for every application.

Sized at 12" wide, the CSD2B230 is a 230V cooktop with two solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The rear 2000W burner is sized with an 8" diameter to fit large cookware, while the front 1000W 6" element accommodates most general heating needs. The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes upfront push-to-turn knobs and an "on" indicator light for each burner for added safety.

With its modern style and durable design, the CSD2B230 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 4-burner version, see the CSD4B24.

 Overview

Refrigerator-Freezer

Nominal Height 4.13" (10 cm) Heating Type Radiant
Height of Cabinet 4.13" (10 cm) Surface Stainless Steel
Nominal Width 12.0" (30 cm) Element Type Cast Iron
Width 11.25" (29 cm) Number of Elements 2
Nominal Depth 20.0" (51 cm) Controls Dial
Depth 20.0" (51 cm) Countertop Cutout Height 5.0" (13 cm)
Cabinet Stainless Steel Countertop Cutout Width 10.5" (27 cm)
US Electrical Safety ETL Countertop Cutout Depth 19.25" (49 cm)
Canadian Electrical Safety ETL-C Power Source 230V
Amps 12.5 Element #1 Size 6.0" (15 cm)
Voltage/Frequency 230 V AC/60 Hz Element #1 Wattage 1000.0
Weight 13.0 lbs. (6 kg) Element #2 Size 8.0" (20 cm)
Parts & Labor Warranty 1 Year Element #2 Wattage 2000.0
UPC 761101056333 Power Cord Included No

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
