Summit CR4B23T6W 24″ Wide 4-Burner Electric Radiant Cooktop – White Schott Glass, Digital Touch Controls, 2200 W Large Element

SKU: SA-CR4B23T6W
Regular price $869.90
Digital Touch Controls with 9 Power Levels, Timer & Safety Features – Front-mounted controls avoid reaching over hot zones. Includes adjustable power levels, 99-minute timer, residual-heat indicators, automatic shutoff (after 2 hours idle), and child lock for safety.
Smooth White Schott® Glass Cooktop — Sleek Look, Easy Cleanup – Durable glass surface offers a modern aesthetic and wipes clean easily after cooking.
Powerful 2200 W Extra-Large 8″ Burner + 3 Additional Zones – Rear-right dual-zone element (8″ / 2200 W) handles large pots and rapid boiling; plus a 7″/1800 W burner and two 5.5″/1200 W burners give versatile stovetop options for everyday cooking.
2.0" H x 23.25" W x 20.5" D
(5cm H x 59cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-CR4B23T6W

24" Wide 4-Burner Cooktop:
Smooth-top radiant cooktop for installation in smaller kitchen spaces

Schott glass surface:
Made in Germany, the white Schott glass offers easier cleanup and lasting durabilty

Extra large 2200W burner:
Burner located on the rear right corner has an 8" diameter and powerful 2200W cooking power to handle large pots and help boil water with more speed

Large 1800W burner:
Burner located on the front left corner is 7" in diameter to handle larger cooking vessels

2 Standard 1200W burners:
Front right and rear left burners are 5.5" in diameter to meet most cooking needs

Dual cooking zone:
Rear right burner includes an inner 5" burner, allowing you to save energy when heating smaller cookware

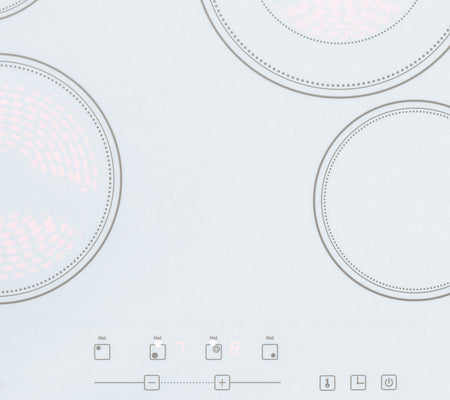

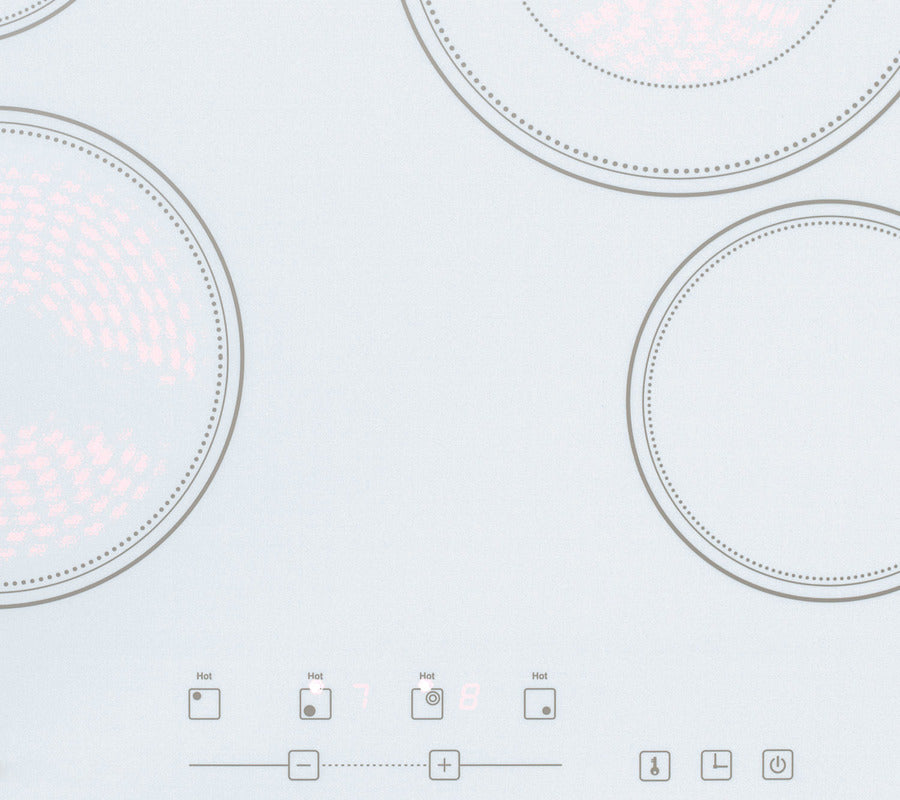

Digital touch controls:
Easy operation with a digital control panel and digital display

9 power levels:
Select and adjust your heating levels at the touch of a button

Timer:
Allows you to program either burner to heat at a specified level for up to 99 minutes

Residual heat indicator lights:
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation:
Fits counter cutout sizes that are 22" wide by 19.5" deep

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

Child lock:
Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function:
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff:
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V operation:
Requires professional hardwired installation to 230V power supply

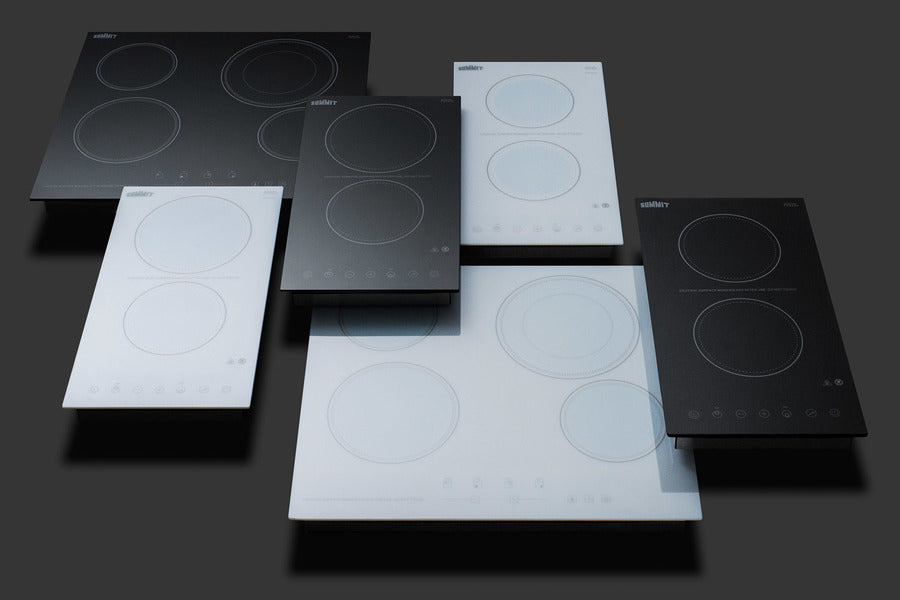

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

The CR4B23T6W is a 24" wide 230V radiant cooktop designed to fit popular 22" W x 19 1/2" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

Unlike many other 24" wide cooktops, the CR4B23T6W includes an extra large 2200W 8" element to accommodate large cooking vessels and offer faster heating when boiling water. For added versatility, this dual zone element can also be used at a 5" diameter for smaller pots and pans. The front right and rear left 5 1/2" elements cook at 1200W, while the front left zone is 7" wide with an 1800W operation to handle larger meals.

The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners when cooking. The temperature is easy to adjust at the touch of a button, with 9 power levels for each burner. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff after two hours, and residual heat indicators for all four elements.

With its attractive design, smartly designed burner configuration, and intuitive touch controls, the CR4B23T6W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

 Overview

Refrigerator-Freezer

Nominal Height 2.0" (5 cm) Heating Type Radiant
Height of Cabinet 2.0" (5 cm) Surface Glass
Nominal Width 24.0" (61 cm) Element Type Glasstop
Width 23.25" (59 cm) Number of Elements 4
Nominal Depth 21.0" (53 cm) Controls Digital
Depth 20.5" (52 cm) Countertop Cutout Height 3.2" (8 cm)
Cabinet White Countertop Cutout Width 22.0" (56 cm)
US Electrical Safety ETL Countertop Cutout Depth 19.5" (50 cm)
Canadian Electrical Safety ETL-C Element #1 Size 5.5" (14 cm)
Amps 30.0 Element #1 Wattage 1200.0
Voltage/Frequency 230 V AC/60 Hz Element #2 Size 8.1" (21 cm)
Weight 20.0 lbs. (9 kg) Element #2 Wattage 2200.0
Parts & Labor Warranty 1 Year Element #3 Size 5.5" (14 cm)
UPC 761101053264 Element #3 Wattage 1200.0


Element #4 Size 7.0" (18 cm)


Element #4 Wattage 1800.0


Power Cord Included No

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
