Summit ZEL05 30″ Wide 4-Burner Coil Electric Cooktop – Chrome Finish
Customer service
Features
- SKU SA-ZEL05
Summit Appliance offers a wide selection of American-made household cooktops built for long-lasting durability in space-challenged kitchens.

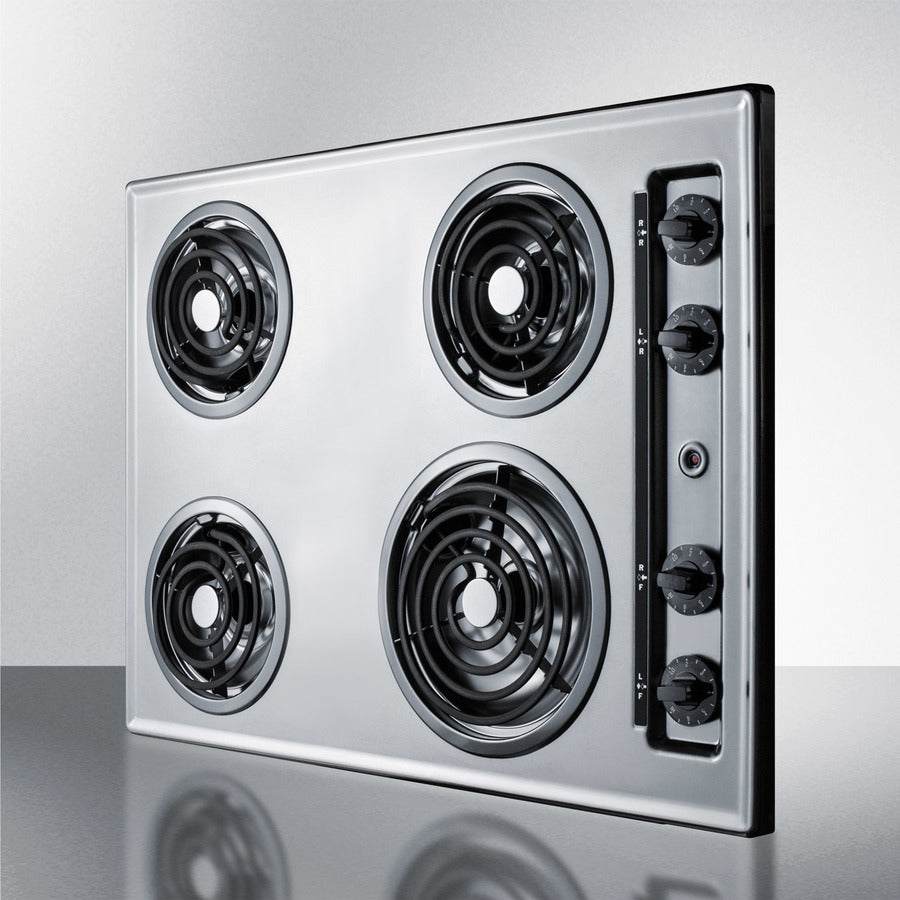

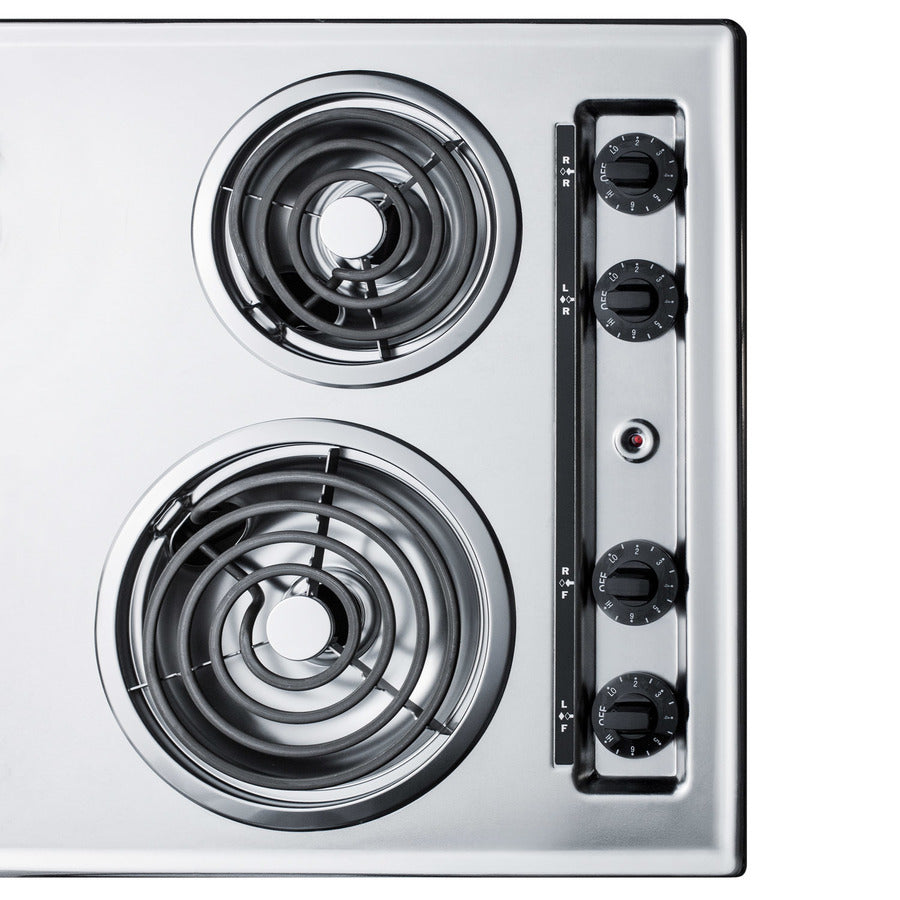

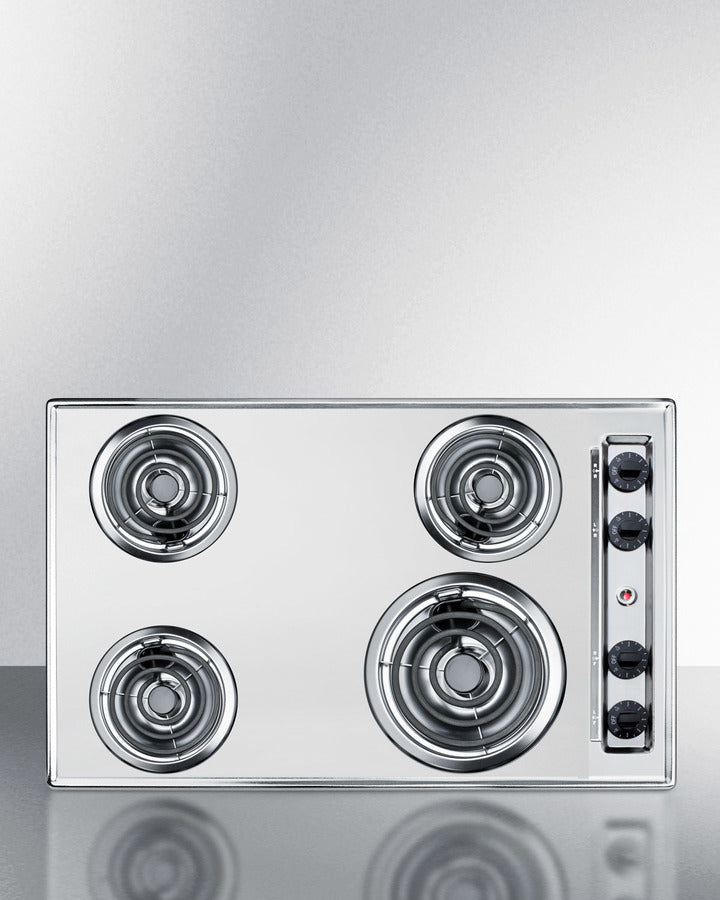

The ZEL05 is a 30" wide 220-240V electric cooktop designed to fit 28 3/8" wide x 18 5/8" deep cutouts. It features a brushed chrome surface, with a recessed design that helps to contain spills. Side-located push-to-turn knobs offer easy and safe use, with an indicator lights to show when the cooktop is on.

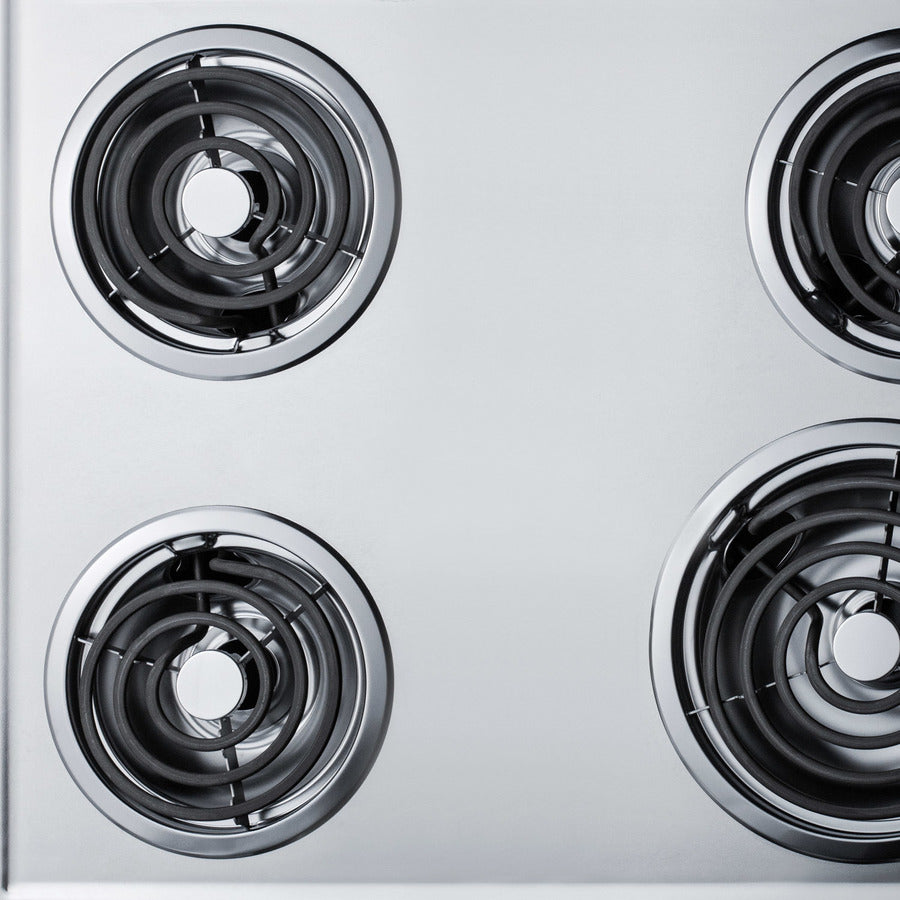

Designed to meet the most current UL safety standards, this unit features one 8" 950W and three 6" 650W coil elements. These operate at lower wattage than standard electric cooktops, allowing for a slow but steady heating process that will not cycle off. Each element includes a removable chrome drip pan for easier cleanup. This is a 220V cooktop and requires professional installation. It is compatible with a standard 40 amp 3 or 4-wire range cord.
The ZEL05 is designed and constructed in the USA. Additional finishes are available, as well as 24" sizes for larger kitchen spaces and matching wall ovens. Browse our website to explore our complete selection.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 4.0" (10 cm) | Heating Type | Radiant |
| Height of Cabinet | 3.75" (10 cm) | Element Type | Coils |
| Nominal Width | 30.0" (76 cm) | Number of Elements | 4 |
| Width | 29.75" (76 cm) | Controls | Dial |
| Nominal Depth | 20.0" (51 cm) | Countertop Cutout Width | 28.38" (72 cm) |
| Depth | 20.0" (51 cm) | Countertop Cutout Depth | 18.63" (47 cm) |
| Cabinet | Chrome | Element #1 Size | 6.0" (15 cm) |
| US Electrical Safety | UL | Element #1 Wattage | 675.0 |
| Canadian Electrical Safety | ULC | Element #2 Size | 8.0" (20 cm) |
| Amps | 30.0 | Element #2 Wattage | 950.0 |
| Voltage/Frequency | 230 V AC/60 Hz | Element #3 Size | 6.0" (15 cm) |
| Weight | 30.0 lbs. (14 kg) | Element #3 Wattage | 675.0 |
| Parts & Labor Warranty | 1 Year | Element #4 Size | 6.0" (15 cm) |
| UPC | 761101061665 | Element #4 Wattage | 675.0 |
| Power Cord Included | No | ||
| Power Cord Included | No |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
