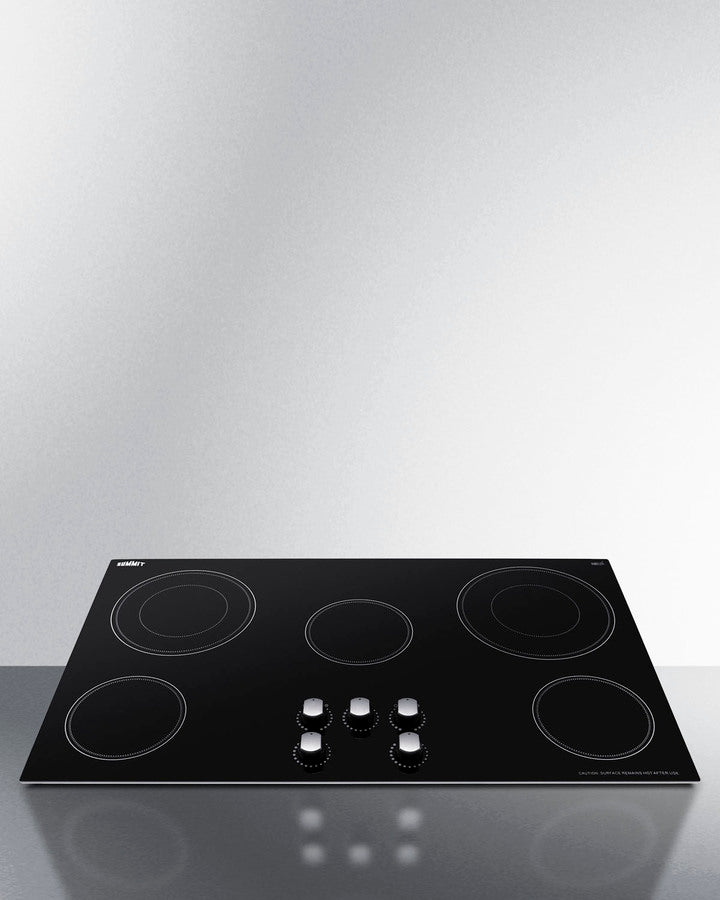

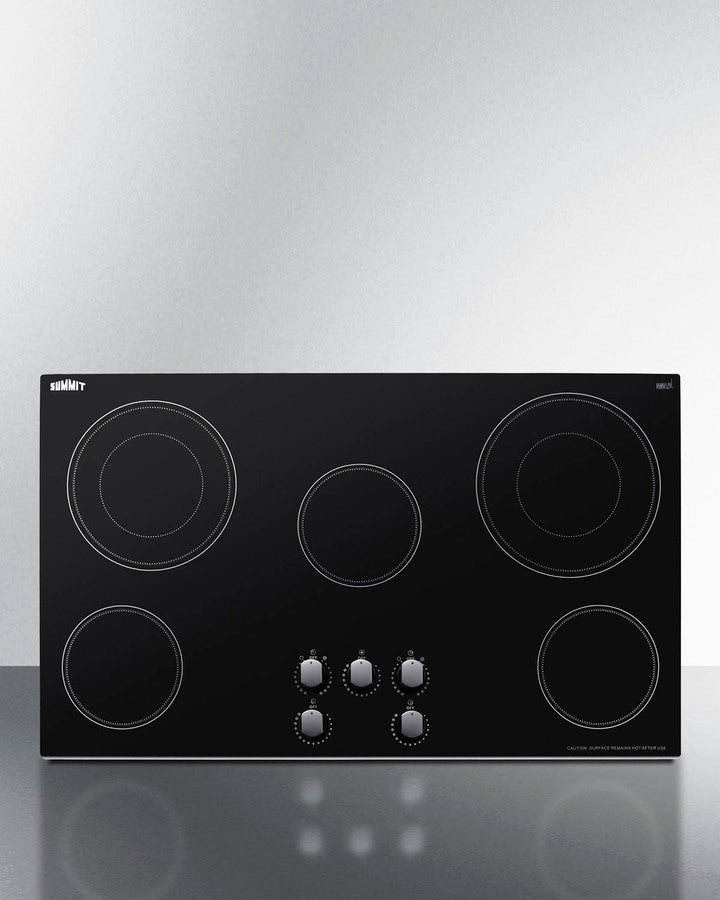

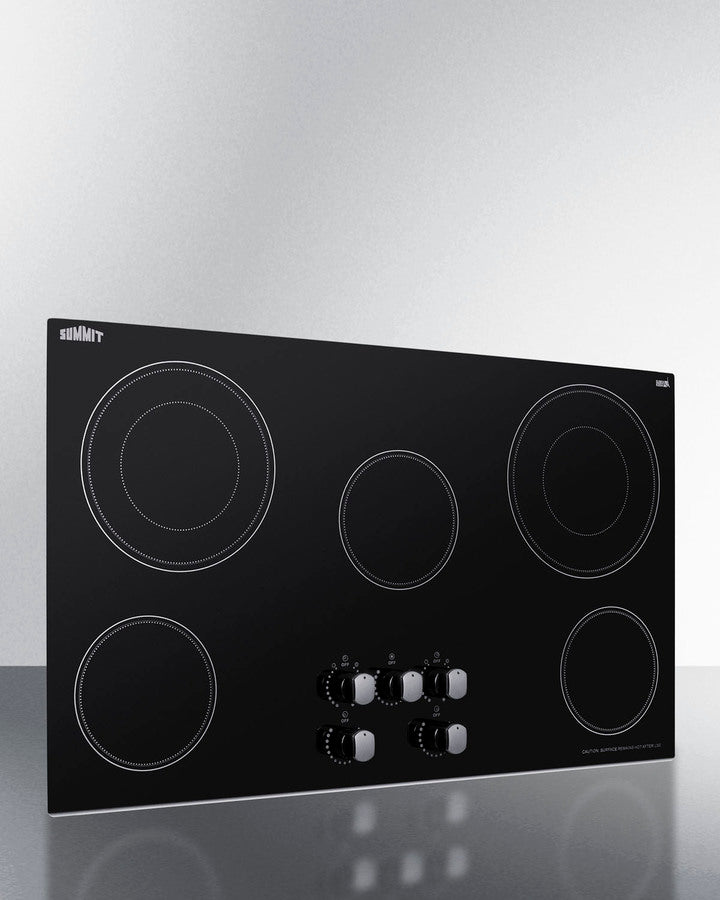

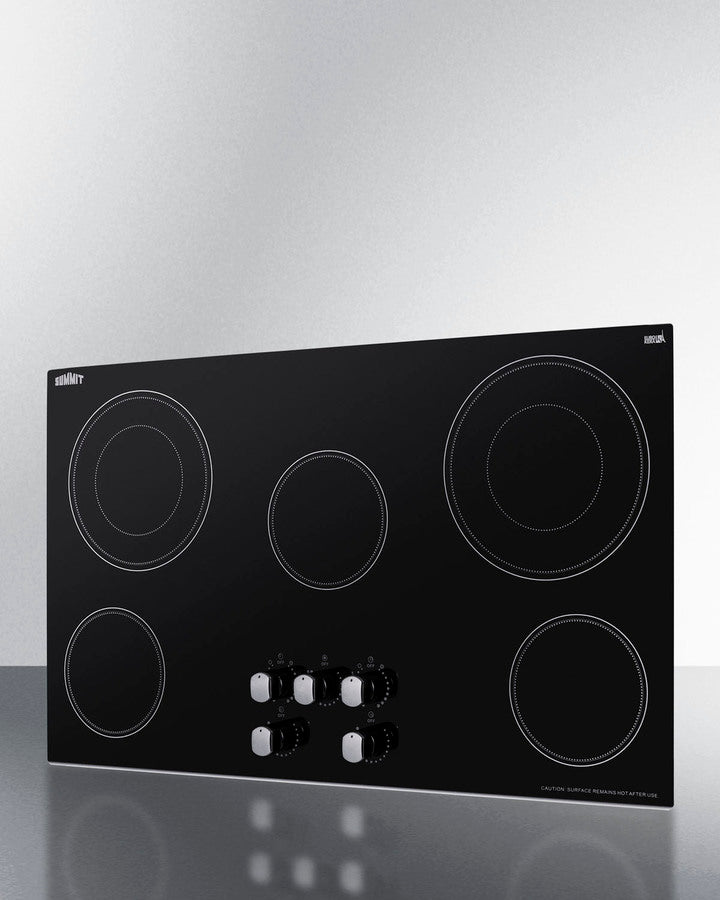

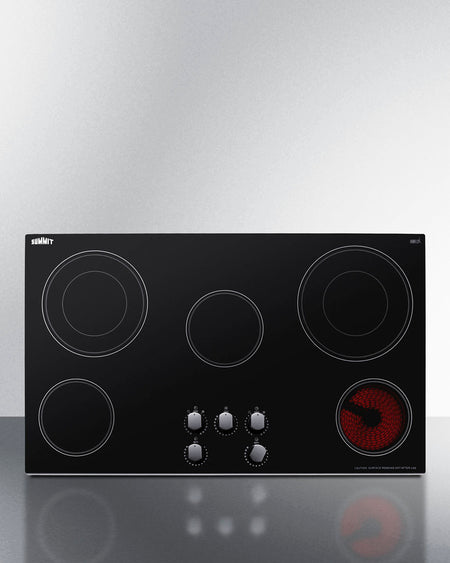

Summit CR5B36MB 36″ Wide 5-Burner Electric Radiant Cooktop – Jet Black Glass Surface, 240 V Hardwired, Built-In Fit

SKU: SA-CR5B36MB
(0)
$812.70
Safety & Convenience Features — Push-to-Turn Knobs & Heat Indicators – Controls require a gentle push-to-turn to help prevent accidental activation, and a residual-heat indicator alerts when the surface remains hot — enhancing safety for families and busy kitchens.
Sleek Jet Black EuroKera Glass Surface — Easy to Clean & Modern Look – The smooth glass top gives a contemporary aesthetic and allows for easy wipe-down, ideal for kitchens where style and ease of maintenance matter.
Five Radiant Cooking Zones with Dual-Ring & Power Burners – Includes two extra-large dual-ring elements (a 9" 2200 W burner and a 9¾" 3000 W burner) in the rear for large pots or rapid boiling; plus two 6.5" 1200 W front burners and a central 100 W warming zone for flexibility and energy-efficient cooking.
2.13" H x 35.5" W x 20.5" D
(5cm H x 90cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Customer service

Video chat Chat Email 800-626-0854

Features

  • SKU SA-CR5B36MB

36" wide 5-burner radiant cooktop:
5-burner radiant cooktop designed to fit common 34 3/4" x 19 5/8" counter cutouts

Jet black glass surface:
Easy cleanup and elegant style on a smooth ceramic glass surface in a jet black finish

Extra large 3000W burner:
Rear right burner comes with a 9 3/4" diameter and powerful 3000W cooking power to handle large pots and help boil water with more speed

Large 2200W burner:
Left rear 2200W element is 9" in diameter to handle larger cooking vessels

2 Standard 1200W burners:
Front left and front right burners are 6.5" in diameter to meet most cooking needs

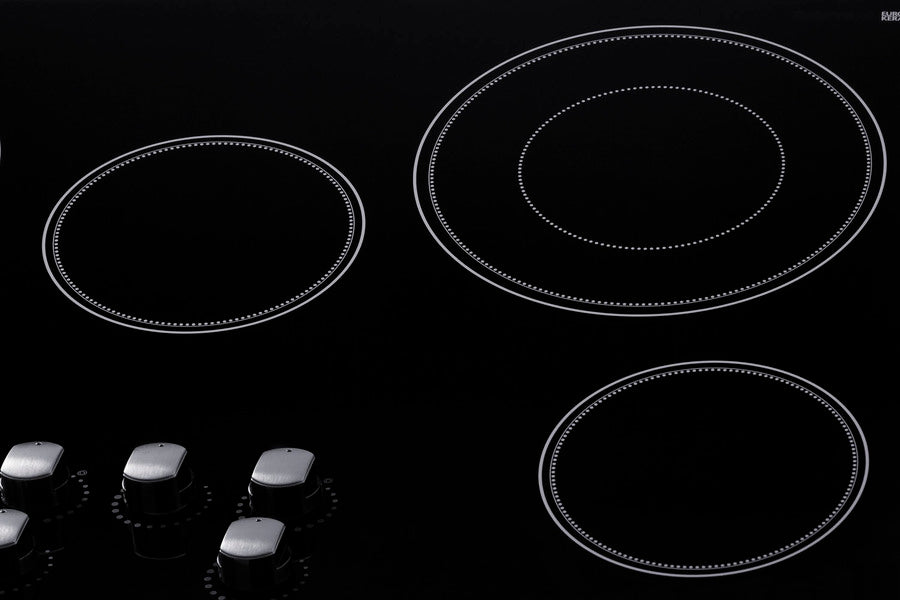

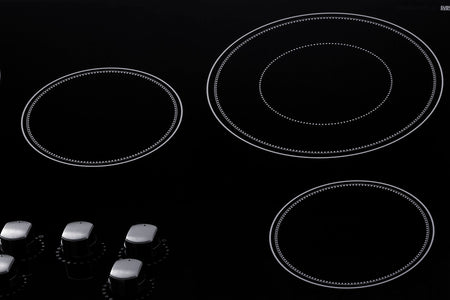

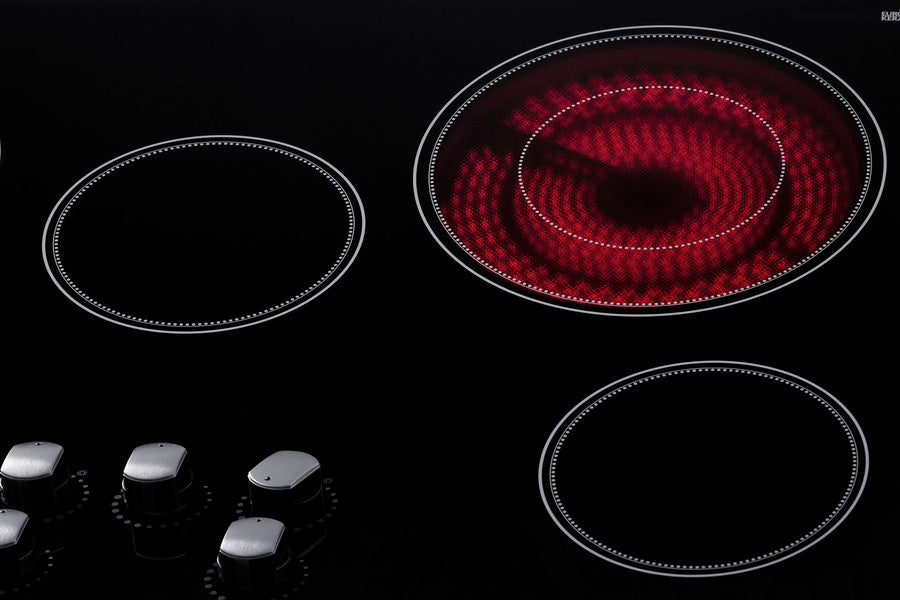

Dual cooking zones:
Rear burners include an inner 5 1/2" burner, allowing you to save energy when heating smaller cookware

Warming zone:
Center 6 1/2" element operates at a low 100W to help keep cookware warm without overheating

Push-to-turn knobs:
Controls require a gentle push to help prevent cooking accidents

Residual heat light:
Indicator shows when the surface is still hot to touch

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

208-240V operation:
Requires professional hardwired installation (cord not included)

Summit's collection of smooth-top radiant cooktops includes fully featured models sized for standard kitchen counters.

The CR5B36MB is a 36" wide 208-240V radiant cooktop designed to fit popular 34 3/4" W x 19 5/8" D counter cutouts. Its surface is made of jet black glass for a contemporary look that's easier to clean. This unit does not ship with a power cord and must be hard-wired by a professional.

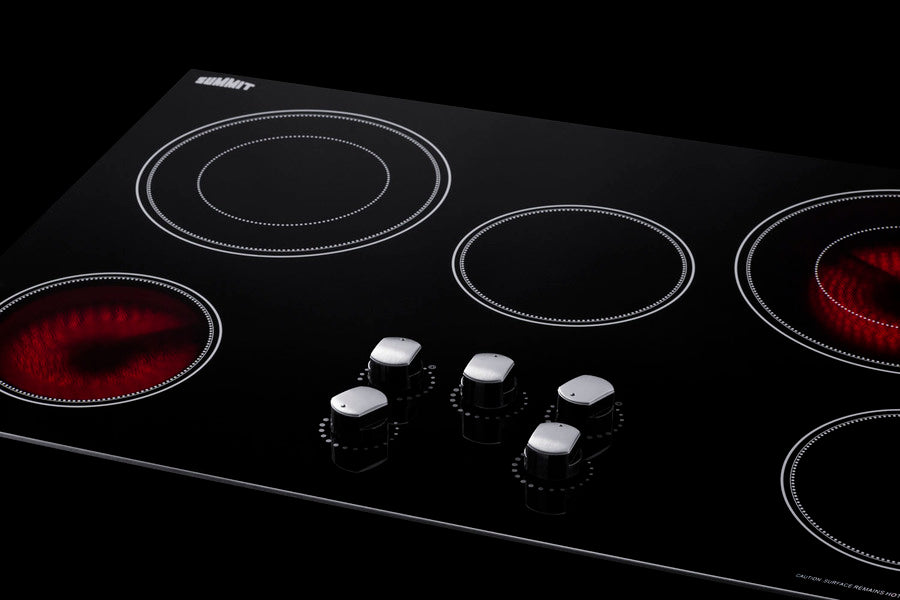

Five elements let you meet a variety of cooking needs. The two extra large dual ring elements in the rear (2200W 9" element on the left and 3000W 9 3/4" element on the right) allow you to efficiently heat woks, Dutch ovens, and other large cooking vessels or to switch to the inner 5 1/2" elements as needed. The 6 1/2" 1200W front burners cover standard sizes, while the center 100W warming zone element lets you keep cookware heated without overcooking.

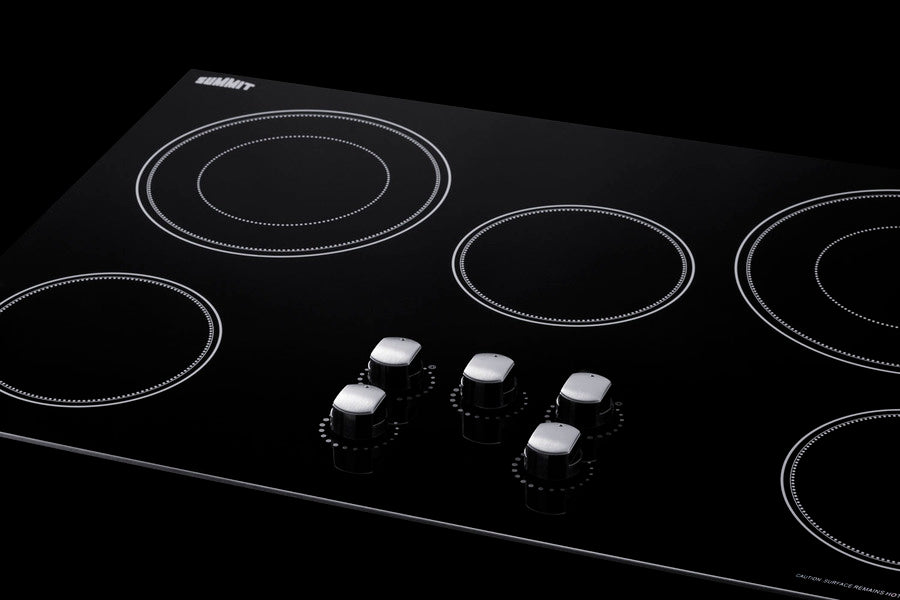

The knob controls are centered upfront, ensuring users won't have to reach over hot burners to adjust the temperature. Each knob features a stainless steel look for added style. For added safety, the knobs require a light push-to-turn force to help prevent accidental adjustments. A residual heat indicator light lets you know when the surface is still hot to touch.

With its attractive design and smartly designed burner configuration, the CR5B36MB is the perfect choices for convenient cooking. Additional choices are available in 24" and 30" wide sizes, as well as white glass finishes and with touch controls. Browse the full Summit lineup for more.

 Overview

Refrigerator-Freezer
Nominal Height 2.13" (5 cm) Heating Type Radiant
Height of Cabinet 2.13" (5 cm) Surface Glass
Nominal Width 36.0" (91 cm) Element Type Glasstop
Width 35.5" (90 cm) Number of Elements 5
Nominal Depth 21.0" (53 cm) Controls Dial
Depth 20.5" (52 cm) Countertop Cutout Height 3.2" (8 cm)
Cabinet Black Countertop Cutout Width 34.75" (88 cm)
US Electrical Safety ETL Countertop Cutout Depth 19.63" (50 cm)
Canadian Electrical Safety ETL-C Element #1 Size 6.5" (17 cm)
Amps 30.0 Element #1 Wattage 1200.0
Voltage/Frequency 240 V AC/60 Hz Element #2 Size 9.0" (23 cm)
Weight 36.0 lbs. (16 kg) Element #2 Wattage 2200.0
Parts & Labor Warranty 1 Year Element #3 Size 6.5" (17 cm)
UPC 761101077567 Element #3 Wattage 100.0


Element #4 Size 9.75" (25 cm)


Element #4 Wattage 3000.0


Element #5 Size 6.5" (17 cm)


Element #5 Wattage 1200.0


Power Cord Included No
