Summit CR2B23T4W 12″ Wide 2-Burner Radiant Electric Cooktop – White Schott Glass Surface, 230 V, Built-In Fit

SKU: SA-CR2B23T4W
Regular price $576.50
ENERGY STAR® Certified & 230 V Hard-Wired Design for Efficiency — Rated by the DOE for energy efficiency and built for permanent 230 V connection — great for kitchen remodels or long-term installations.
Digital Touch Controls with Safety & Convenience Functions — Features 9 power levels, timer (up to 99 min), child lock, automatic shut-off (after 2 hours idle), safety cut-off (if no heat level selected), and residual heat indicators for both burners.
Ultra-Compact 12″ Width – Ideal for Tight Countertops & Small Kitchens — Designed for small spaces and fits popular 10¾″ W × 19⅞″ D cutouts, making it perfect for apartments, wet bars, or kitchenette setups.
2.0" H x 11.38" W x 20.5" D
(5cm H x 29cm W x 52cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-CR2B23T4W

2-Burner Radiant Cooktop:
230V cooktop with digital controls and a smooth glass surface

ENERGY STAR certified:
Rated by the DOE to perform with more efficiency than federal standards require, saving your unit energy and you on higher utility costs

Schott glass surface:
Made in Germany, the white Schott glass offers easier cleanup and lasting durability

Large 1800W burner:
Rear 7" burner offers 1800W for faster heating of larger cooking vessels

Standard 1200W burner:
Front burner is 5.5" in diameter to meet most cooking needs

Digital touch controls:
Easy operation with a digital control panel and digital display

9 power levels:
Select and adjust your heating levels at the touch of a button

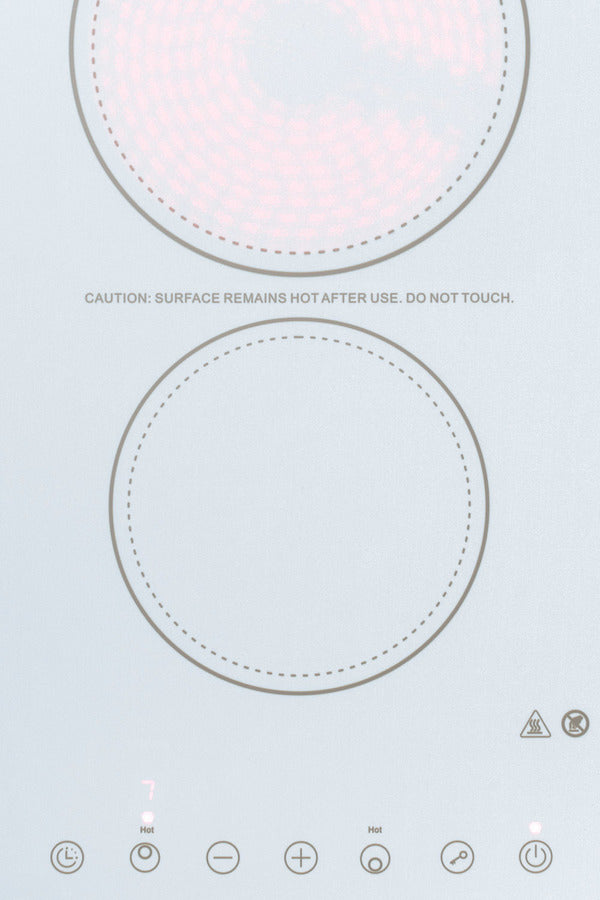

Residual heat indicator lights:
Each burner includes a residual heat indicator to warn users if the surface is still too hot to touch

Designed for built-in installation:
Fits counter cutout sizes that are 10.75" wide by 19.9" deep

ADA compliant design:
Upfront controls meet ADA guidelines for easier accessibility

Timer:
Allows you to program either burner to heat at a specified level for up to 99 minutes

Child lock:
Safety feature lets you lock the cooktop to prevent unsupervised heating

Safety cut-off function:
If the cooktop on/off switch is touched but no power level is selected within one minute, the cooktop automatically turns off

Automatic shutoff:
If a cooking zone is in use for over two hours with no changes to the control setting, the burner will automatically turn off to prevent unsupervised heating

230V operation:
Requires professional hardwired installation to 230V power supply

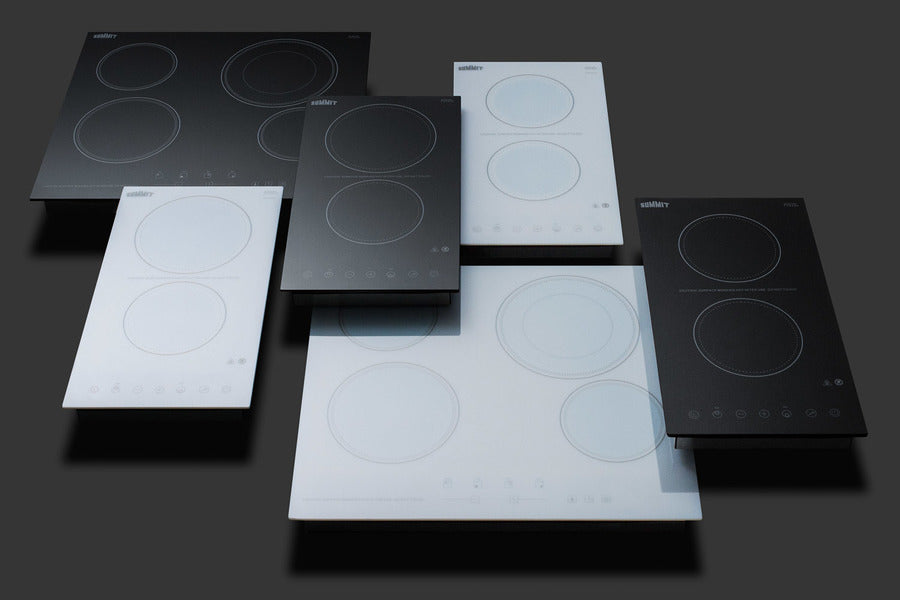

SUMMIT's collection of smooth-top radiant cooktops offers an easy-to-clean design with modern style built for smaller kitchen spaces.

The CR2B23T4W is an ENERGY STAR certified 12" wide 230V radiant cooktop designed to fit popular 10 3/4" W x 19 7/8" D counter cutouts. The surface is made from smooth Schott ceramic glass in a classic white finish for a durable, modern look. This unit does not ship with a power cord and must be hard-wired by a professional.

For true cooking versatility, the CR2B23T4W features a large 7" 1800W burner in the rear and a smaller 5 1/2" 1200W burner in front. The digital touch controls are located in the front for easier accessibility, preventing users from reaching over hot burners to make adjustments. Nine power levels provide true cooking versatility, allowing you more precision in melting or simmering at a low wattage and the convenience of boiling water quickly at a higher setting. The digital display makes it easy to read and manage the settings at the touch of a button. This unit also includes a timer function that lets you program a power level and cook time (up to 99 minutes). The burner turns off automatically when the cooking duration has finished. Safety features include a child lock function, automatic shutoff, and residual heat indicators for both elements.

With its attractive design, ideal size, and intuitive touch controls, the CR2B23T4W brings a user-friendly cooking performance with reliable safety to small kitchen spaces.

 Overview

Refrigerator-Freezer

Nominal Height 2.0" (5 cm) Heating Type Radiant
Height of Cabinet 2.0" (5 cm) Surface Glass
Nominal Width 12.0" (30 cm) Element Type Glasstop
Width 11.38" (29 cm) Number of Elements 2
Nominal Depth 21.0" (53 cm) Controls Digital
Depth 20.5" (52 cm) Cooking Timer Yes
Cabinet White Countertop Cutout Height 5.9" (15 cm)
US Electrical Safety ETL Countertop Cutout Width 10.75" (27 cm)
Canadian Electrical Safety ETL-C Countertop Cutout Depth 19.9" (51 cm)
Amps 15.0 Power Source 230V
Voltage/Frequency 230 V AC/60 Hz Element #1 Size 7.0" (18 cm)
Weight 10.0 lbs. (5 kg) Element #1 Wattage 1800.0
Parts & Labor Warranty 1 Year Element #2 Size 5.5" (14 cm)
UPC 761101053301 Element #2 Wattage 1200.0


Power Cord Included No

BROCHURE

ASSEMBLY DRAWING

SUPPORT
