Summit DW245NTADA 24″ Wide Built-In Panel-Ready Dishwasher – ADA-Compliant Height
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit's European dishwashers offer true efficiency for the home, with ENERGY STAR certified performances and ultra quiet operation.

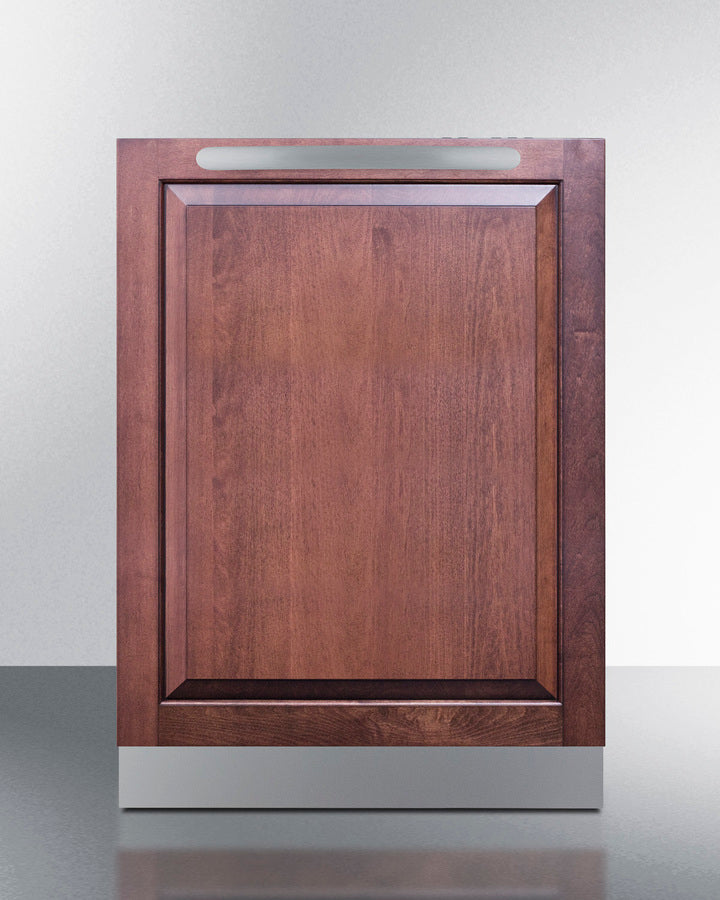

Model DW245NTADA is a 24" wide dishwasher sized at 32.25" high for an easy fit under lower ADA compliant counters. The leveling legs allow you to raise the height up to 34". We include an extra kickplate that covers the front for a cleaner look and to help prevent dirt from going under the unit. This is a fully integrated dishwasher with an unfinished door designed to accept user-provided panels to create a seamless look that blends into your cabinetry. Users also provide their own handle. The control panel is located on top of the door to help ensure a seamless look with your kitchen.
Advanced sound absorption ensures a quiet performance at just 47 dB. This unit offers eight wash programs to accommodate all of your cleaning needs, from an "intensive plus" setting for tough stains to a delicate function to safely handle fragile items. Five auxiliary functions let you further customize the wash and dry settings, with options that include sanitize, extra fast, extra dry, high temperature, and half load for added efficiency. The control panel features easy touch buttons and a digital display for intuitive operation. Additional features include a pause function, 19-hour delay start option, and indicators for rinse aid, water cutoff, and overflow.
Inside, the DW245NTADA features stainless steel construction for true durability. Two spray arms help to ensure your full load is thoroughly washed. The upper slide-out rack can be set in two positions, allowing you to adjust the setup if washing particularly tall items. Side flaps can be used to stack smaller cups, keep glasses in place, or hold long utensils. The lower rack includes two fold-down tines that let you better accommodate oversized pots as needed. We include a removable cutlery basket to make it easier to load and unload silverware.
In addition to this dishwasher, Summit offers more choices in alternate finishes, including white, black, and stainless steel. Browse the full line to explore our assortment.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Number of Cycles | 8 |
| Height of Cabinet | 32.25" (82 cm) | Number of Racks | 2 |
| Nominal Width | 24.0" (61 cm) | Rack Material | Wire |
| Width | 23.5" (60 cm) | Silverware Basket | Yes |
| Nominal Depth | 22.0" (56 cm) | Delayed Start | Yes |
| Depth | 21.75" (55 cm) | China Setting | Yes |
| Depth with door at 90° | 45.5" (116 cm) | Interior Finish | Stainless Steel |
| Dishwasher | Standard | Interior Height | 24.75" (63 cm) |
| Door | Panel-Ready | Interior Width | 21.5" (55 cm) |
| US Electrical Safety | UL | Interior Depth | 20.0" (51 cm) |
| Canadian Electrical Safety | ULC | Decibel Rating | 47.0 dBA |
| Energy Usage/Year | 234.0kWh/year | Number of Options | 8 |
| Amps | 12.0 | Leveling Legs | Yes |
| Voltage/Frequency | 115 V AC/60 Hz | Place Settings | 10 |
| Weight | 95.0 lbs. (43 kg) | ||
| Parts & Labor Warranty | 1 Year | ||
| UPC | 761101079615 |
