Summit CSD4B24 24″ Wide 230V 4-Burner Solid Disk Cooktop – Stainless Steel
Customer service
Features
- SKU SA-CSD4B24
Summit's selection of electric cooktops offers the perfect fit for every application.

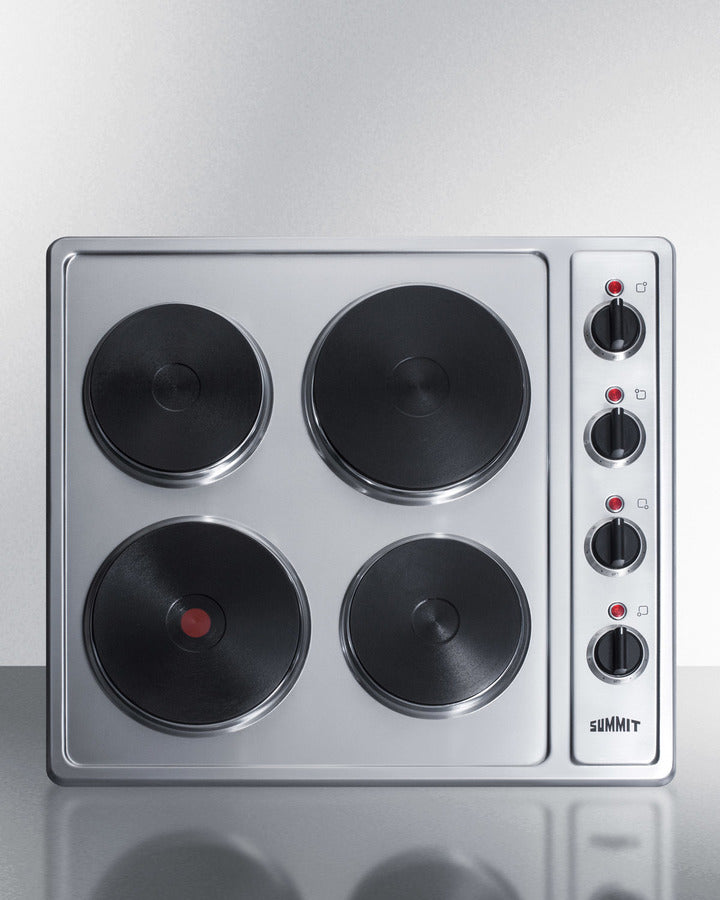

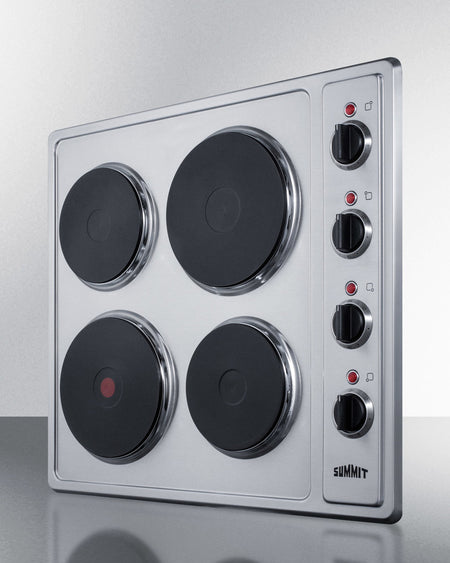

Sized at 24" wide, the CSD4B24 is a 230V cooktop with four solid disk elements. The surface comes in brushed stainless steel for an attractive look built to last. The element located in the front left side is 8" wide, with 2000W of cooking power ideal for larger cookware. The rear 1500W 8" element also accommodates full-sized pots and pans, while two 1000W 6" heating elements meet most general heating needs.
The solid disk elements are constructed from cast iron, ensuring extreme durability. These elements also retain heat longer than traditional coil or glass top surfaces, making them ideal for keeping the contents in your pots and pans warmer before serving. Even heat distribution helps to improve your cooking results. This unit includes push-to-turn knobs and an "on" indicator light for each burner for added safety.
With its modern style and durable design, the CSD4B24 is a great choice for hotels, mobile homes, tiny houses, and other small kitchens with specific cooking needs. This is a 230V cooktop that requires professional installation. For a 2-burner version, see the CSD2B230.
|
Overview |
Refrigerator-Freezer |
||
| Nominal Height | 4.13" (10 cm) | Heating Type | Radiant |
| Height of Cabinet | 4.13" (10 cm) | Surface | Stainless Steel |
| Nominal Width | 23.0" (58 cm) | Element Type | Cast Iron |
| Width | 22.75" (58 cm) | Number of Elements | 4 |
| Nominal Depth | 21.0" (53 cm) | Controls | Dial |
| Depth | 20.38" (52 cm) | Countertop Cutout Height | 5.0" (13 cm) |
| Cabinet | Stainless Steel | Countertop Cutout Width | 22.0" (56 cm) |
| US Electrical Safety | ETL | Countertop Cutout Depth | 19.75" (50 cm) |
| Canadian Electrical Safety | ETL-C | Power Source | 230V |
| Amps | 23.0 | Element #1 Size | 8.0" (20 cm) |
| Voltage/Frequency | 230 V AC/60 Hz | Element #1 Wattage | 2000.0 |
| Weight | 14.0 lbs. (6 kg) | Element #2 Size | 6.0" (15 cm) |
| Parts & Labor Warranty | 1 Year | Element #2 Wattage | 1000.0 |
| UPC | 761101056340 | Element #3 Size | 8.0" (20 cm) |
| Element #3 Wattage | 1500.0 | ||
| Element #4 Size | 6.0" (15 cm) | ||
| Element #4 Wattage | 1000.0 | ||
| Power Cord Included | No |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
