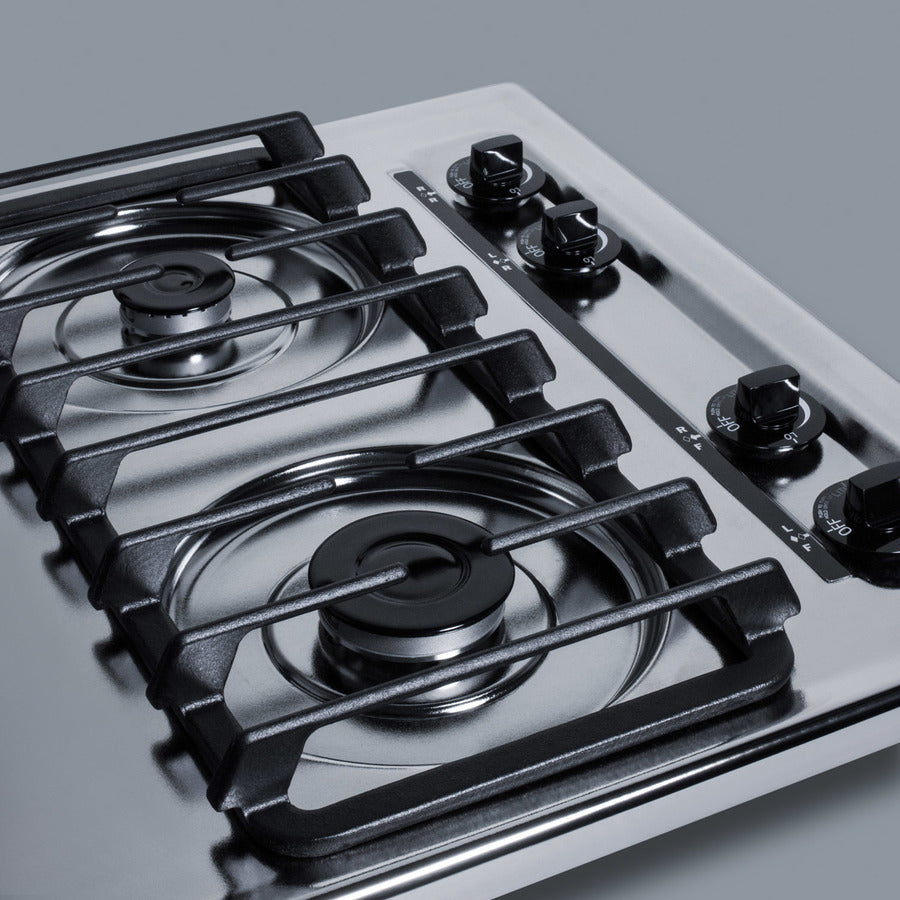

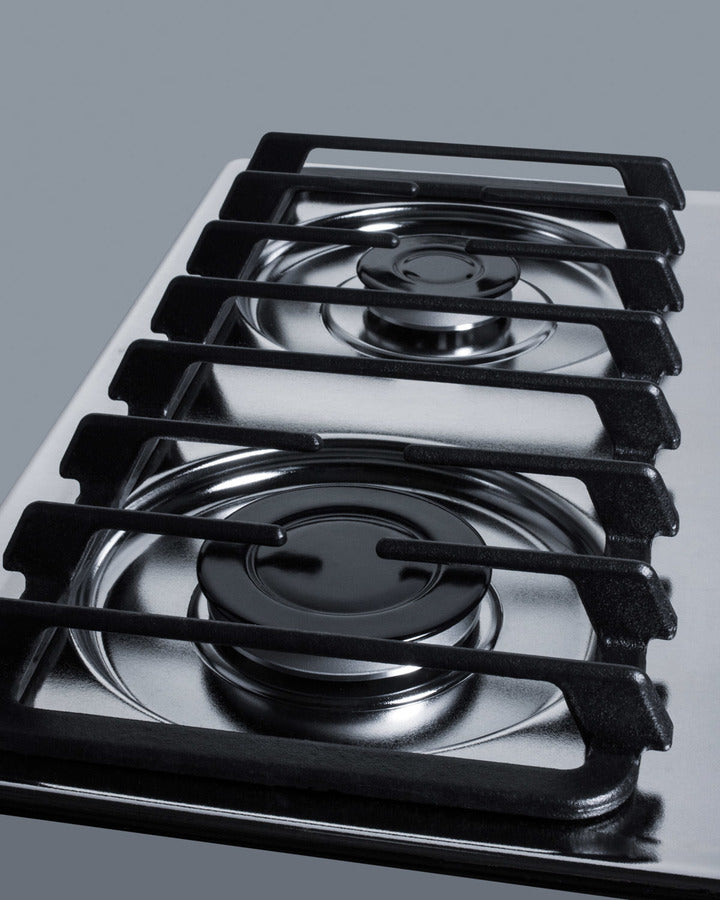

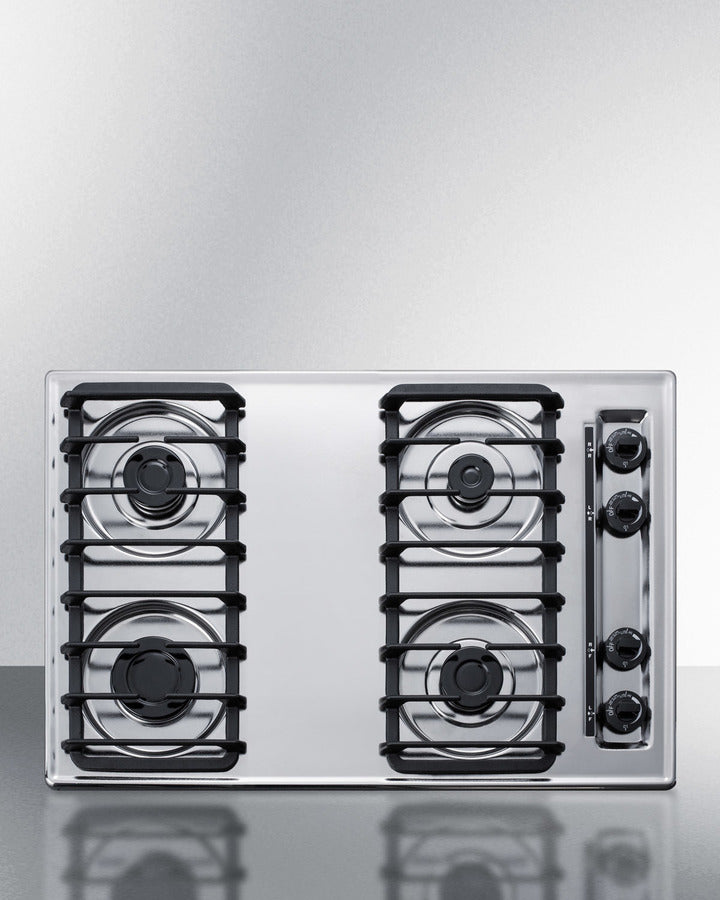

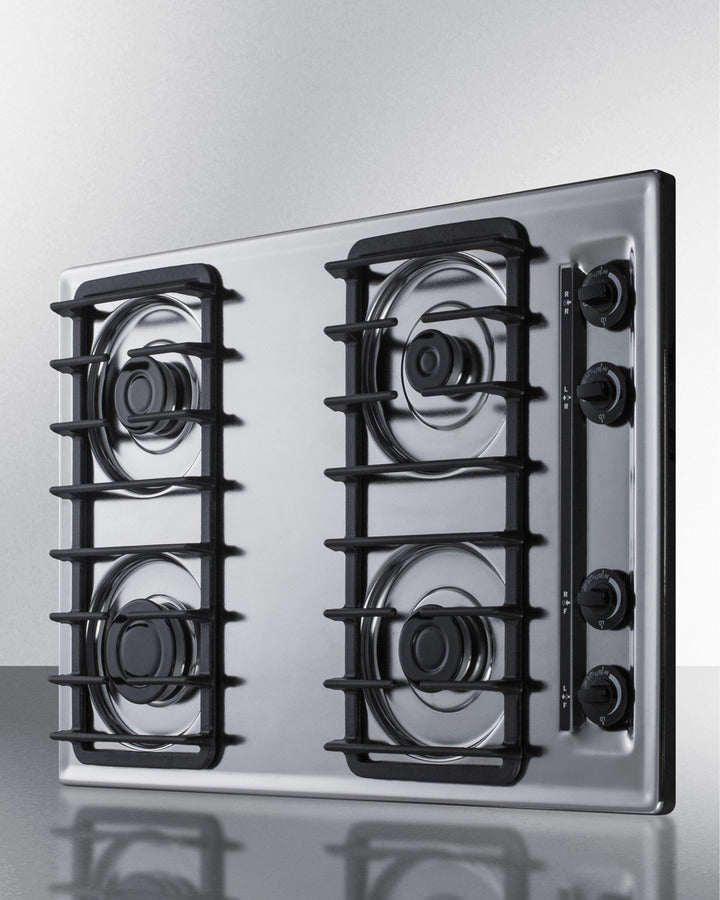

Summit ZTL053S 30″ Wide 4-Burner Gas Cooktop – Brushed Chrome Surface

SKU: SA-ZTL053S
Regular price $632.00
Wok Ring & Ultra-Rapid Center Burner — A dual-ring center burner rated up to 11,000 BTU and comes with a removable wok ring to accommodate large, high-heat cooking vessels. Recessed Brushed Chrome Surface with Side Controls — Stylish and easy to clean surface contains spills, while controls on the side improve accessibility and safety.
Flexible Installation & LP Conversion Ready — Designed for common 28 3/8″ W × 18 5/8″ D cut-out and convertible to LP gas with optional kit for versatile installation.
Sealed Sabaf® Burners with High Output — Four sealed burners include one 12,000 BTU power burner, two 9,100 BTU standard burners and one 5,000 BTU simmer burner for flexible cooking.
4.0" H x 29.75" W x 20.0" D
(10cm H x 76cm W x 51cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-ZTL053S

Made in the USA:
Designed and constructed domestically

Fits common cutouts:
Designed for 28 3/8" W x 18 5/8" D cutouts for an easy fit in smaller kitchens

Sealed Sabaf® burners:
Quality burners with cast iron tops ensure lasting durability and easier cleanup

Cast iron grates:
Two sets of continuous grates in heavy duty cast iron hold up to large cookware

Power burner:
Front left burner features 12,000 BTU output for powerful cooking

Simmer burner:
Rear burner on right side reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Two standard burners:
Front right and rear left burners offer 9100 BTUs of cooking power to accommodate most dishes

Removable burner caps
Burners include a removable cap for easy cleaning

Brushed chrome surface:
Striking look with easy cleanability

Recessed top:
Curved design helps to contain spills on the surface for easier cleanup

Designed for natural gas:
Set for use with natural gas connection. To convert for propane use, add Kit LP S2

Side controls:
Cooktop knobs are located on the right side of the cooktop, clearing up space in the front for easier cooking

Push-to-turn knobs:
To prevent accidents, knobs require a small amount of force when turning

Electronic/gas spark ignition:
Gas spark ignition for automatic lighting of burners

Cord included:
Pre-installed 115V 3-pronged power cord

Made in the U.S.A., Summit's gas cooktops offer lasting quality and reliable cooking.

The ZTL053S is a 30" wide 4-burner cooktop designed for 28 3/8" W x 18 5/8" D cutouts. The brushed chrome surface features a recessed design to better contain spills. The side-located push-to-turn dial knobs offer easy use. Two sets of continuous cast iron grates are designed to hold up to heavy pots and pans.

Four sealed Sabaf burners with removable burner caps ensure safer and cleaner cooking. The ZTL053S includes a high output 12000 BTU burner for powerful heating, conveniently located in front for easy access. The rear 5000 BTU burner is ideal for simmering at lower power or keeping food warm without overcooking. Two standard 9100 BTU burners meet most cooking needs. This unit utilizes electronic spark ignition and includes a pre-installed 3-pronged cord.

The ZTL053S is set for natural gas and can be converted to propane connections with the purchase of our Kit LP S2. Additional choices are available in black and white, as well as in 24" and 27" wide fits. Browse our site for more.

 Overview

Refrigerator-Freezer

Nominal Height 4.0" (10 cm) Ignition Spark
Height of Cabinet 4.0" (10 cm) LP Convertible With Kit LP S2 Accessory
Nominal Width 30.0" (76 cm) Number of Burners 4
Width 29.75" (76 cm) Controls Dial
Nominal Depth 20.0" (51 cm) Surface Painted
Depth 20.0" (51 cm) Grate Material Cast Iron
Cabinet Chrome Cutout Width 28.38" (72 cm)
US Electrical Safety CSA Cutout Depth 18.63" (47 cm)
Canadian Electrical Safety CSA-C Burner #1 BTU 12000.0
Weight 27.0 lbs. (12 kg) Burner #2 BTU 9100.0
Parts & Labor Warranty 1 Year Burner #3 BTU 9100.0
UPC 761101061641 Burner #4 BTU 5000.0
Power Cord Included Yes
