Summit SMBI27TK30 30″ Wide Built-In Microwave – 2.2 cu. ft Capacity, 1200 W, Stainless Steel Trim Kit Included

SKU: SA-SMBI27TK30
Regular price $881.30
Built-In Dimensions for Clean Integration — The actual unit measures 18.88″ H × 29.75″ W × 19.63″ D with a cut-out requirement of 17.13″ H × 25.5″ W × 22.75″ D, making it ideal for built-in wall or cabinet installation.
Digital Control Panel & Multi-Stage Cooking Options — Features digital controls, one-touch presets for popcorn/pizza/beverages, +30 seconds quick add, defrost by weight or time, sensor cook and memory function for saved cooking procedures.
Premium Stainless Steel Trim & Large Window Design — Brushed stainless steel frame with horizontal grain, large door window for easy viewing and a 16.5″ glass turntable for even heating of large plates.

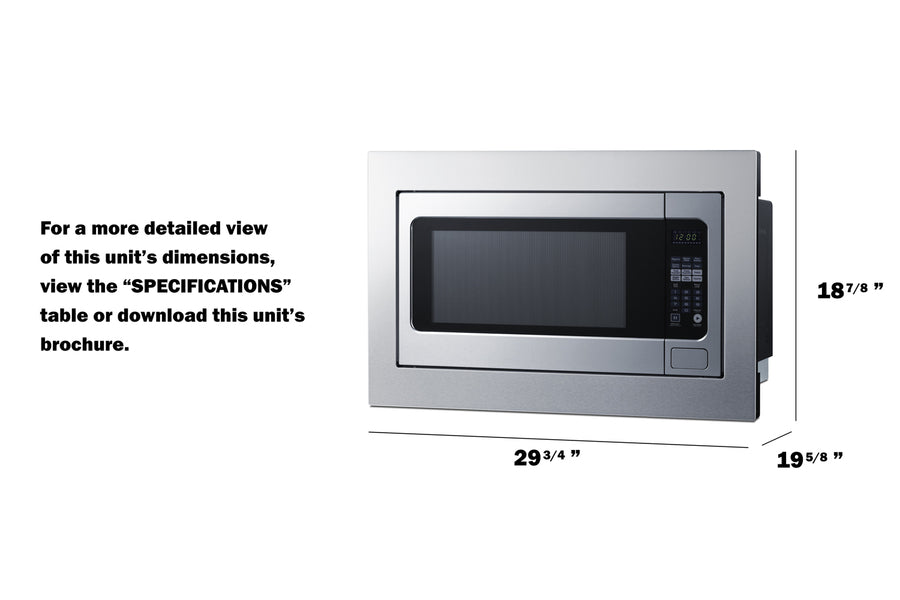

18.88" H x 29.75" W x 19.63" D
(48cm H x 76cm W x 50cm D)
5 years - Compressor Warranty
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-SMBI27TK30

Built-In Microwave Oven:

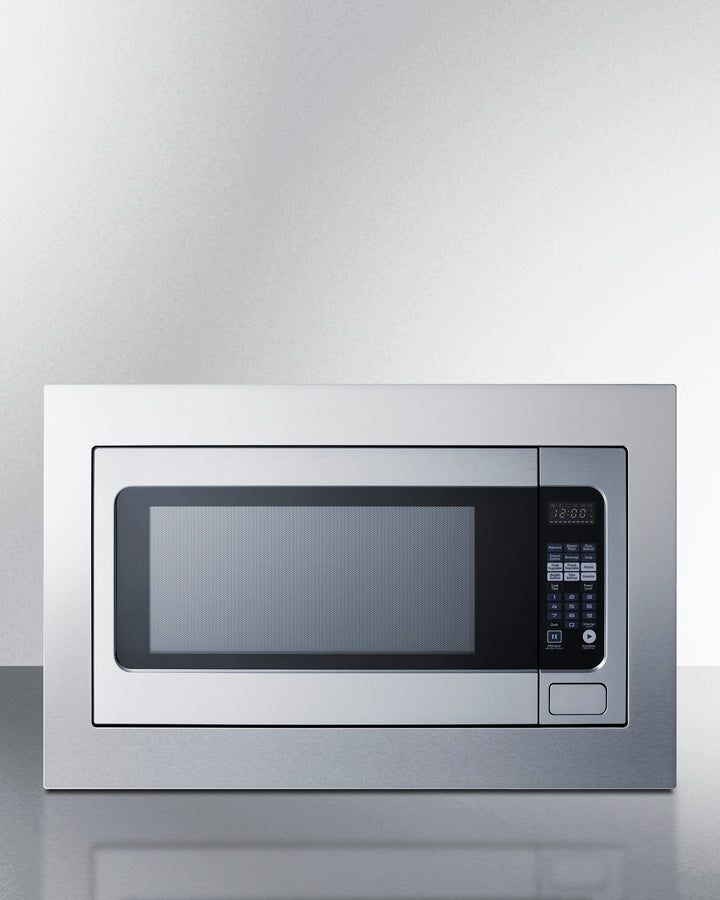

Built-in microwave oven that ships with a trim kit designed to allow installation in 30" wide cabinet openings

Fits common cutouts:
Designed for 17 1/8" H x 25 1/2" W x 22 3/4" D cutouts, with a trim kit that covers spaces up to 29 3/4" W; Note: actual microwave is sized at 13 1/2" H x 24 3/8" W x 19 5/8" D

Built-in trim kit included:

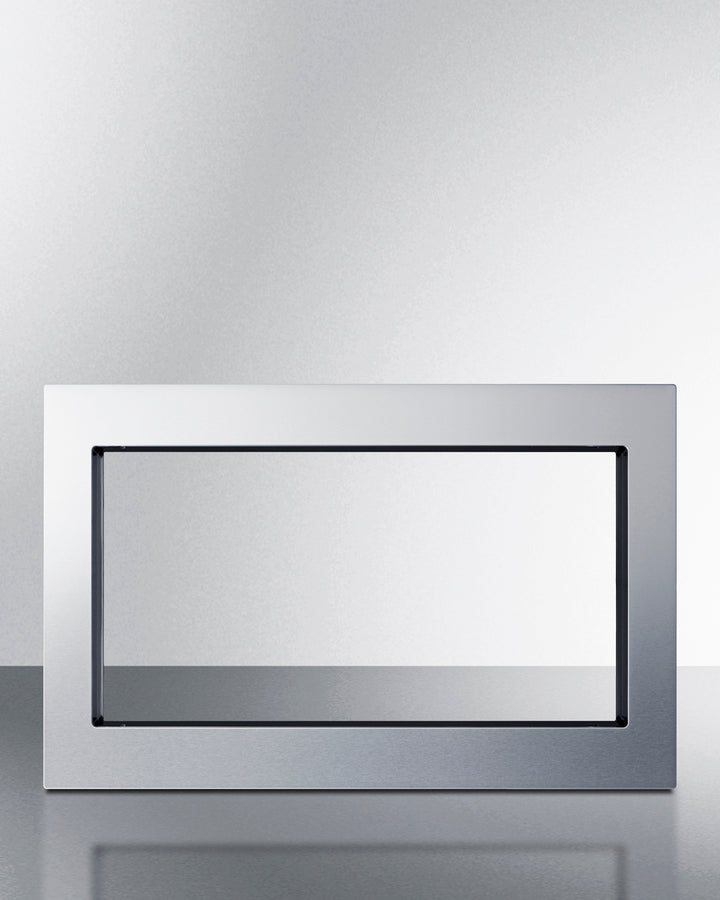

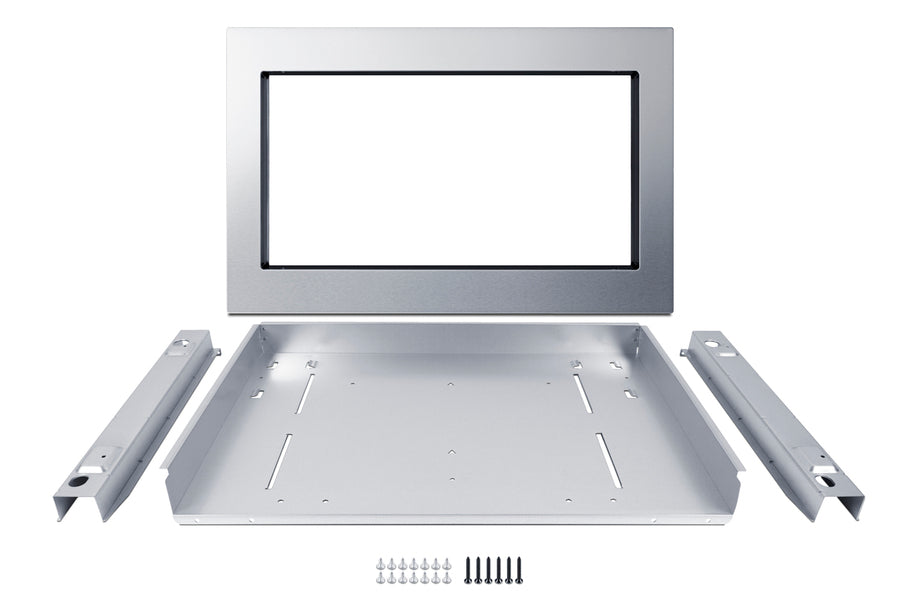

Ships with our TKSM30 accessory, complete with bottom duct (microwave base), rails, trim kit frame, and all the necessary screws for installation

Large capacity:
Full 2.2 cu.ft of interior cooking space to fit large dishes

1200W operation:
Powerful performance ideal for larger meals

Stainless steel frame:
Included with the microwave to help fit the overall unit into standard 30" wide spaces, with a horizontal grain to match other fixtures

Stainless steel front:
Brushed stainless steel trim in a horizontal grain to match many existing designs

Door window:
Large window design makes it easy to view your cooking without opening the door

Large glass turntable:
Interior includes sizable glass disc that rotates to ensure even heating

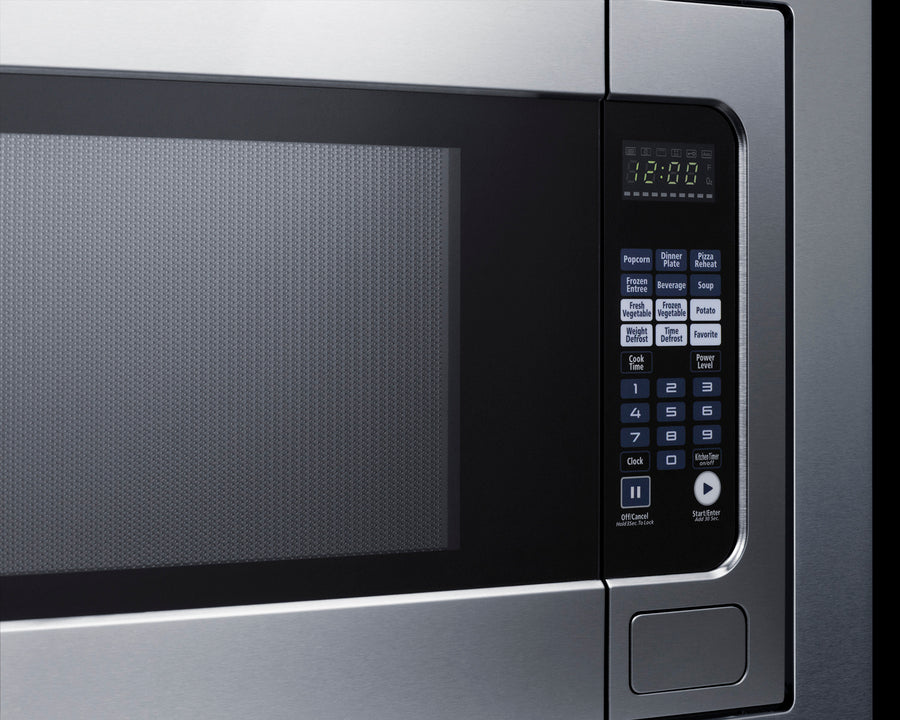

Digital control panel:
Front located controls with easy-to-identify settings for a variety of cooking activities

Multistage Cooking:
Program up to 2 cooking sequences to achieve the proper heating results

Specialty 1-touch cooking options
Pre-programmed settings for potatoes, pizza, beverages, popcorn, frozen dinners, and reheating

+30 Seconds Function
One-touch setting lets you add 30 seconds of full power heating

Defrost funtions:
Defrost by weight or time for decreased cook time

Sensor cook function:
Automatically sets the appropriate cooking time by sensing the moisture level of the food being cooked

Memory function:
Microwave can conveniently save up to 3 cooking procedures

Child lock:
Activate this setting to disable the control panel

Timer:
Allows you to set a countdown timer as needed

Clock:
Unit conveniently displays time

End of cycle buzzer:
An audible signal lets you know when the time is up

FCC Approved:
This unit complies with part 18 of the FCC rules

Summit's selection of built-in microwaves offers seamless solutions to complete any kitchen space.

Model SMBI27TK30 is a 1200W microwave designed for built-in installation. It ships with a complete trim kit (accessory TKSM30) that includes a 29 3/4" wide stainless steel frame, bottom duct, rails, and the screws needed for setup. It can be installed above or below the counter and over a wall oven for added kitchen convenience. The dimensions of the actual microwave are 13.5" H x 24.38" W x 19.63" D. The cutout dimensions of the cabinet should be 17 to 17.125" H x 25.5" W x 22.75" D. For more information, download the installation instructions below.

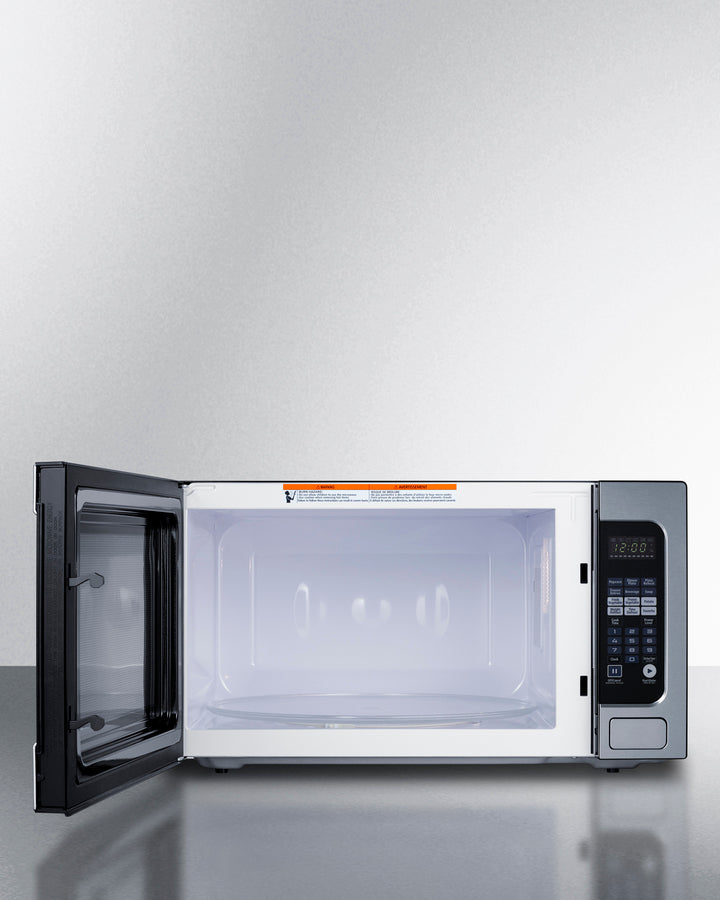

Inside, this microwave offers a full 2.2 cu.ft of cooking space in a clean white interior with a large glass turntable, which can be removed for easier cleanup. Our SMBI27TK30 features digital controls that offer a variety of cooking functions, including popcorn, reheating, defrosting, melting, and softening butter. Additional settings let you auto-defrost, cook by weight, or add 30 seconds for fast reheating. Multi-stage cooking enables you to combine different functions.

With an attractive, low profile design and complete cooking convenience, the SMBI27TK30 is the ideal built-in microwave oven for kitchens with large capacity needs. For this unit with a 27" trim kit, see model SMBI27TK27. Additional sizes, as well as drawer and over-the-range microwaves, are also available. Browse the Summit line to explore our complete collection.

 Overview

Refrigerator-Freezer

Nominal Height 19.0" (48 cm) Type Built-In
Height of Cabinet 18.88" (48 cm) Wattage 1200.0
Nominal Width 30.0" (76 cm) Controls Digital
Width 29.75" (76 cm) Digital Display Yes
Nominal Depth 20.0" (51 cm) Turntable Yes
Depth 19.63" (50 cm) Turntable Diameter 16.5" (42 cm)
Depth with door at 90° 39.88" (101 cm) Specialized Cooking Buttons Yes
Capacity 2.2 Cutout Height 17.13" (44 cm)
Door Stainless Steel Cutout Width 25.5" (65 cm)
Cabinet Black Cutout Depth 22.75" (58 cm)
US Electrical Safety UL Interior Height 10.0" (25 cm)
Canadian Electrical Safety ULC Interior Width 16.88" (43 cm)
Voltage/Frequency 115 V AC/60 Hz Interior Depth 17.0" (43 cm)
Parts & Labor Warranty 1 Year
UPC 761101146683

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
