Summit RGH24RSS 24″ Wide Gas Range & Convertible Hood Set – 4-Burner Range with 2.9 cu ft Oven + Stainless Steel Hood

SKU: SA-RGH24RSS
Regular price $1,566.00
Convertible Vent Hood for Ducted or Recirculating Use — The included under-cabinet hood supports top or rear exhaust, ships set for recirculating mode but easily converts to ducted usage; includes mesh grease filter and charcoal filter for odor control.
Complete Range + Hood Set for Compact Kitchens — Includes a 24″-wide deluxe gas range paired with a matching convertible range hood to form a full cooking & ventilation station.
Powerful & Versatile Burner Configuration — Four sealed burners including a high-output 12,000 BTU burner, two 9,500 BTU burners and a 5,000 BTU simmer burner for precision and flexibility.
42.0" H x 23.63" W x 24.5" D
(107cm H x 60cm W x 62cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-RGH24RSS

Range/hood set:
Includes our PRO247SS 4-burner gas range with oven and our H24RSS convertible range hood to create a fully functional cooking and ventilation station in small kitchens

24" Width:
Perfectly sized for apartments and smaller kitchens

Convertible hood:
Can be used for ducted venting to the outside or recirculating ventilation where no external venting is possible

Versatile top or rear exhaust:
Ships for standard 3 1/4" x 10" vertical or horizontal exterior venting and convertible to a 6" or 7" round vertical venting with a transition (not included)

Easy 1-step conversion for ducted use:
Hood ships pre-set for recirculating mode but can be converted for ducted use in less than a minute

Filters included:
Hood ships with a removable easy-to-clean aluminum mesh filter to capture grease, and a charcoal filter to absorb odors when using the hood in recirculating mode

Under cabinet range hood in stainless steel:
Low profile design offers a classic way to finish your kitchen, with a complete stainless steel exterior with an easy-to-match horizontal grain

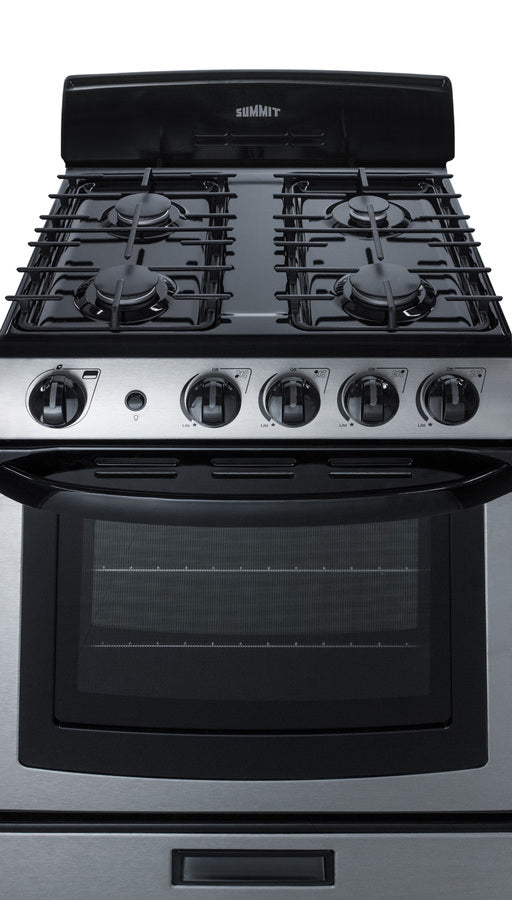

Sealed burners:
Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP Convertible:
Unit is set for natural gas but can be converted aftermarket with the included LP kit

Stainless steel finish:
Range hood and the stove's door, broiler, and control panel, and handle feature a stainless steel finish for a professional look

Oven window with light:
Easier monitoring of your cooking with an oven window and on/off light

Cast iron grates:
Two sets of continuous cast iron burner grates offer durable cooking with a lightweight feel for easier cleaning

High output burner:
Front right burner features 12,000 BTU output for powerful cooking

Two semi-rapid burners:
Two left burners operate at 9,500 BTU to handle most heating needs

Low output burner:
Rear right burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Upfront controls:
Control panel is conveniently located to prevent users from reaching over hot cooktop surface for adjustments

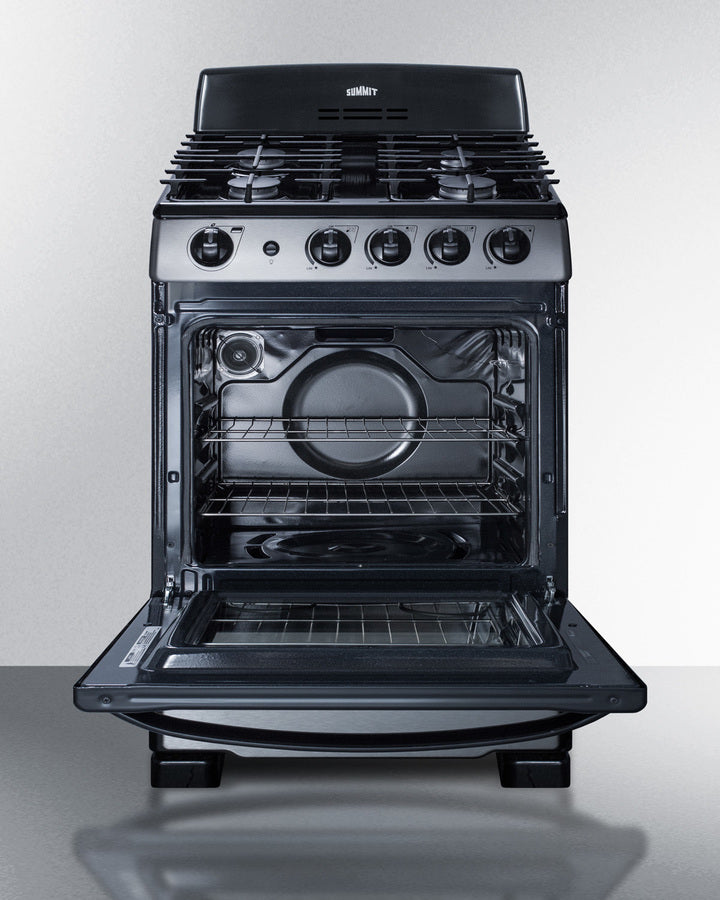

Porcelain construction:
Oven interior features high quality porcelain construction for long-lasting durability

Slide-out oven racks:
Two racks with four glide positions for flexible cooking

Safety brake system for oven racks:
Sliding racks will stay in your oven with special brake mechanism

Broiler compartment:
Drop-down lower compartment offers the ideal conditions for broiling

Indicator lights:
Control panel includes an 'on' light for the oven and burners for added safety when using the range

Push-to-turn controls:
Burner knobs require a small amount of force to turn on for added protection against accidents

Electronic ignition:
Spark ignition for added safety

Broiler pan included:
Two-piece broiler pan with lid included with each range

High backguard:
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included (range):
Standard 3-pronged 115V cord included for the electronic ignition; NOTE: range hood must be hard-wired by a licensed professional

Anti-tip bracket:
Safety feature included for user installation to help prevent accidents

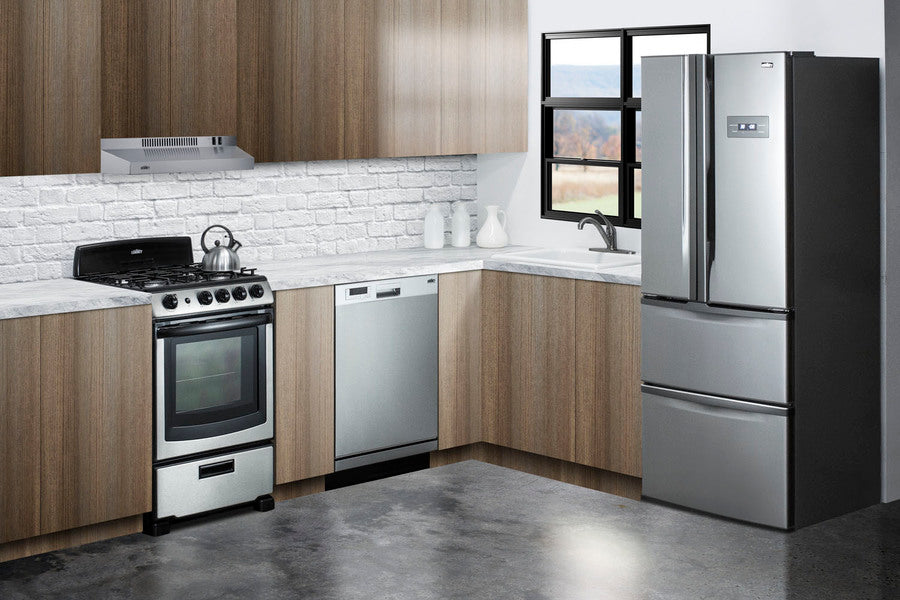

Summit lets you create the perfect small kitchen with our 24" wide range and hood sets.

The RGH24RSS combines our popular PRO247SS North American-made gas range with our convertible H24RSS range hood. Ideal for apartments, this set offers versatile installation  options and an attractive finish in black and stainless steel.

The PRO247SS gas range ships set for natural gas but includes an LP kit to allow easy conversion to propane connections. This unit includes four sealed burners (including a 12,000 BTU power burner) and continuous grates in durable cast iron. Upfront push-to-turn knobs offer easy use and allows you to operate the unit without reaching over hot burners. The large 2.9 cu.ft. oven provides plenty of cooking space, with two adjustable racks included. This unit includes an oven window and interior light to allow a full view of your cooking. It utilizes electronic spark ignition and comes with a pre-installed 3-prong 115V power cord. The oven and drop-down broiler drawer come in stainless steel, with a jet black cooking surface and cabinet.

The H24RSS range hood ships set for ductless/recirculating use in kitchens without external exhaust options. It can be converted for ducted operation (rear or top venting) in one quick step. We include  an aluminum mesh grease filter, as well as an activated carbon filter for recirculating applications. A pre-installed light bulb lets you illuminate your cooking surface with a simple rocker switch light. The fan has a high and low setting to best meet your ventilation needs. Stainless steel construction completes the look and complements the stove.

The RGH24RSS ships together on one pallet. For a smooth-top electric stove and hood combination, see the REXH24RSS.

 Overview

Refrigerator-Freezer

Nominal Height 42.0" (107 cm) Ignition Spark
Height of Cabinet 42.0" (107 cm) LP Convertible Yes
Nominal Width 24.0" (61 cm) Oven Capacity 2.9 cu.ft
Width 23.63" (60 cm) Burner Type Sealed
Nominal Depth 25.0" (64 cm) Number of Burners 4
Depth 24.5" (62 cm) Grate Material Cast Iron
Depth with Handle 25.75" (65 cm) Burner #1 BTU 12000.0
Depth with door at 90° 40.25" (102 cm) Burner #2 BTU 9500.0
Door Stainless Steel Burner #3 BTU 5000.0
Cabinet Black Burner #4 BTU 9500.0
US Electrical Safety CSA Burner Controls Dial
Canadian Electrical Safety CSA-C Oven Controls Dial
Voltage/Frequency 115 V AC/60 Hz Oven Light Yes
Weight 130.0 lbs. (59 kg) Backguard Yes
Parts & Labor Warranty 1 Year Cleaning Type Manual
UPC 761101088006 Oven Rack Qty 2


Oven Window Yes


Oven Interior Height 15.25" (39 cm)


Oven Interior Width 19.0" (48 cm)


Oven Interior Depth 17.5" (44 cm)


Broiler Location Below Oven

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
