Summit RG201B 20″ Wide Gas Range – Jet Black, 4 Sealed Burners, 2.3 cu ft Oven

SKU: SA-RG201B
Regular price $1,085.80
Cleaner, Safer Cooking Surface — Sealed burners with removable cast iron tops make cleaning easier and reduce spill-overs; plus push-to-turn knobs and anti-tip bracket for safety.
Powerful & Versatile Burner Array — Four sealed burners including a 12,000 BTU high-output burner, two 9,500 BTU burners, and a 5,000 BTU simmer burner for precision cooking.

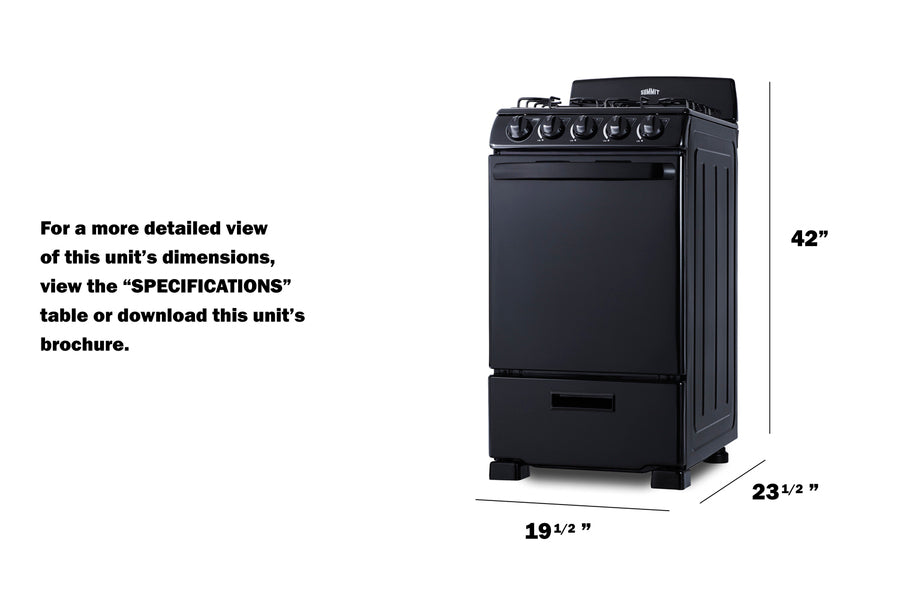

Space-Smart 20″ Width for Compact Kitchens — At just 19.5″ wide × 23.5″ deep × 42″ high, this range is designed to fit into apartments and space-challenged kitchens.
42.0" H x 19.5" W x 23.5" D
(107cm H x 50cm W x 60cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-RG201B

20" Wide Gas Range:
Featuring four sealed burners and a large oven to meet all cooking needs in smaller kitchens

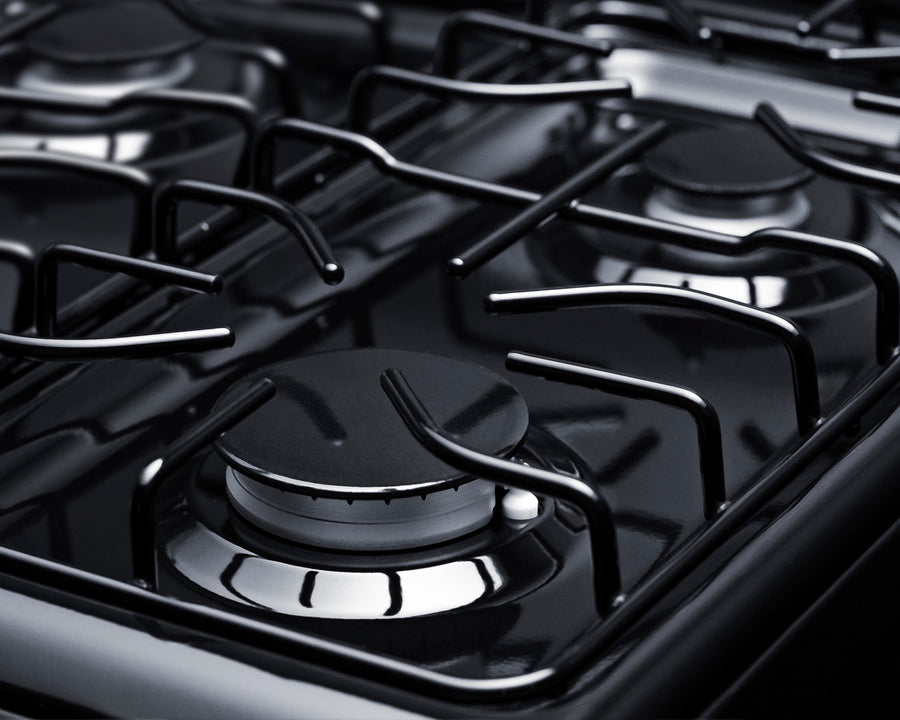

Sealed burners:
Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP kit included:
Unit is set for natural gas but can be converted aftermarket with the included LP kit

Large oven:
Full 2.3 cu.ft. interior in slim 20" width

High output burner:
Front left burner features 12,500 BTU output for powerful cooking

Two semi-rapid burners:
Two right burners operate at 9,500 BTU to handle most heating needs

Low output burner:
Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Continuous grates:
Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

Broiler compartment:
Drop-down lower compartment offers the ideal conditions for broiling

Push-to-turn knobs:
Safety knobs help prevent accidents from turning on the oven or burners

Electronic ignition:
Added safety with spark ignition system

Safety brake system for oven racks:
Sliding racks will stay in your oven with special brake mechanism

Broiler pan included:
Two-piece broiler pan with lid included with each range

High backguard:
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included:
Standard 3-pronged 115V cord included for the electronic ignition

TAA compliant:
Ideal for GSA contracts and other applications requiring a unit to have been manufactured in a TAA designated country

ADA compliant design:
Upfront controls and easy-to-operate knobs offer easier accessibility

Anti-tip bracket:
Included for user installation to help prevent accidents

Summit's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens.

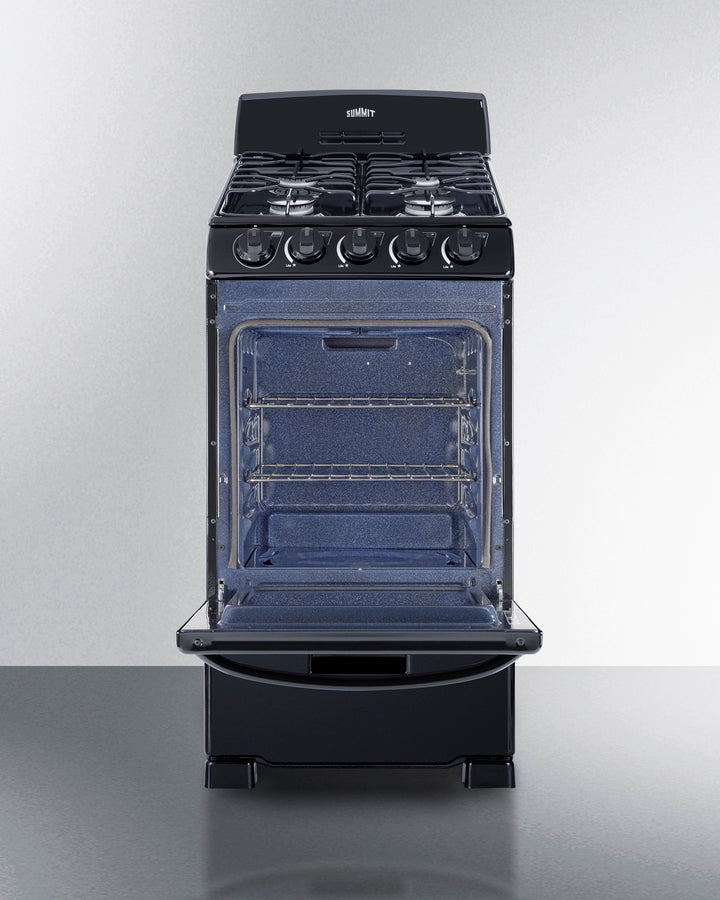

The RG201B is a 20" wide gas range designed for an easy fit in smaller kitchen spaces. The 2.3 cu.ft. oven includes two slide-out racks with a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment.

The RG201B comes in a jet black finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

With its clean look and unique size, the RG201B s the ideal gas range for apartment and small home kitchens. For this unit in a white finish, see model RG200WS.

 Overview

Refrigerator-Freezer

Nominal Height 42.0" (107 cm) Ignition Spark
Height of Cabinet 42.0" (107 cm) LP Convertible Yes
Nominal Width 20.0" (51 cm) Oven Capacity 2.3 cu.ft
Width 19.5" (50 cm) Cooktop Surface Metal
Nominal Depth 24.0" (61 cm) Burner Type Sealed
Depth 23.5" (60 cm) Number of Burners 4
Depth with Handle 25.75" (65 cm) Burner #1 BTU 12000.0
Depth with door at 90° 43.25" (110 cm) Burner #2 BTU 9500.0
Door Black Burner #3 BTU 9500.0
Cabinet Black Burner #4 BTU 5000.0
US Electrical Safety CSA Burner Controls Dial
Canadian Electrical Safety CSA-C Oven Controls Dial
Amps 5.0 Backguard Yes
Voltage/Frequency 115 V AC/60 Hz Cleaning Type Manual
Weight 130.0 lbs. (59 kg) Oven Rack Qty 2
Parts & Labor Warranty 1 Year Oven Interior Height 15.25" (39 cm)
UPC 761101103761 Oven Interior Width 14.5" (37 cm)


Oven Interior Depth 17.5" (44 cm)


Broiler Location Below Oven

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
