Summit RG200WS 20″ Wide Gas Range – 4 Sealed Burners, 2.3 cu ft Oven, White Finish

SKU: SA-RG200WS
Regular price $1,046.80
Powerful & Versatile Burner Lineup — Features four sealed burners: a 12,000 BTU high-output front burner, two 9,500 BTU midsize burners, and a 5,000 BTU simmer burner for precision cooking.
Slim 20″ Footprint for Compact Kitchens — At only 19.5″ wide and 23.5″ deep, this range fits into tight kitchen layouts while retaining full-functionality.
Built-for Safety & Easy Cleaning — Sealed burners prevent spills from entering the cooktop cavity, push-to-turn control knobs, electronic spark ignition, and safety brake system on the oven racks.
42.0" H x 19.5" W x 23.5" D
(107cm H x 50cm W x 60cm D)
1 year - Parts & Labor Warranty
Free Freight Shipping - Includes lift-gate service (curbside delivery). White Glove service available by quote: 800-626-0854 or sales@hegemonsupply.com

Features

  • SKU SA-RG200WS

Sealed burners:
Four sealed burners with removable cast iron tops ensure safer, cleaner cooking

LP kit included:
Unit is set for natural gas but can be converted aftermarket with the included LP kit

Large oven:
Full 2.3 cu.ft. interior in slim 20" width

High output burner:
Front left burner features 12,500 BTU output for powerful cooking

Two semi-rapid burners:
Two right burners operate at 9,500 BTU to handle most heating needs

Low output burner:
Rear left burner reaches maximum of 5,000 BTUs to allow more precise heating of sensitive items

Continuous grates:
Two sets of grates are removable for easy cleaning, with solid construction to support large pots and pans

Broiler compartment:
Drop-down lower compartment offers the ideal conditions for broiling

Push-to-turn knobs:
Safety knobs help prevent accidents from turning on the oven or burners

Electronic ignition:
Added safety with spark ignition system

Safety brake system for oven racks:
Sliding racks will stay in your oven with special brake mechanism

Broiler pan included:
Two-piece broiler pan with lid included with each range

ADA compliant design:
Upfront controls and easy-to-operate knobs offer easier accessibility

High backguard:
Solid backing prevents stovetop contents from splashing up or boiling over and staining walls

Power cord included:
Standard 3-pronged 115V cord included for the electronic ignition

Anti-tip bracket:
Included for user installation to help prevent accidents

SUMMIT's line of slim-fitting gas ranges made in North America brings quality and value to space-challenged kitchens.

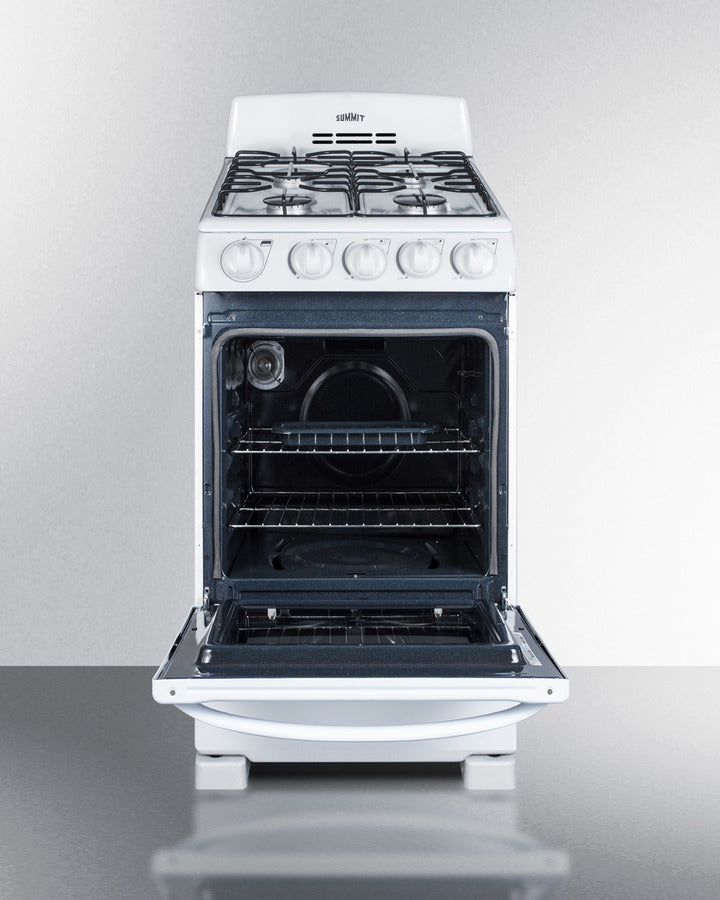

The RG200WS is sized at just 20" wide for an easy fit in smaller kitchen spaces. Two slide-out racks include a safety brake system, with four position options to let you accommodate all sizes and shapes. The broiler is located in a lower drop-down compartment. We include a two-piece broiler pan with lid.

The RG200WS comes in a classic white finish, with color-matched push-to-turn knobs and an easy-to-grab handle. This model utilizes electronic spark ignition and features four sealed burners for safer, cleaner cooking. One 12,000 BTU burner offers faster cooking for larger vessels, with two standard 9,500 BTU burners and a smaller 5,000 BTU burner for lower heating needs. The high backguard helps to protect your walls from spills, with enamel grates for lasting durability. The unit ships set for natural gas but includes its own LP kit for aftermarket conversion.

With its clean look and unique size, the RG200WS is the ideal gas range for apartment and small home kitchens.

NOTE: This unit replaces model RG200W but features an upgraded sealed burner design.

 Overview

Refrigerator-Freezer

Nominal Height 42.0" (107 cm) Ignition Spark
Height of Cabinet 42.0" (107 cm) LP Convertible Yes
Nominal Width 20.0" (51 cm) Oven Capacity 2.3 cu.ft
Width 19.5" (50 cm) Cooktop Surface Metal
Nominal Depth 24.0" (61 cm) Burner Type Sealed
Depth 23.5" (60 cm) Number of Burners 4
Depth with Handle 25.75" (65 cm) Burner #1 BTU 12000.0
Depth with door at 90° 43.25" (110 cm) Burner #2 BTU 9500.0
Door White Burner #3 BTU 9500.0
Cabinet White Burner #4 BTU 5000.0
US Electrical Safety CSA Burner Controls Dial
Canadian Electrical Safety CSA-C Oven Controls Dial
Voltage/Frequency 115 V AC/60 Hz Backguard Yes
Weight 130.0 lbs. (59 kg) Cleaning Type Manual
Parts & Labor Warranty 1 Year Oven Rack Qty 2
UPC 761101058269 Oven Interior Height 15.25" (39 cm)


Oven Interior Width 14.5" (37 cm)


Oven Interior Depth 17.5" (44 cm)


Broiler Location Below Oven

BROCHURE

ASSEMBLY DRAWING

SUPPORT

WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
