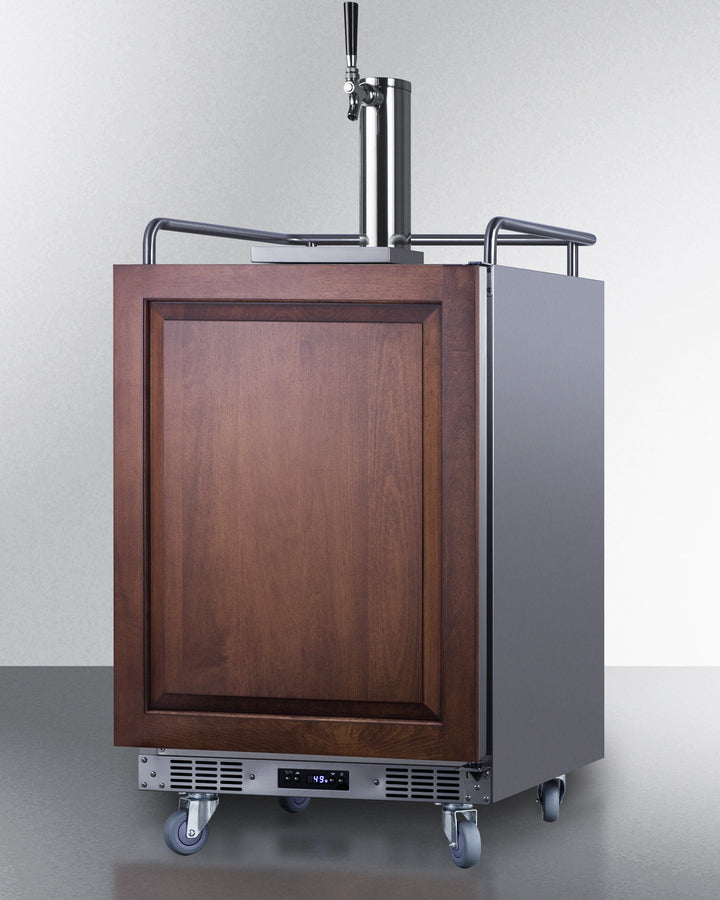

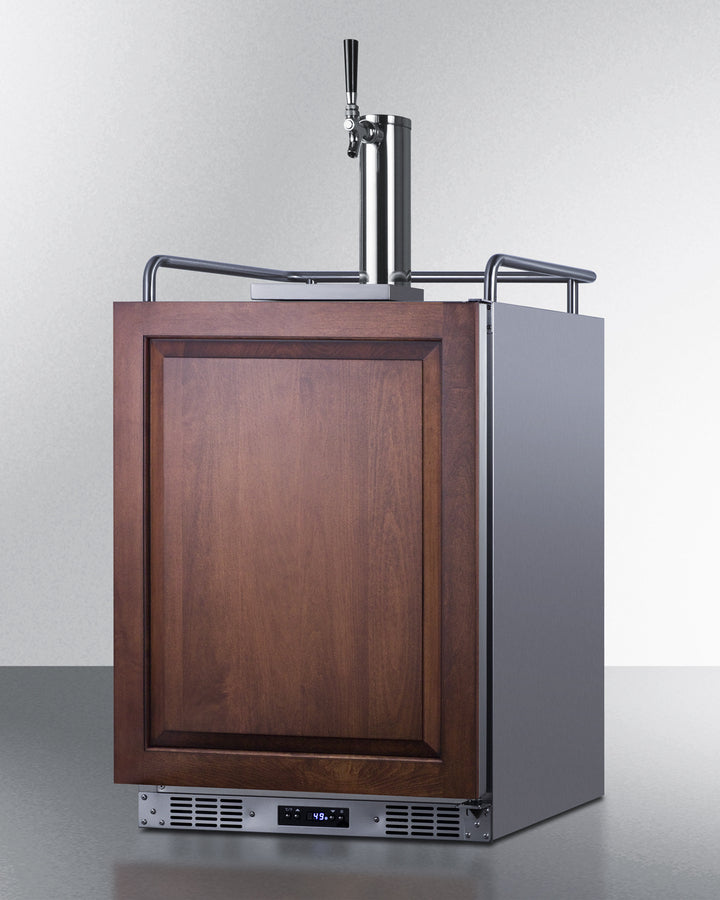

Summit SBC682PNR 24″ Wide Built-In Panel-Ready Single-Tap Kegerator – 5.6 cu. ft. Capacity
Customer service
Features
- SKU SA-SBC682PNR
Summit manufactures a complete line of versatile kegerators capable of built-in installation in indoor or outdoor home settings.

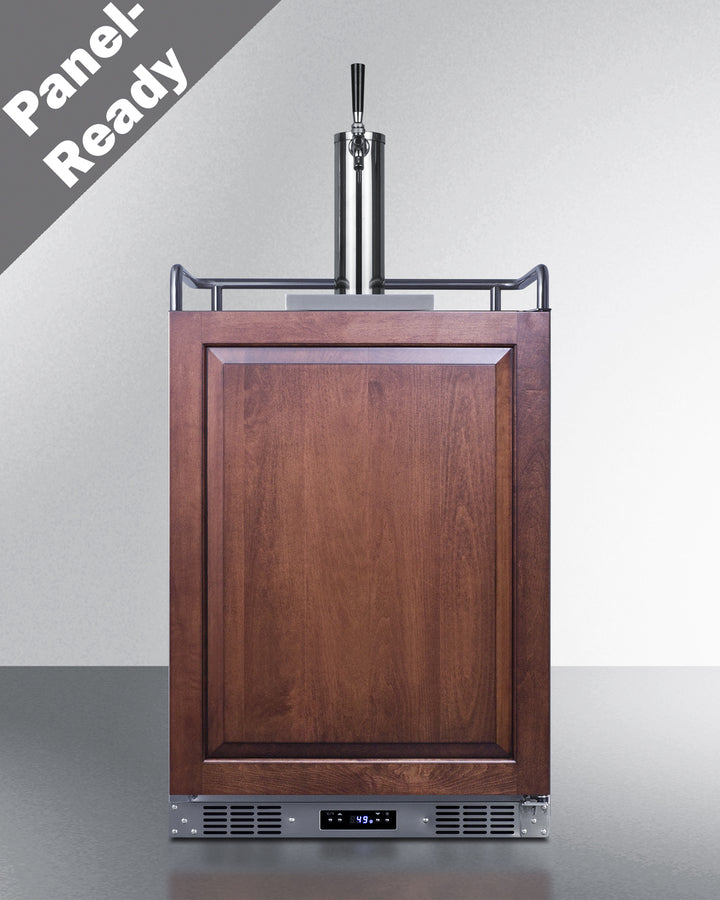

The SBC682PNR is a full-sized beer dispenser approved for both residential or commercial use. Sized at just 24" wide, it features a front-breathing system for built-in installation and a fully-finished cabinet that also allows freestanding use, with an included caster set for optional mobility. The exterior features 304 grade stainless steel construction for safe, weatherproof use in the outdoors. The door is designed to accept overlay panels (sized at 29 3/4" H x 23 5/16" W at a 3/4" thickness) to allow you to create a custom look to best suit your own kitchen design. This unit ships with a right hand door swing. For a left hand version, add option "LHDHinge." Additional features include a removable two-piece stainless steel drip tray to collect spills and a chrome guard rail to help keep glasses and mugs in place. This unit has a sealed rear for added protection from the elements.

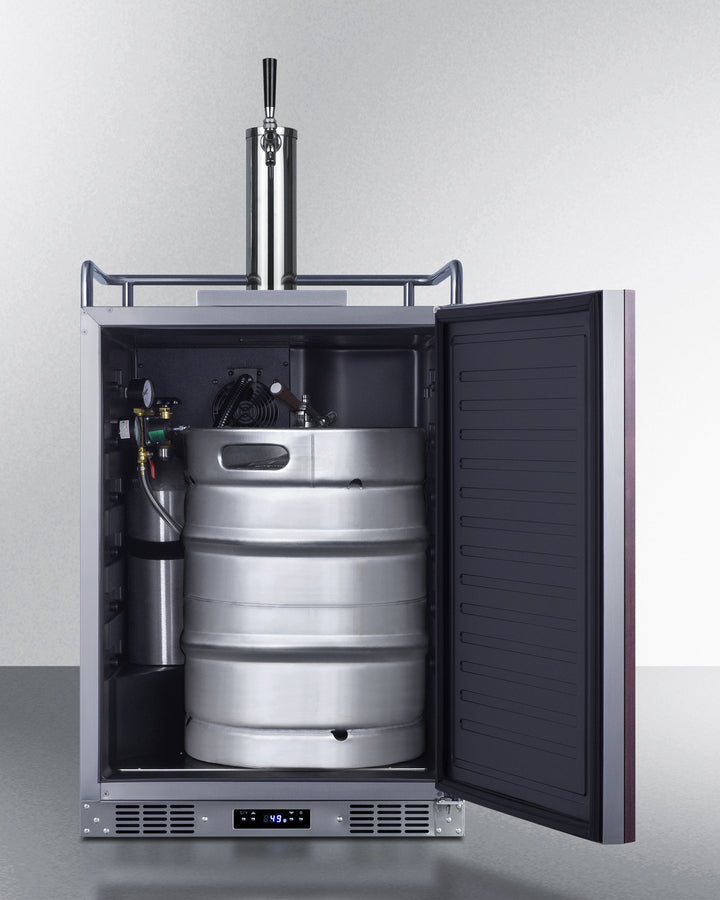

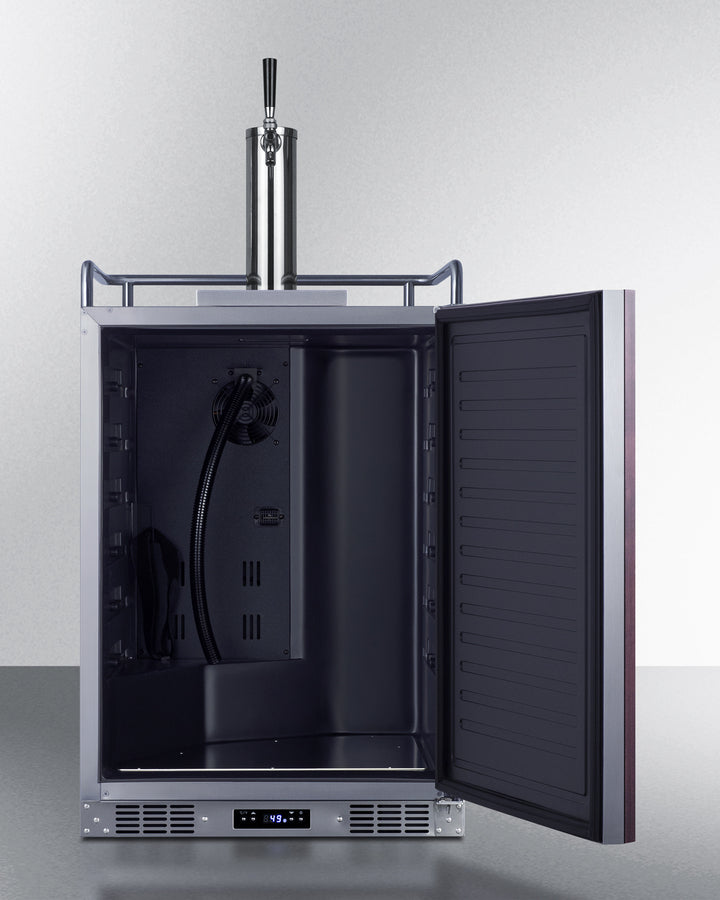

Inside, the 5.6 cu. ft. interior can accommodate a full half or quarter keg, or up to three Cornelius or sixth barrel kegs. We include a complete commercial grade tap kit for dispensing your favorite beer, including a Sankey tap system and single tap draft tower, along with a CO2 tank and regulator. A tap cool system keeps your beer cold as it goes through your tower, and a Velcro strap holds the tank in place. The floor is constructed from stainless steel for added protection when loading and removing kegs. Two chrome shelves, with six placement options, allow the kegerator to also function as a beverage refrigerator. A digital thermostat makes it easy to manage the wide range temperature, while the external digital display has a readout in Celsius or Fahrenheit. Automatic defrost operation ensures minimal user maintenance. The Memory IC function recovers the unit's last settings in the case of a power outage or disruption.

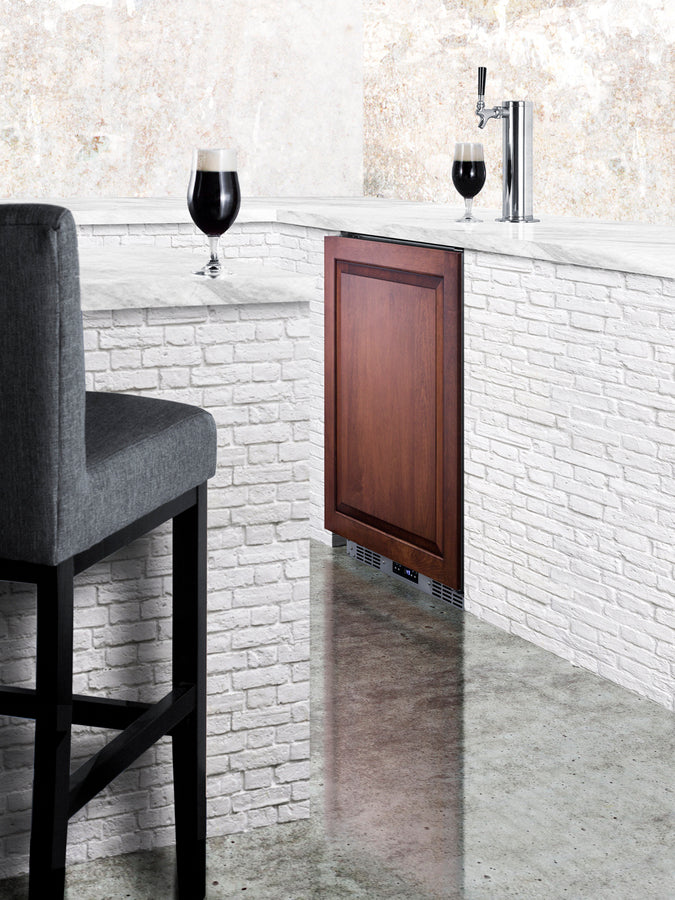

With its solid construction, user-friendly features, and attractive design, the SBC682PNR is the perfect beer dispenser for indoor or outdoor kitchens. Additional choices are available with alternate tapping options, including choices to dispense wine and coffee. Browse the full Summit line to explore all of your options.
|
Overview |
Refrigerator-Freezer |
|
|
| Nominal Height | 34.0" (86 cm) | Door Swing | RHD |
| Height of Cabinet | 33.63" (85 cm) | Reversible | Reversible w/ Optional Hinge |
| Nominal Width | 24.0" (61 cm) | Tap Kit | Yes |
| Width | 23.75" (60 cm) | Height with Tap | 51.5" (131 cm) |
| Nominal Depth | 25.0" (64 cm) | Number of Taps | 1 |
| Depth | 24.75" (63 cm) | Adjustable Shelves | Yes |
| Depth with door at 90° | 46.75" (119 cm) | Shelf Type | Chrome |
| Capacity | 5.6 cu.ft. (159 L) | Shelf Qty | 2 |
| Defrost Type | Automatic | Thermostat Type | Digital |
| Door | Panel-Ready | Fan Type | Interior |
| Cabinet | Stainless Steel | Refrigerant | R600a |
| US Electrical Safety | ETL | Refrigerant Amount | 1.06 oz. |
| Canadian Electrical Safety | ETL-C | High Side PSI | 150.0 |
| Sanitation | ETL-S | Low Side PSI | 50.0 |
| Energy Usage/Year | 305.0kWh/year | Inter Height | 26.75" (68 cm) |
| Amps | 1.25 | Interior Width | 20.0" (51 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Interior Depth | 19.0" (48 cm) |
| Weight | 120.0 lbs. (54 kg) | Level Legs Qty | 4 |
| Parts & Labor Warranty | 1 Year | Wheel Qty | 4 |
| Compressor Warranty | 5 Years | Temperature Range | 34°F to 68°F (1°C to 20°C) |
| UPC | 761101083957 | Sound Level | 34.0 db |
WARNING: This product can expose you to chemicals including nickel (metallic), which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov. Note: Nickel is a component of stainless steel.
