Summit ALWC532CSS 24″ Wide Built-In Dual-Zone Wine Cellar – ADA Height, Stainless Steel Cabinet
🔒 Secure Checkout
Need Help Choosing the Right Equipment?
Our specialists can help with product selection, freight coordination, installation questions, and bulk quotes.
Summit's extensive selection of built-in undercounter wine cellars includes ADA compliant choices with versatile designs for residential or commercial use.

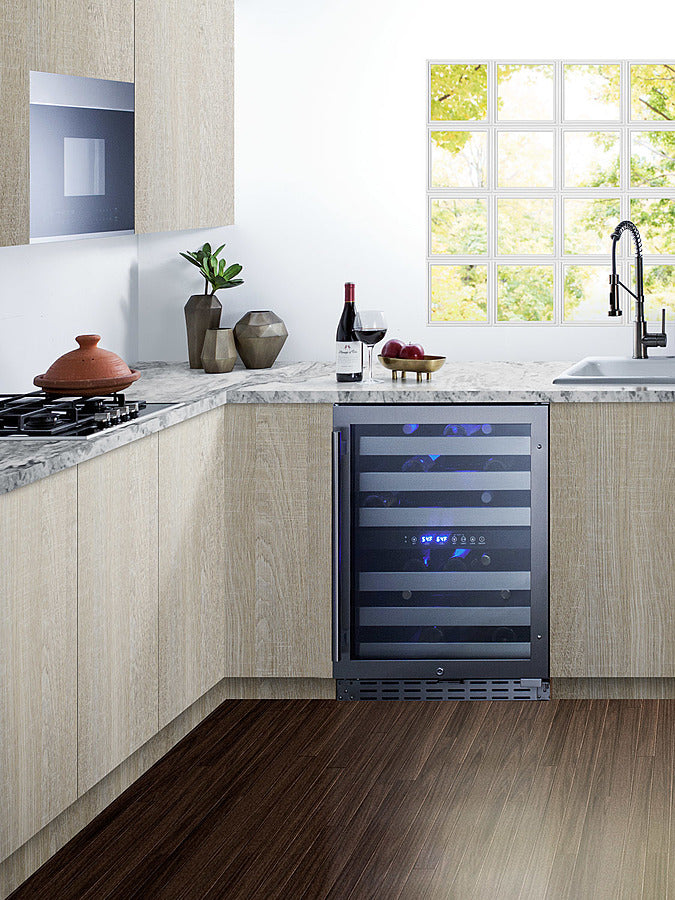

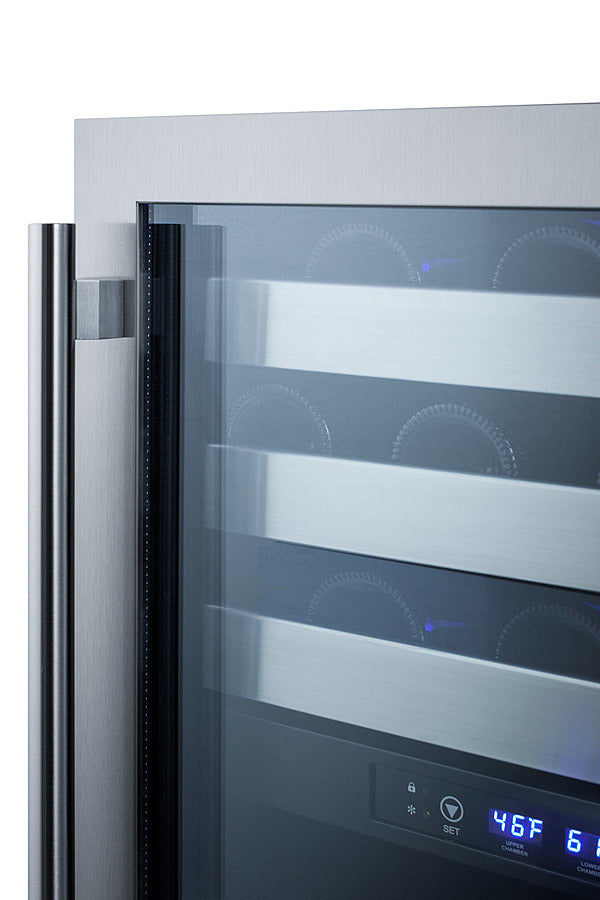

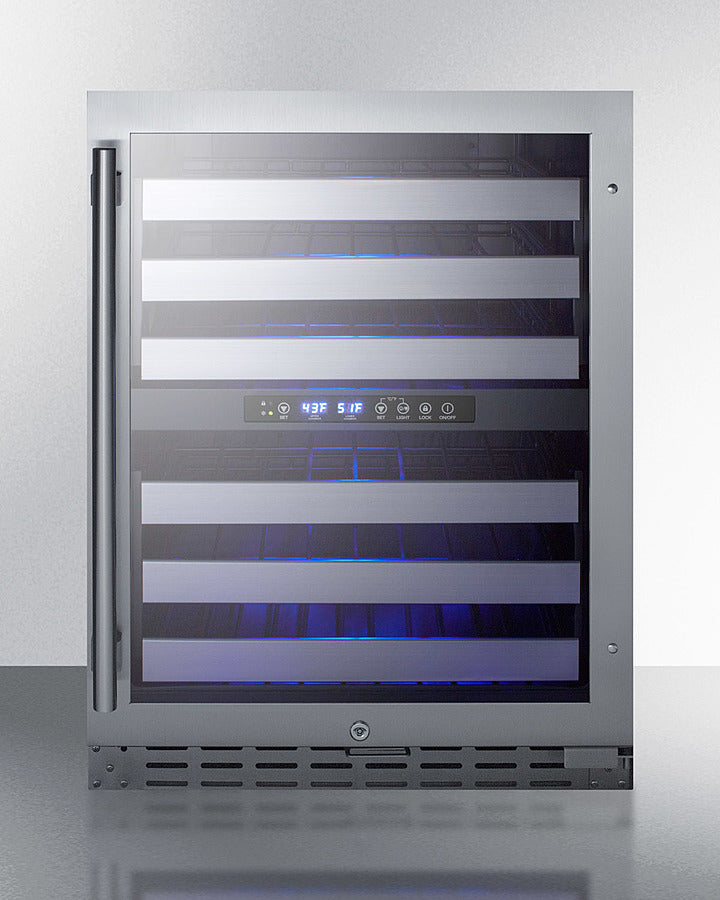

The ALWC532CSS is a dual zone wine cellar that is ETL-S listed to NSF-7 commercial standards. The front-breathing design allows built-in installation, while the fully finished stainless steel wrapped cabinet also enables freestanding use. Sized just under 32 inches high and 24 inches wide, this unit makes an ideal fit under lower ADA compliant counters. The user-reversible double pane tempered glass door features a seamless stainless steel door trim and pro style handle in stainless steel. A factory-installed lock offers added security and a stainless steel kickplate completes the look.

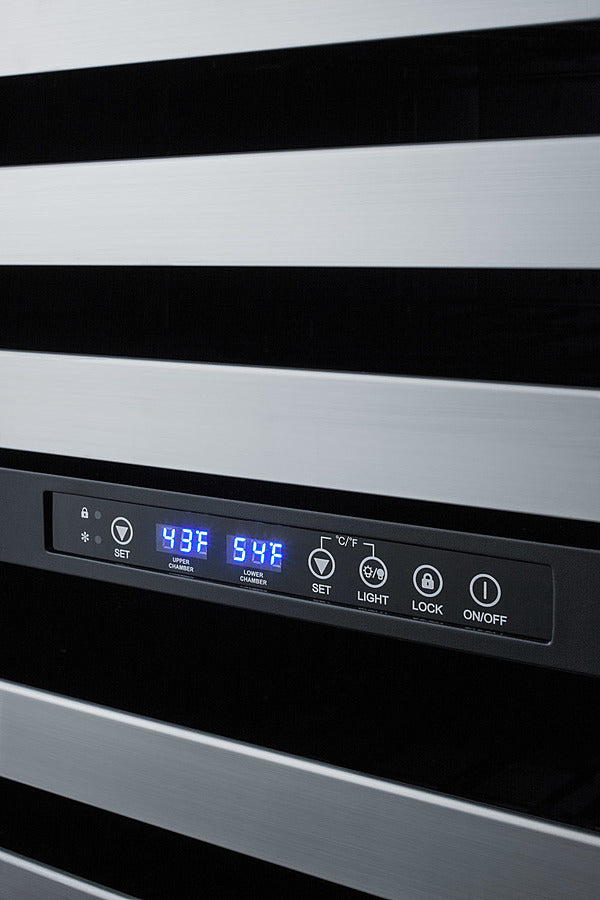

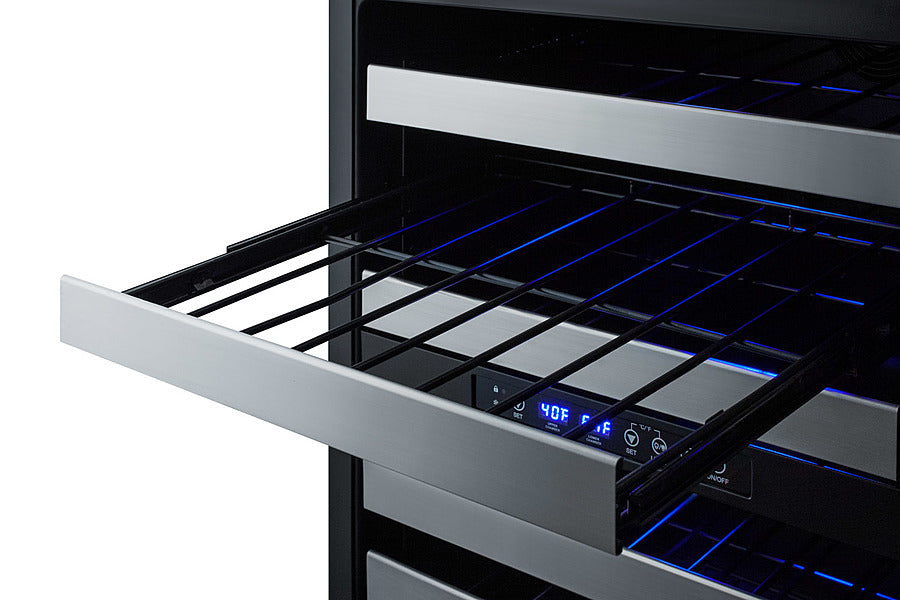

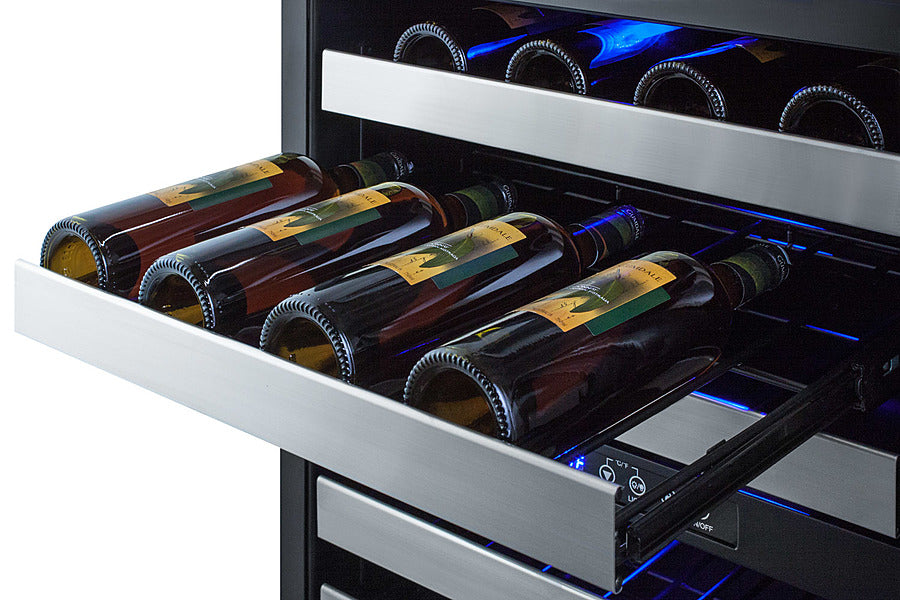

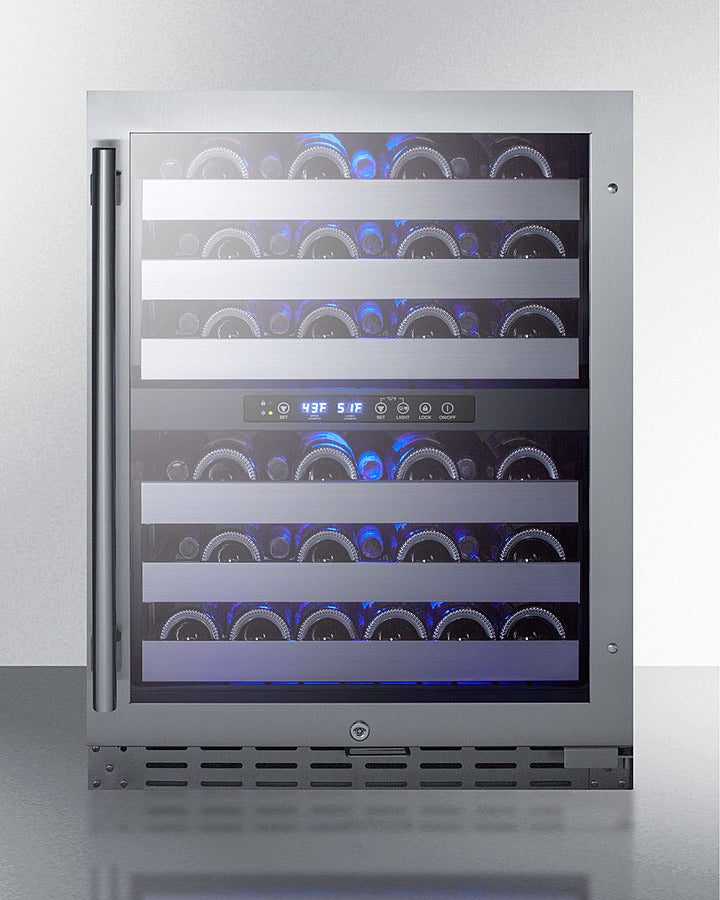

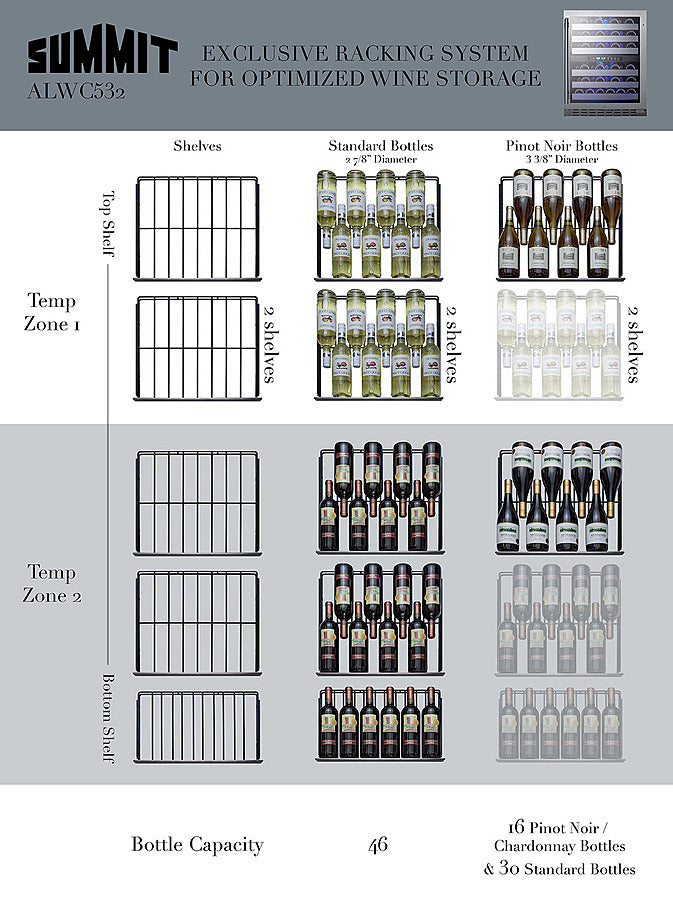

Inside, the ALWC532CSS is designed to store up to 46 standard Bordeaux style bottles, or a combination of 30 Bordeaux and 16 wider Burgundy bottles. The digital control panel allows you to manage the upper temperature chamber between 41 and 50ºF for white wine, while the lower zone is designed to store red wine between 50 and 64ºF. Six full-extension black wire shelves with stainless steel front trim move out smoothly on ball-bearing glides for easy loading. Both compartments include recessed LED lighting in a gentle blue hue for an attractive and efficient presentation.

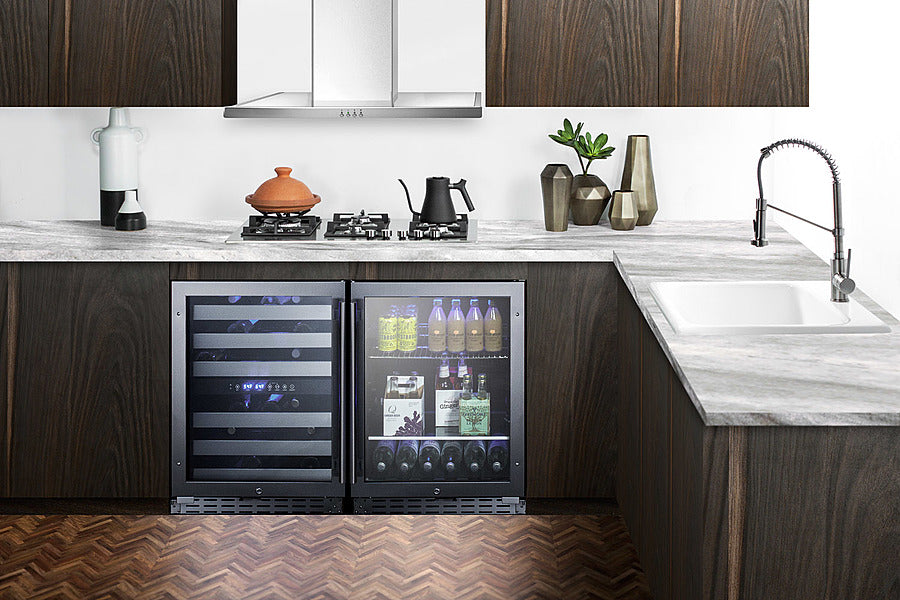

With its advanced user features and versatile design, the ALWC532CSS makes a great addition to any ADA compliant setting looking to store wine in modern style. This unit can be paired with the ALBV2466CSS for a matching set.
| Overview | Refrigerator/Freezer | ||
| Nominal Height | 32.0" (81 cm) | Number of Zones | 2 |
| Height of Cabinet | 31.63" (80 cm) | Door Swing | RHD |
| Nominal Width | 24.0" (61 cm) | Reversible | Yes |
| Width | 23.5" (60 cm) | Shelf Type | Wire |
| Nominal Depth | 24.0" (61 cm) | Shelf Qty | 6 |
| Depth | 23.38" (59 cm) | Thermostat Type | Digital |
| Depth with Handle | 25.38" (64 cm) | Interior Light | Yes |
| Depth with door at 90° | 45.75" (116 cm) | Fan Type | Interior and Exterior |
| Bottles | 46 bottles | Refrigerant Type | R600a |
| Defrost Type | Automatic | Refrigerant Amount | 1.23 oz. |
| Door | Glass | High Side PSI | 150.0 |
| Cabinet | Stainless Steel | Low Side PSI | 50.0 |
| US Electrical Safety | ETL | Interior Height 1 | 11.63" (30 cm) |
| Canadian Electrical Safety | ETL-C | Interior Width 1 | 20.5" (52 cm) |
| Sanitation | ETL-S | Interior Depth 1 | 18.0" (46 cm) |
| Amps | 1.25 | Compressor Step Depth | 6.0" (15 cm) |
| Voltage/Frequency | 115 V AC/60 Hz | Level Legs | 2 |
| Weight | 113.0 lbs. (51 kg) | Temperature Range | 41 to 64ºF |
| Parts & Labor Warranty | 1 Year | Interior Height 2 | 11.88" (30 cm) |
| Compressor Warranty | 5 Years | Interior Width 2 | 20.5" (52 cm) |
| UPC | 761101065540 | Interior Depth 2 | 18.0" (46 cm) |
| Sound Level | 34 dB |
|
ASSEMBLY DRAWING |
| SUPPORT |
